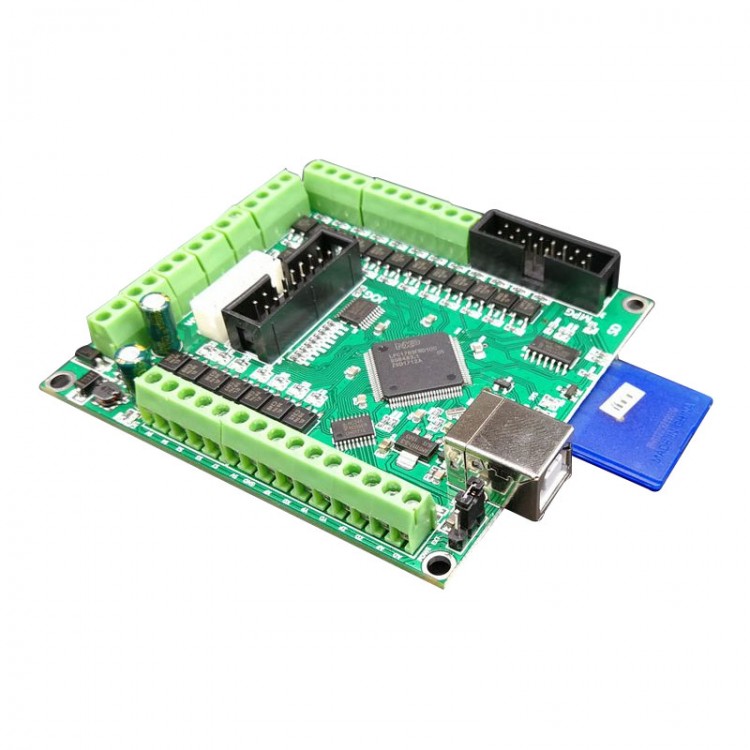

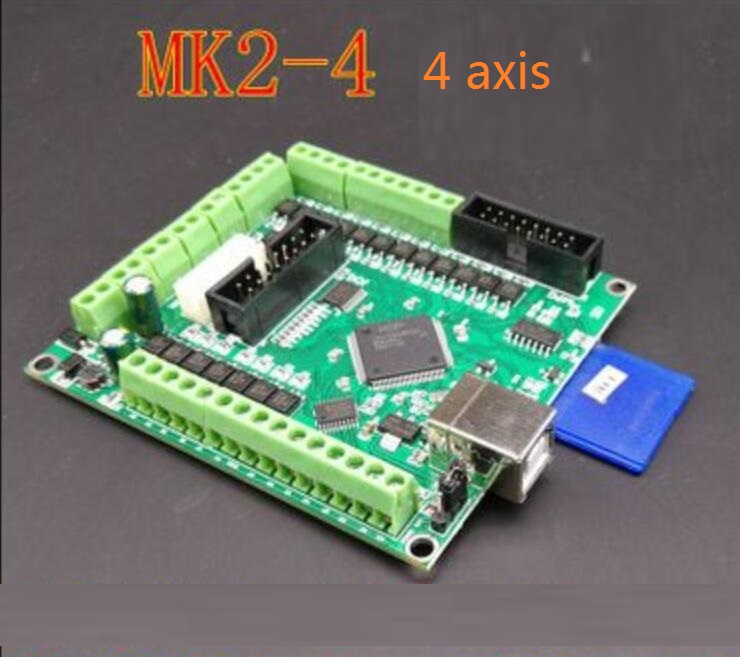

USB CNC MK4 4 Axis Motion Control Card Offline Engraving Machine Controller CNC Router

USB CNC MK4 4 Axis Motion Control Card Offline Engraving Machine Controller CNC Router



Description:
- 100% photoelectric isolation, 100% can be offline running.Do not need a computer,comes with start and stop the interface.
- One computer can control multi control boards.
- Support manual controller(Manual controller supports continuous step point motion model,auto start,stop,emergency stop switch)
- 4 axis,100k output,suppot for straight line,arc interpolation,support 6 axis linkage
- Support 3D print(need to use with temperature controller)
- Support HBOT structure,MakerBot,Prusa I3,Ultimaker2 mechanism

Specifications:
- Support all stepper motor and servo motor driver that pulse/direction control signal input
- 4 axis output,the maximum 100K frequency output for each axis,can be connected to servo
- Support 7 channel control signal output,spindle control,cooling,spray and tool change control
- Support 5 channel control signal input - open,pause,stop,emergency stop,signal interface tool;
- Support hardware 4 axis 8 directions limit input
- Support soft limit
- Support return difference
- Support 4 axis linkage,four axis linkage;
- Support SD card,offline operation,the tool path file can be greater than 100M;
- Support for straight line,arc interpolation
- Support hand control board to control the 4 axis motion,support point moving step mode
- Support 3 axis electronic handwheel,customed
- Support Windows XP,Vista,Windows 7,8 or 8.1 (32 or 64 bit) desktop computer/laptop USB (V2.x)
- Standard G RS274/NGC G code (compatible with EMC2 and Linuxcnc)
- Support advanced G code - G40,G41,G42 (tool radius compensation)
- Supports advanced G code - G49,G43 (tool length offset)
- Support for advanced G code - G54,g59.3 (coordinate system origin)
- Compatible with SolidCAM,MasterCAM,ArtCAM,Vectric,CamBam,MeshCAM and other software generated G-code
- Support G code of the Profili 4 axis and the 3 axis
- Support DXF file directly to generate tool path
- Support PLT/HPGL file import directly to generate tool path
- Support NC-Drill (Excellon) file import directly generated tool path
- Support Gerber (RS-274x) file import directly generated tool path

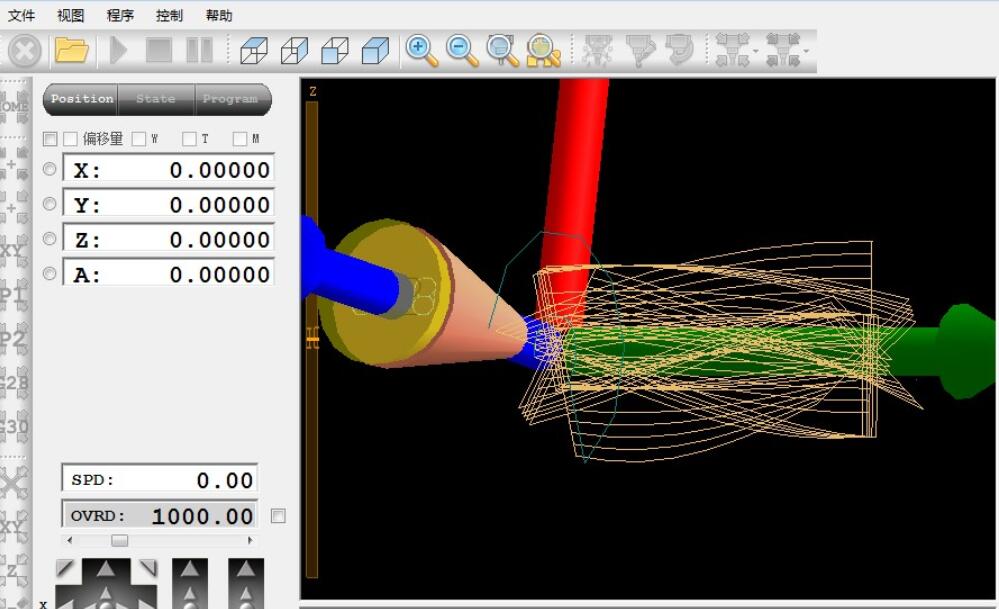

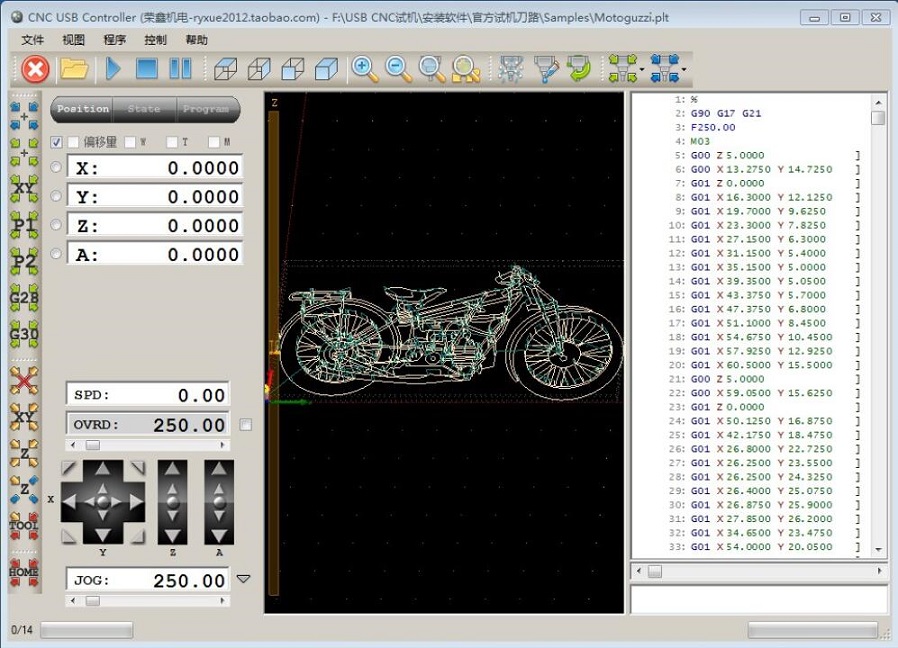

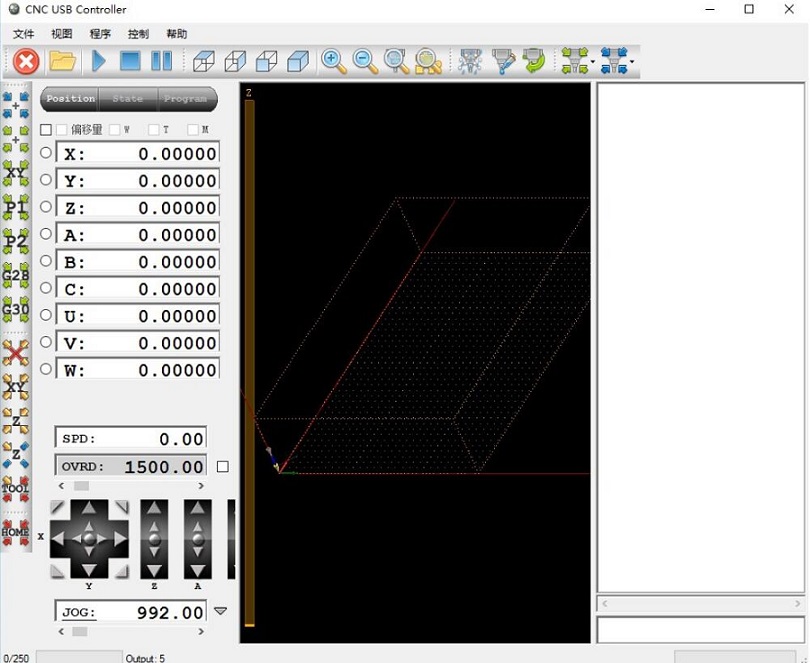

- Tool path simulation
- Coordinate automatic return program
- Support for tool changing procedure
- Automatic measuring tool length
- Export tool path to G code

Package list:
- 1 x 4 Axis Motion Control Card
- 1 x USB cable (1.5m)
