LCD Display GSM 900 4G LTE 1800 mhz Dual Band Mobile Signal Amplifier Repeater

LCD Display GSM 900 4G LTE 1800 mhz Dual Band Mobile Signal Amplifier Repeater

Note:The antenna is outdoor log-periodic antenna.

Product Description:
- This repeater is suitable for GSM 900 and GSM/LTE 1800, can boost voice and 4G data.
- Buyers from US and Canada please don't buy, it can not work in US and Canada.

It can boost voice and 2G data for these operators:
- France:Orange,SFR, Bouygues
- Germany: T-Mobile,Vodafone, E-Plus, O2, Vistream,
- Greece:Cosmote,Vodafone Greece,Wind
- Italy: TIM,Vodafone Italy,Wind
- Netherlands:T-Mobile Netherlands,Vodafone Netherlands,KPN,Telfort,6Gmobile,ASPIDER Solutions
- Spain:Orange Espana,Vodafone Spain,TME, Movistar
- United Kingdom:BT,O2,Airtel-Vodafone,Railtrack,Vodafone,Opal Telecom Ltd,Cloud9,Truphone,Virgin,JT-Wave,BT,Inquam
- Saudi Arabia:Zain Saudi Arabia,
- Australia:Optus,Telstra,Crazy John's
- New Zealand:Telecom New Zealand
- Norway:Telenor,NetCom ,Tele2

It can boost 4G data for these opeators:
- France:Bouygues
- Germany: Deutsche Telekom,E-Plus,
- Greece:Cosmote,Vodafone Greece,
- Italy:3 Italy, TIM,Vodafone Italy,
- Netherlands:T-Mobile Netherlands,Vodafone Netherlands,
- Spain:Orange Espana,Vodafone Spain,
- United Kingdom:3 UK, EE
- Saudi Arabia:STC,Zain Saudi Arabia,
Australia:Optus
New Zealand:Telecom New Zealand
Norway:Telenor,NetCom ,Tele2

Note: Before you buy this repeater , please make sure 900mhz and 1800mhz signal is match with your phone.If you don't know about it , please make a phone call to your operator.Thank you.

No.: KW20L-GD

Selling Point:
- New model from Lintratek
- Coverage: cover about 500-1000sqm without barriers
- GSM 900mhz+ 1800mhz dual repeater gsm 900 1800 dual band signal booster
- Great cover,65db high gain
- Easy to install .
- lcd display can indicate the signal status.
- AC Power Cord: defaulted EU plug,if you need American standard or some others please contact us before order.
- The whole set with outdoor antenna,indoor antenna,10m cable
- 1 Year Warranty

Feature:
- High linear design,low interference to BTS.
- Compact size,low consumption,easy to install,great cover.
- Expand signal coverage where signal is weak or unavailable eg.villa,high building,countryside,parking lot ect.
- Improve your mobile signal ,no more bad reception,no more dropping calls.

Parameter Sheet:
- Device can work perfectly in condition of Outdoor signal strength more than-70db or -65db
- Working System:GSM+DCS
- Frequency Range:Uplink:890-915mhz / 1710-1785mhz Downlink:935-960mhz/ 1805-1880mhz
- Gain:65db
- Output power:20dbm
- Bandwidth:25M+60M/25M+60M
- Ripple in band:less than 5db
- VSWR:less than 3db
- MTBF:more than 50000 hours
- Power supply:AC:100-240V DC:12V 2A
- Inpedance:50 ohm
- RF connector:N female
- MTBF:more than 50000 hours
- Dimensions:200x190x50mm
- Weight:1.2kg
- Environment conditions: IP40
- Feature:With LCD display; hot sale in 2015

Easy Setup in 4 easy steps:
- 1.Mount the External Antenna where you have the strongest cell phone signal, typically on a roof or in an attic.
- 2.Connect the indoor antenna to the Booster Base Unit and place where you need improved signal. There should be a minimum of 15 vertical feet of separation between the Base Unit and External Antenna.
- 3.Run the RG-6 coax cable (32 feet) between the Base Unit and External Antenna.
- 4.Connect the power supply to the Booster Base Unit and plug into a power outlet and you are done!

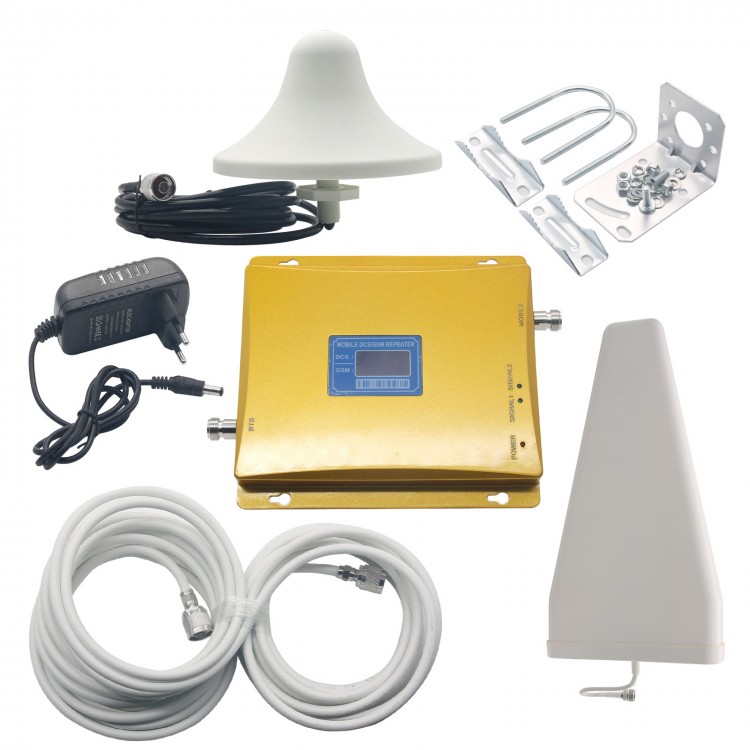

Packaging Included:
- 1 x GSM 900mhz + 1800mhz Dual Band Booster
- 1 x Power charger
- 1 x Outdoor log-periodic antenna
- 1 x Indoor Mushroom antenna
- 1 x 10 meter cable
