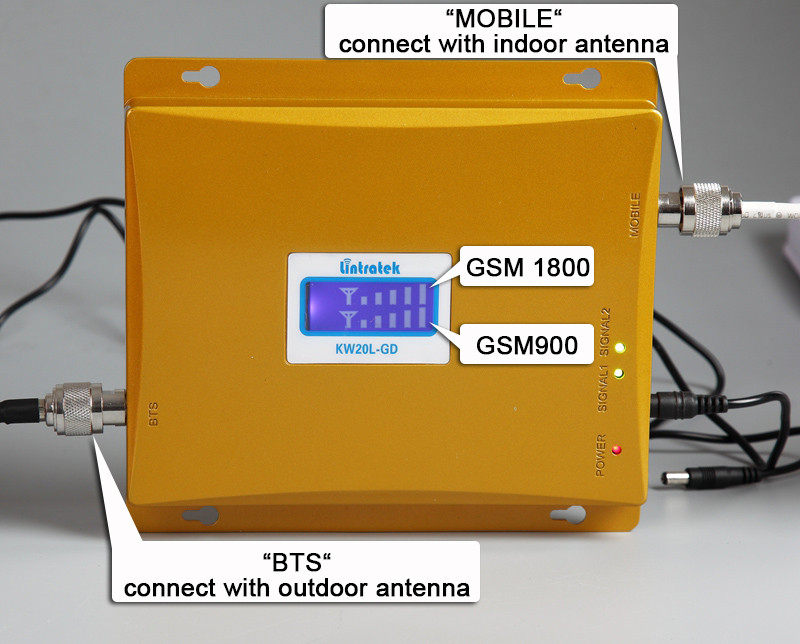

LCD Display GSM 900MHz 4G LTE DCS1800 MHz Dual Band Mobile Signal Amplifier Repeater
Note:The antenna is Mushroom antenna.
Specifications:
- Frequency range:uplink 890-915MHz;downlink 935-960MHz
- Uplink 1710-1785MHZ downlink 1805-1880MHZ
- Ambient temperature:-10, -60
- Power supply:AC110-220V;45-55HZ
- Reliability:to be on the GB6993-86 standard
- EMC:for ETS300694-4 standards

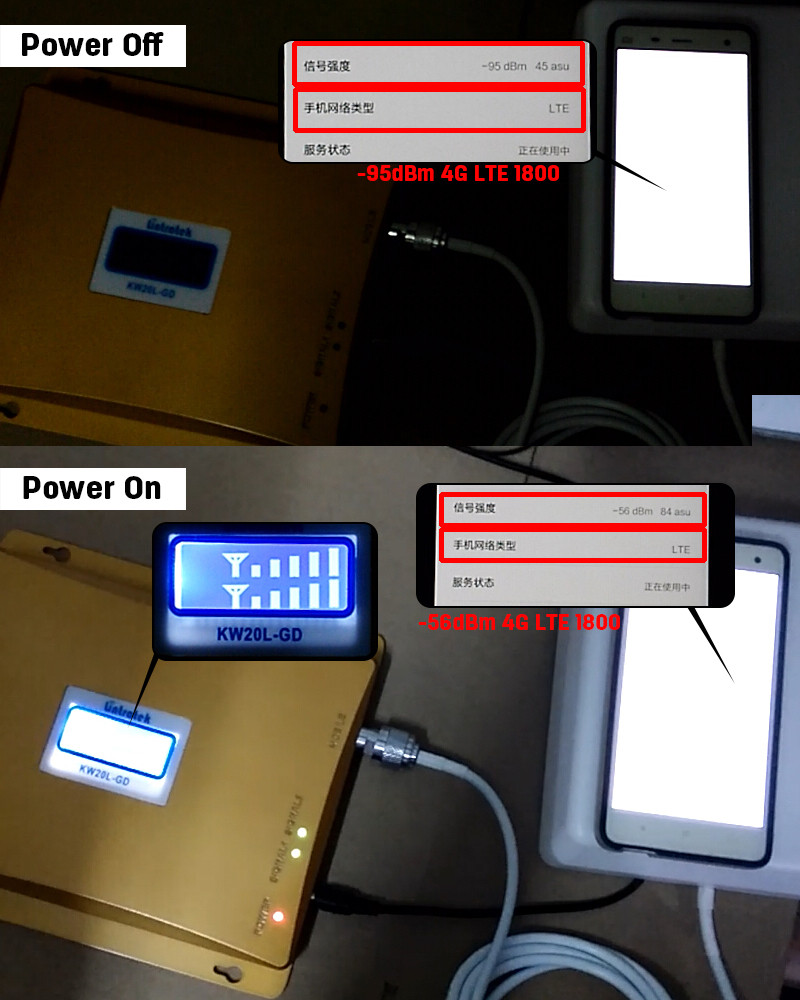

- Function:LCD display
Practical range:
- Frequency range: a) forward: GSM:935-960 (MHz), reverse: GSM 890-915 (MHz), B) forward: DCS1710-1785 (MHz), reverse: DCS1805-1880 (MHz)
- Input power range: -70 ~ 40dBm
- Coverage: 200 square meters (distance will reduce the barrier when the way, that is, the fence)
- Gain (dB): forward: 65 dB: 60dB reverse
- Characteristic impedance: 50 ohms
- Stationed in Bobbi: 1:1.5
- 70dB ">7" seclusion degree > 70dB
- Noise factor: < 6 decibels
- Group delay: < 5 microseconds
- Passband ripple: 3.0dB of P-P
- Main power supply: AC 220V (AC / DC 9V DC)
- Cabinet style: door wall hanging type

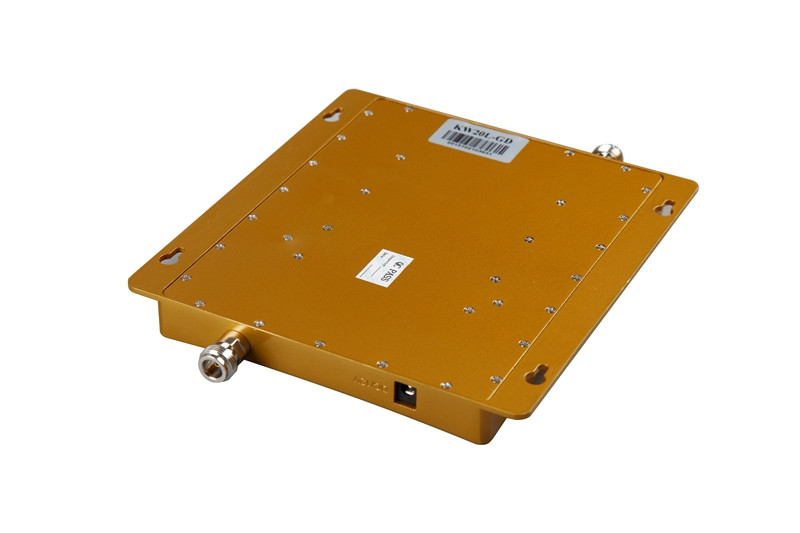

- Dimensions: signal booster: 240 x 180 x 22 mm (LxWxH)
Installation notes:

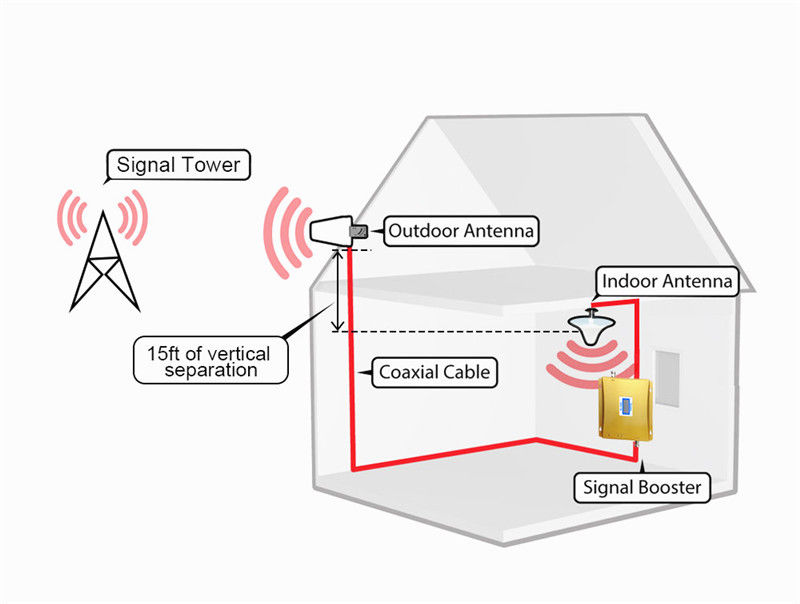

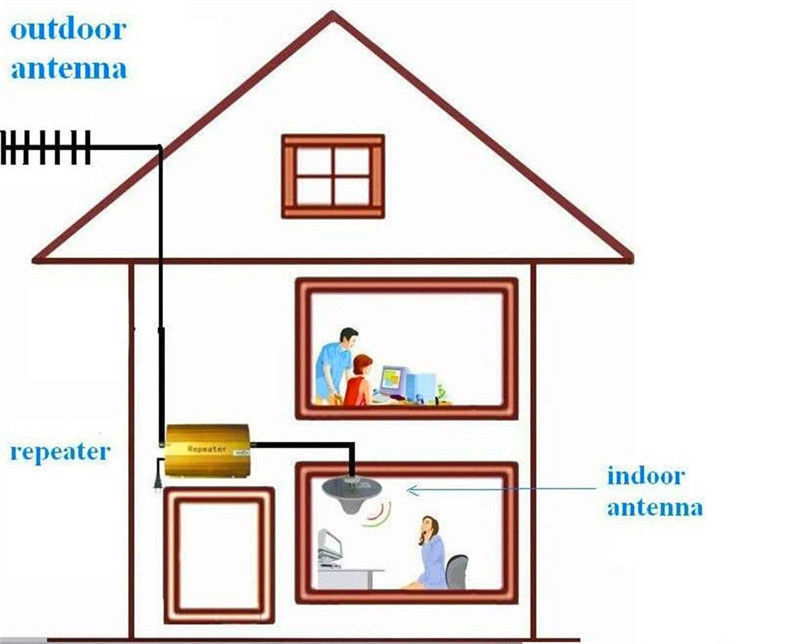

- Please make sure the distance between indoor and outdoor antenna is 10m, a partition wall in the middle, so that the signal will be better.
- Please try to select a good signal place and set up outdoor antenna.
- Please be sure that you have four to five good outdoor signals, otherwise it will not work in your room.
Application Scope:
- Small signal blind area or weak signal area: such as underground or semi underground business place, small basement, underground parking lot and so on
- Small hot signal complaints areas: conference rooms, small supermarkets, small shopping malls, writing rooms, small public areas, etc.
- Areas with large traffic and social influence: bars, Internet cafes, dance halls, coffee shops, health clubs, recreation places, etc.
- An elevator, especially an elevator in an elevator shaft, that is inconvenient to lay wires and cables
- Family, office, luxury yachts, private cars
- There is no signal in a large factory building
Package List:

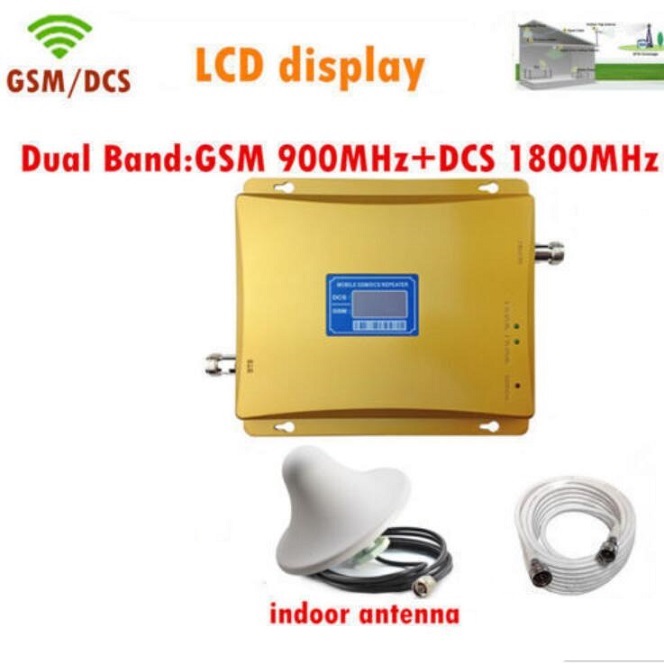

- 1 x 55 DB GSM 900MHZ/DC 1800 MHZ Dual Brand Repeater(Max.Square Meters:About 1500M2)

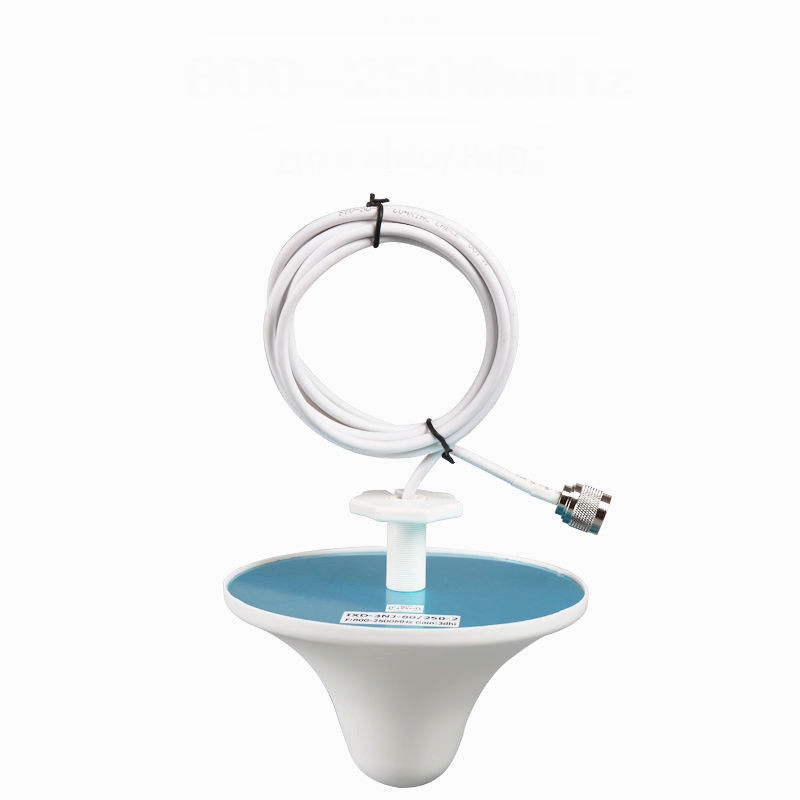

- 1 x Indoor Mushroom Antenna with cable
- 1 x User Manual

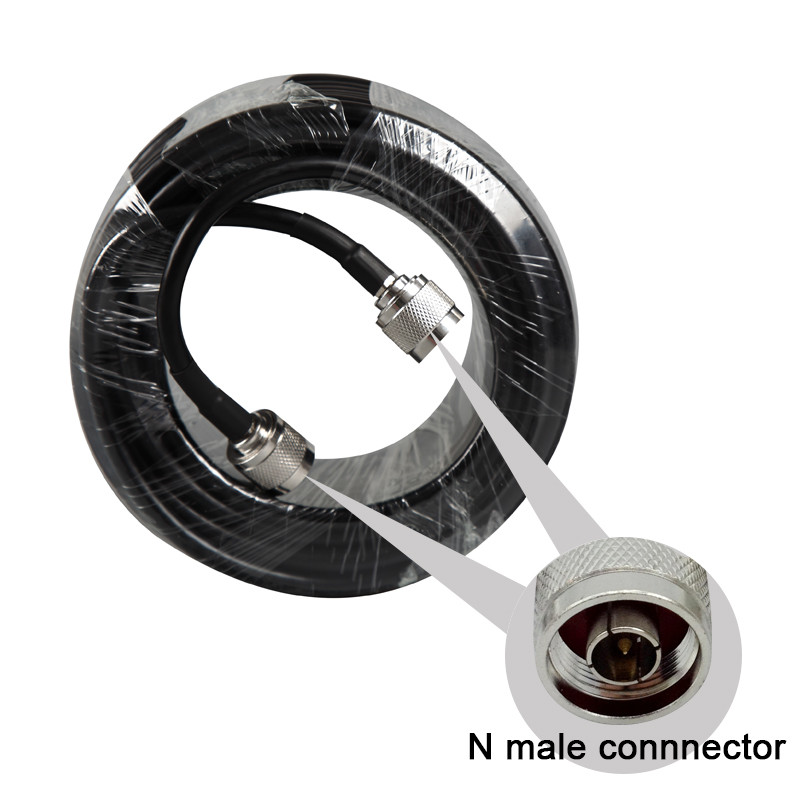

- 1 x 10m Cable
- 1 x Power charger
