900MHz GSM Repeater GSM Booster Cell phone Repeater Mobile Signal Booster Cover 20000 Square Meters

900MHz GSM Repeater GSM Booster Cell phone Repeater Mobile Signal Booster  Cover 20000 Square Meters

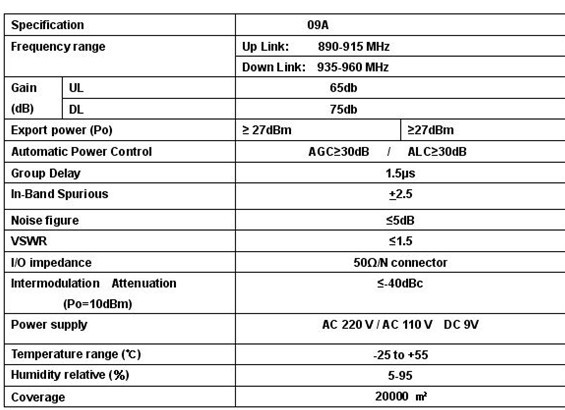

Specification:
- Gain:65dB
- I/O impedance:50Ω
- I/O return loss:≤-8dB
- Export power(Po):≥23dBm
- Connector:N-Female
- VSWR:<1.5(V.S.W.R)
- Device delay:≤0.5μs
- Working area:>1000 square meters
- Spurious radiation:<-36dBm
- Weight:1620g

Function:
a) Power supply LED denote
b) Export power LED denote
Power supply:AC110~220V±10%   45~55Hz
Guard band rejection:(BW-60dB)≤42MHz ,(BW-70dB)≤45MHz

Working areas:
a.Certain regions with weak even blind signal,such as underground or semi-underground places of business,basements,parking lots etc.
b.Small-scale areas with signal not strong enough,such as conference rooms,offices,small supermarkets,shopping malls and some special public places like public security system and road safety management.
c.Large-scale places with weak signal,such as hotels,bars,cafes,dance halls,clubs,KTV rooms etc.
d.Elevator,subway,tunnels,lift wells in particular,not in the lift cables laid.
e.Homes,luxury yards,private cars etc.

Features:
- High-gain linear power amplifier
- ALC Remote Control
- No noise
- No interference to the base station
- No harm to the human body
- Stable performance
- Industrial design
- With full-duplex communication mode
- Dispel the heat efficiently
- Comply to the ETS300 694-4 standard
- Comply to the GB6993-86 standard

Operation circumstance:
-  Operation temperature: -10'C ~ +50'C
-  Relative humidity(RH): 30% ~ 95% (without frost)
- Atmosphere pressure: 86 ~ 106KPa
-  Environment noise: less than 6dB

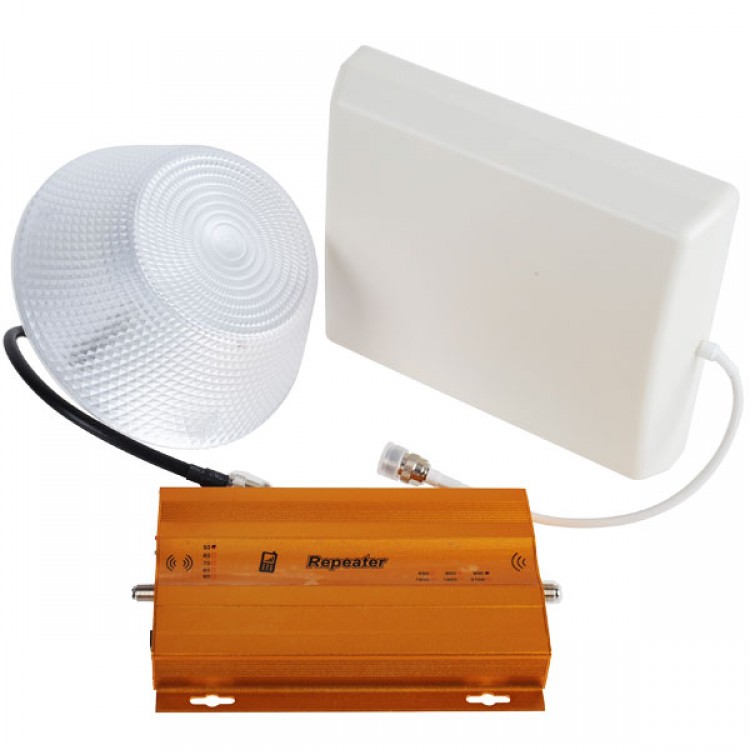

Package(Standard carton):
A.Packing list:
- Mobile/Cellular phone booster     1pcs
- AC/DC adapter                          1pcs
- User's manual                           1pcs
- outdoor antenna                        1pcs
- ceiling antenna                         1pcs
- 10m standard cable indoor
- 10m standard cable outdoor
- Product Weight:1.5kg (net)
- Box Size:l205 x w190 x h60 mm
- Color:Gold
