LCD Display 4G LTE 2600mhz Band 7 Mobile Phone Signal Booster Amplifier Canada

LCD Display 4G LTE 2600mhz Band 7 Mobile Phone Signal Booster Amplifier Canada

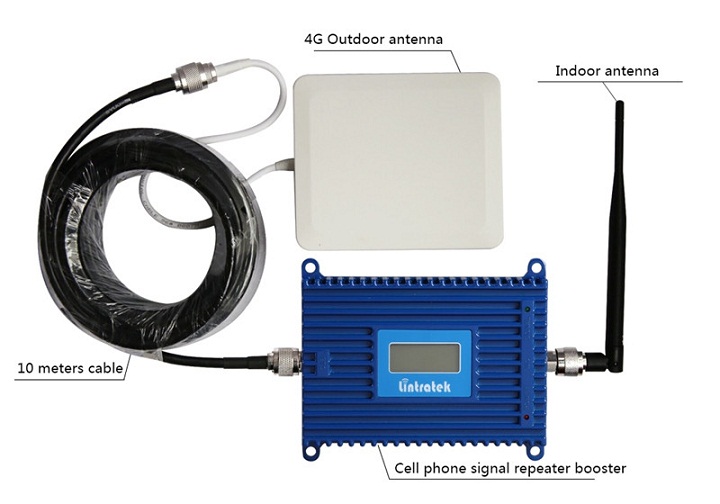

Product Including and Details

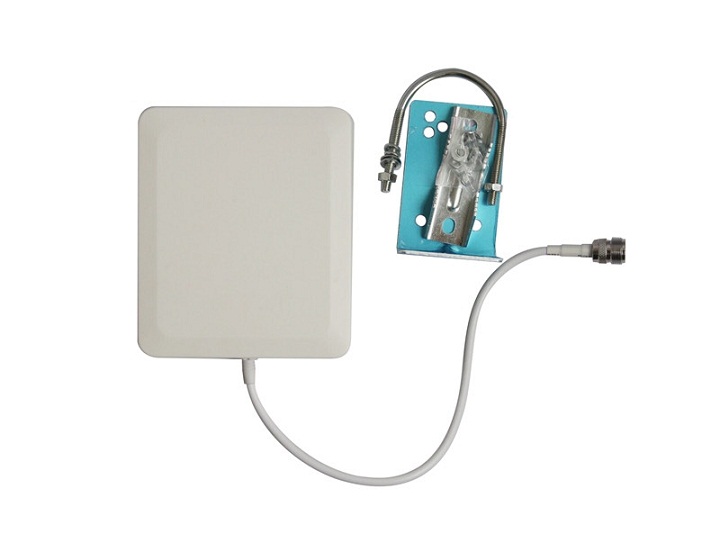

Outdoor 4G panel antenna
Gain:10dBi
Frequency: 800-2700mhz

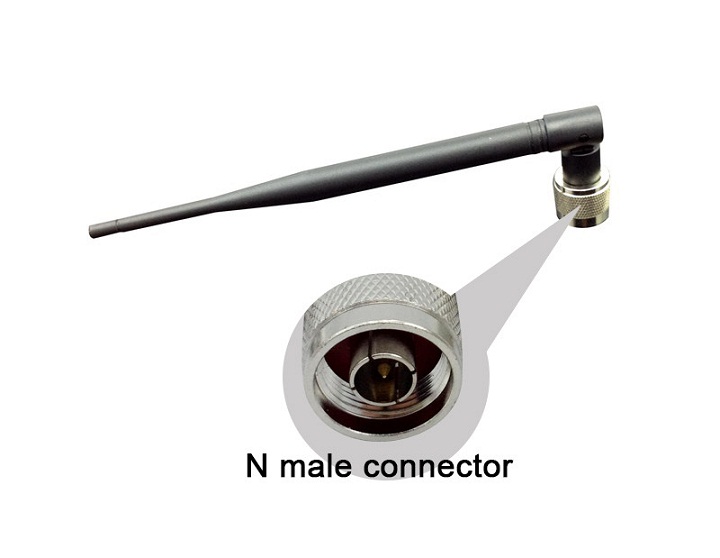

Indoor 4G whip antenna
Gain: 3dBi
Frequency: 2300-2700mhz

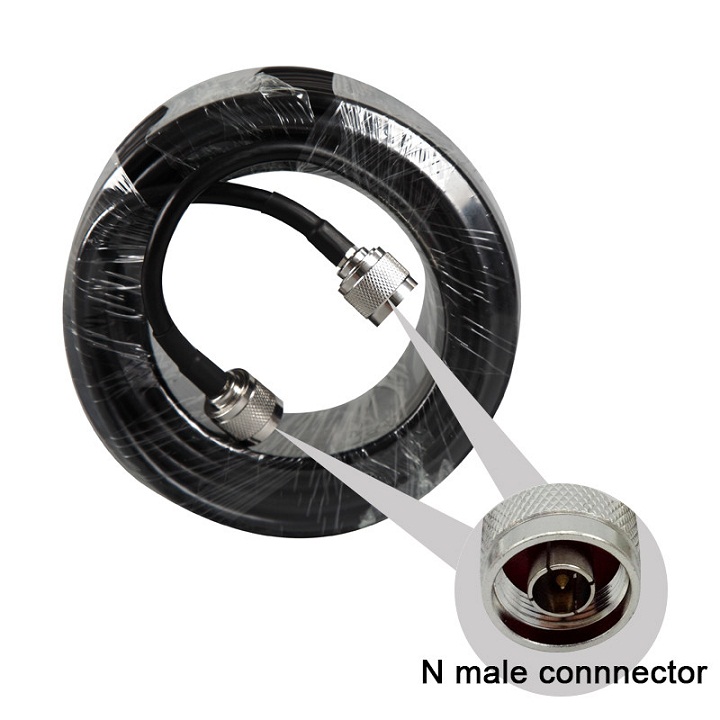

10 meters cablex

Product Description:
- This repeater can improve 4G internet for Asia, Europe and Canada.
- LCD Display 4G LTE 2600mhz Band 7 Mobile Phone Signal Booster Amplifier Canada

FREQUENCY RANGE:2500-2570MHz(UL); 2620-2690MHz(DL) ( LTE 2600 Band 7)
Faster 4G DATA: faster 4G down load and up load for these operators as below:
- *Brazil: Claro Brasil;Oi;TIM Brasil;Vivo
- *Chile:Claro Chile;Entel Chile;Movistar Chile;
- *Colombia:Claro Colombia;Une-EPM;
- *Canada:Bell;Rogers Wireless;
- *France:Bouygues;Free Mobile;Orange France;SFR;
- *Netherlands:Ziggo / UPC Netherlands
- *Russia:Beeline (Vimpelcom); MegaFon;MTS;Rostelecom (Tele2 Russia);Yota (Skartel);
- *Spain:Movistar Espana;Orange Espana;Vodafone Spain
- *Saudi Arabia:Zain Saudi Arabia
- *Norway: Telenor ;NetCom

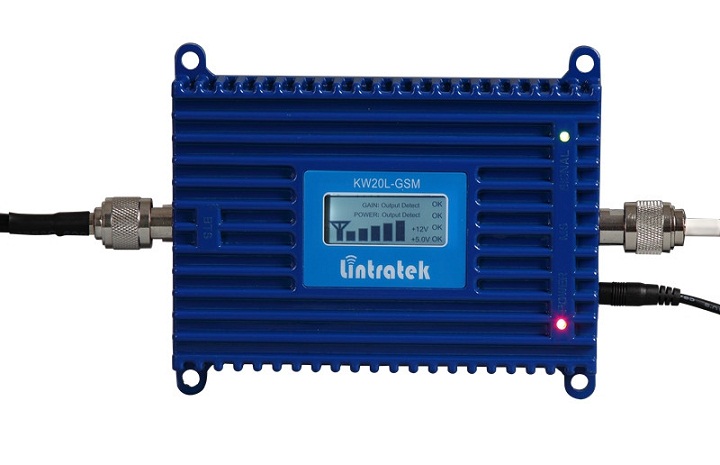

Feature: ALC intelligent level control; 70dB high gain; 20dBm output power; LCD display
Cover Area: 250-350 square meters without barrier

Note: Before you buy this repeater , please make sure 2600mhz signal is match with your phone. If you don't know about it , please make a phone call to your operation.Thank you .

Say goodbye to missed 4G Internet in your home or office:Lintratek lintratek offers solution to slow data inside your home or office space. It boosts 4G LTE data all major carriers in Europe and Canada. This repeater collects the reliable cellular signal you have outdoors and rebroadcasts it indoors, up to 200 square meters. Coverage will vary with outside signal strength, interior walls and distance from the Base Unit.

Enjoy clearer, faster and more reliable service without interruption:If you find that you must be near a window or outside to get adequate cell phone reception, then this cell phone booster is the solution. There are a number of reasons why you may be experiencing poor reception. The most common reasons are: [ 1 ] Distance from the cell phone tower [ 2 ] Obstructions caused by terrain, trees, buildings [ 3 ] Energy efficient windows and other construction materials

Parameter Sheet:
- Device can work perfectly in condition of Outdoor signal strength more than-70db or -65db
- Working System:4G LTE 2600mhz
- Frequency Range:Uplink:2500-2560mhz:Downlink:2620-2690mhz
- Gain:70db
- Output power:20dbm
- Ripple in band:less than 5db
- VSWR:less than 2db
- Power supply:AC:100-240V,50/60Hz  DC:5V 2A
- Power comsumption:less than 8 W
- Inpedance:50 ohm
- RF connector:N female
- Matching Antenna type:N Male
- MTBF:more than 50000 hours
- Dimensions:145*100*20mm
- Weight:0.85kg
- Installation:wall
- Environment conditions: IP40
- Feature:4G LTE 2600 Signal Expand

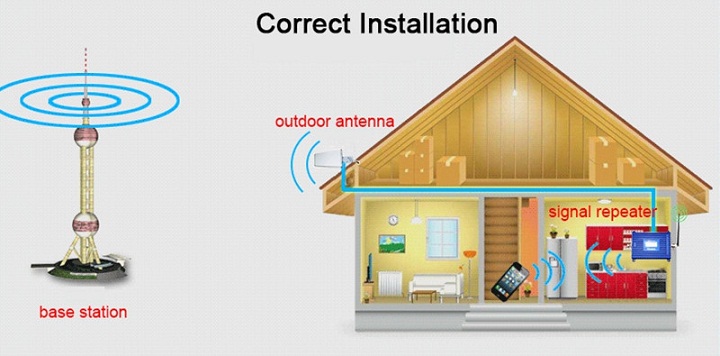

Easy Setup in 4 easy steps:
- 1.Mount the External Antenna where you have the strongest cell phone signal, typically on a roof or in an attic.
- 2.Connect the indoor antenna to the Repeater Base Unit and place where you need improved signal. There should be a minimum of 2 vertical meters of separation between the Base Unit and External Antenna.
- 3.Run the RG-6 coax cable (10 meter) between the Base Unit and External Antenna.
- 4.Connect the power supply to the Repeater Base Unit and plug into a power outlet and you are done!

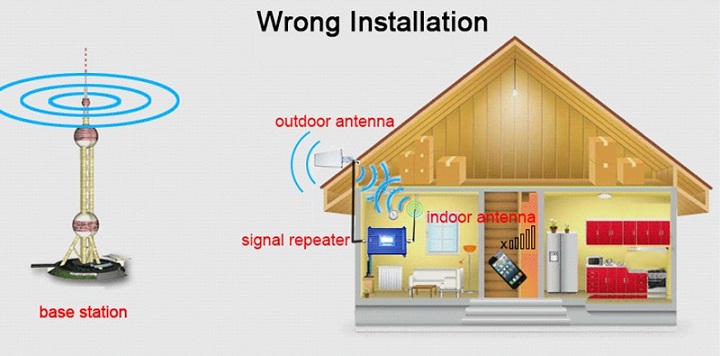

When outdoor antenna and indoor antenna are separated not enough, then it will be self-oscillation.Your phone will not get any signal.

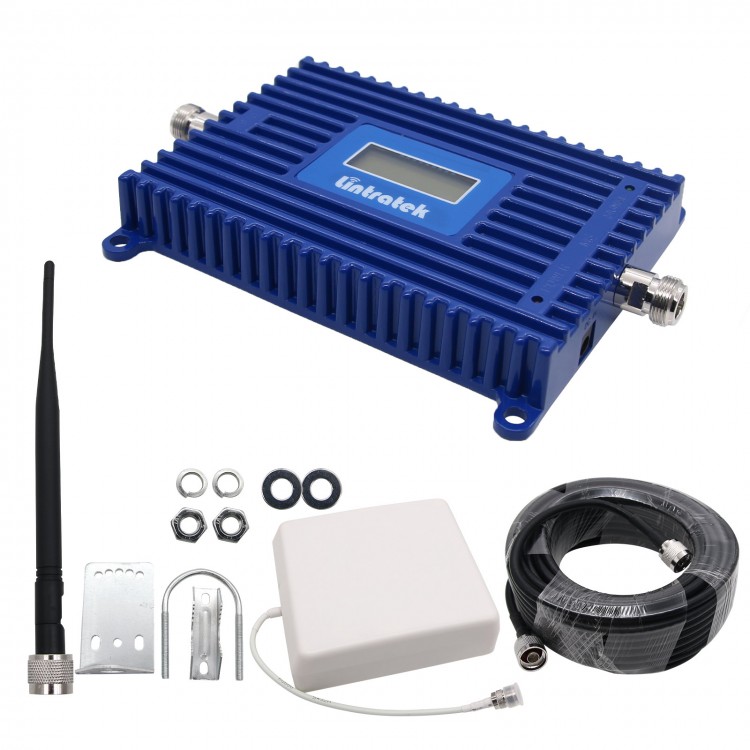

Packaging Included:

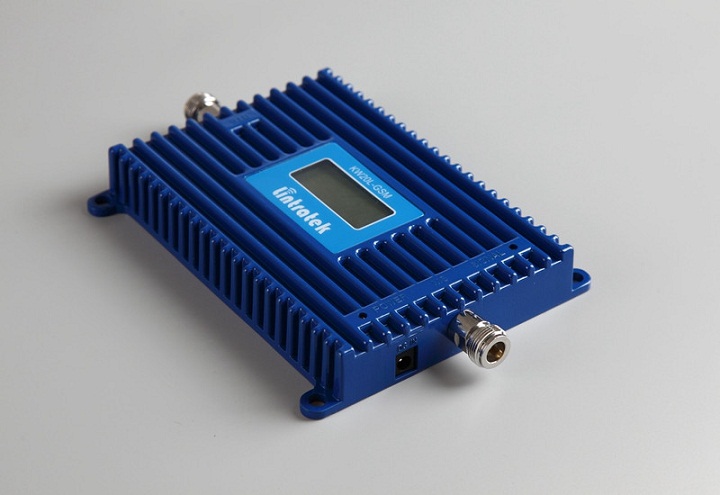

- 1 x 4G LTE 2600mhz Booster
- 1 x AC Power Cord
- 1 x Outdoor antenna
- 1 x Indoor antenna
- 1 x 10 meter cable
