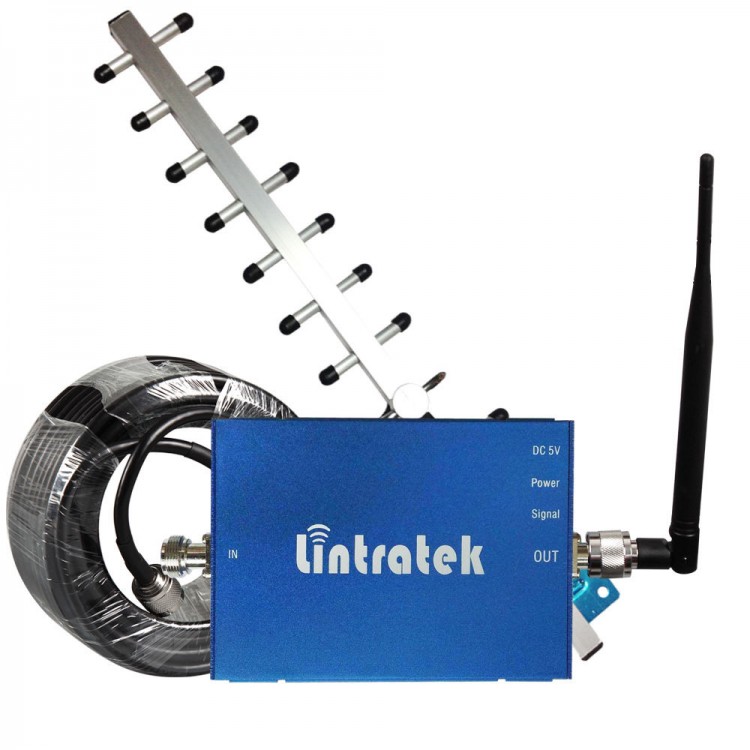

Sprint T-mobile 2G 3G 4G LTE 1900 Cellphone Signal Booster Mobile Amplifier Kit

Sprint T-mobile 2G 3G 4G LTE 1900 Cellphone Signal Booster Mobile Amplifier Kit



Product Including and Details:

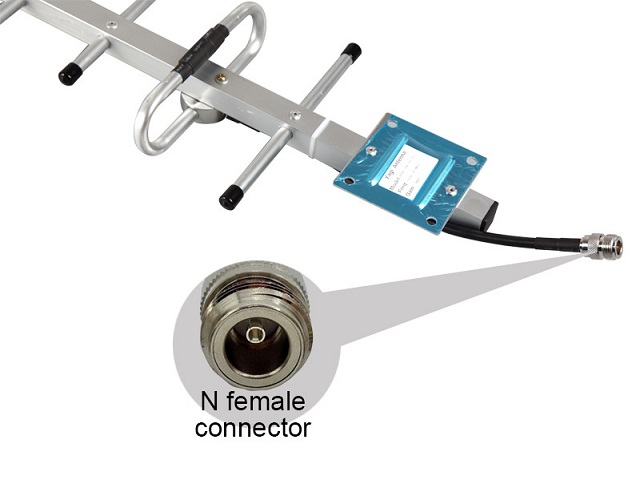

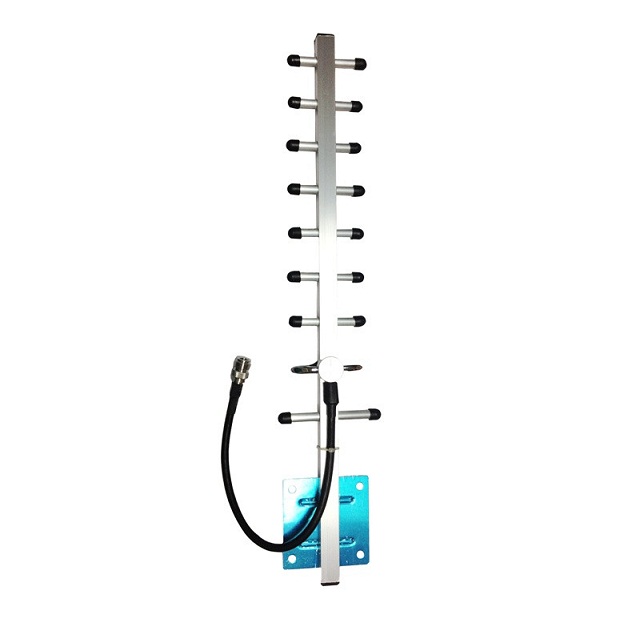

yagi antenna

Gain:13dBi

Frequency: 1710-2170mhz

Indoor ceiling antenna
Gain: 3dBi
Frequency: 800-2200mhz

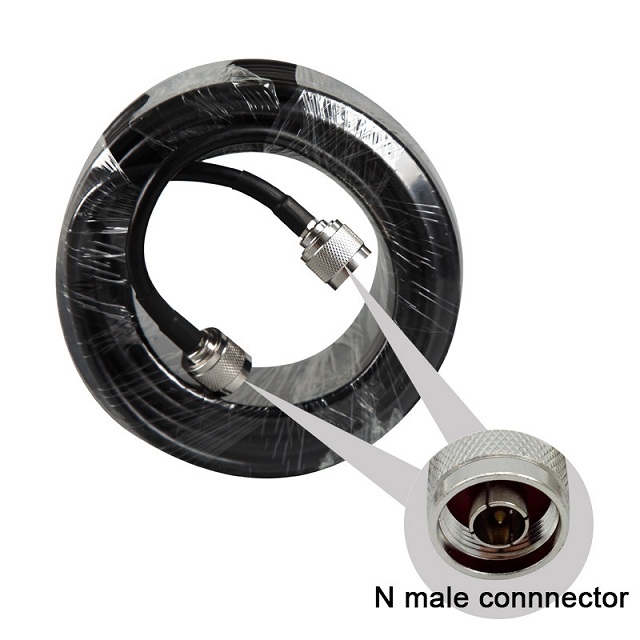

10 meters cable N male connector to N male connector
This repeater can work for operators:
Verizon(1900mhz):    Voice, 2G data,3G data
T-mobile(1900mhz):  Voice, 2G data,3G data
AT&T(1900mhz):        Voice, 2G data,3G data
Sprint(1900mhz):       Voice, 2G data,3G data, 4G data
Telus(1900mhz):         Voice,3G data
Bell(1900mhz):           Voice,3G data
MTS(1900mhz):          Voice,3G data
Rogers(1900mhz):     Voice,3G data

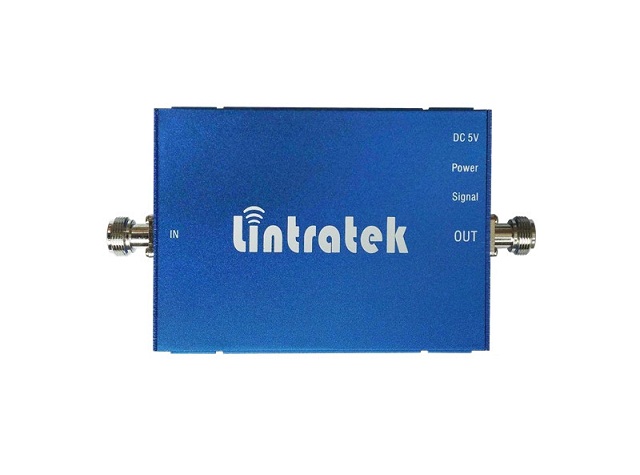

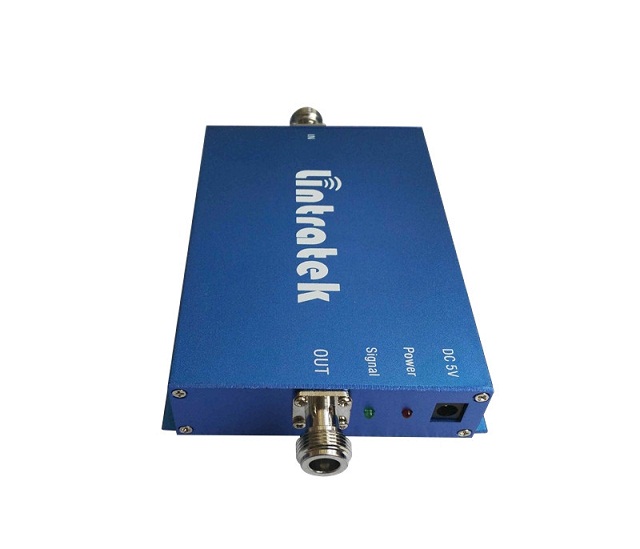

Model No.: KW17A-PCS

Parameter Sheet:
- Device can work perfectly in condition of Outdoor signal strength more than-85db or -80db
- Working System:GSM 1900MHz
- Frequency Range:Uplink:1850-1910mhz Downlink: 1930-1990mhz
- Gain:70db
- Output power:20dbm
- Bandwidth:60M
- Ripple in band:less than 5db
- VSWR:less than 3db
- MTBF:more than 50000 hours
- Power supply:AC:100-240V DC:5V 1A
- Inpedance:50 ohm
- RF connector:N female
- MTBF:more than 50000 hours
- Dimensions:135*105*26mm
- Weight:0.65kg
- Installation:wall
- Environment conditions: IP40
- Feature:ALC Function ≥20dB

Installation Steps:

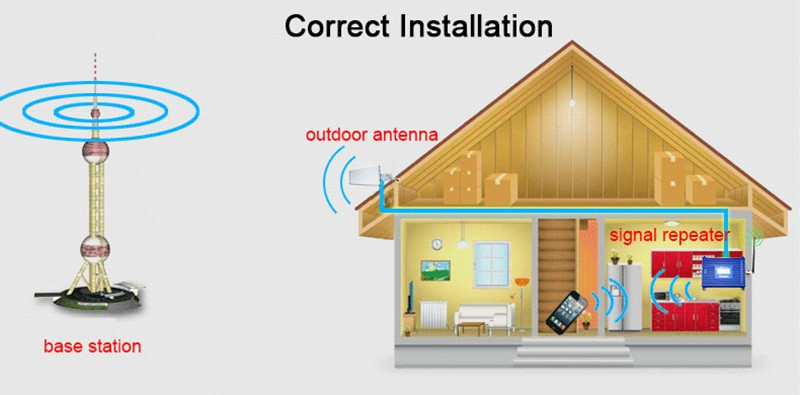

- 1.Fix up outdoor antenna reception on housetop or the high place and point to signal tower .

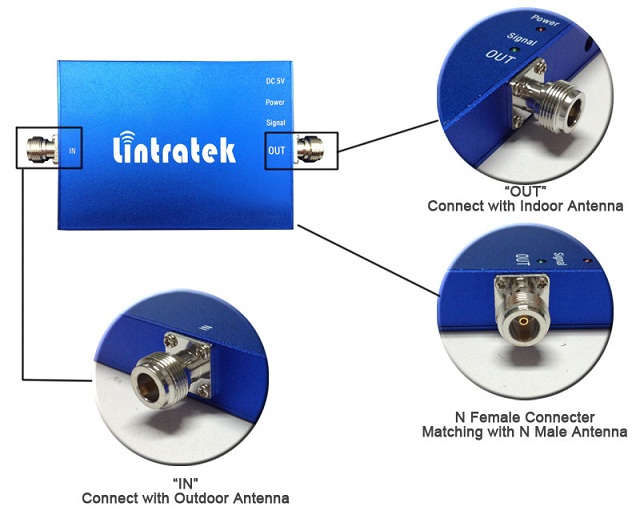

- 2.Connect outdoor antenna to repeater machine ''BTS"  port via cable.
- 3.Connect indoor antenna to repeater ''MOBILE " port .
- 4.Plug AC power cord into power source and finished.

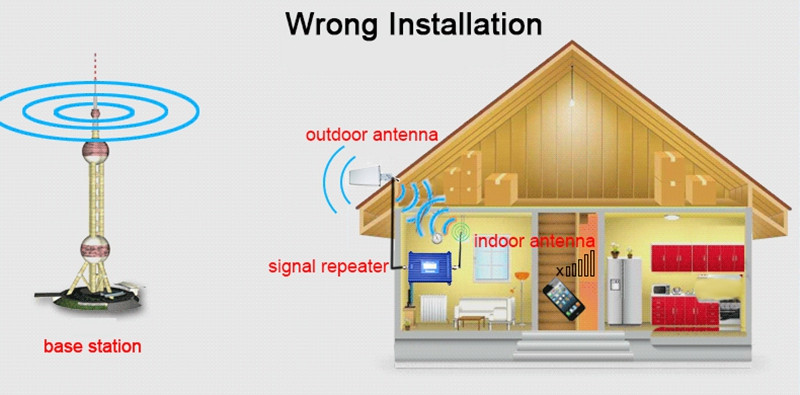

- 5.TIP: An outdoor antenna should be "isolated" from the internal antenna, that is, there must be constructive obstacles (walls, partitions, etc.) between the antennas.

When outdoor antenna and indoor antenna are separated not enough, then it will be self-oscillation. Your phone will not get any signal.

Note: Pls make sure there is stronge 1900mhz signal outside. Because 850mhz and 1900mhz frequency band are 2G and 3G in US and Canada, if you only have 850mhz signal outside, this 1900mhz repeater can not boost signal for you. So, any buyer if you are not sure your outdoor signal is 850mhz or 1900mhz, it is strong to recommend buy 850mhz +1900mhz dual band repeater.

Packaging Included:
- 1 x GSM 1900mhz Booster
- 1 x AC Power Cord
- 1 x Outdoor antenna
- 1 x Indoor antenna
- 1 x 10 meters cable
