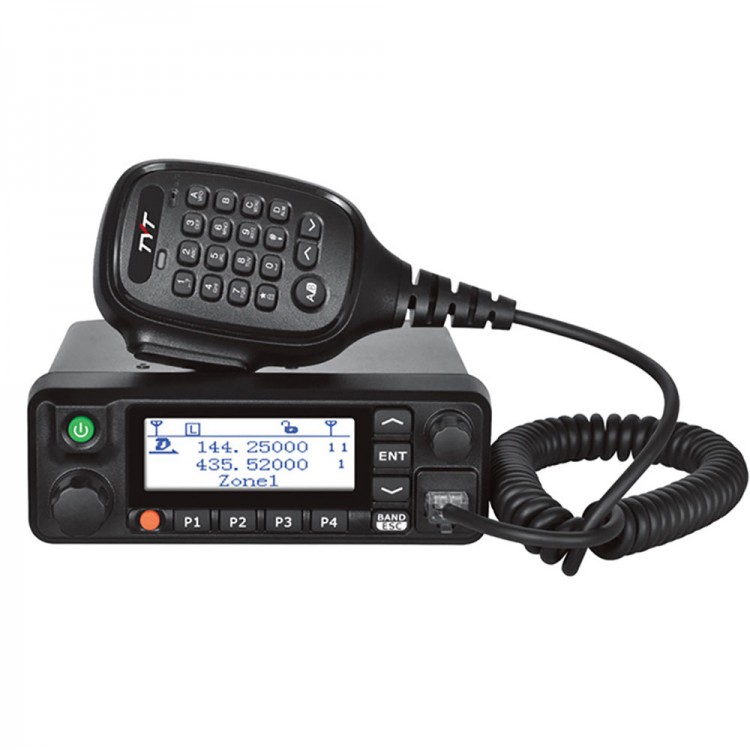

TYT MD-9600 50W Dual Band Mobile Radio 136-174MHz 400-470Mhz DMR Transceiver (Standard Version)

TYT MD-9600 50W Dual Band Mobile Radio 136-174MHz 400-470Mhz DMR Transceiver (Standard Version)

Features:
- 50W digital mobile radio DMR transceiver
- VHF and UHF mobile radio. Can display and monitor two frequencies at the same time
- Voice recording function
- In pass-through mode, it can realize two groups of calls on one frequency
- Repeater capable
- Dual receiving modes
- Private call and group call
- Frequencies: VHF 136-174MHz and UHF 400-470MHz
- 1000 stored channels
- PC Programmable (Optional Software and Cable Required)
- VOX
- CTCSS/DCS
- High and low power
- Scaning
- Encryption (Digital Mode Only)
- Analog wide and narrow function selection (25KHz/20KHz/12.2KHz)
- Squelch tail elimination
- Emergency alarm
- Transmitting is banned when there is high/low electric quantity
- Side button settings
- Call interruption

Technical Parameters:
Overall Parameters:
- Frequency range: 136-174MHz and 400-470MHz
- Channel capacity: 1000CH
- Frequency stability: ±1ppm
- Operating temperature: -30°C to +60°C
- Operating voltage: 13.8VDC
- Dimensions (HxWxD): 188 x 143 x 50mm/7.4 x 5.6 x 2"
- Weight: 1023g/2.3lb

Receiver:
- Analog receiving sensitivity: 0.2μV at 12dB SINAD
- Digital receiving sensitivity: 0.25μV (BER: 5%)
- Adjacent channel selectivity: ≤ -60dB at 12.5KHz
- Intermodulation: ≥ 65dB
- False signal response: ≥ 70dB
- Audio response: -3dB to +1dB
- Audio distortion: < 5%
- Audio power: 1W
- FM noise: ≥ 45dB at 25KHz; ≥ 40dB at 12.5KHz
- RF power: UHF (High: 35W and Low: 5W); VHF (High: 50W and Low: 5W)

Transmitter:
- Transmit current: analog mode ≤ 8A; digital mode ≤ 4.5A
- Standby current: 0.3A
- FM modulation mode: 11K0F3E at 12.5KHz; 14K0F3E at 20KHz; 16K0F3E at 25KHz
- 4FSK digital modulation mode: 12.5KHz data only: 7K60FXD; 12.5kHz data and voice: 7K60FXW
- Modulation distortion: < 5%
- FM noise: ≥ 45dB at 25KHz; ≥ 40dB at 12.5KHz
- Adjacent channel power: ≤ -60dB at 12.5KHz
- Audio response: -3dB to +1dB
- Antenna port spurious: 9KHz-1GHz: ≤ -36dBm; 1GHz-12.75GHz: ≤ -30dBm
- Digital protocols: ETSI-TS102 361-1, -2, -3

Package Included:
- 1 x Digital Mobile Radio
- 1 x Hand Microphone
- 1 x Mounting Bracket
- 1 x Bag of Mounting Hardware
- 1 x DC Power Cable
