Tags: Vibration Analyzer
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $1,343.22 | $1,315.80 | $1,274.69 | $1,219.86 | Contact US |
Working mode:
- The intelligent spot checking instrument can copy the operating meter
displayed technological
parameter:(voltage,current,temperature,pressure,flow) and observed
quantity(oil leaking,abnormal sound,component looseness,lubrication
condition),it can work with vibration testing senor unit to test
temperature,vibration(acceleration,speed,displacement,FFT
spectrum )
Advantage:
- Make the machine stable opreration
- Prolong the machine life
- Reduce the fault rate for device
- Improve the staff working efficiency
- Master the machine life cycle
Specification:
- Dimension:160x84x18mm(LxWxH)
- Memory:3G+32G
- Weight:308g
- Network type:4G(fit all kinds of networks)
- Resolution:TFT 5.0 HD IPS 720x1280
- Hard intercom:Without block,5 kilometers intercom
- Hardware platform:MTK 6735 1.3GHz 4-core
- Standby:700 hours
- Software platform:ANDROID 5.1
- Waterproof:SGS certificate IP68
- Camera:1300W
- Bluetooth:BT 4.0 LE
- Support:Flashlight,G-sensor,pressure sensor,compass,radio,NFC,POC walkie-talkie,gyroscope
Mobile intelligent spot inspection management system
Present Industry Status:
- Increasing needs
- High price
- Product experience
- High cost diagnostic service
- Untimely provide of service
- Scarce experts
- Data share
Personality archives
Status monitoring
Data mining
Intelligent diagnosis
Experts diagnosis
Equipment management
Mobile spot inspection
Vibration monitoring
Wireless monitoring
Spot inspection data
Equipment status monitoring,intelligent diagnosis & management Cloud platform

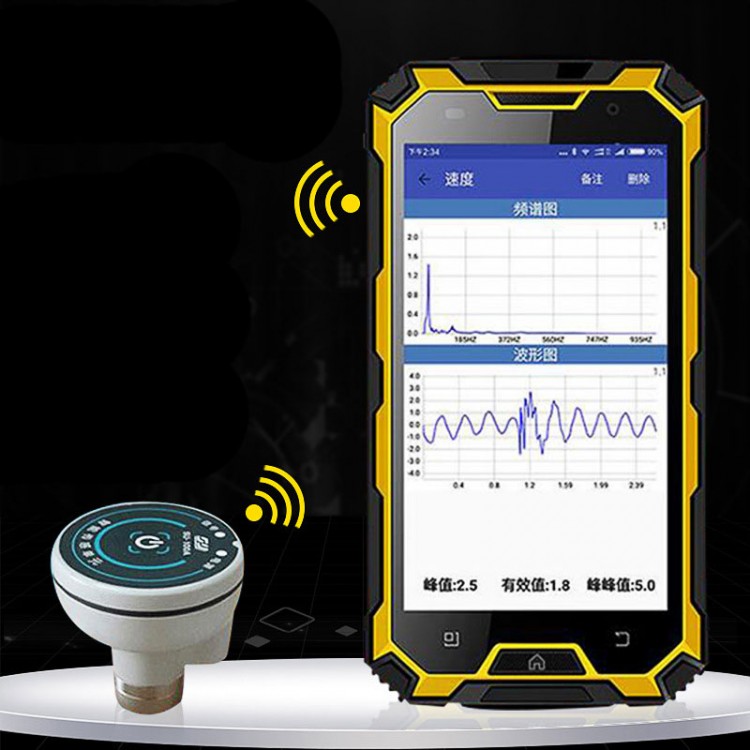

Small mushroom Intelligent spot inspection Meter:
- Read the meter,observe, recording,shooting entering
- Walkie-talkie,flashlight,GPS positioning
- Electronic tag:QR code or NFC tag function,built-in staff identity information,equipment information.
- Vibration,temperature testing:little mushroom,can test vibration value
- Built-in infrared temperature measurement,can test bearing temperature
- The recent trend chart for 30 testing value
- In industrial bad condition:IP68 level protection
Functions for Intelligent spot inspection Meter:
- Temporary spot inspection
- Illegal interpretation
- Illegal statistics
- Task handover
- Generation plan
- State browsing
Small mushroom technical index:
- Sensor:Piezoelectric acceleration sensor and infrared temperature sensor
- Testing parameter: Vibration acceleration,velocity,displacement,temperature,FFT spectrum.
Analysis bandwidth:
- Acceleration:10~5KHz
- Velocity:10~1KHz
- Displacement:10~1KHZ
- Envelope filtering bandwidth:500Hz~5KHz
- Envelope analysis bandwidth:10~2KHz
Windowed:hanning
Spectrum line number:
- Acceleration:800 lines
- Velocity:400 lines
- Displacement:400 lines
- Envelope:800 lines
Vibration testing range(10Hz):
- Acceleration:1-250m/square
- Velocity:0.3~65mm/s
- Displacement:1um~100um
Temperature testing index:
- Infrared temperature measurement range:-20~+200℃
- Accuracy:+-2℃
Appearance index:
- Outline size:52(Height)x65mm(Diameter)
- Install method:External connection magnetic suction seat & probe.
-
Switch button:when the power is on,the monitoring unit standby;It will
switch off automatically if it does not work for 15 minutes.
- Communication method:Bluetooth4.0
- Power,communication LED indicator display electricity volume and communication status separately.
- Power supply:built-in rechargeable lithium battery,it can work 36 hours with full charge.
- Charge time:2 hours,full-charged.
Environment index:
- :1.8m fall to the ground Anti knock anti touch cement floor.It still can normal use and there is no damage for shell.
- Protection level:IP68
- Explosion-proof level:ExII D CT4
- Using temperature:-20℃~+60℃
Intelligent spot inspection management system software:
- Intelligent data storage,establish personality archives for each machine
- Convenient equipment status browsing function
- Convenient measuring point configuration and planning configuration
- Abundant data analysis function
- Missed detection statistical function
- Perfect spot inspection vibration treatment function
Mode | Performance indexes | Note |
SU-100AS | Vibration value + wave form + spectrum + envelope,temperature | Bluetooth communication,speed,displacement10HZ-1KHz,10HZ-5KHz acceleration |
SU-100BS | Vibration value + wave form + spectrum,temperature | Bluetooth communication,speed,displacement10HZ-1KHz,10HZ-5KHz acceleration |
SU-100CS | Vibration value,temperature | Bluetooth communication,speed,displacement10HZ-1KHz,10HZ-5KHz acceleration |
SU-100TS | (3-axis)Vibration value,temperature | Bluetooth communication,speed,displacement10HZ-1KHz,10HZ-5KHz acceleration |
SU-200AS | Vibration value + wave form + spectrum + envelope,temperature | Wifi communication,speed,displacement,acceleration 10HZ-5KHz,frequency & resolution adjustable. |
SU-200BS | Vibration value + wave form + spectrum + envelope,temperature | Wifi communication,speed,displacement,acceleration 3HZ-5KHz,frequency & resolution adjustable. |
SU-200TS: | (3-axis)Vibration value + wave form + spectrum + envelope,temperature | Wifi communication,speed,displacement,acceleration 3HZ-5KHz,frequency & resolution adjustable. |
Package List:
- 1 x Vibration Analyzer
- 1 x Power adapter
- 1 x User manual
