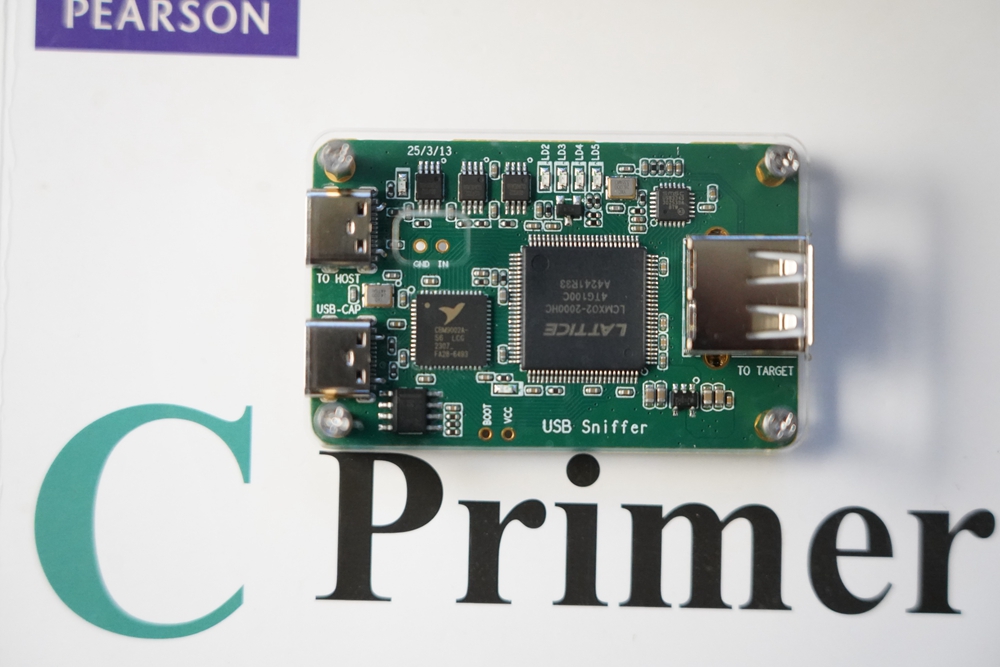

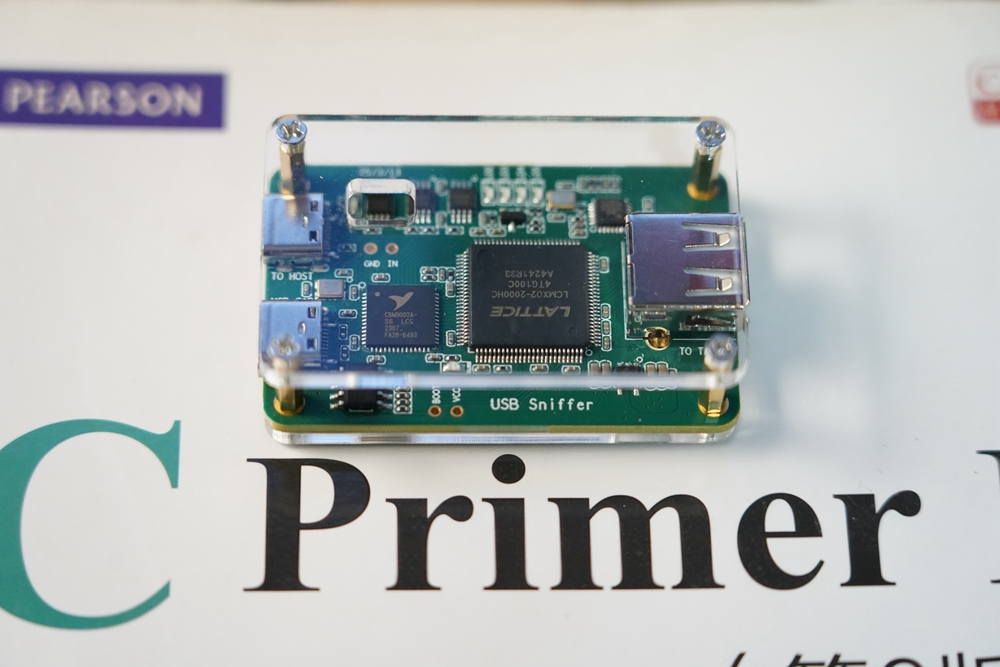

USB Protocol Analyzer Based on Opensource USB Sniffer USB Data Analysis Tool Compatible with Wireshark
Description:
- This USB analyzer is based on the open-source design USB Sniffer for secondary optimization. The original open-source design link is: https://github.com/ataradov/usb-sniffer
On the basis of the original design, the following optimizations have been made to the design:
- New PCB design: Redesign the motherboard and upgrade the original two-layer board to a four layer board to improve signal stability and anti-interference ability.
- Retain external trigger interface: compatible with the original design of external trigger pins, convenient for expanding applications.
- Smaller size (5.5x3.5cm): While ensuring unchanged performance, the device packaging has been adjusted, the layout has been optimized, and the motherboard size has been minimized as much as possible to make it more portable.
- Suitable for USB communication protocol analysis and data acquisition, convenient for developers to debug and study USB device communication. (Supports USB2.0 and below protocols)

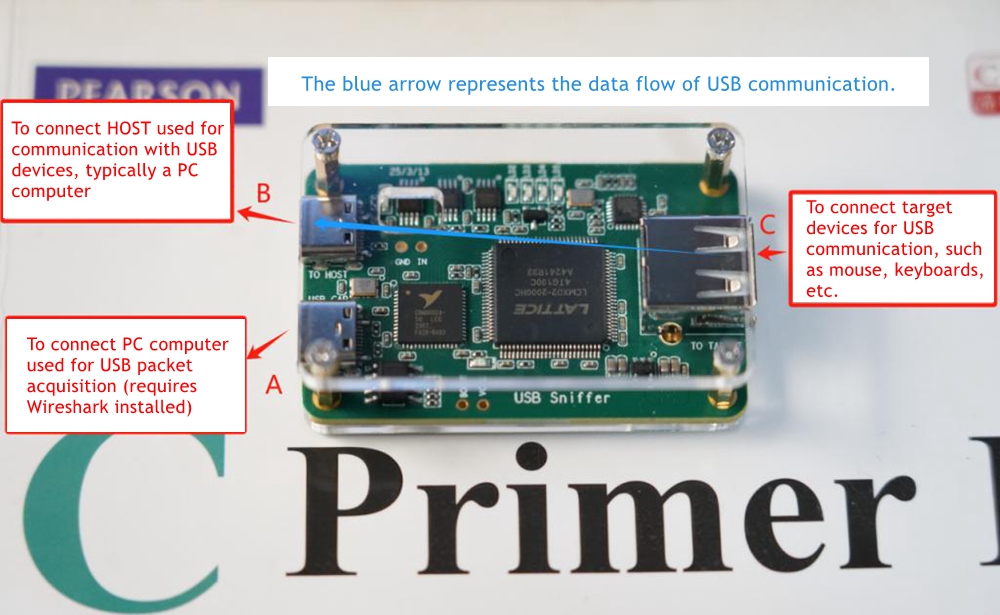

- Motherboard interface: One USB-A port is connected to the communication device, one TYPE-C port is connected to the communication host, and one TYPE-C port is responsible for USB packet acquisition.
- The upper computer adopts for Wireshark, Windows 10 and Windows 11 (x64 version) drive free.

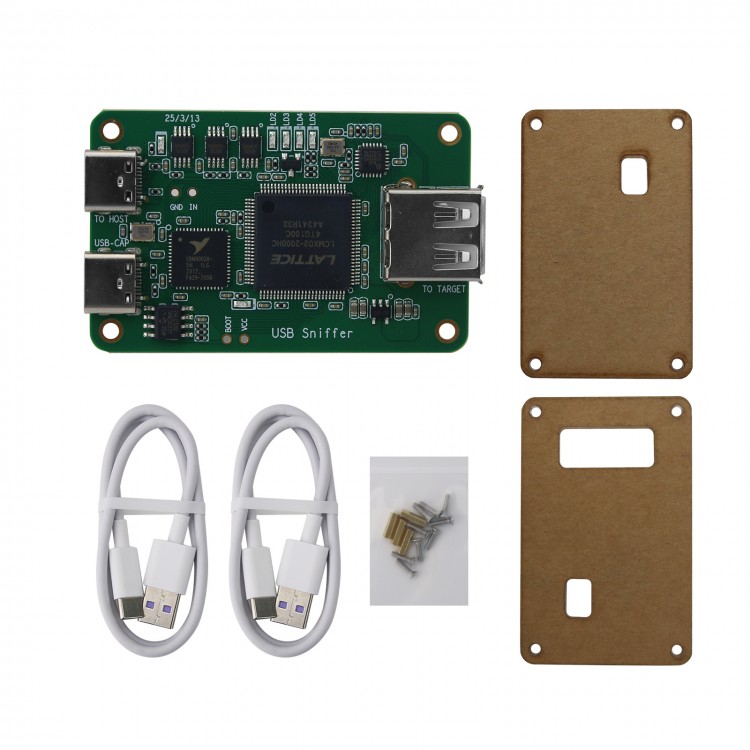

Package Included:
- 1 x USB Protocol Analyzer
