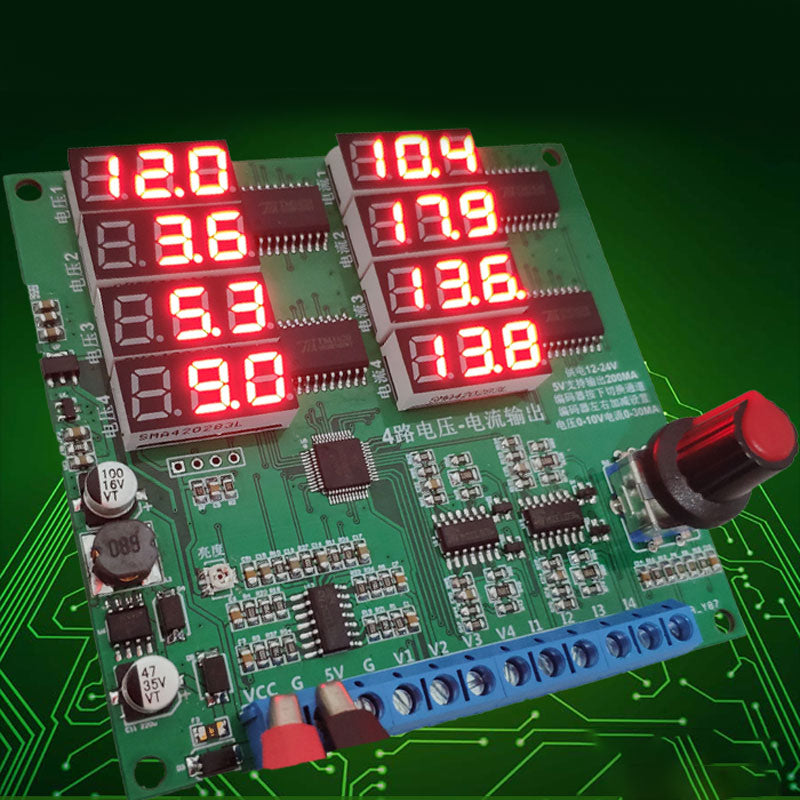

0-10V/0-25mA 4-Channel Current Voltage Signal Generator Module Brightness Adjustable LED Signal Collector

0-10V/0-25mA 4-Channel Current Voltage Signal Generator Module Brightness Adjustable LED Signal Collector

Specification:
- Power supply voltage: 12 - 24V
- Output 4-channel voltage signal (0 - 10V), 4-channel current signal (0 - 25mA)
- 1-Channel 5V output (max. 200mA)
- Adjustable brightness LED (onboard adjustable resistor)
- Encoder operation: turn left and right: add and subtract (with fast and slow gears, rotating faster to adjust faster), pressing is for the lower channel, double clicking quickly is for the upper channel, with a resolution of 0.1V/0.1MA, and the digital tube corresponding to the currently set channel will flash.
- Size: 85 x 90mm

Wiring Definition:
- VCC: power supply positive interface 12 - 24V
- GND: power supply grounding/voltage-current grounding
- 5V: 1-channel 5V-200mA power supply output
- V1 - V4: 4-channel voltage output
- I1 - I4: 4-channel current output

Package Included:
- 1 x Signal Generator
