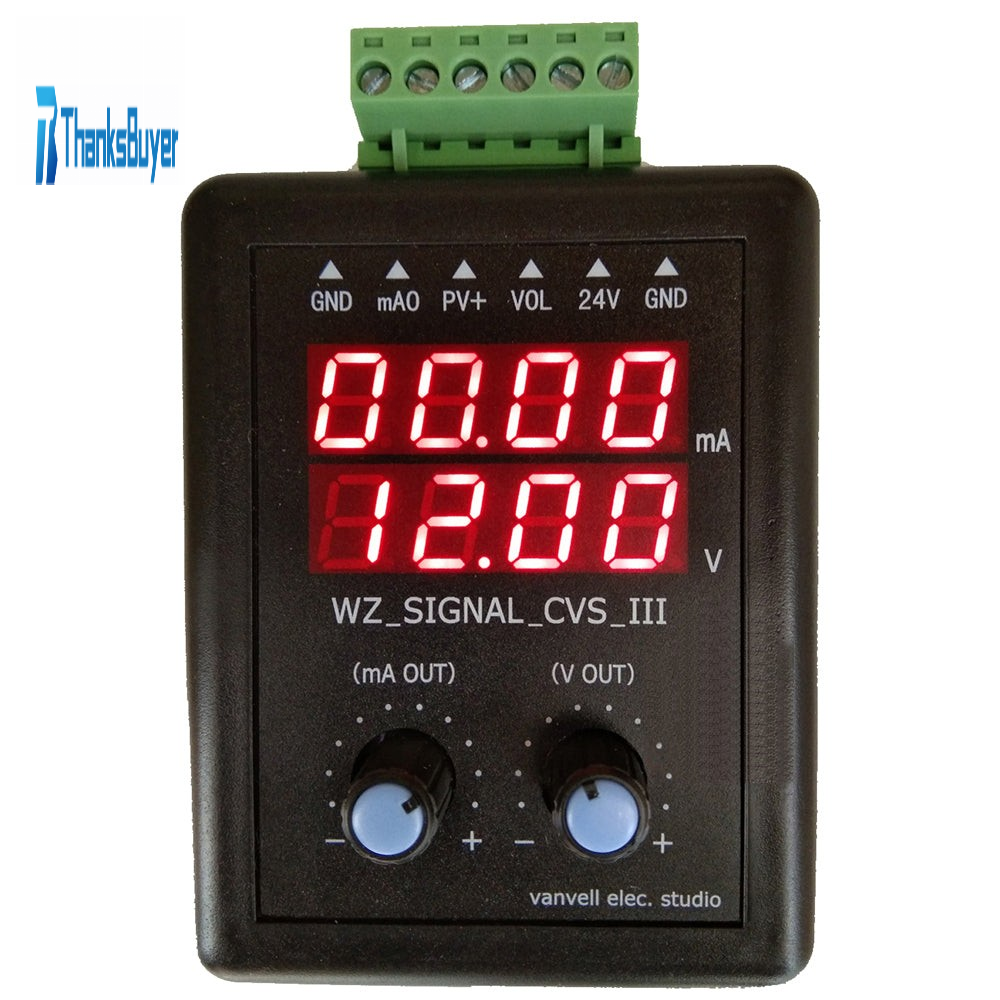

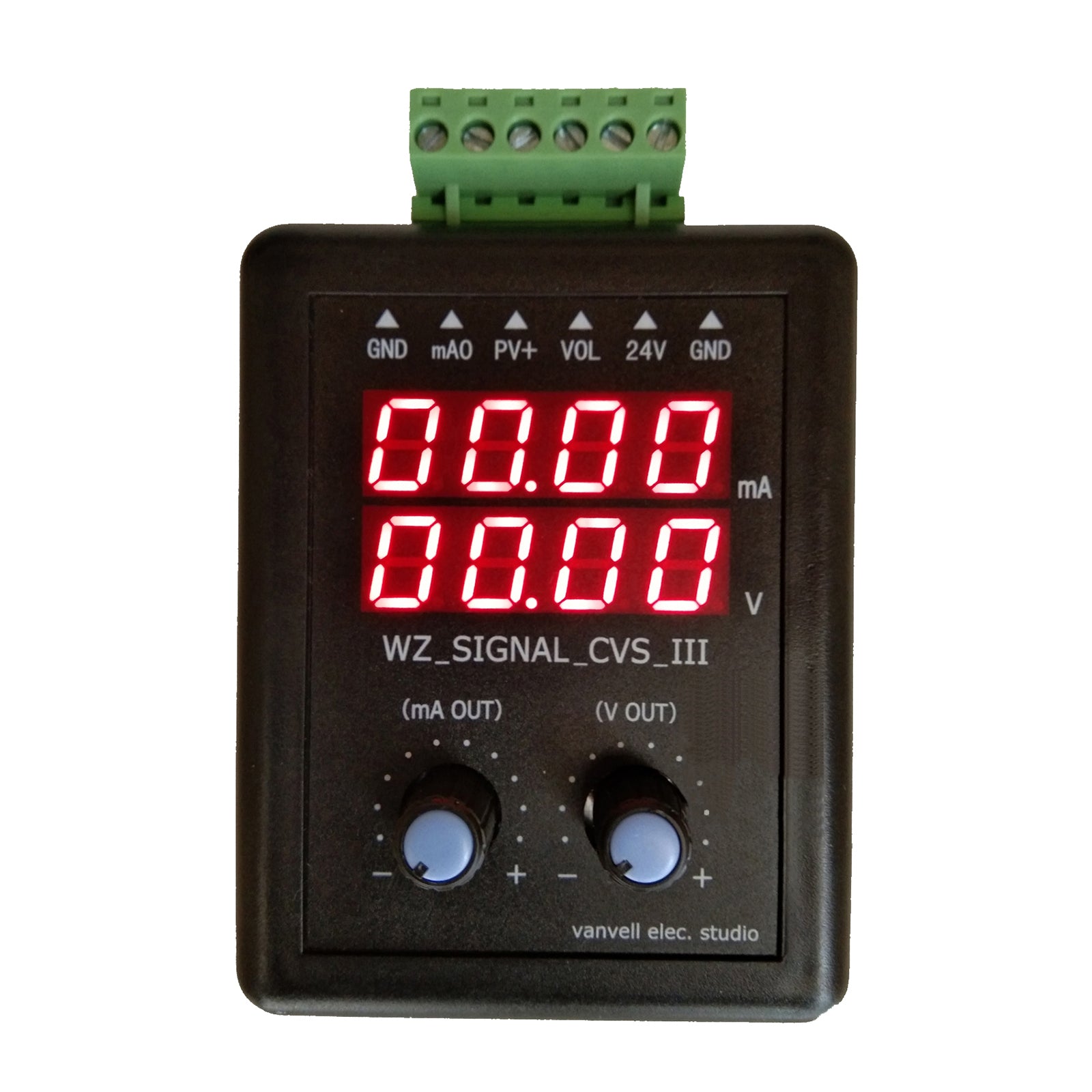

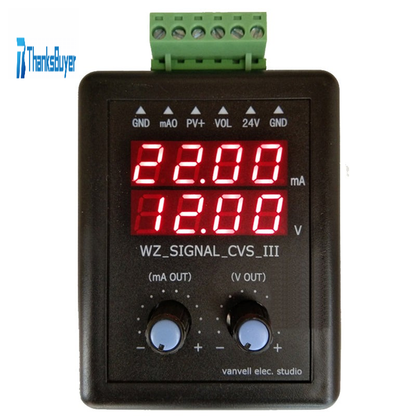

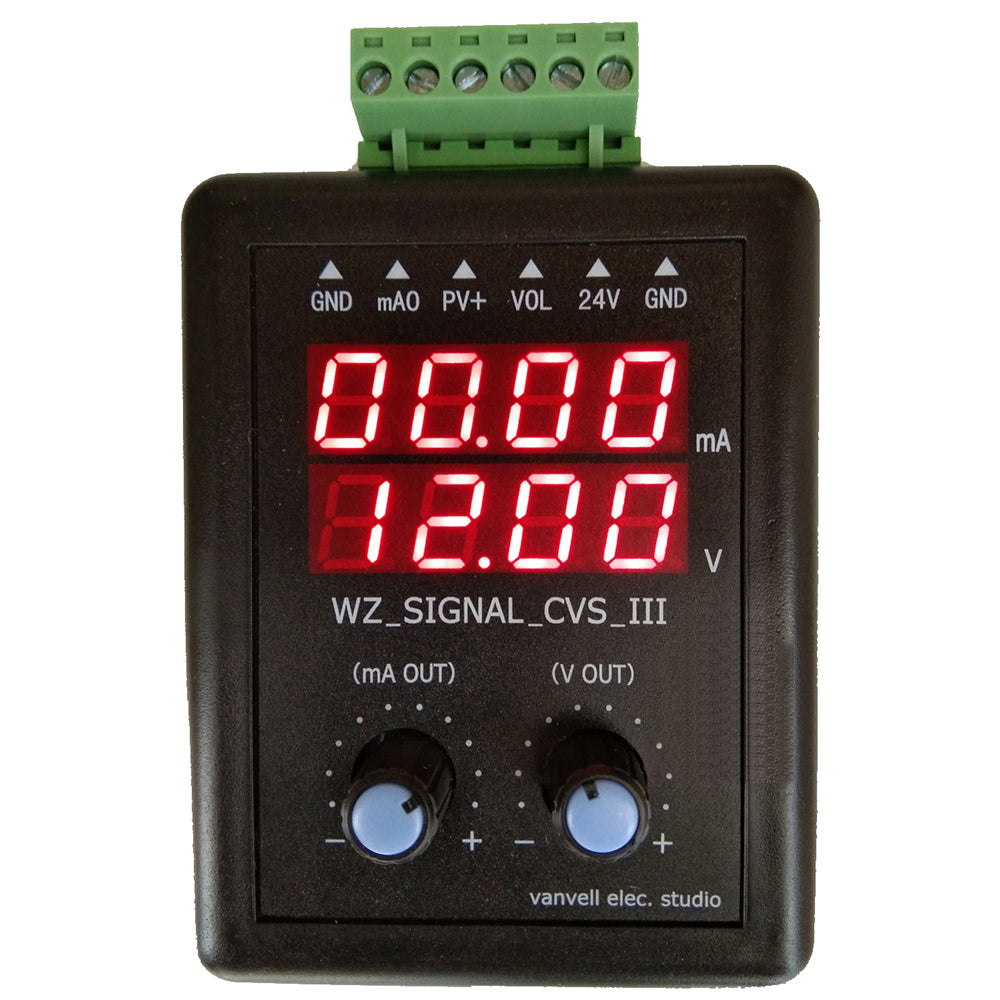

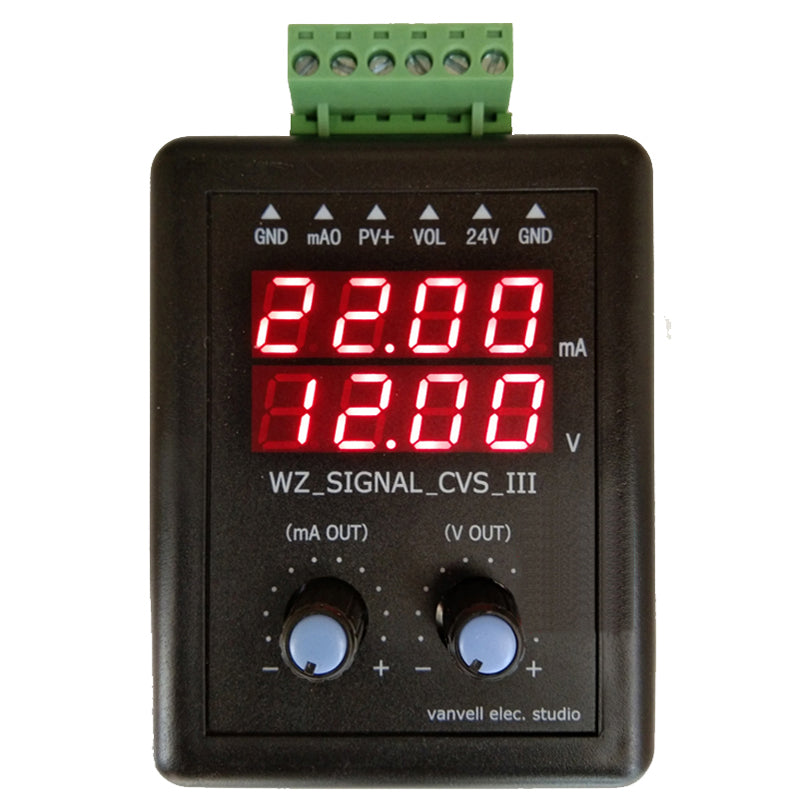

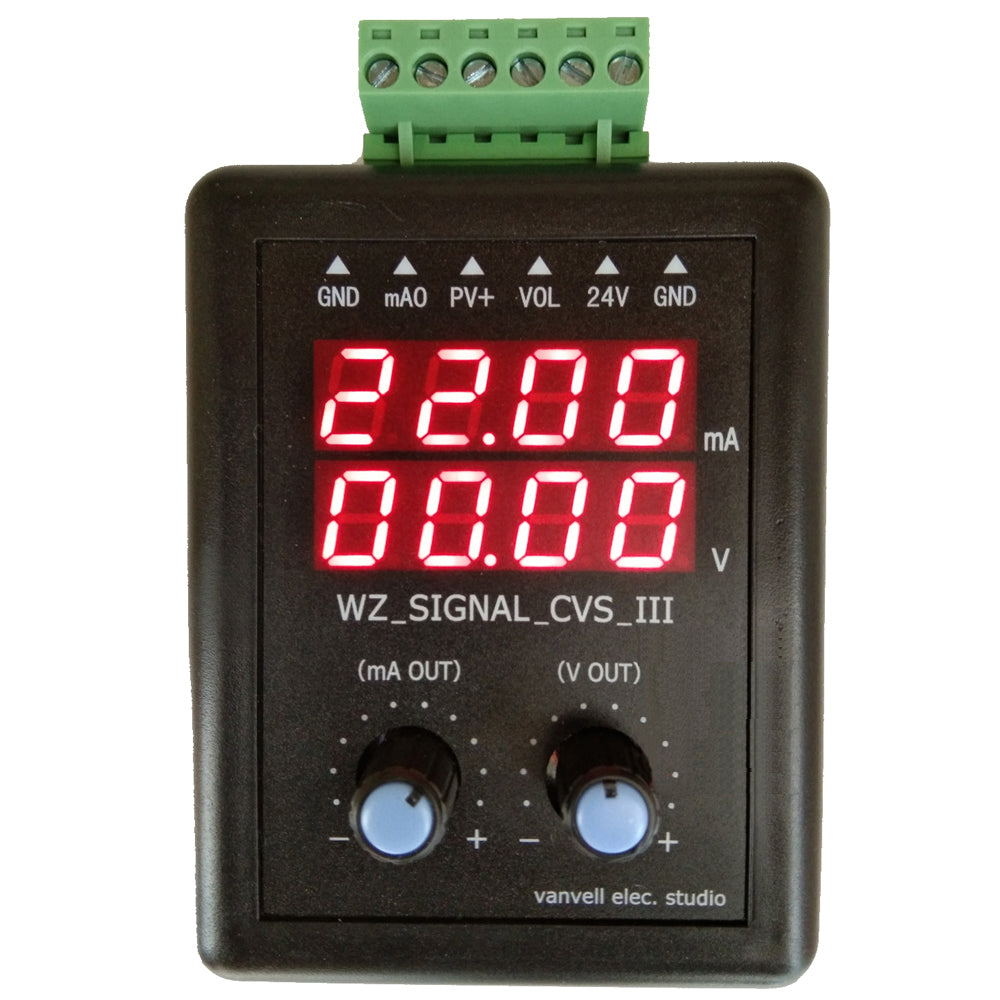

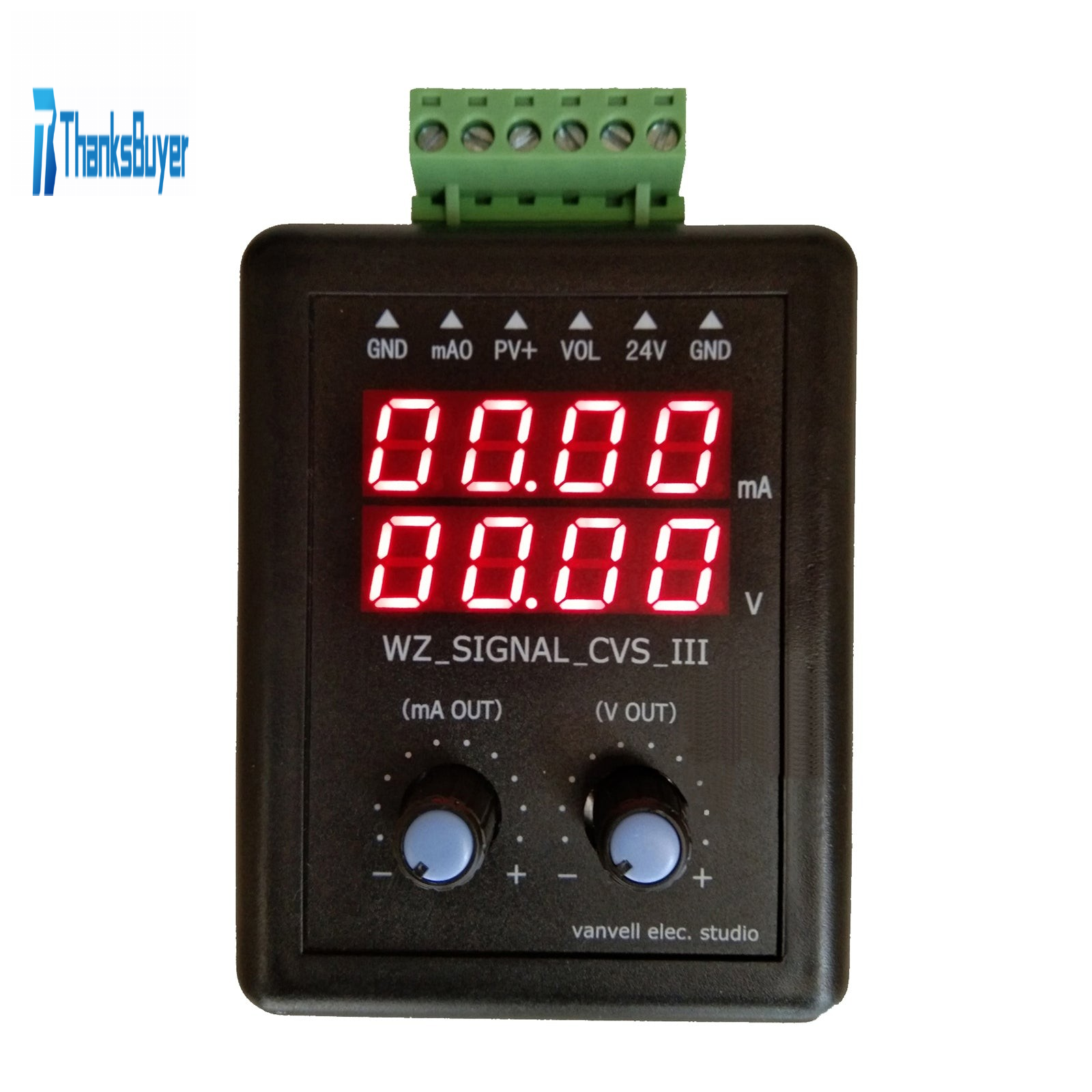

0-22mA Signal Generator Current Voltage Transmitter Calibrator Signal Source Active Passive Output

0-22mA Signal Generator Current Voltage Transmitter Calibrator Signal Source Active Passive Output

Features:
-Active current output: 0-22mA (minimum output is about 0.1mA), load 0-550Ω
-Passive current output: 0-22mA (minimum output is about 0.1mA), external power supply 15-30V, load 0-550Ω
-Voltage output: 0V-12V (minimum output is about 0.05V)
-24V voltage output: drive current 35mA, do not use more than 35mA
-The battery version is powered by a lithium battery and can be recharged; the battery-free version is directly plugged into a 5V charger
-Battery undervoltage prompt, when the undervoltage indicator is on, please turn off and charge in time
-If not used for a long time, charge it at least every 2 months to prevent battery damage

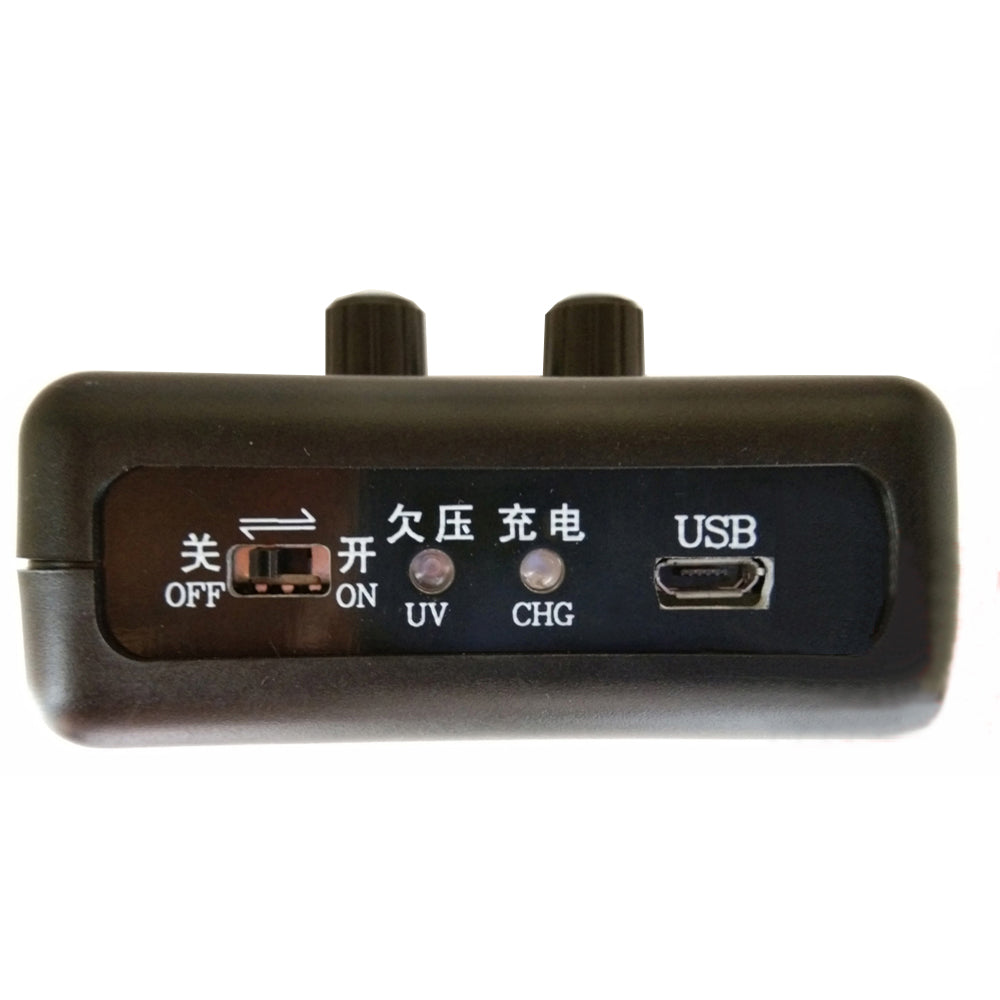

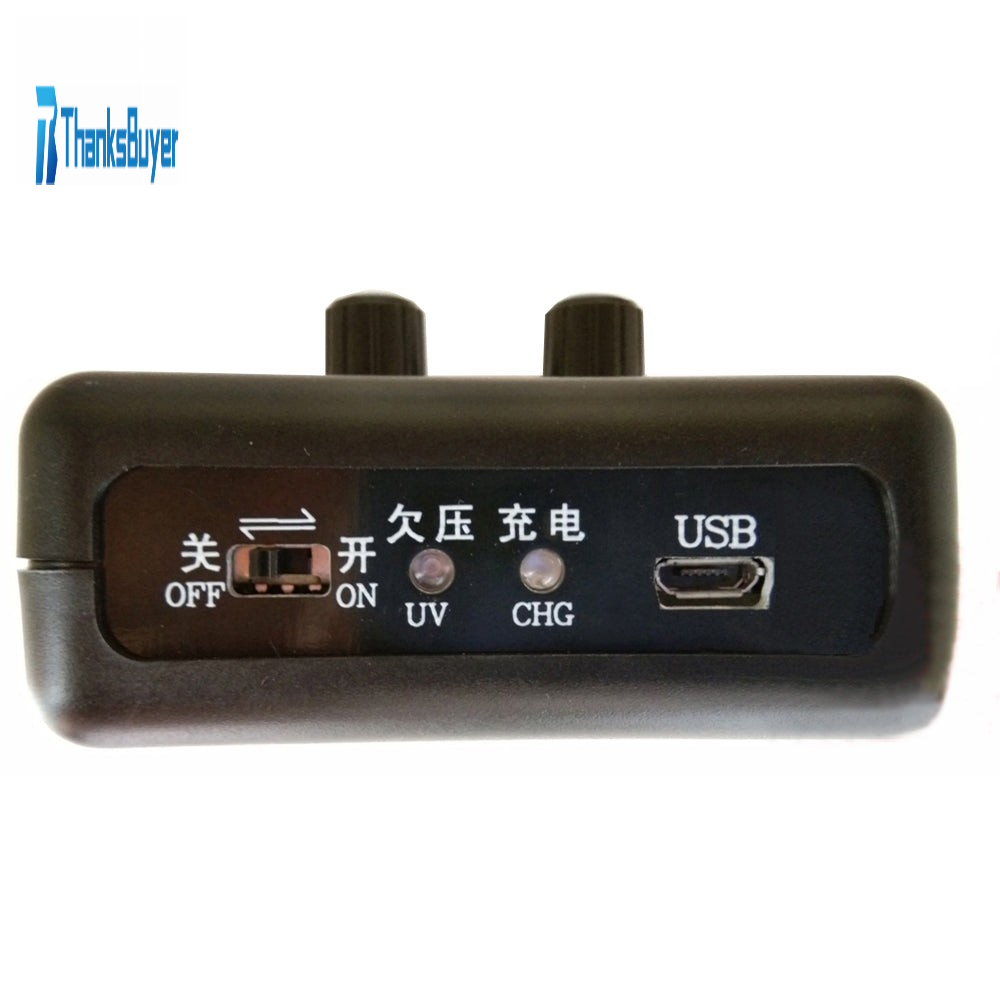

-Use MICRO USB interface for power supply or charging
-Use environment temperature: 0℃-50℃ without condensation
-Small size: 90m*70m*28mm

Package List:
1 x Signal Generator
