PZ-V7690T-SOM FPGA Core Board Virtex-7 XC7VX690T 693K Logic Cells 2GB+2GB DDR3 PCIe 3.0 FMC

* Board Only

* Board + Heatsink

* Board + Connector

* Board + Downloader

* Board + Heatsink + Connector

* Board + Heatsink + Downloader

* Board + Connector + Downloader

* Complete Kit (Board + Heatsink + Connector + Downloader)

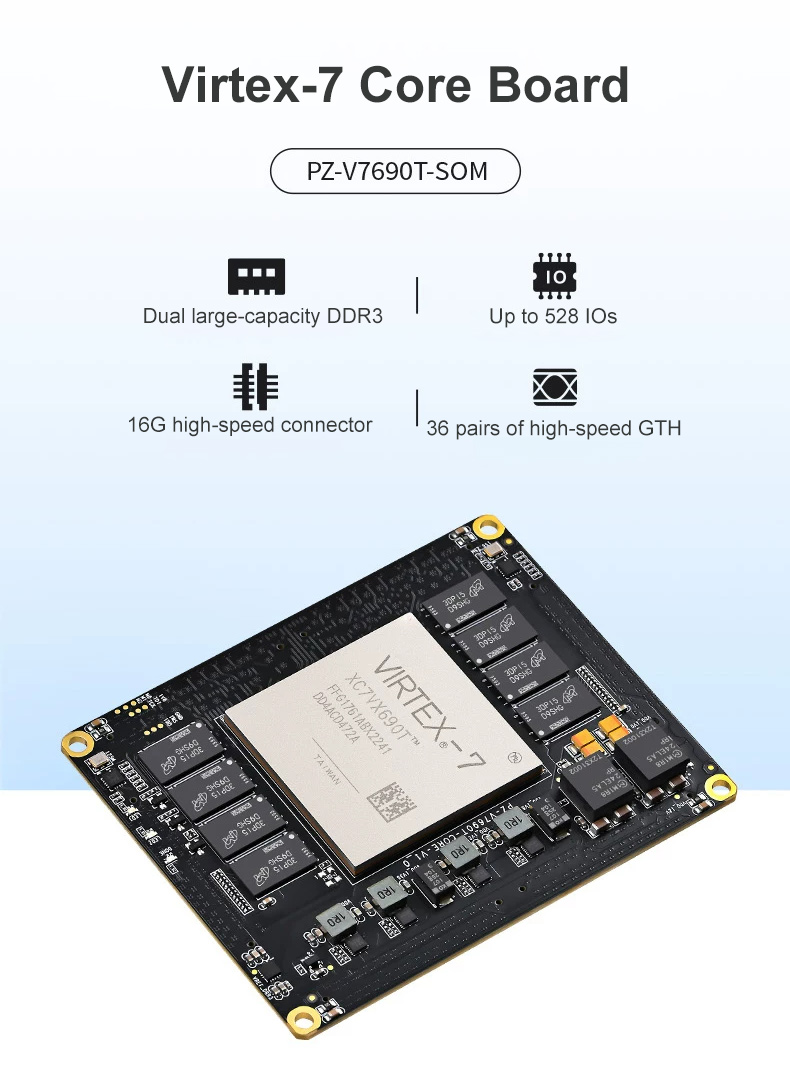

* Virtex-7 core board

* Dual large-capacity DDR3

* Up to 528 IOs

* 16G high-speed connector

* 36 pairs of high-speed GTH

* Typical Applications: General industrial applications, communications & networking, computer hardware, FPGA development boards, and platform development for ARM

* International Quality Certifications: Passed multiple international standard certifications, including ISO9001 Quality Management System Certification and RoHS Environmental Compliance Certification, ensuring reliable quality control and compliance with global market requirements.

* Rigorous Reliability Testing & Long Life-cycle: Underwent 72-hour high and low temperature testing to verify stable performance under extreme conditions. Designed with a 10+ year life-cycle for long-term reliability and industrial applications.

* Core Board: PZ-V7690T-SOM

* Main Controller: XC7V690T-2FFG1761I

* Speed Grade: Grade 2

* Temperature Grade: Industrial (-40°C to 85°C)

* Logic Cells: 693k

* Slices: 108300

* Flip-Flops: 866400

* DSP Slices: 3600

* TOTAL BLOCK RAM: 52920

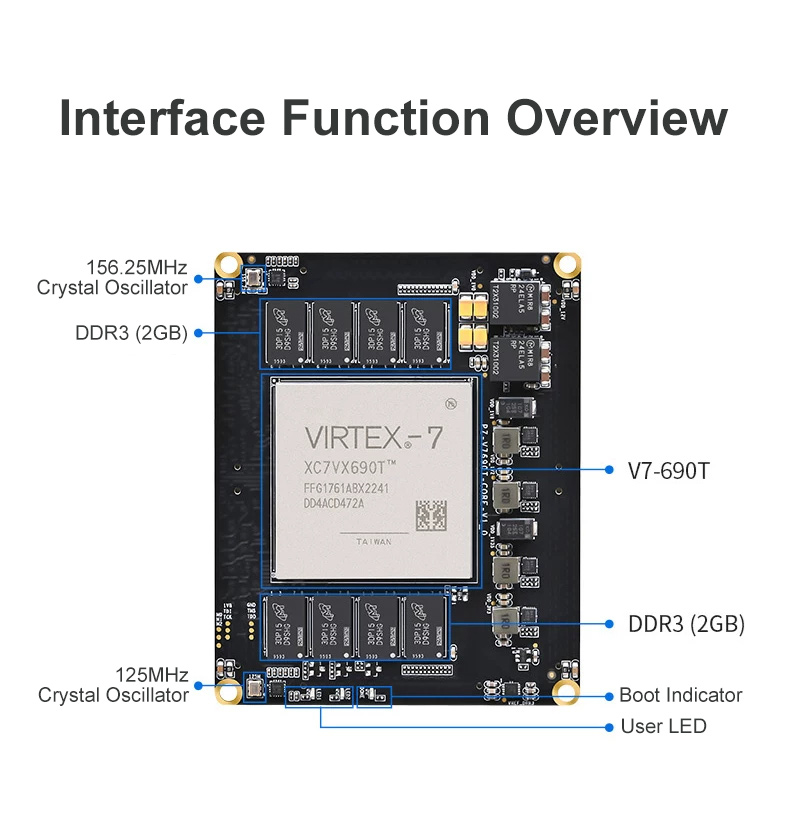

* DDR3: 2GB/64bit + 2GB/64bit

* Boot Mode: JTAG/QSPI/BPI

* User LED: 2 channels

* GTH Quantity: 36 pairs TX/RX

* IO Quantity: 528 single-ended/264 differential pairs (1.2/1.8V adjustable, default 1.8V)

* Power Supply/Current: 8-12V/5A

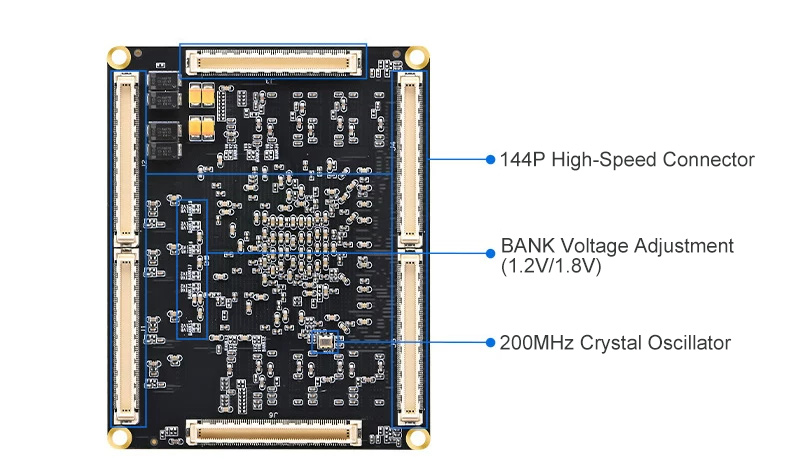

* Crystal Oscillators: 1 differential 200MHz crystal oscillator for FPGA, 1 differential 125MHz crystal oscillator as reference clock for GT transceivers, 1 differential 156.25MHz crystal oscillator as reference clock for GT transceivers

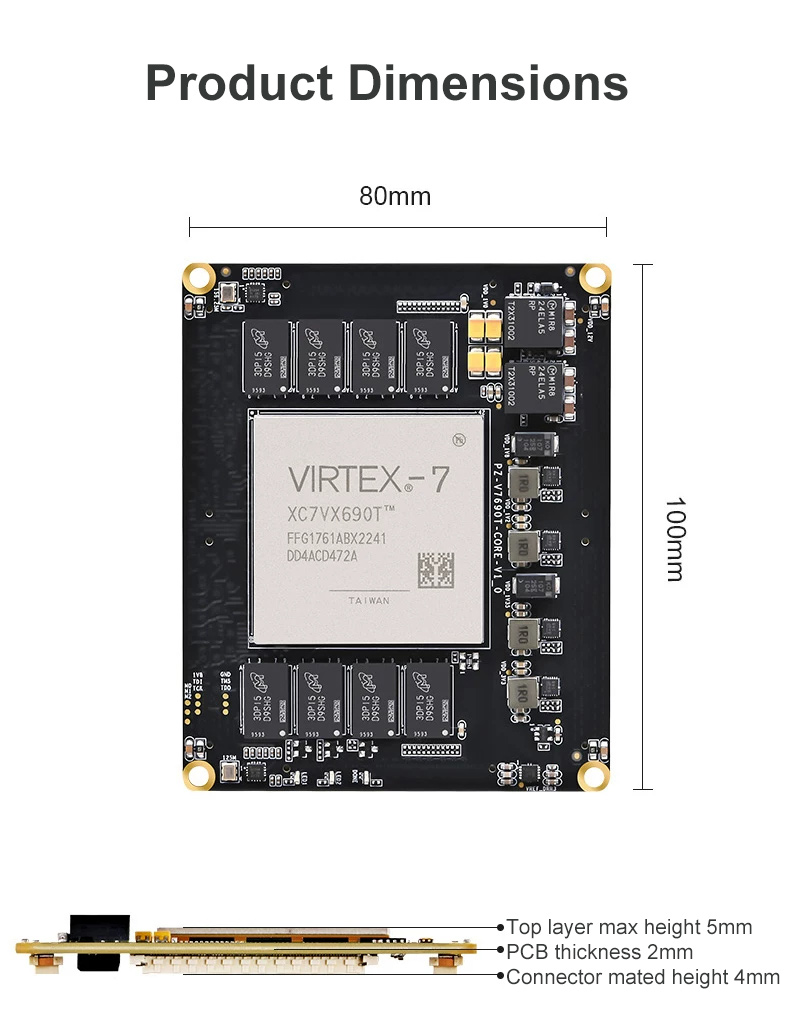

* Dimensions & Craftsmanship: 100x80mm, immersion gold process, 0.5mm pitch 144P connectors x6, top layer max height 5mm, PCB thickness 2mm, connector mated height 4mm

All configurations include:

* 1 x Core Board

Additional accessories are included according to the selected configuration:

* Heatsink (if selected)

* Connector (if selected)

* Downloader (if selected)

* Board Only: 0.2kg

* Board + Heatsink: 0.28kg

* Board + Connector: 0.27kg

* Board + Downloader: 0.26kg

* Board + Heatsink + Connector: 0.35kg

* Board + Heatsink + Downloader: 0.34kg

* Board + Connector + Downloader: 0.33kg

* Complete Kit (Board + Heatsink + Connector + Downloader): 0.41kg
