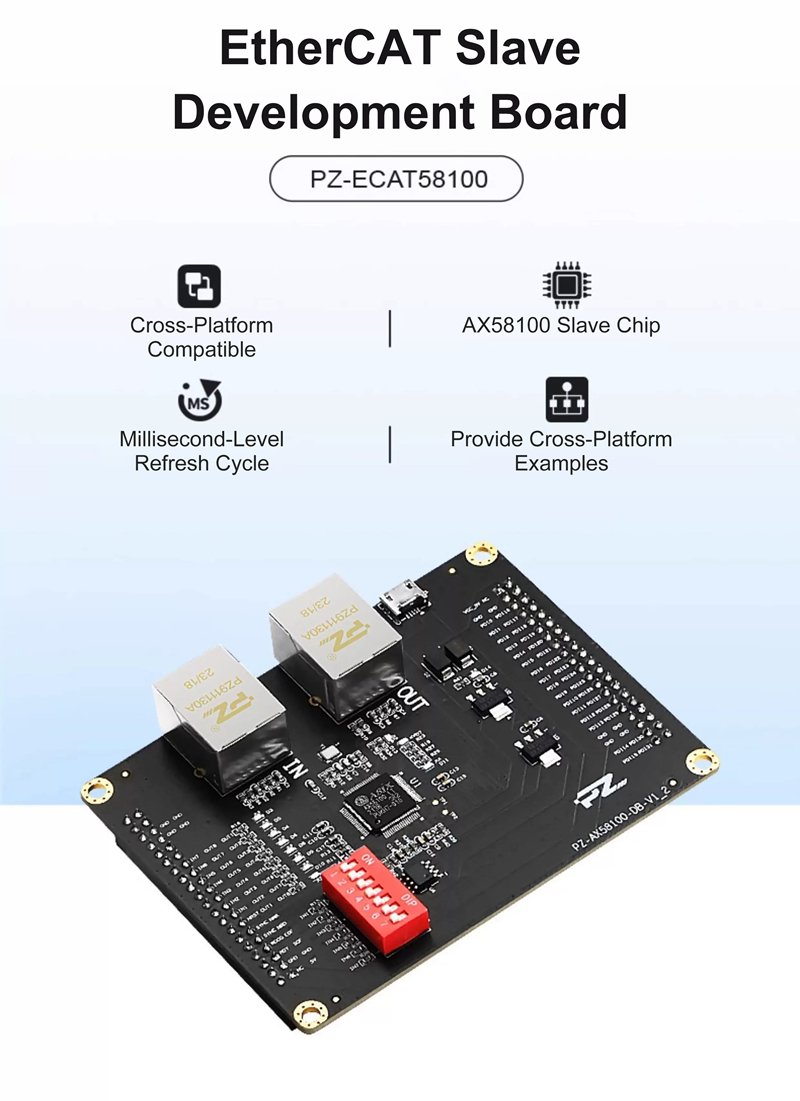

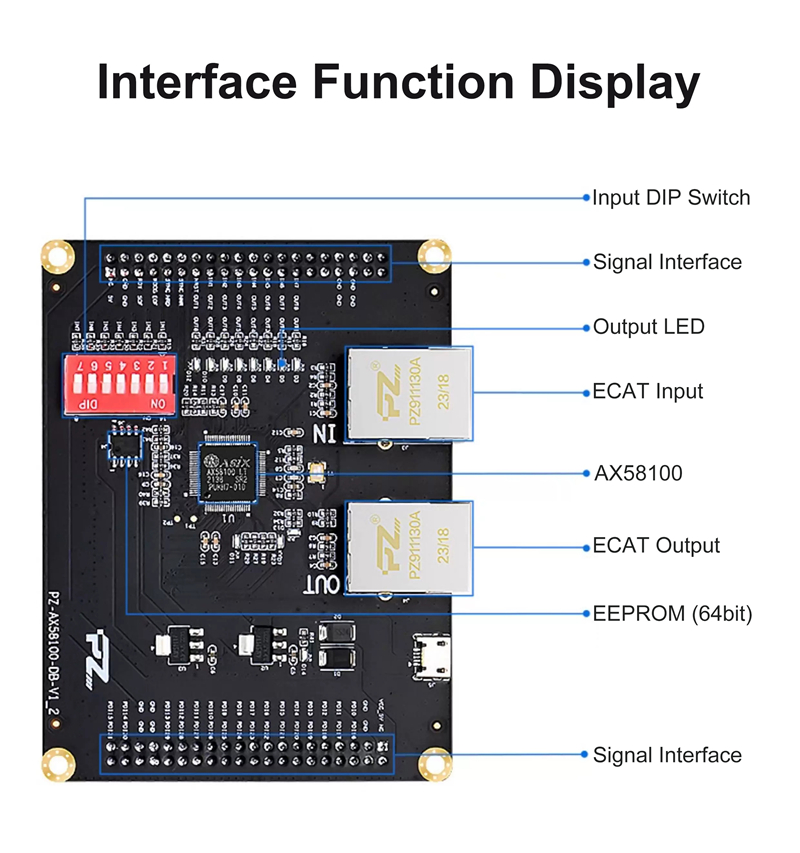

PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board ZYNQ AX58100 ET1100

$104.22 - $1,133.69

Tax included. Shipping calculated at checkout.

Package: Board Only

Board Only
Board + Documentation
Board + Documentation + PZ7010
Board + Documentation + PZ7020
Board + Documentation + PZ7035
Board + Documentation + PZ7045
Board + Documentation + PZ7100

$104.22

$104.22

Availability: 2000 in stock

SKU: 104754

Tags:

Collections:

Modules & Chips

$104.22

$104.22

Available Options:

* Board Only

* Board + Documentation

* Board + Documentation + PZ7010

* Board + Documentation + PZ7020

* Board + Documentation + PZ7035

* Board + Documentation + PZ7045

* Board + Documentation + PZ7100

Features:

* AX58100-Based EtherCAT Slave Solution

* Comprehensive Software & Hardware Tutorials

* Supports IO, PDO, CoE & More

* Compatible with Multiple FPGA Platforms

* Supports PZ7010/PZ7020/PZ7035/PZ7045/PZ7100

* Millisecond-Level Refresh Cycle

* Multi-Platform Example Projects

Product Parameters:

* Chip Model: AX58100

* Master/Slave Type: Slave

* Communication Interface: Parallel Interface (SPI interface requires reference documentation)

* Supply Voltage: 5V/1A

* Temperature Grade: Industrial Grade (-40 to 85°C)

* Operating System Support: Linux

* Typical Application: FPGA Development Boards

Packing List (Varies by Configuration):

Board Only:

* 1 x PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board

Board + Documentation:

* 1 x PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board

Documentation is provided digitally after purchase.

Board + Documentation + PZ7010:

* 1 x PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board

* 1 x PZ7010 Development Board

Documentation is provided digitally after purchase.

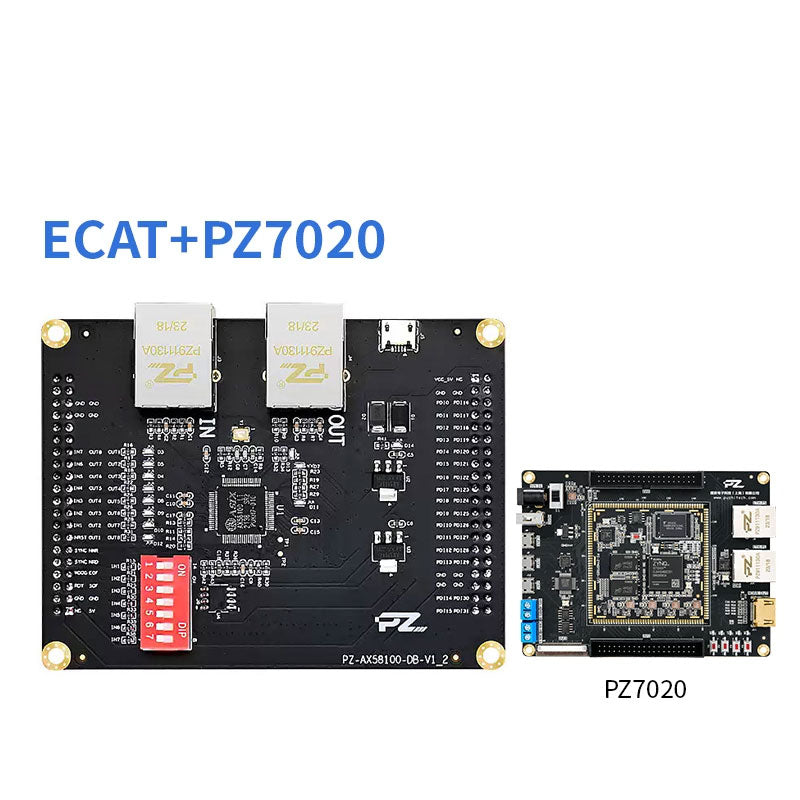

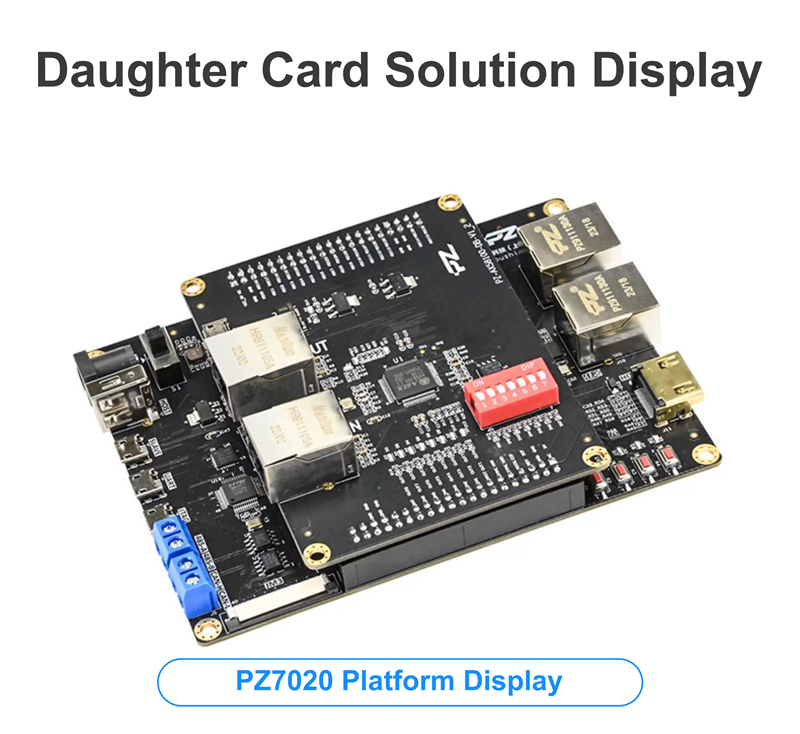

Board + Documentation + PZ7020:

* 1 x PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board

* 1 x PZ7020 Development Board

Documentation is provided digitally after purchase.

Board + Documentation + PZ7035:

* 1 x PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board

* 1 x PZ7035 Development Board

Documentation is provided digitally after purchase.

Board + Documentation + PZ7045:

* 1 x PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board

* 1 x PZ7045 Development Board

Documentation is provided digitally after purchase.

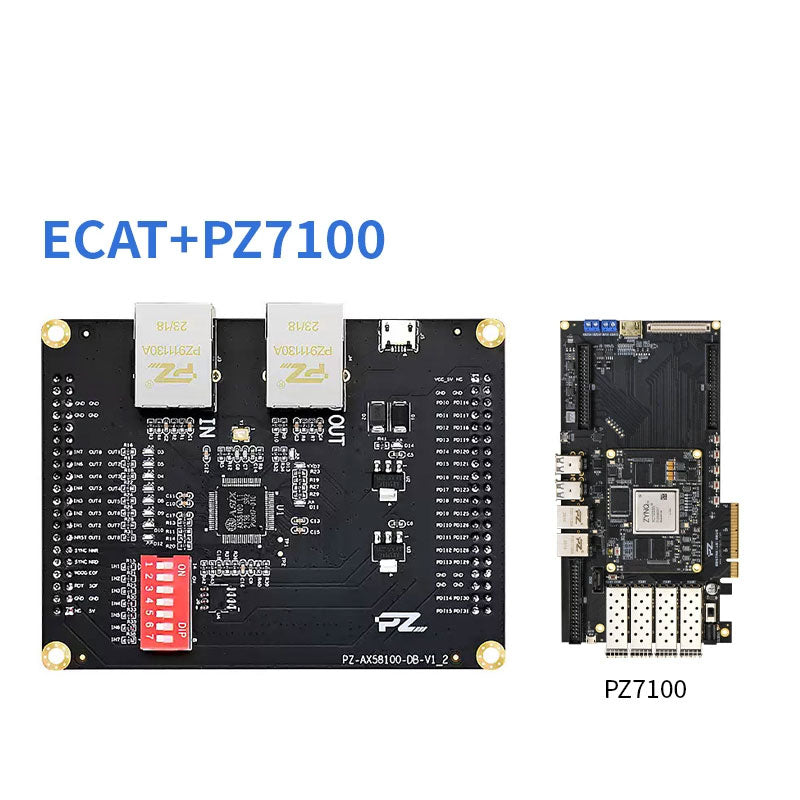

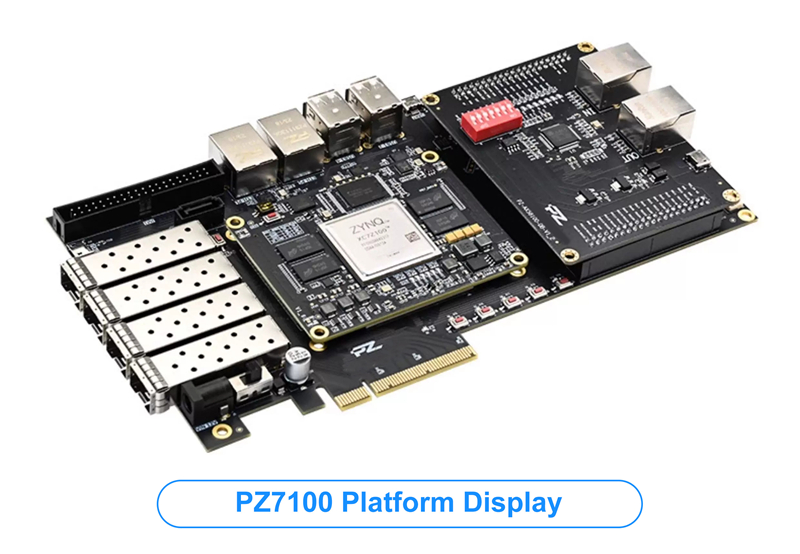

Board + Documentation + PZ7100:

* 1 x PZ-ECAT58100 (PZ-AX58100) EtherCAT Slave FPGA Development Board

* 1 x PZ7100 Development Board

Documentation is provided digitally after purchase.

Note:

* Documentation is not a physical item and will not be included in the package. Digital documentation will be provided after purchase for the configurations that include documentation.

Supporting Examples and Documentation:

All supporting materials for the development board are provided. After purchasing the product, please contact customer service to obtain the relevant materials. Additional examples and resources are continuously being updated.

1. EtherCAT Standalone Board

* AX58100 I/O Example

2. EtherCAT Standalone Board with PZ7010/7020

* AX58100 I/O Example

* PDO Example

* CoE Example

Package Weight:

* Board Only: 0.15kg

* Board + Documentation: 0.15kg

* Board + Documentation + PZ7010: 0.15kg

* Board + Documentation + PZ7020: 0.16kg

* Board + Documentation + PZ7035: 0.19kg

* Board + Documentation + PZ7045: 0.2kg

* Board + Documentation + PZ7100: 0.2kg
