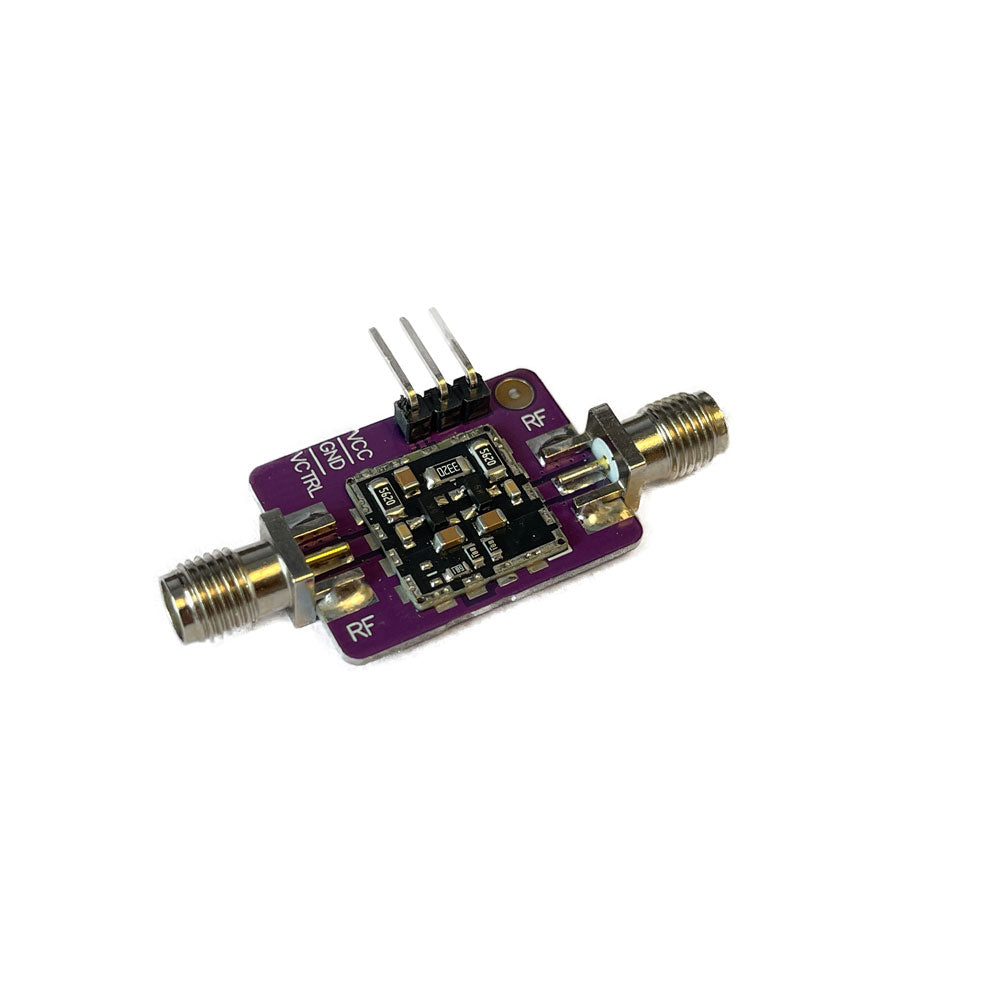

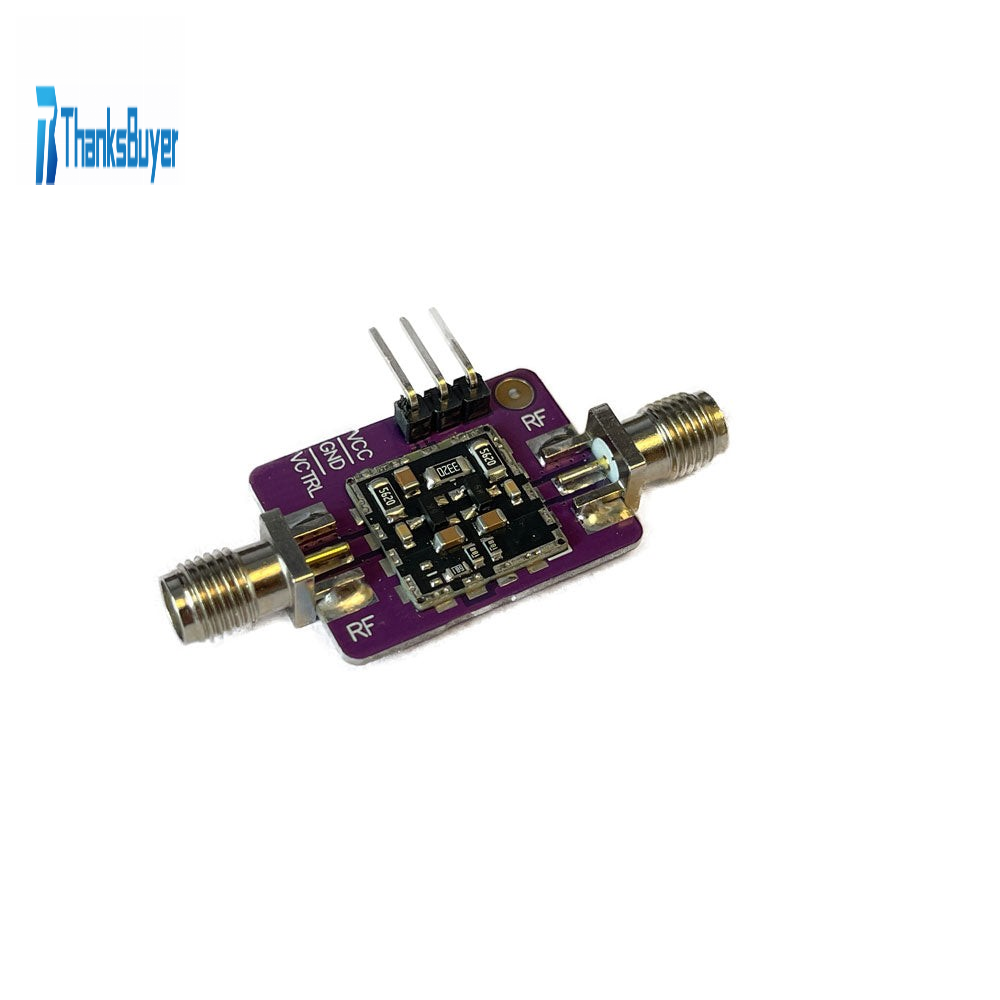

10MHz-4GHz Voltage Controlled Attenuator Module Low SWR High Flatness VCA with Baseboard Replacement for RVA-2500

10MHz-4GHz Voltage Controlled Attenuator Module Low SWR High Flatness VCA with Baseboard Replacement for RVA-2500

Specification:
- Bandwidth: 10MHz - 4GHz
- Power supply voltage: 3 - 5V (the maximum voltage can not exceed 12V)
- Control voltage: 1 - 17V (the maximum voltage can not exceed 20V)
- Maximum RF input power: 20dBm
- Adjustment range: -25 ~ -3dB (for range with good flatness, if the requirement for flatness is not so high, it can reach a maximum of about -40dB)
- Interface type: SMA female connector
- Net weight: 4.4g

Package Included:
- 1 x Attenuator Module

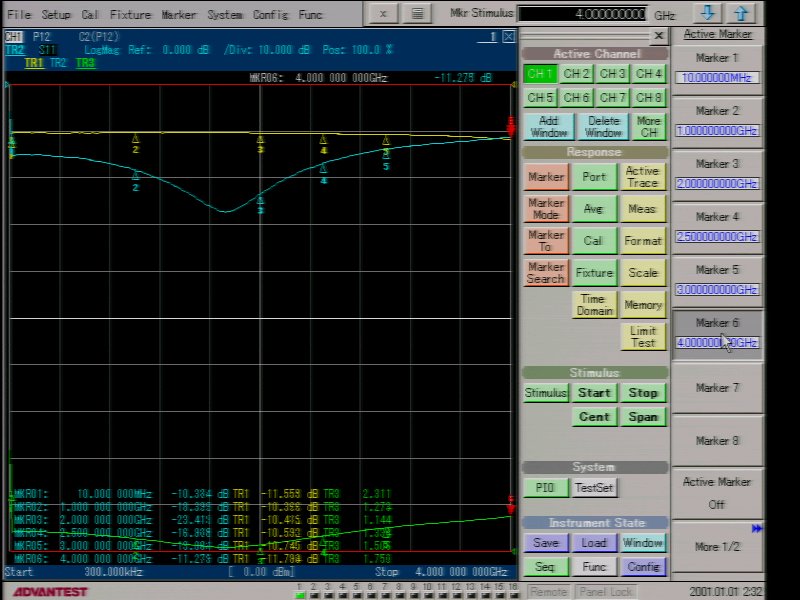

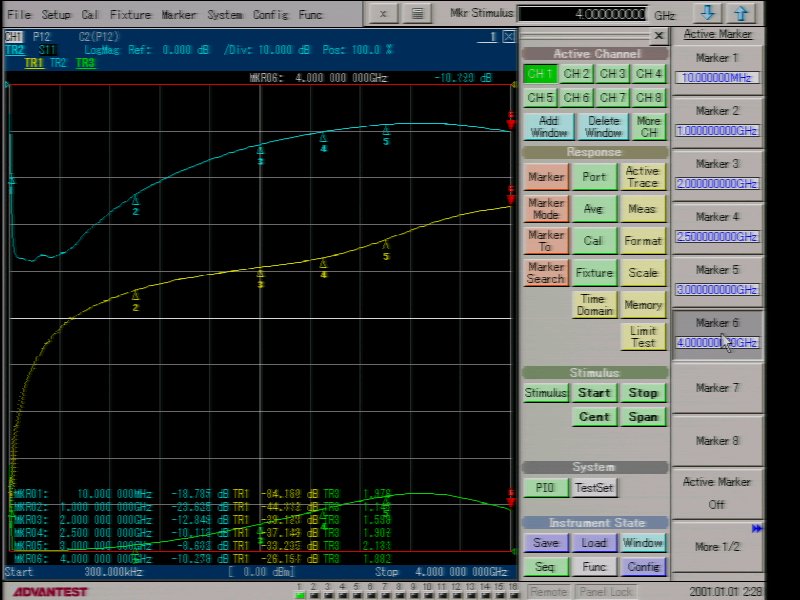

Testing Conditions: 5V power supply, with control voltages ranging from 1-17V from top to bottom.
