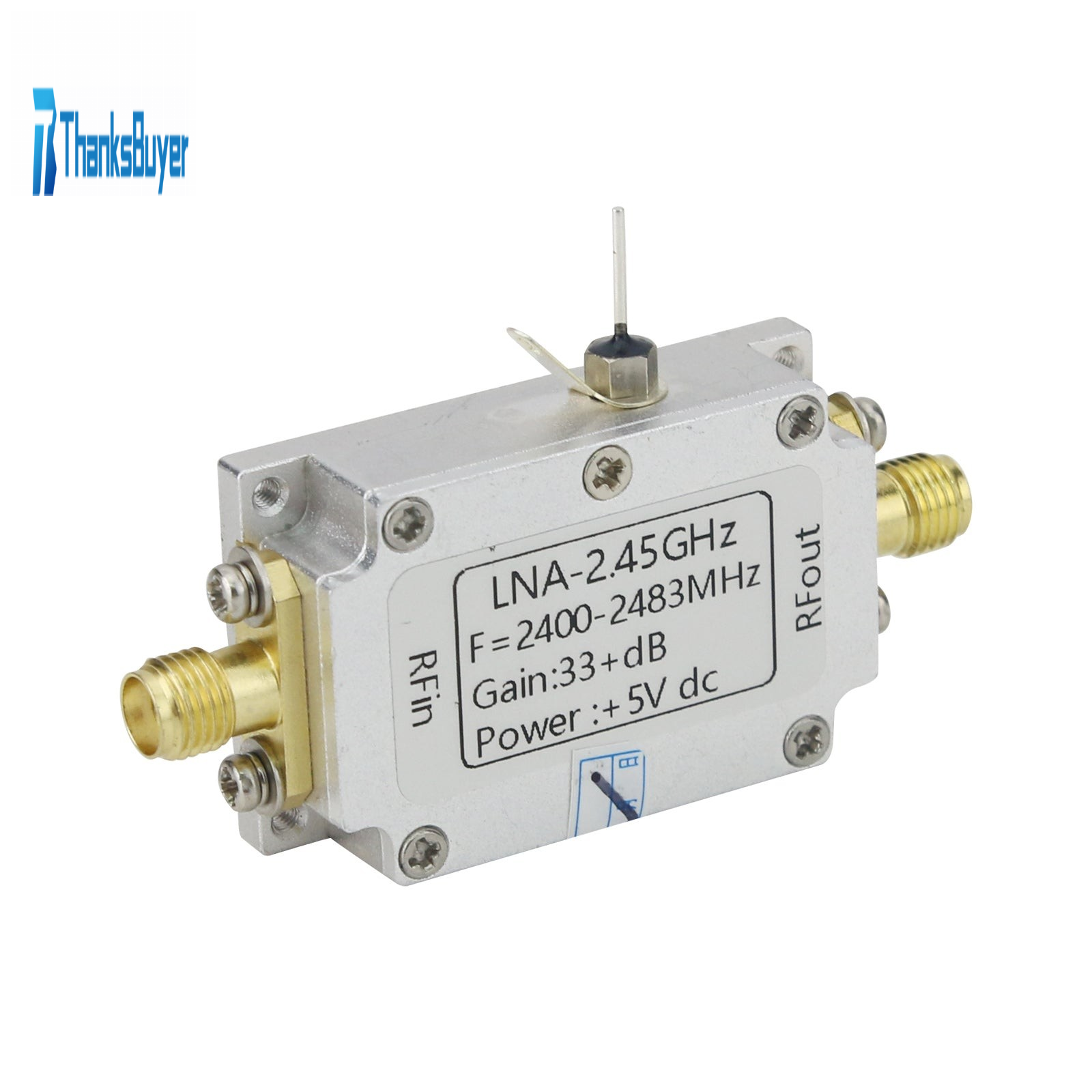

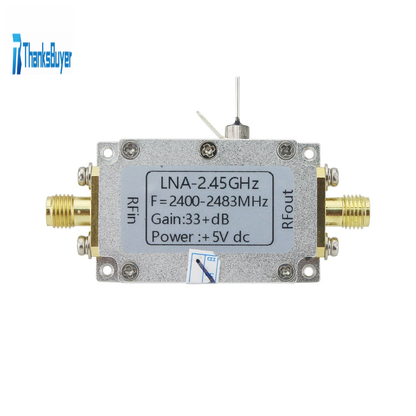

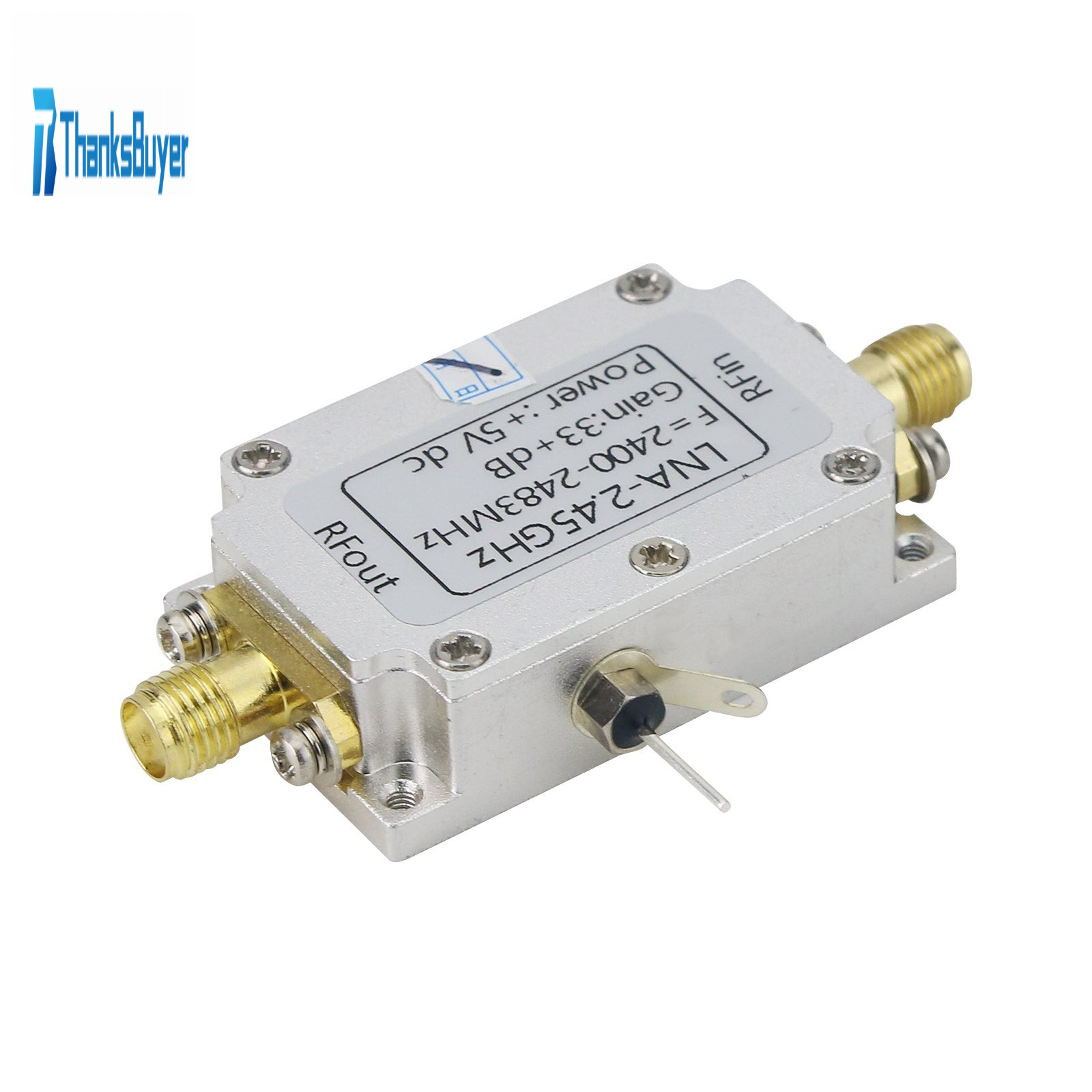

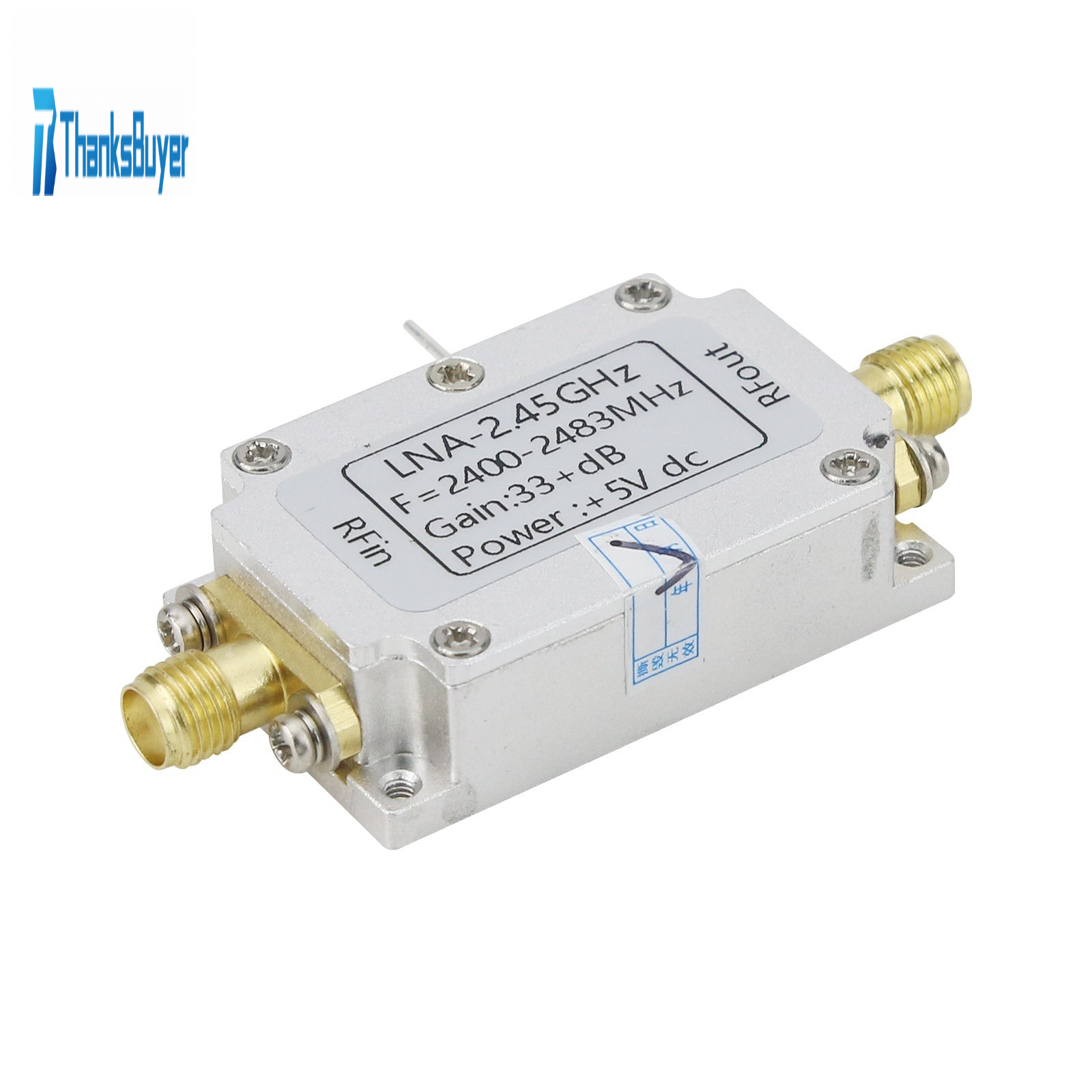

2.4GHz LNA Low Noise Amplifier RF Amplifier Module with SMA Female Connector for VTX Bluetooth Remote Extended Range
Description:
- This 2.4GHz low noise amplifier is designed for amplifying small signals such as image transmission, Bluetooth, and remote extended range. Choose two-level amplification and filtering, with a suppression of ≥ 40dB for signals outside of 2.4GHz to 2.483GHz. The noise of this amplifier is at 2.45GHz ≤ 0.85dB (extremely low noise).
Specification:
- Bandwidth: 2400 - 2483MHz
- Amplification gain: 33+dB
- NF: < 0.85dB
- Input and output impedance: 50ohm
- In-band flatness: <1dB
- Maximum output power: 20mW
- Impedance: 50ohm
- Size: 40 x 25 x 11.5mm
- Base fixing hole: M2 thread hole
Precaution:
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected.
- The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.
Package Included:
- 1 x Low Noise Amplifier
