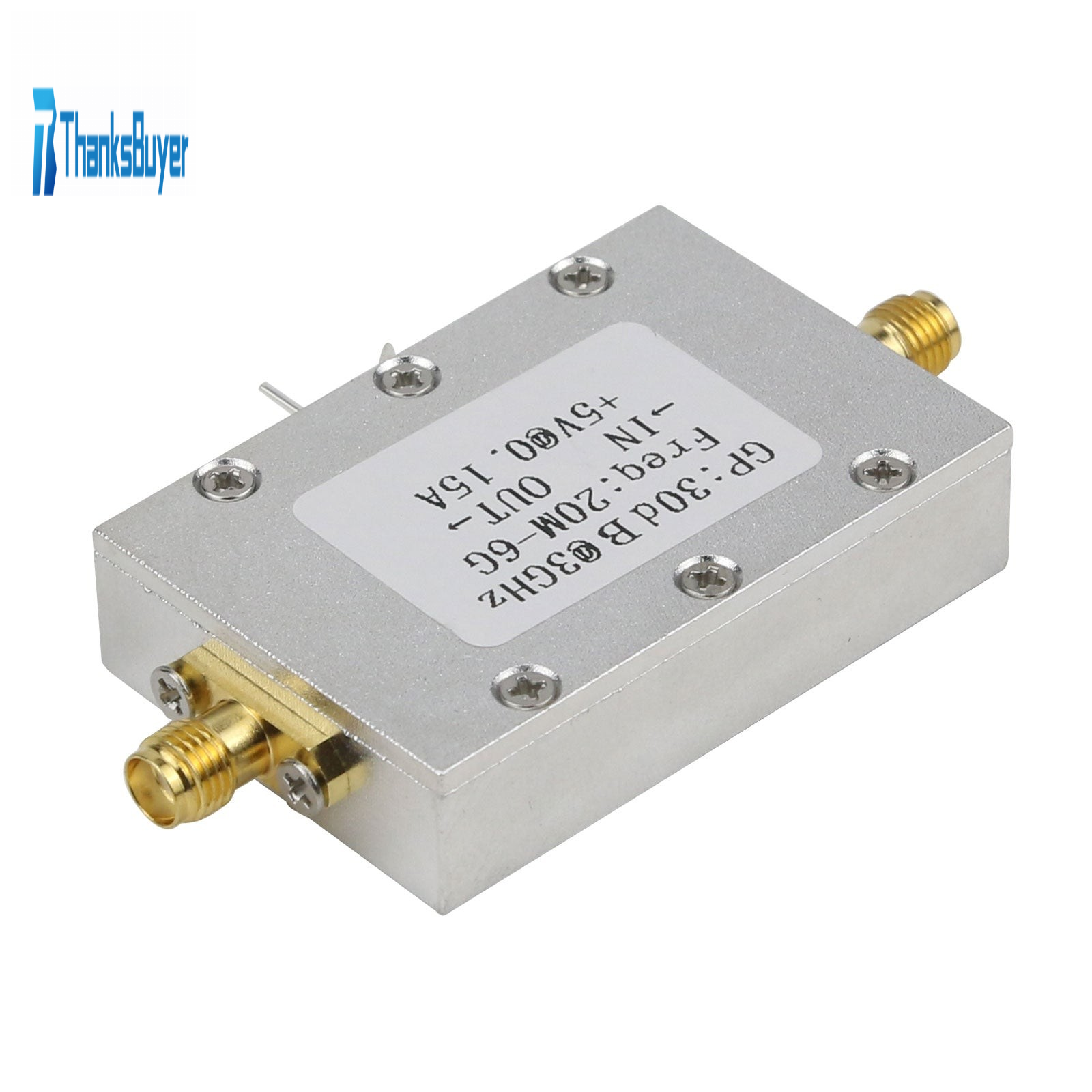

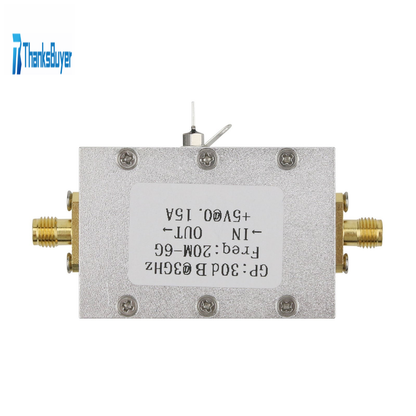

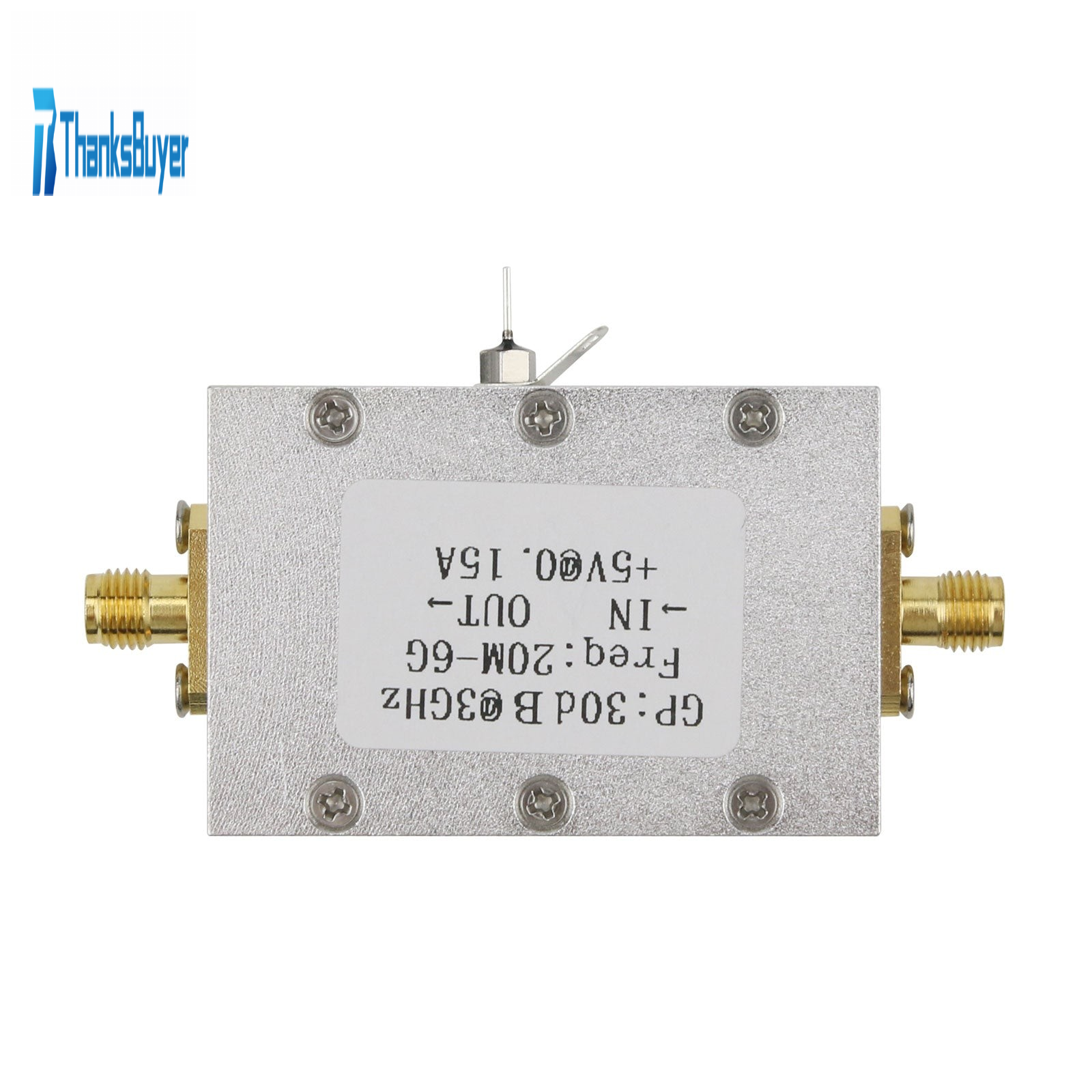

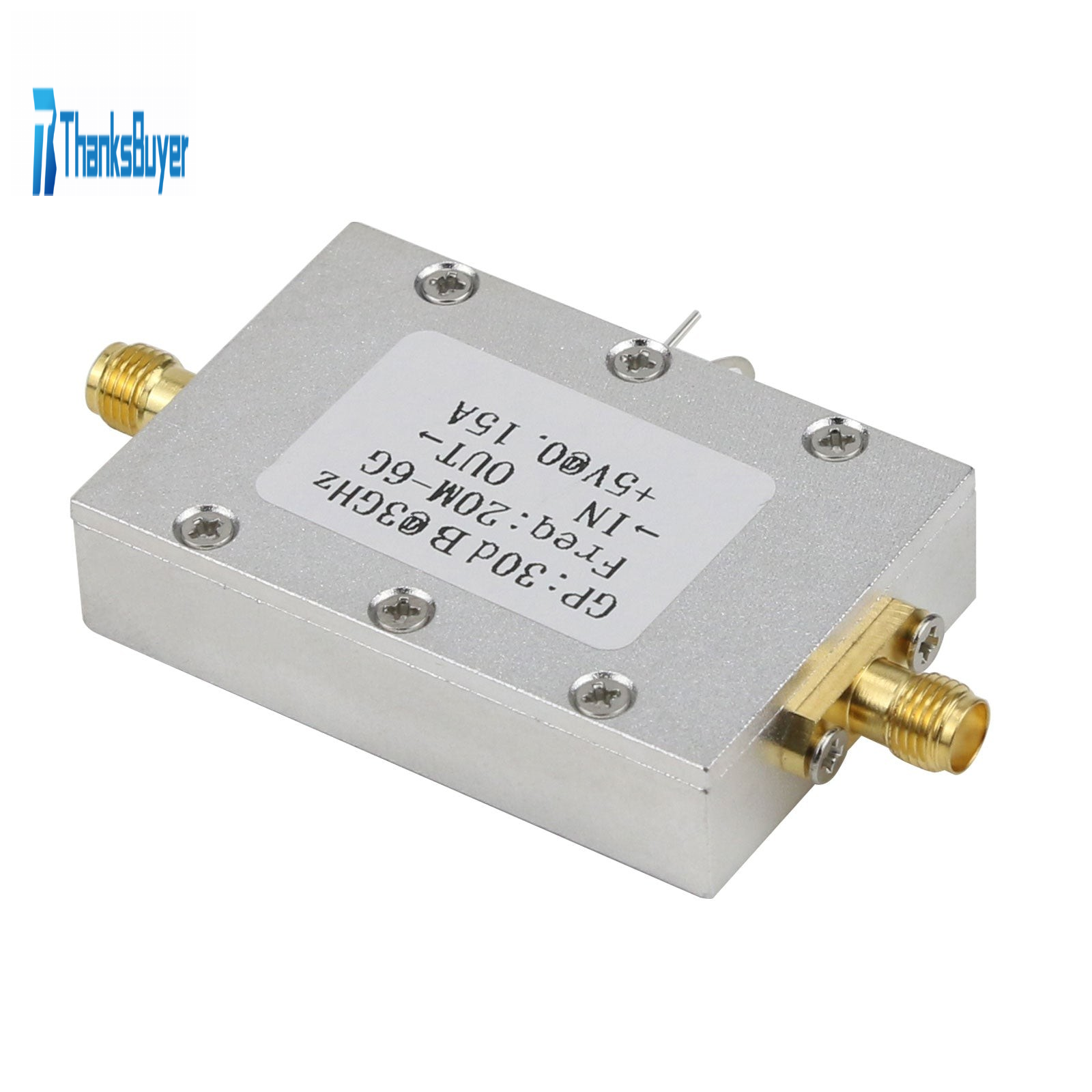

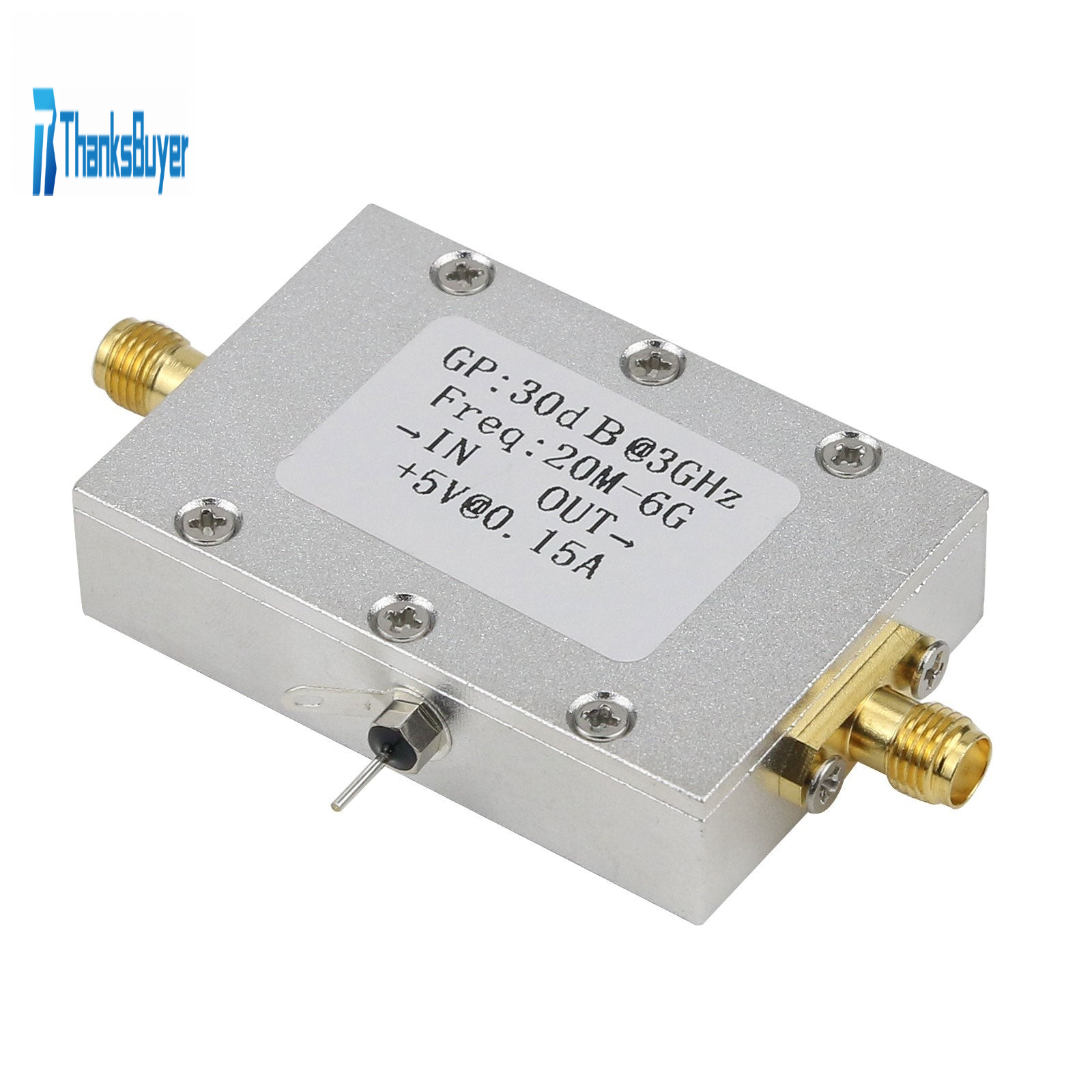

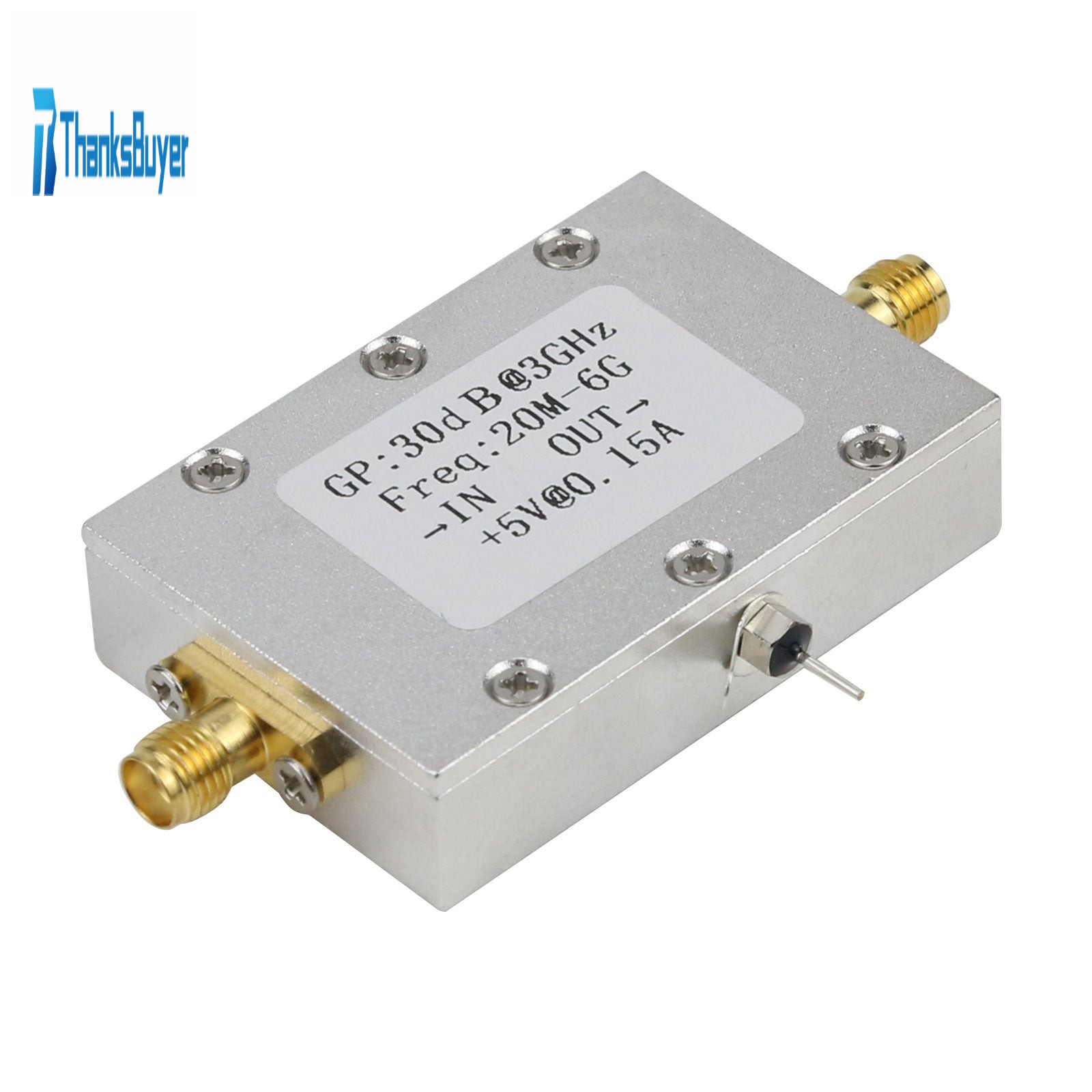

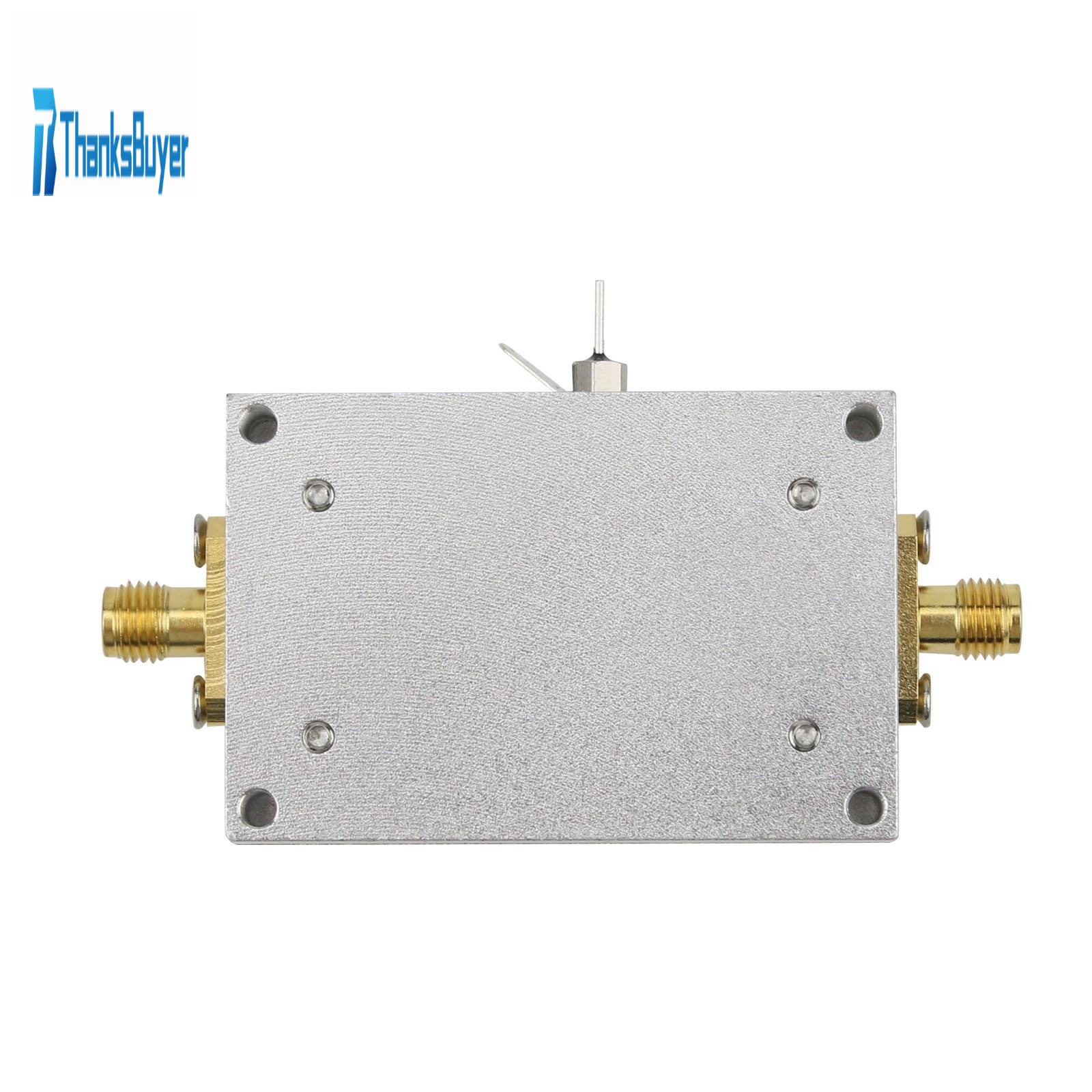

20M-6GHz RF Low Noise Amplifier Broadband LNA Amplifier High Gain 30dB
Specifications:
- Supply Voltage: Typical +5V (typical current 150mA)
- Power Gain: 30dB @3G typical; 21dB @6GHz. Gains are slightly different at different frequencies
- Input & Output Interfaces: SMA_K @50Ω
- Maximum Output Power P1dB: +17dBm typical
- Working Frequency Range: 20M-6GHZ
- Noise Figure: 2.0dB
Package Included:
- 1 x Low Noise Amplifier
