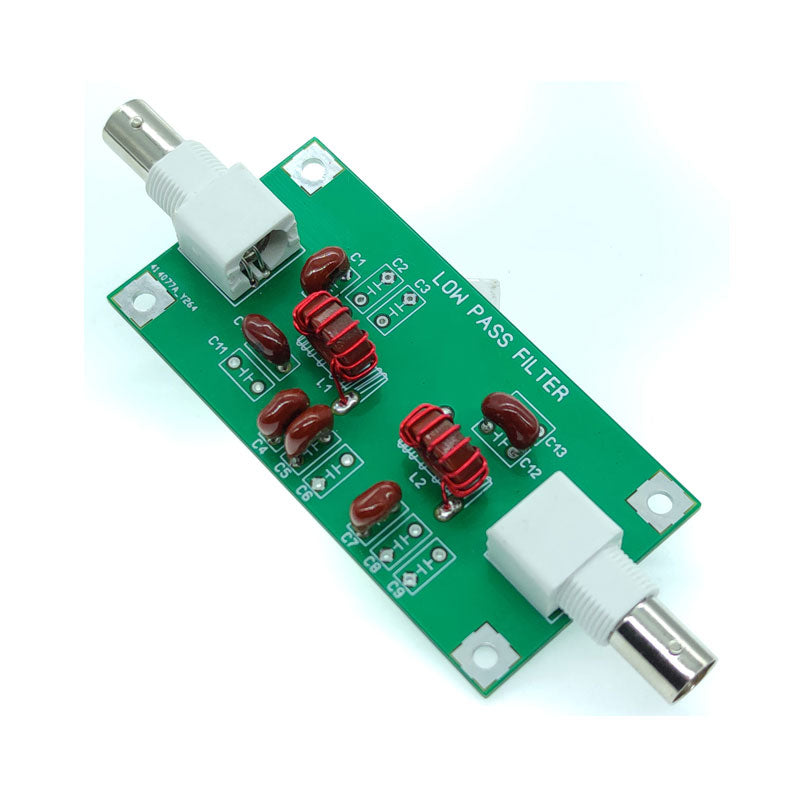

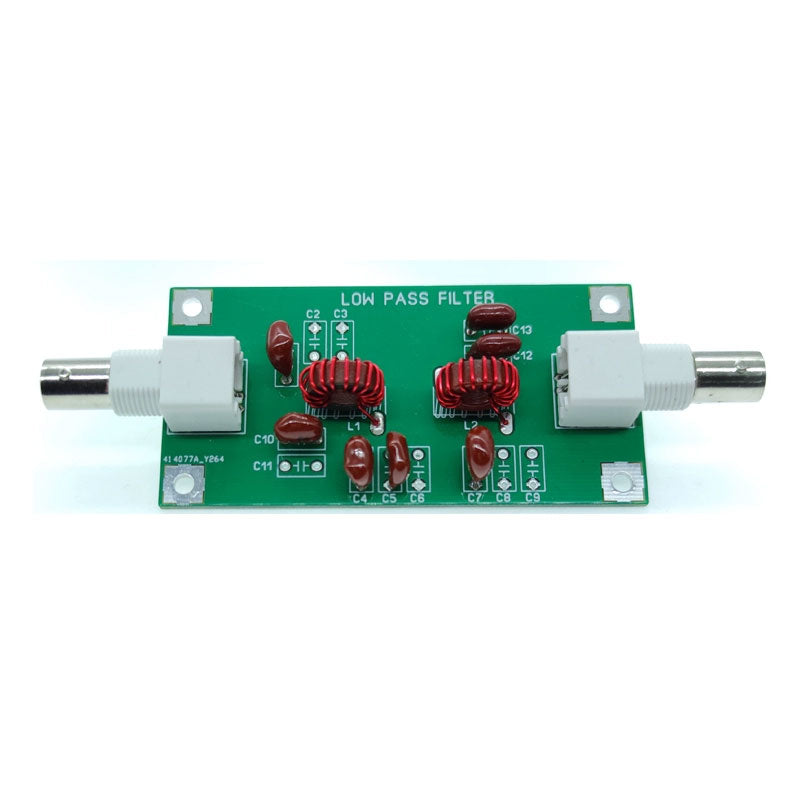

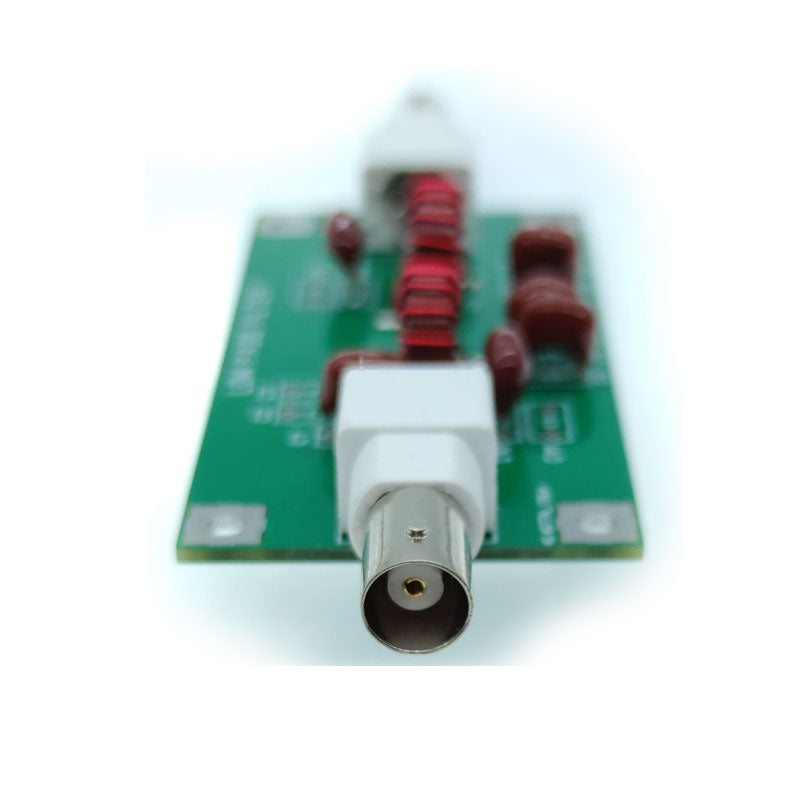

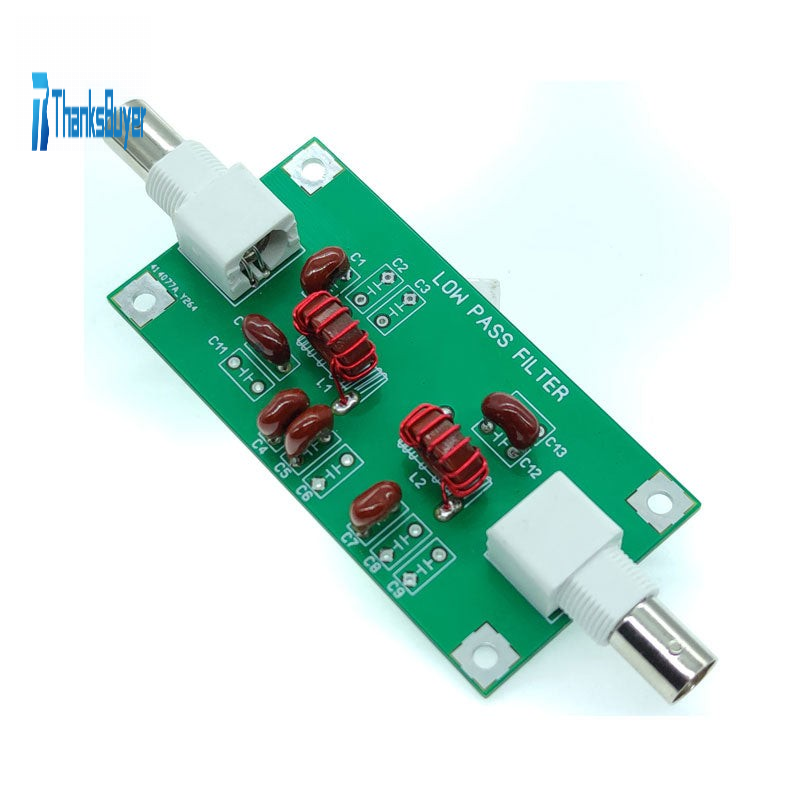

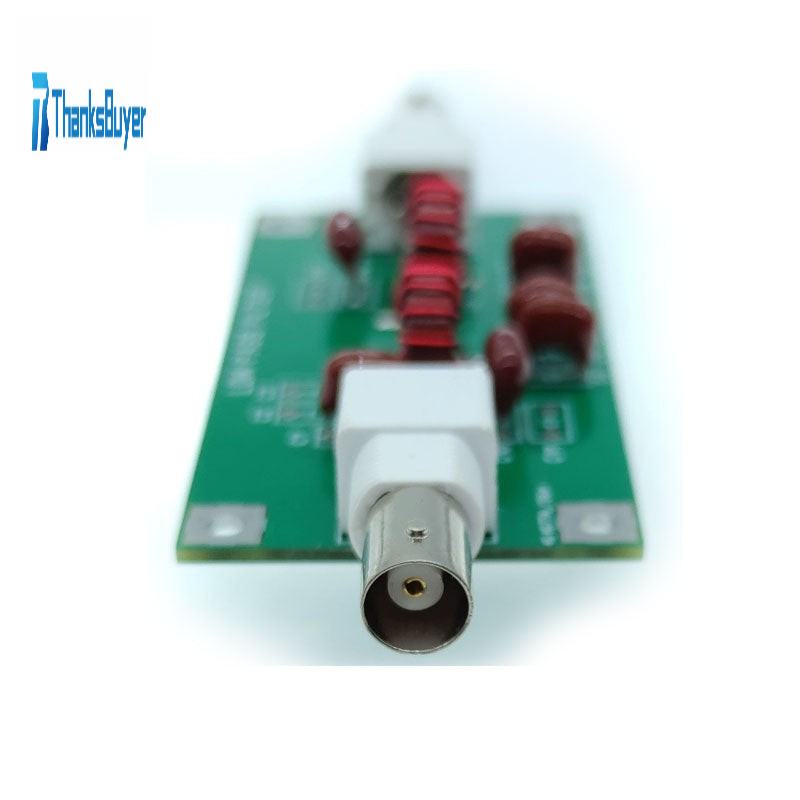

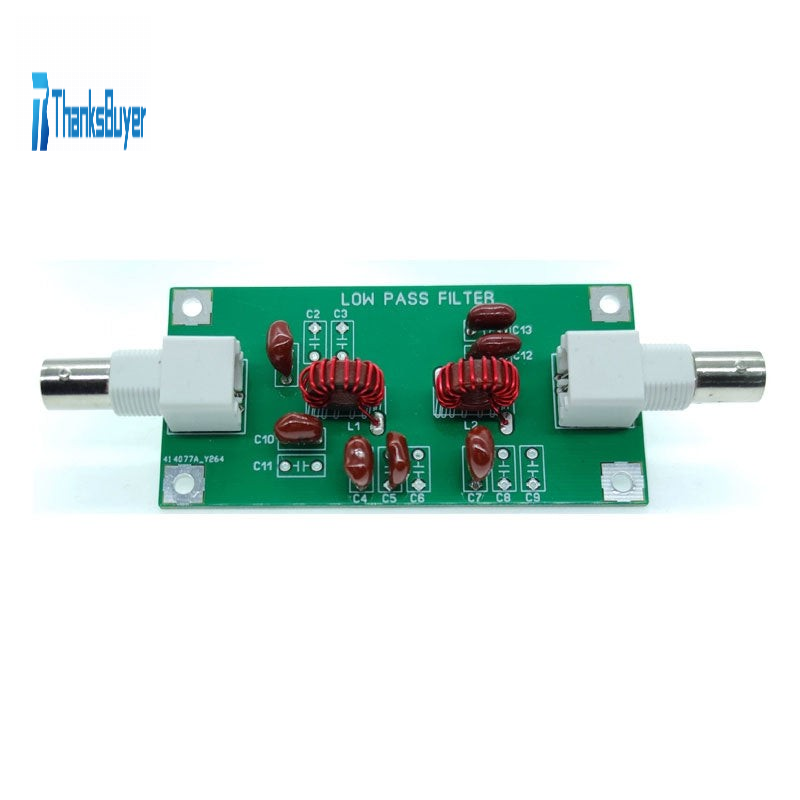

20M(14MHz) High Power 100W Max LPF Low Pass Filter for Transmitter (TX) and Amplifier with Two BNC Female Connector

20M(14MHz) High Power 100W Max LPF Low Pass Filter for Transmitter (TX) and Amplifier with Two BNC Female Connector

Description:
- If configured properly, this low-pass filter can significantly reduce the harmonics of the transmitter, amplifier, or any other signal source with minimal impact on the required signal.

Specification:
- Wavelength: 20M
- Frequency: 14MHz
- Power: 100W (Max) at the optimal matching condition
- Reduce harmonics by more than 50 decibels
- Position: Used for inline placement between transmitters and antennas
- Connector: 2 x BNC (female)
- Size: 45 x 88mm
- Weight: 36g

Package Included:
- 1 x Low Pass Filter
