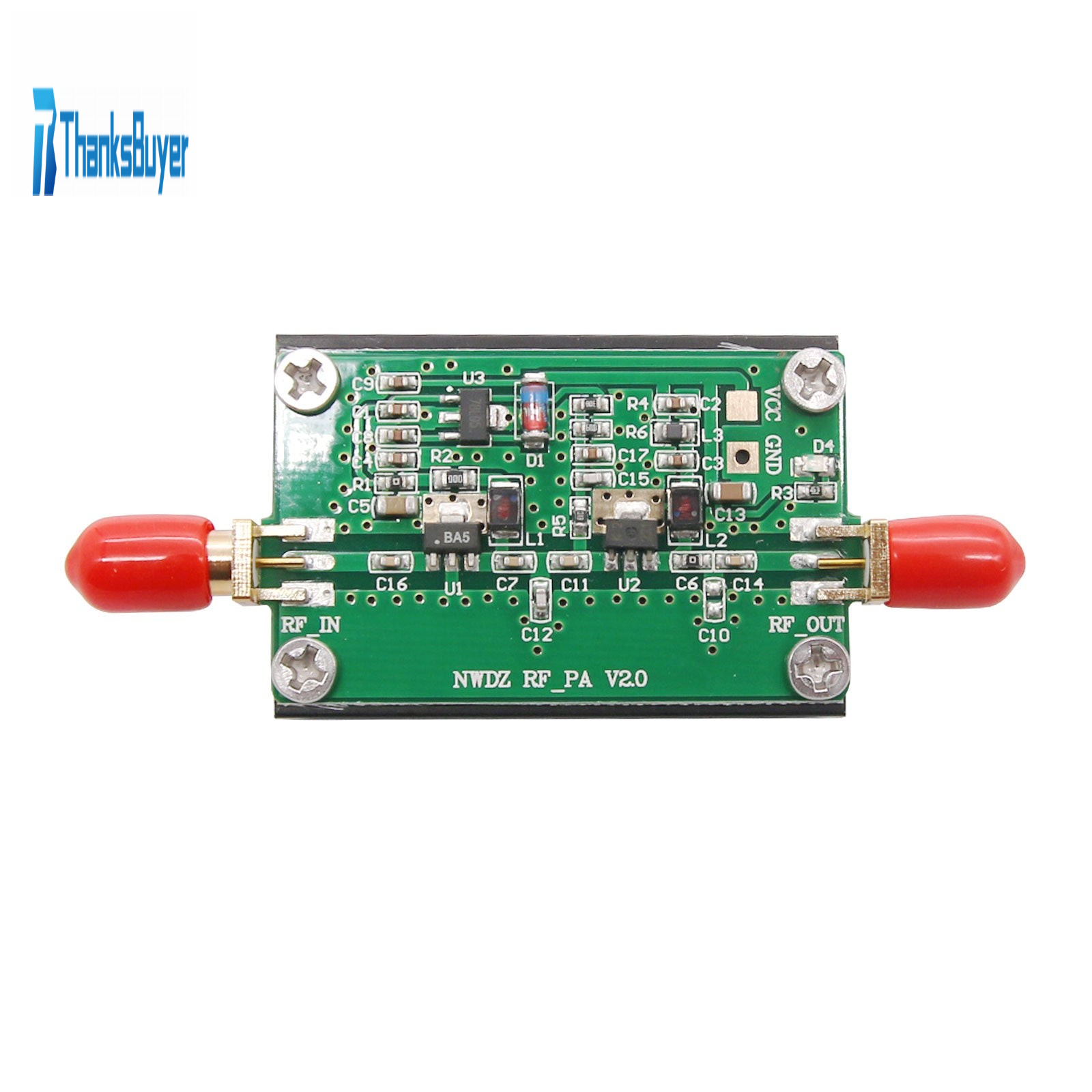

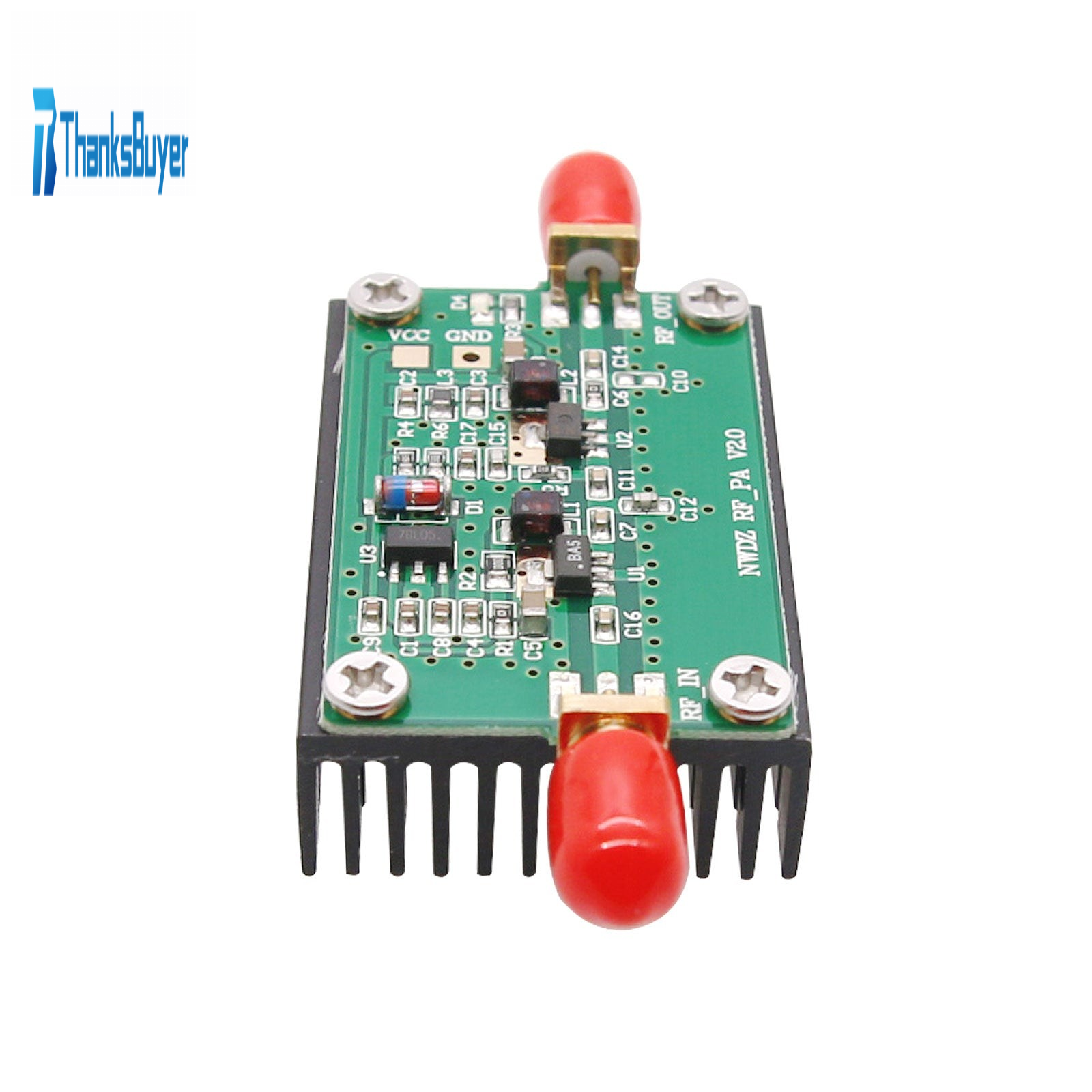

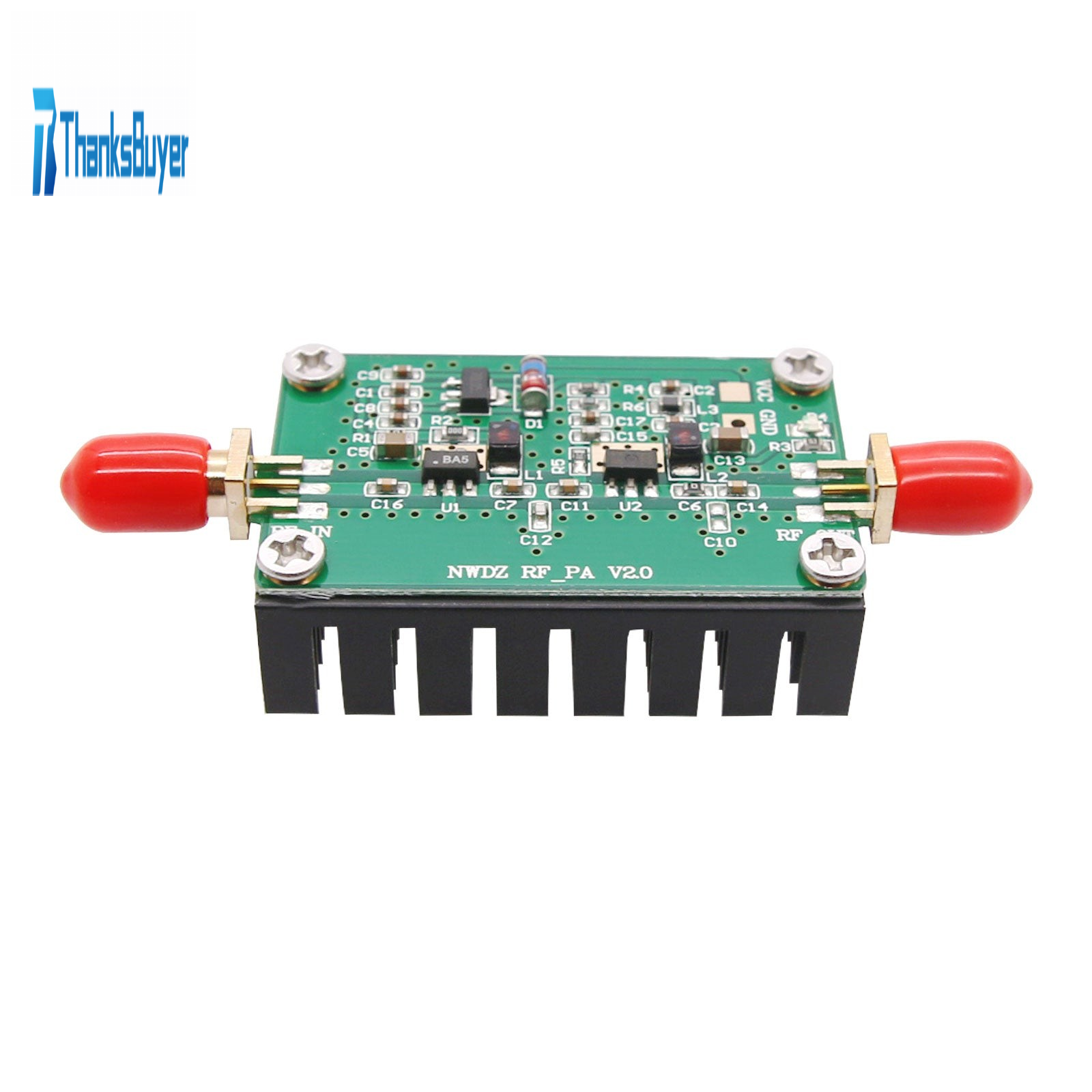

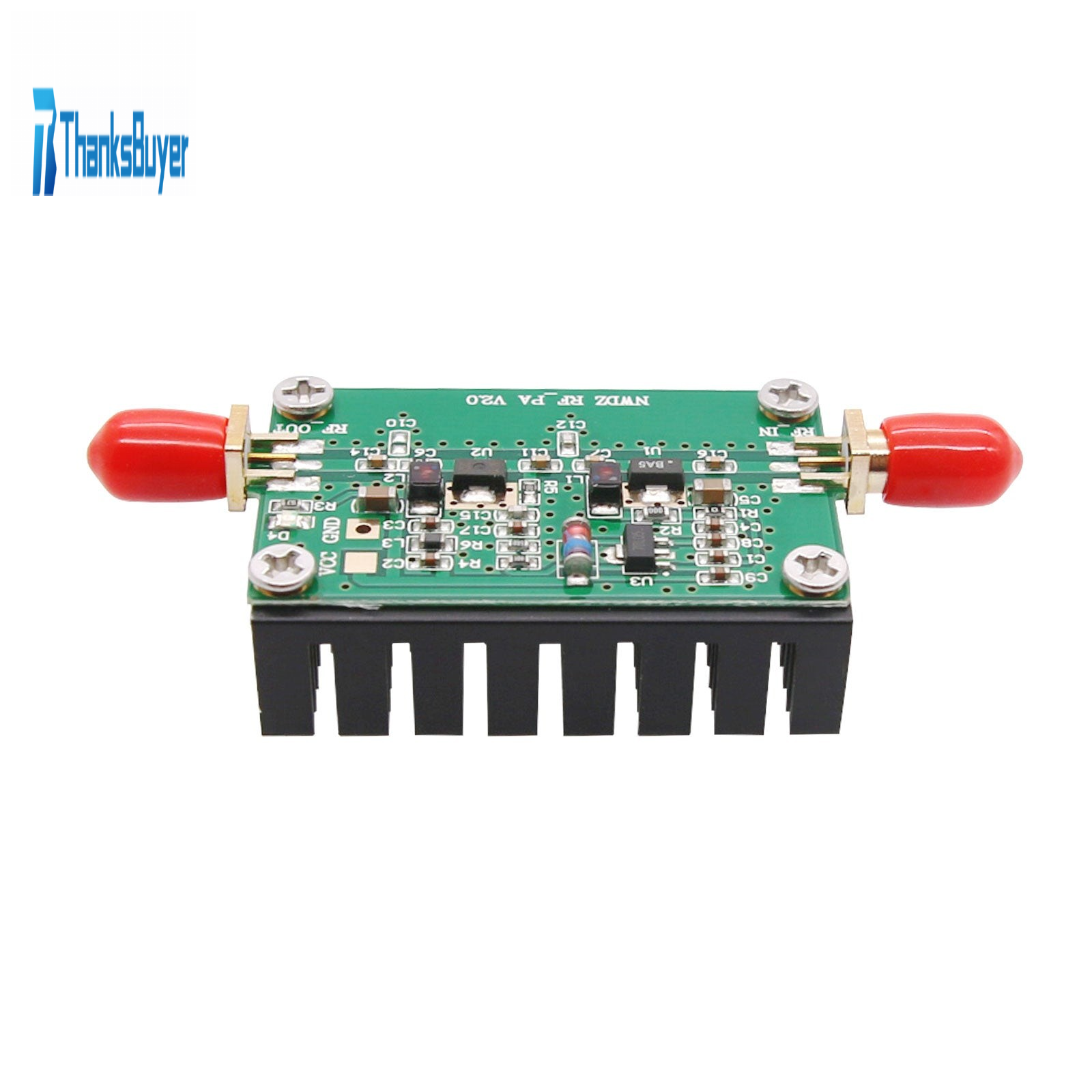

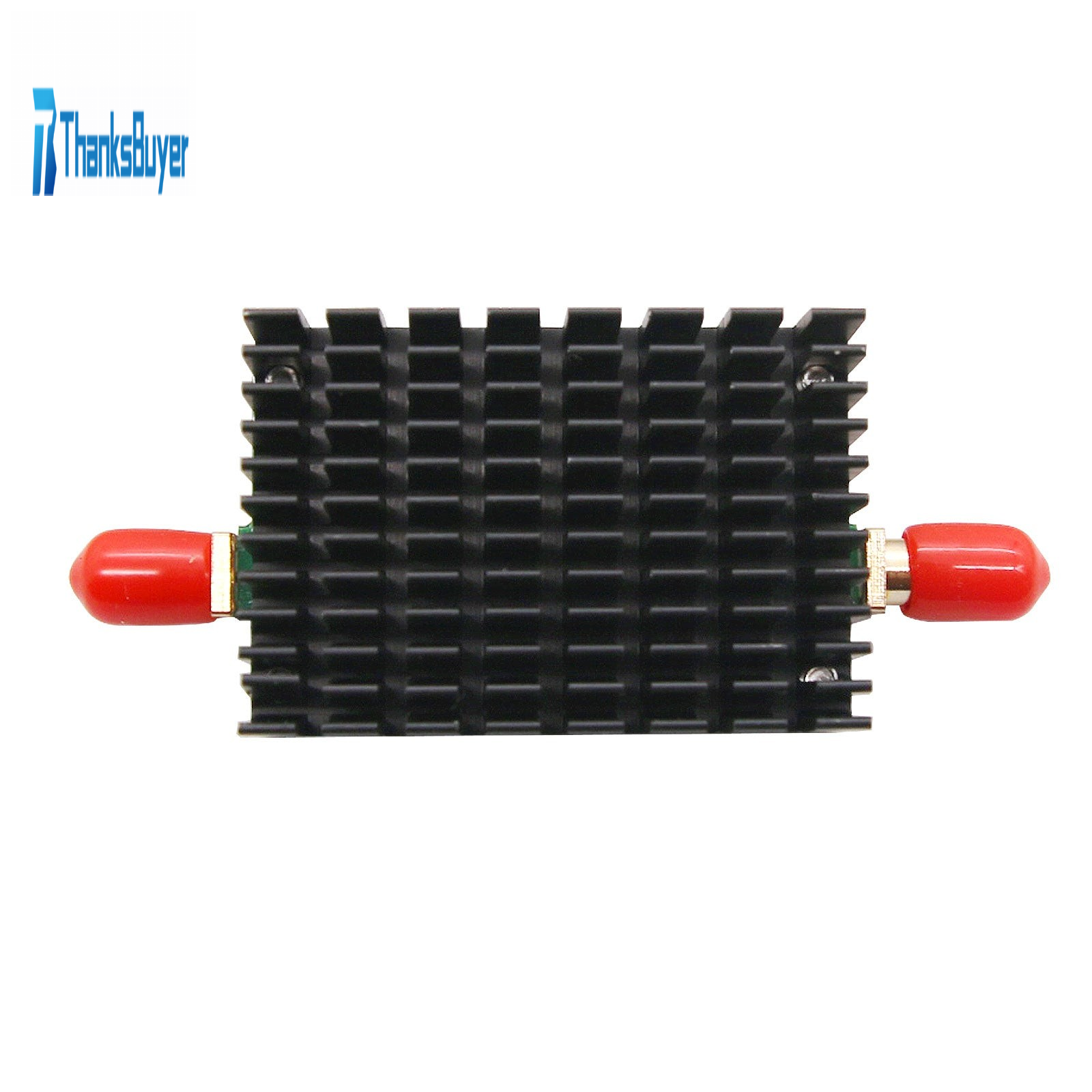

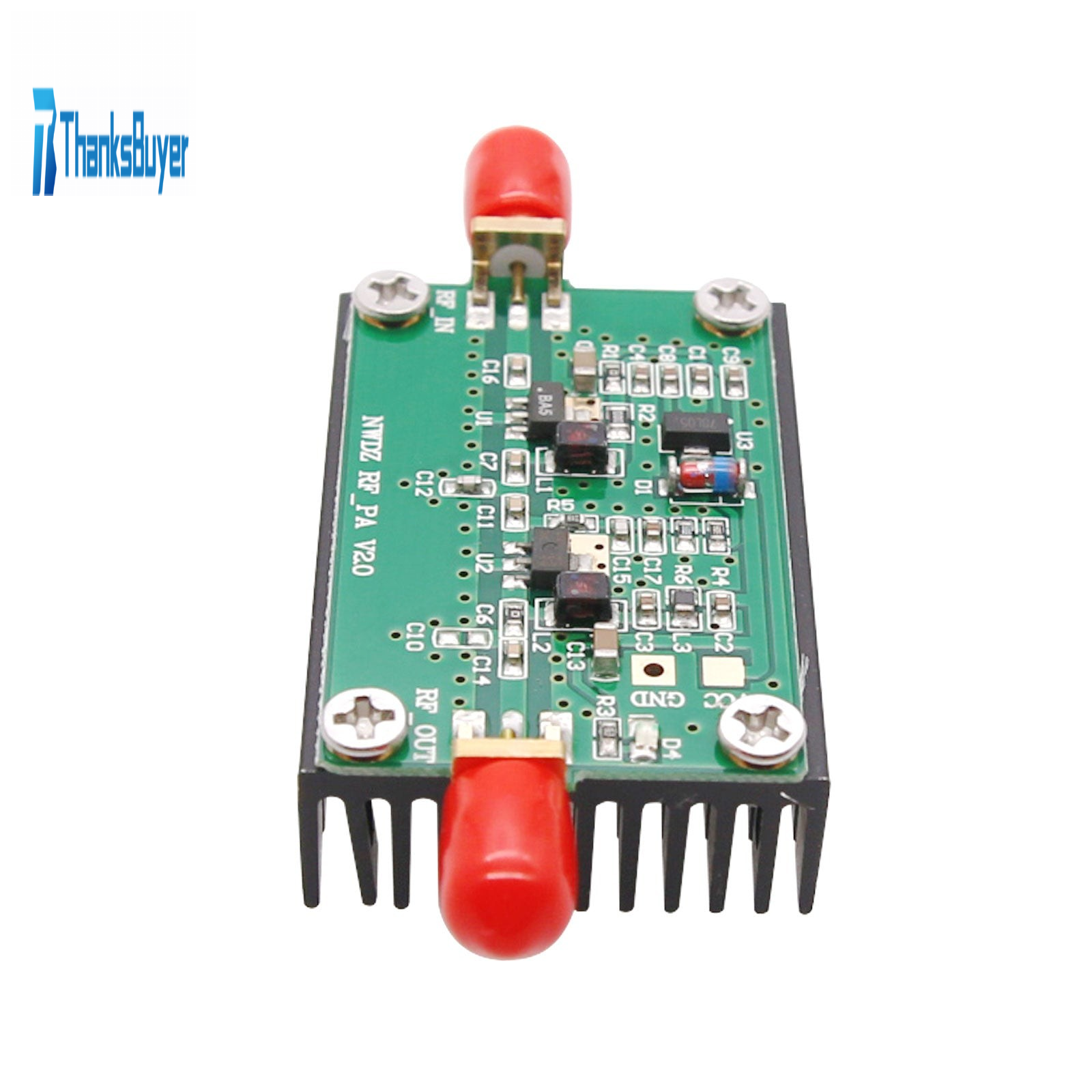

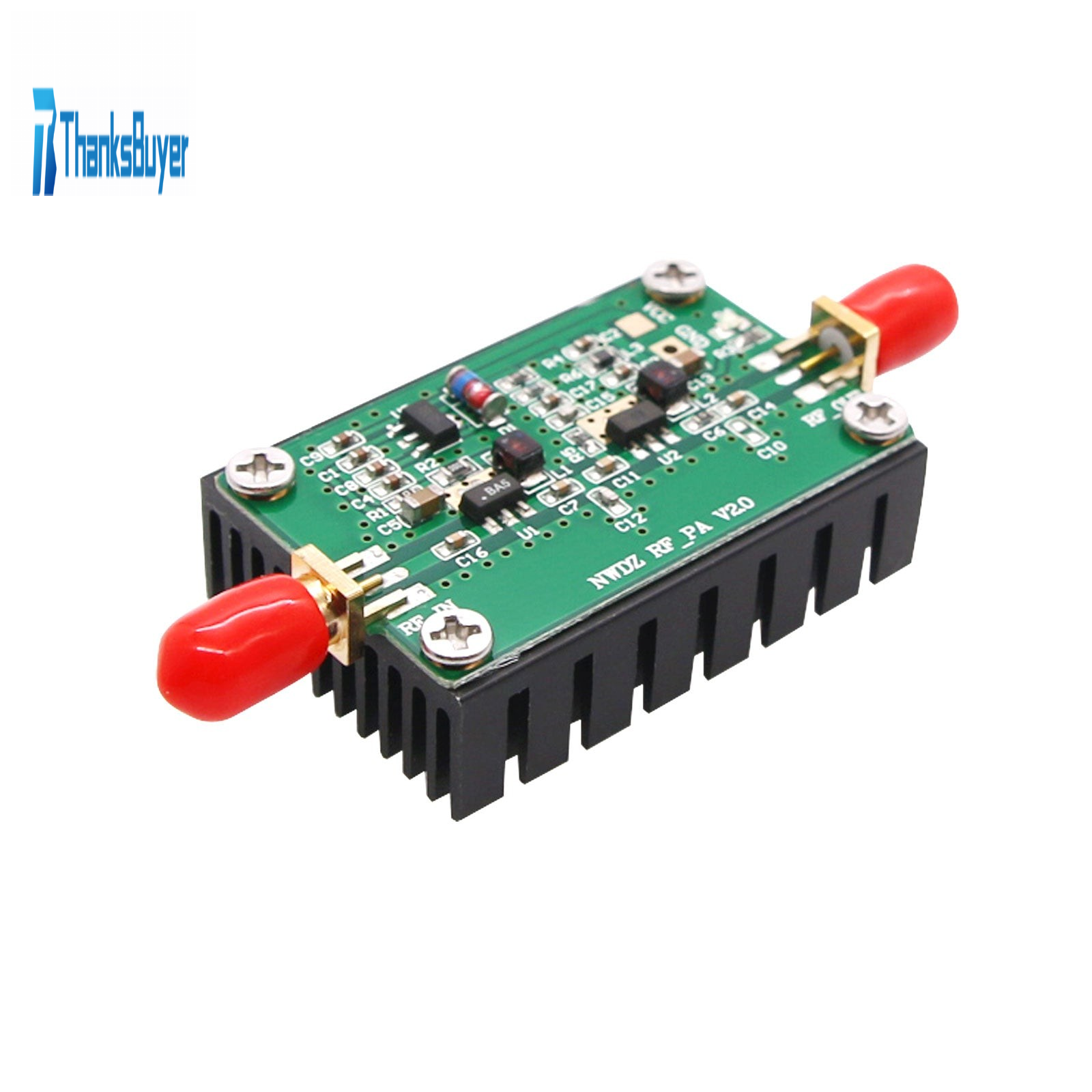

2MHZ-700MHZ 3W HF VHF UHF FM Transmitter RF Power Amplifier For Ham Radio 2019

2MHZ-700MHZ 3W HF VHF UHF FM Transmitter RF Power Amplifier For Ham Radio 2019

Description:
- DC+12~15V RF Power Amplificatore trasmettitore per radio 3W 2MHZ-700MHZ HF VHF

Features:
- 100% brand new and high quality.
- Adopts high quality circuit board, stable and reliable.
- Broadband RF power amplifier for all types of wireless applications, FM shortwave radios remote control toys, digital radio, etc
- Maximum output of 3 watts, 15V voltage supply, broadband work 2MHZ to 700MHZ can be work.
- This RF Power Amplifier 's typical power Gain is 35 dB

Specifications:
- Supply voltage:DC+12~15V (typical 15V@0.3-0.5A)
- Working frequency: 2MHZ-700MHZ, input and output impedance: 50 ohms;
- Maximum output power: 34.8dbm(3W)
- Maximum input power: <+10dBm
- Typical power Gain: 35 dB (> 300M Gain slightly decreased)
- Size: 7 x 3cm / 2.76 x  1.18in
- Weight: 28g

Package included :
- 1 x RF Power Amplifier
