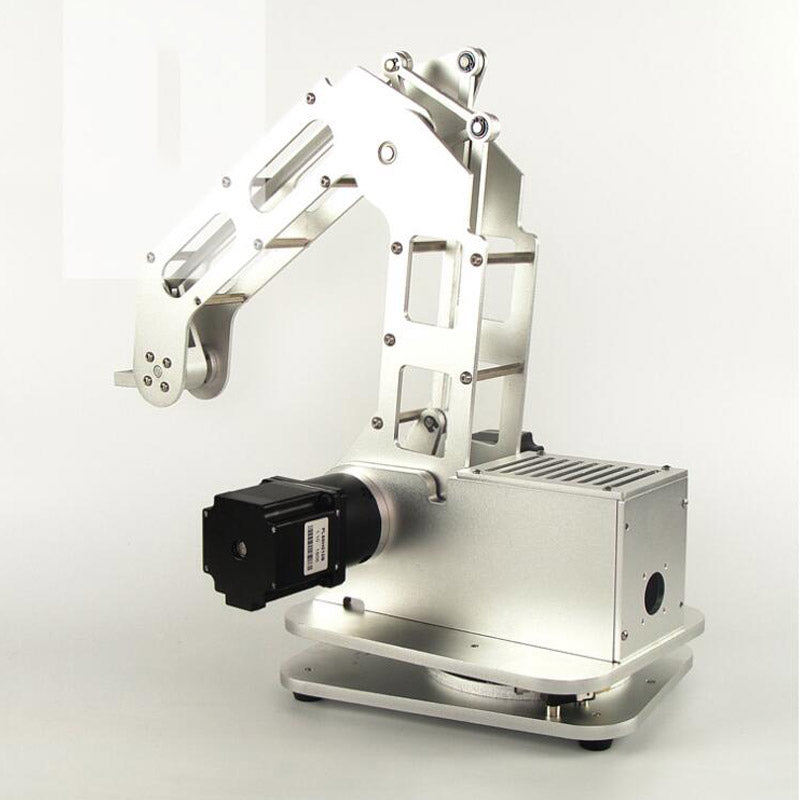

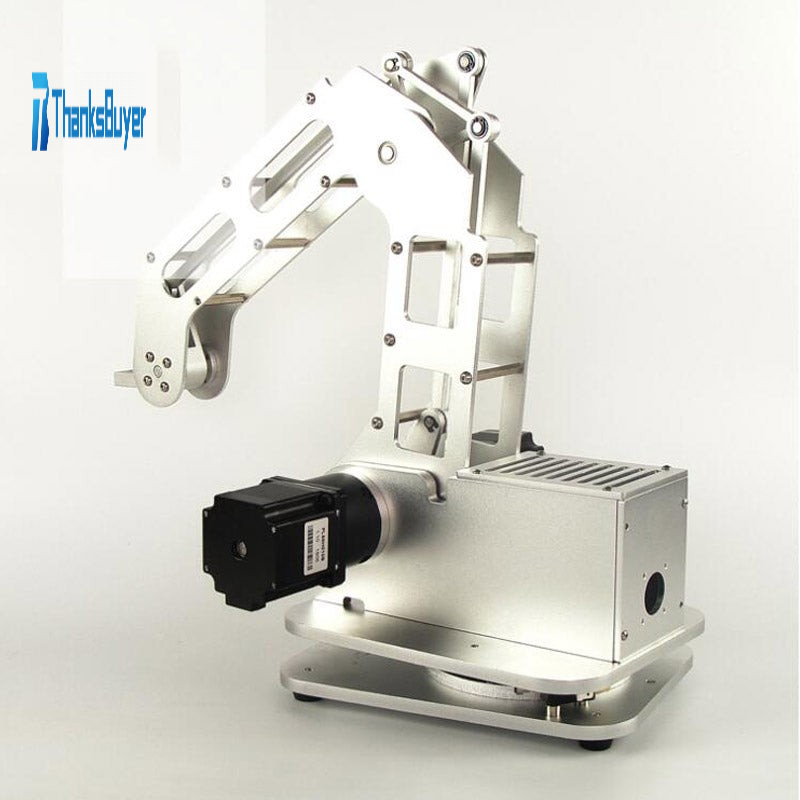

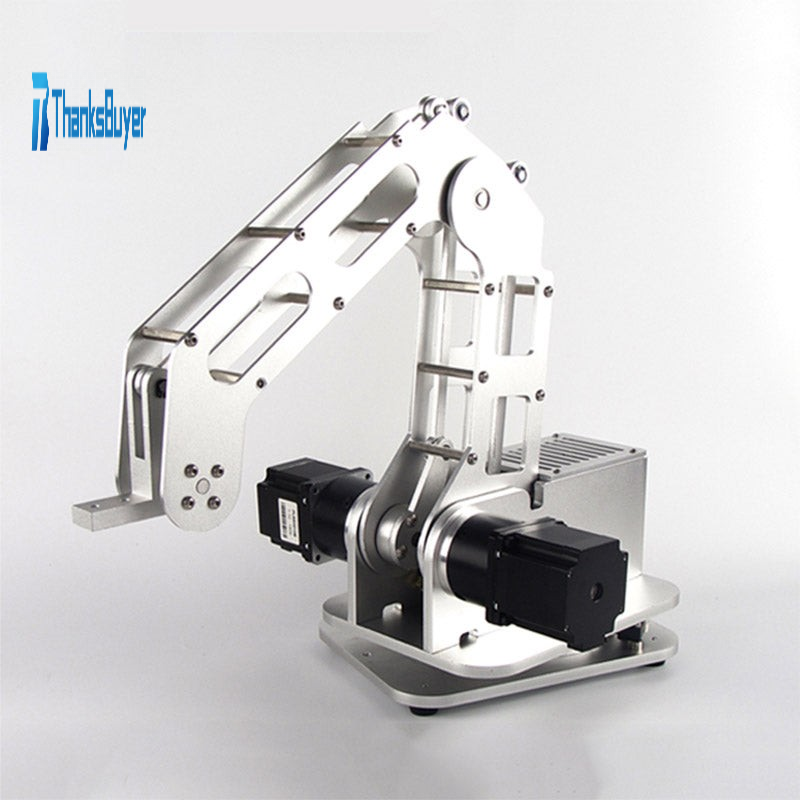

3DOF Industrial Robotic Arm 3-Axis Mechanical Arm w/ Geared Motors Assembled Load 2.5KG

3DOF Industrial Robotic Arm 3-Axis Mechanical Arm w/ Geared Motors Assembled Load 2.5KG

Features:

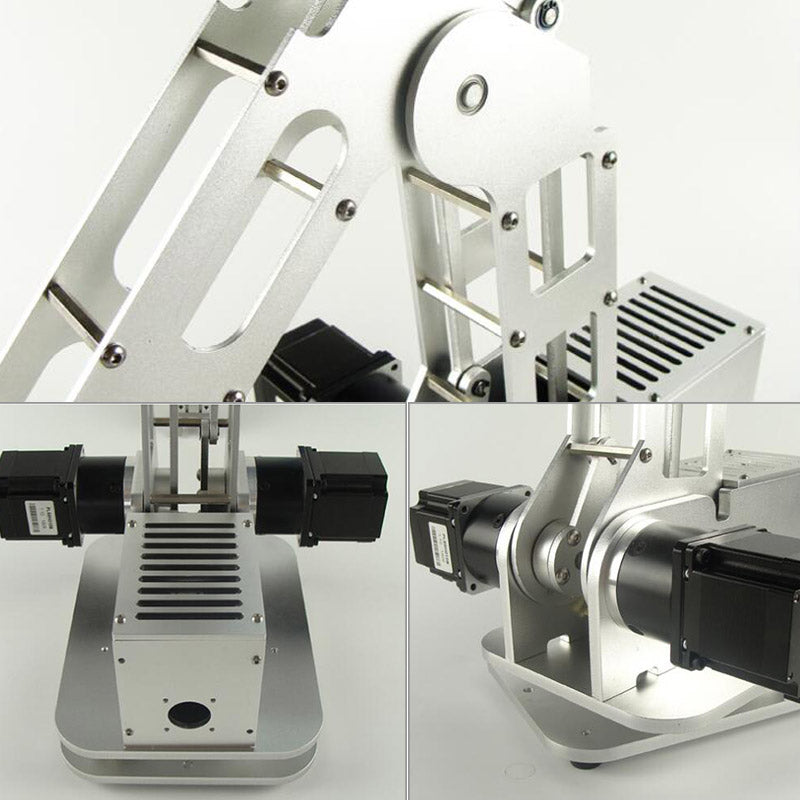

- High Precision: 57 Geared Stepper Motor
- Deceleration Ratio: 1:10
- 15 arc minute
- The whole body adopts 6061 aluminum alloy, surface is anodized, and joint parts adopt high-quality bearings
- 580mm arm span
- 2.5kg load capacity
- Easy operation

Parameters:
- Number of Axis: 3-Axis
- Load Capacity: 2.5kg

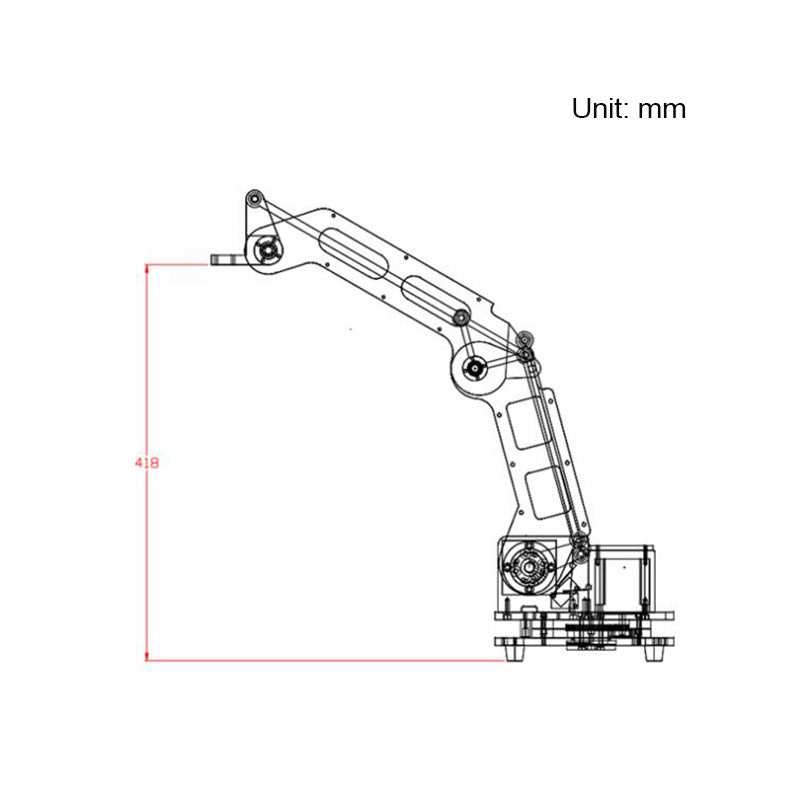

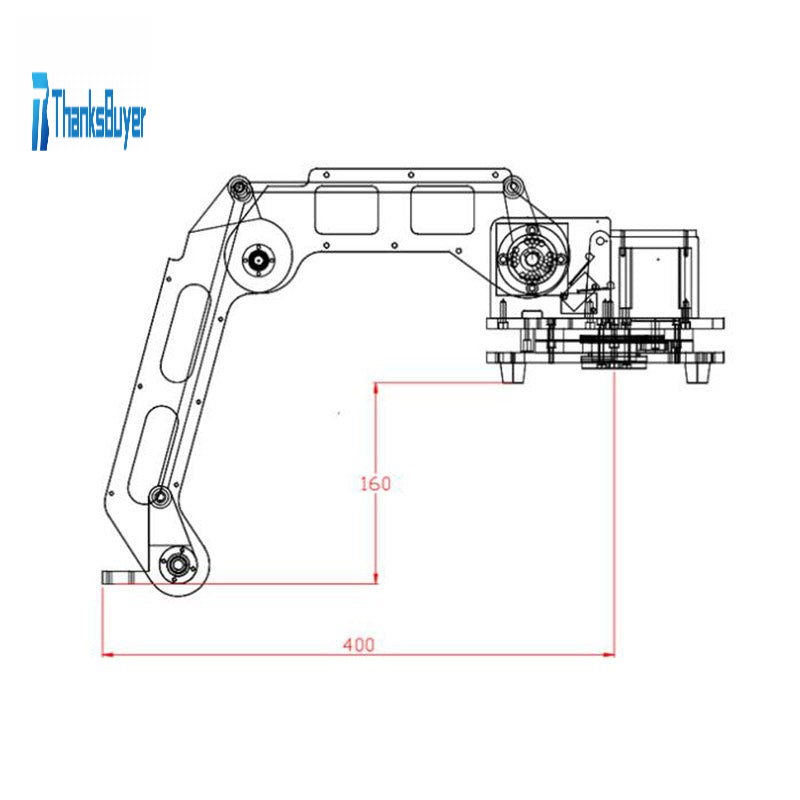

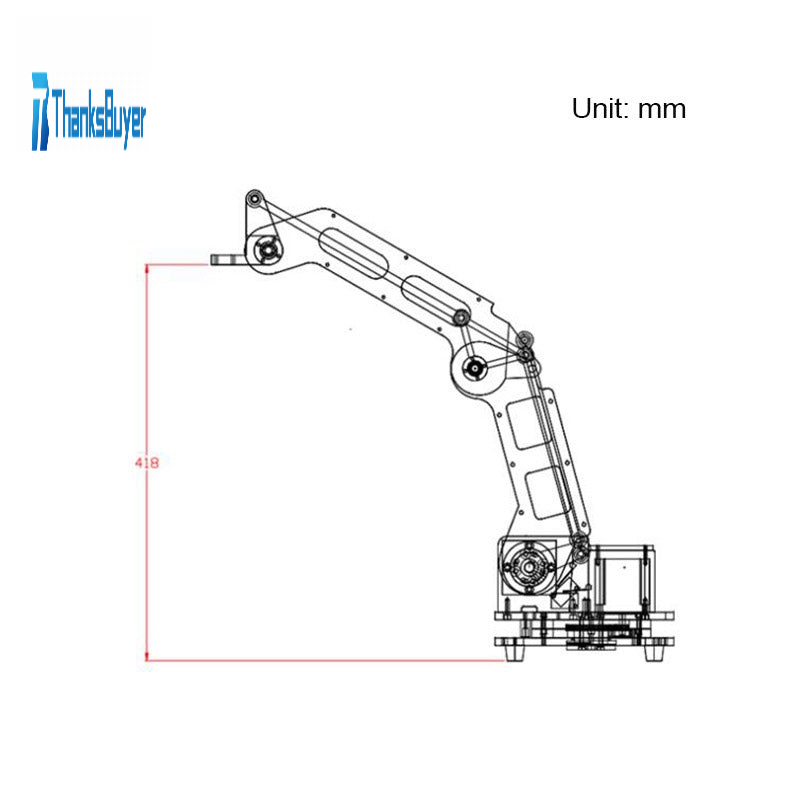

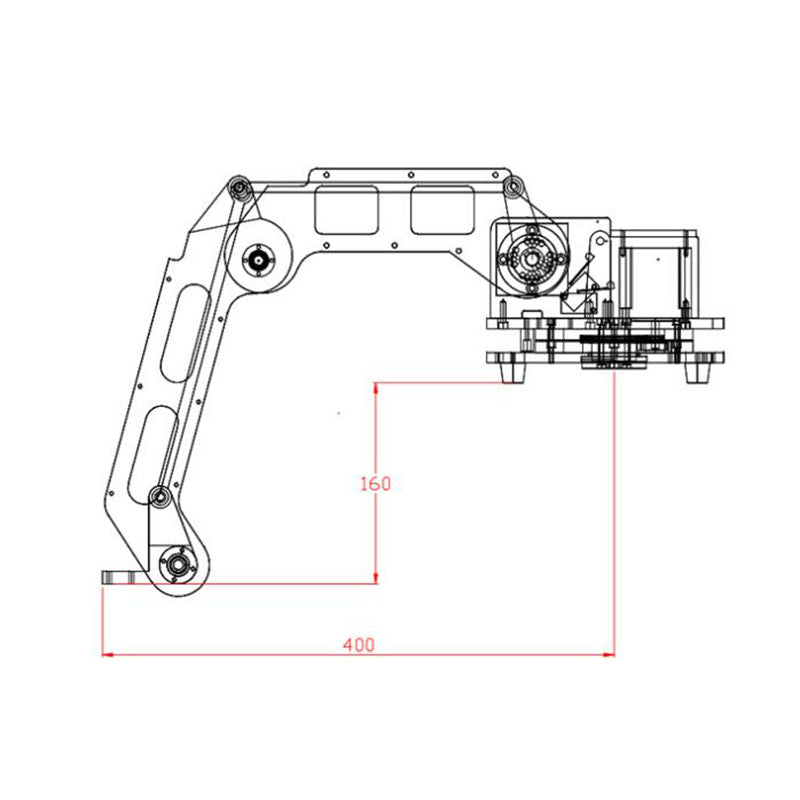

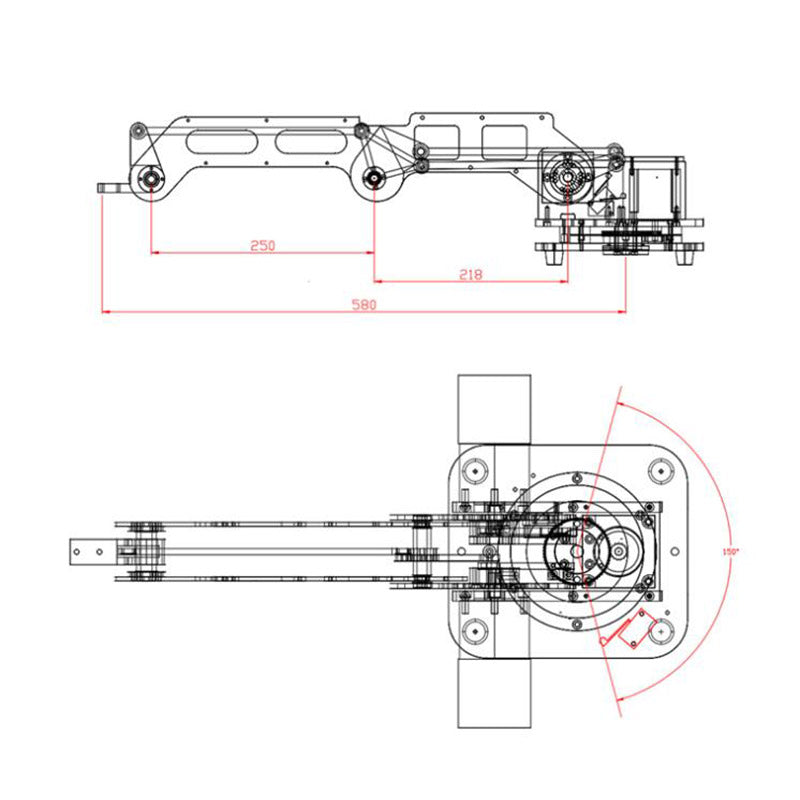

- Maximum Extension Distance: 580mm
- Repeat Positioning Accuracy: 0.3mm
- Communication Interface: WiFi
- Power Supply Voltage: 100-240V, 50/60HZ
- Power Supply Input: 24V/20A DC
- Power: 500W Max.
- Working Temperature: -10℃ to 60℃

Axes' Parameters:
- Axis Motion Parameter: 0° to +85°, Max. 320°/s (250g load)
- Base Motion Range: -10° to +95°, Max. 320°/s (250g load)
- Arm Motion Range: +90° to -90°, Max. 480°/s (250g load)
- Axis Rotation Range: +90°to -90°, Max. 480°/s (250g load)

Physical Characteristics:
- Base Size: 220 x 168mm
- Material: Aluminum Alloy
- Fixing Way: Base Fixing Holes

Package Included:
- 1 x Set of Robotic Arm

Note:
- It is assembled and ready to use.
- 3pcs geared motors are included.
