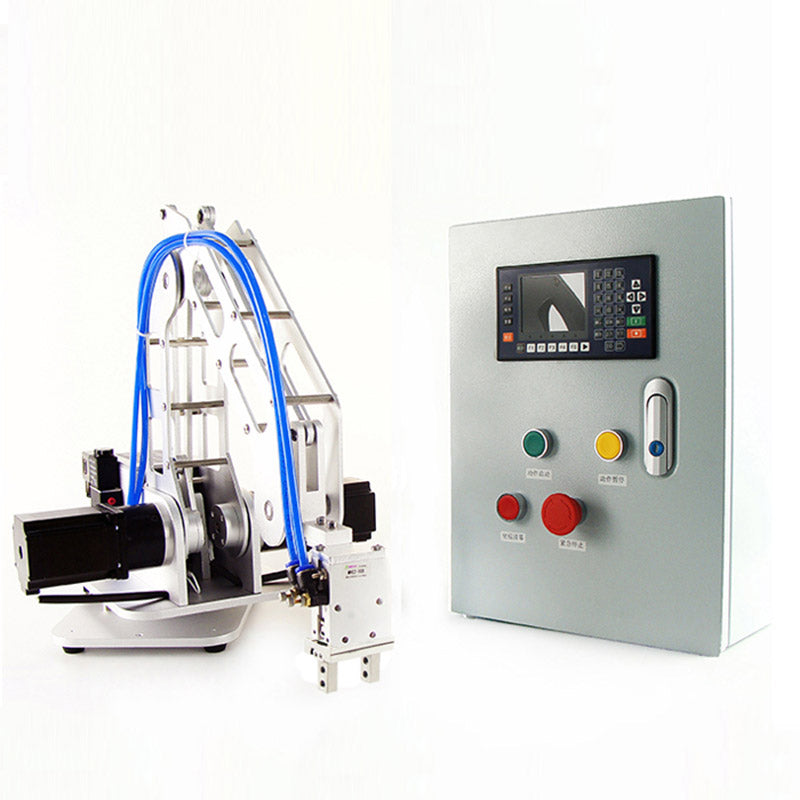

3DOF Industrial Robotic Arm Mechanical Arm w/ Motors Assembled Load 2.5KG + Control Box Claw

3DOF Industrial Robotic Arm Mechanical Arm w/ Motors Assembled Load 2.5KG + Control Box Claw

Features:
- CM40L programmable controller
- Can be connected to input and output interface
- Can be operated directly on the control panel of the control box
- High Precision: 57 Geared Stepper Motor
- Deceleration Ratio: 1:10
- 15 arc minute
- The whole body adopts 6061 aluminum alloy, surface is anodized, and joint parts adopt high-quality bearings
- 580mm arm span
- 2.5kg load capacity
- Easy operation

Micro CNC Motion Operation Panel:
- Design innovation of configuration CNC system
- Strong external expansion ability
- 3.5-inch TFT true color LCD screen, showing a different visual experience
- Circuit design of reverse connection protection, over-current protection, peak interference suppression protection
- Core devices adopt international brand products to ensure product quality
- SMT production line guarantee product process
- 50000 clicks life and metal protection button. Well-crafted control panel
- Quick menu jump and one-click direct design
- Complete general motion control instruction set
- Multiple operating modes, actual, blank, single step to complete your various needs
- Easy-to-understand guided programming, simple operation
- Easy to operate teaching programming, simple interface integration software
- Support USB analog serial port, download/upload program and parameters
- Support panel programming or PC programming. Import controller via RS232, that is, MCU
- Support external expansion board, with ability to expand the size and number of program files

Claw:
Using claw accessories, robotic arm can move small objects. Through custom actions, auxiliary work can be performed in characteristic scenes

Parameters:
- Number of Axis: 3-Axis
- Load Capacity: 2.5kg
- Maximum Extension Distance: 580mm
- Repeat Positioning Accuracy: 0.3mm
- Communications Interface: WiFi
- Power Supply Voltage: 100-240V, 50/60HZ
- Power Supply Input: 24V/20A DC
- Power: 500W Max.
- Working Temperature: -10℃ to 60℃

Axes' Parameters:
- Axis Motion Parameter: 0° to +85°, Max. 320°/s (250g load)
- Base Motion Range: -10° to +95°, Max. 320°/s (250g load)
- Arm Motion Range: +90° to -90°, Max. 480°/s (250g load)
- Axis Rotation Range: +90°to -90°, Max. 480°/s (250g load)

Physical Characteristics:
- Base Size: 220 x 168mm
- Material: Aluminum Alloy
- Controller: CM40L Programmable Controller
- Fixing Way: Base Fixing Holes

Application:
Input & Output I/O Ports:
- Output: 01~08 system output 1~8, connect to power supply 24V positive pole through inductive load (relay/solenoid valve, etc.)
- Input: 01~16 system input 1~16, 24V negative pole is connected to input port through a switch (mechanical/photoelectric switch, etc.)

Claw:
- Opening: 27.5mm
- Drive mode: start
- Strength: 8N

Package Included:
- 1 x Set of Robotic Arm + Control Box Claw

Note:
- It is assembled and ready to use.
- 3pcs geared motors are included.
- Operation software is CM40L programmable controller.
