50-100MHz Low and Medium Frequency VCO Voltage Controlled Oscillator Point Frequency Output with SMA-K Connector

50-100MHz Low and Medium Frequency VCO Voltage Controlled Oscillator Point Frequency Output with SMA-K Connector

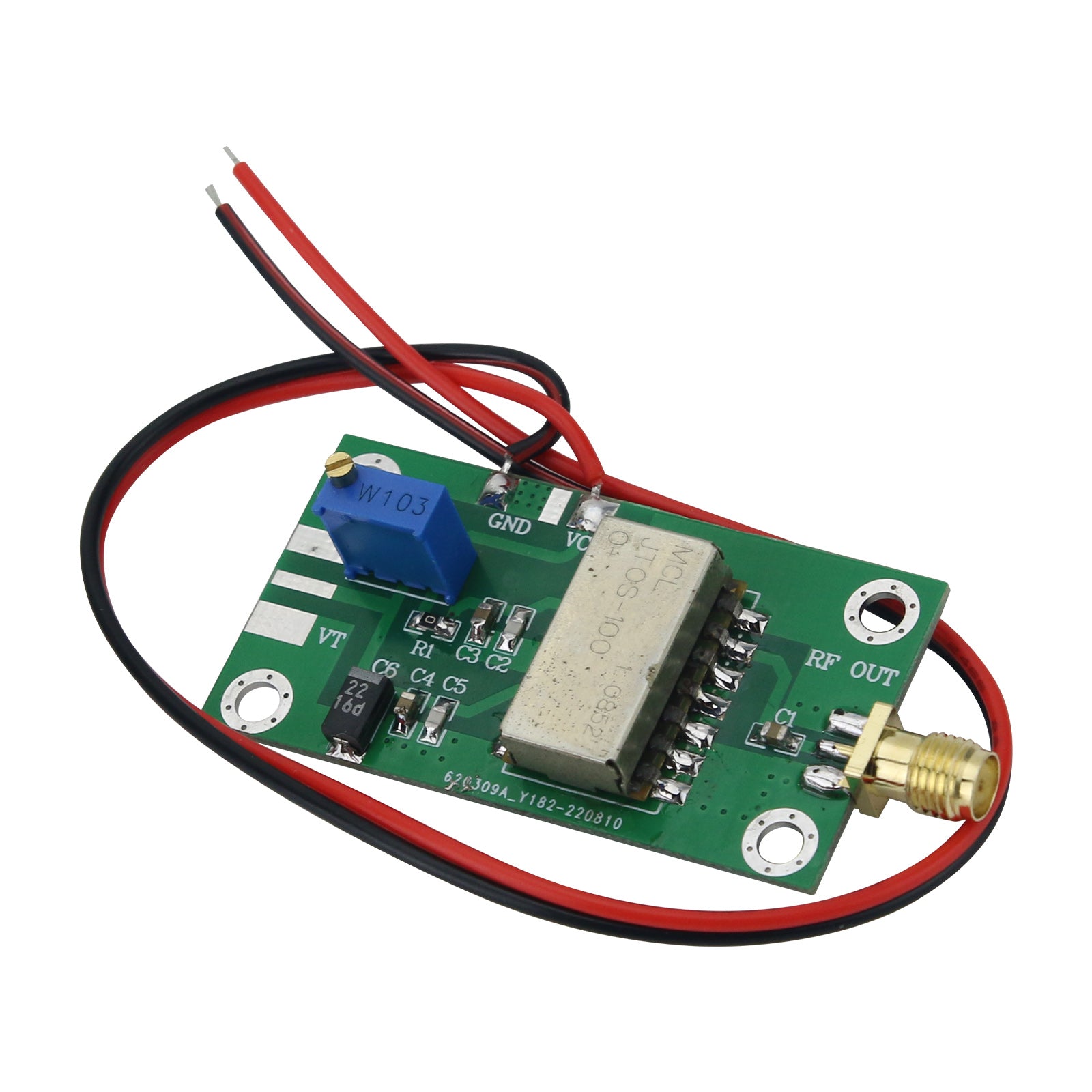

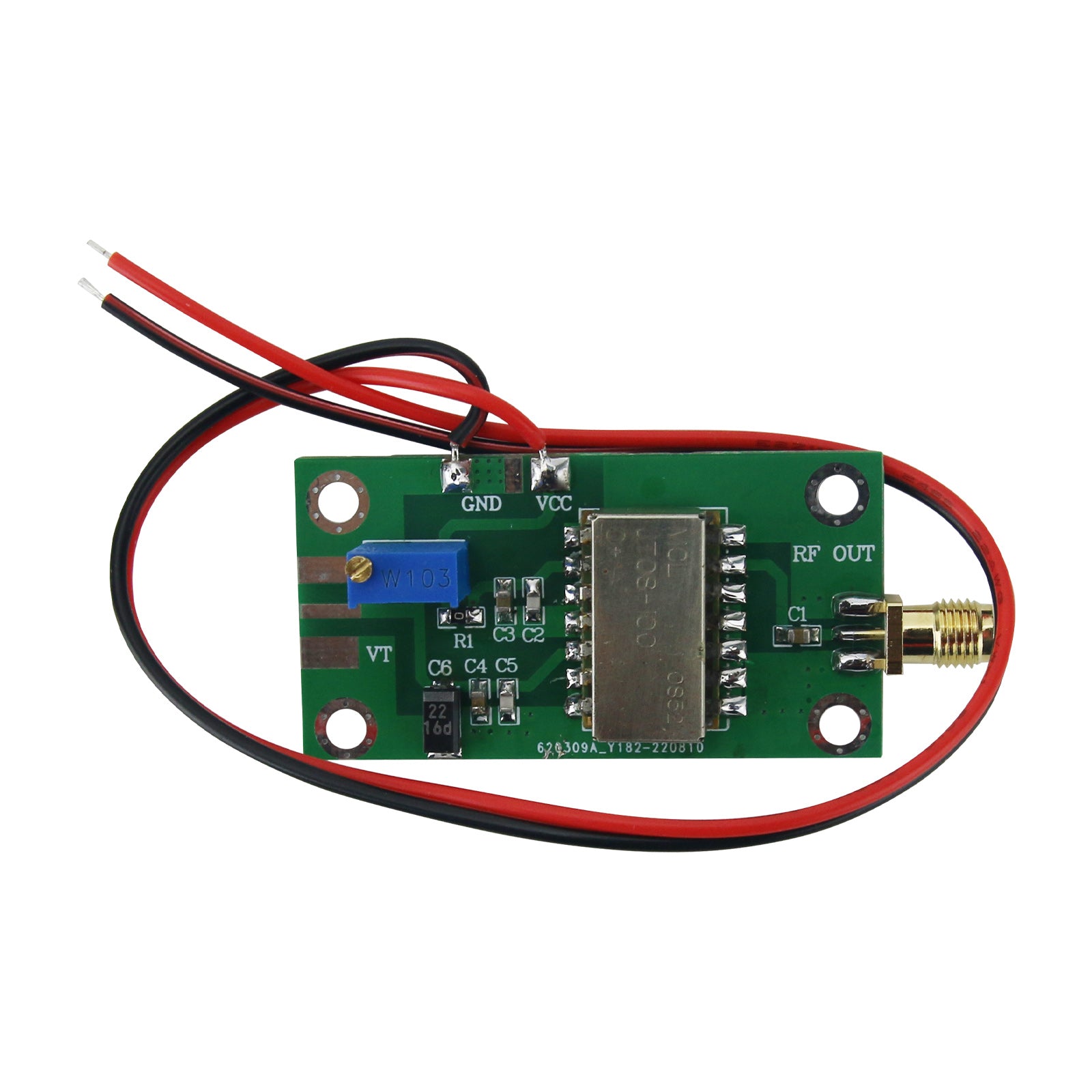

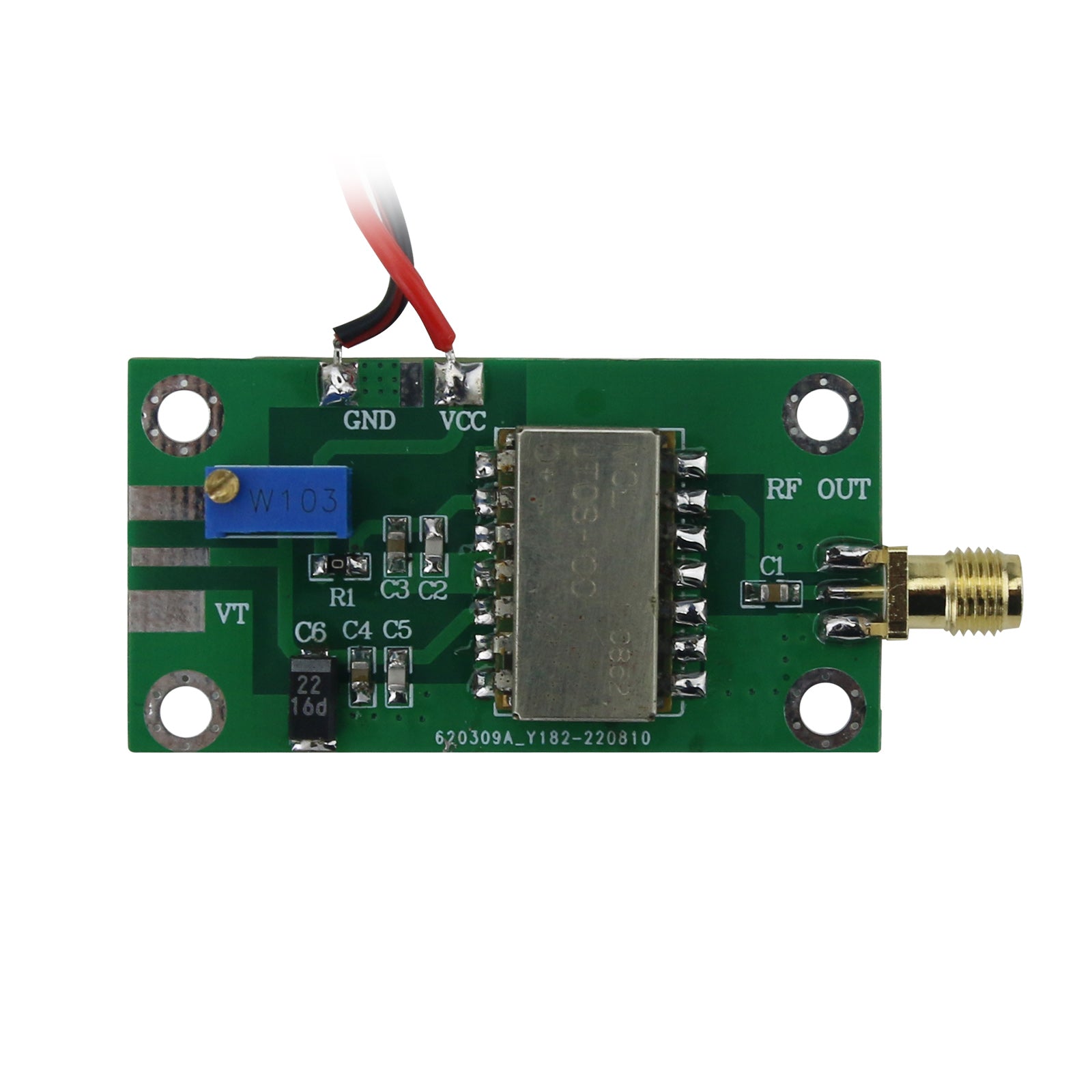

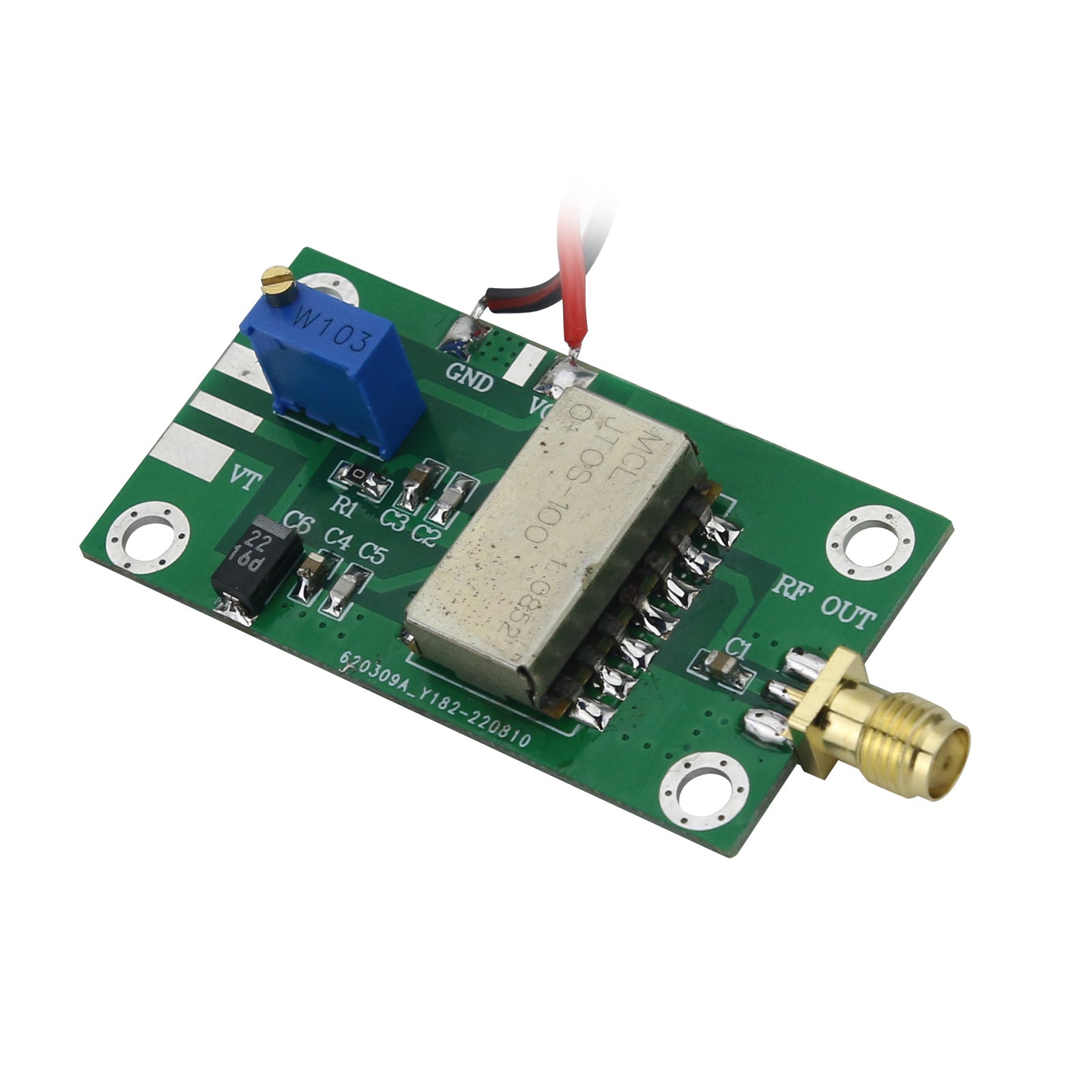

Description:
- The voltage controlled oscillator module is used to generate low and medium frequency signals of 50-100MHz, and is used as a point frequency signal source for transmitting signals. The module uses +15V power supply, and the potentiometer adjusts and changes the output signal frequency.
- At the same time, it supports external sawtooth wave input to generate linear frequency modulation signals, and can be used as a frequency synthesizer in conjunction with PLL frequency synthesizers.
- The module is compact in size, making it easy to integrate and use with equipment; The output of the module is non sine wave, and if a sine wave output is required, a low-pass filter needs to be added.

Specification:
- Model: QM-VCO50100B
- Power supply: +15V single power supply
- Frequency output frequency: 50 - 100MHz
- Typical output power: 8dBm
- Phase noise: -128dBc/Hz at 100K; -108dBc/Hz at 10K; -83dBc/Hz at 1K
- Output port: SMA-K
- Size: 52 x 28mm (not include the connector)

Package Included:
- 1 x VCO

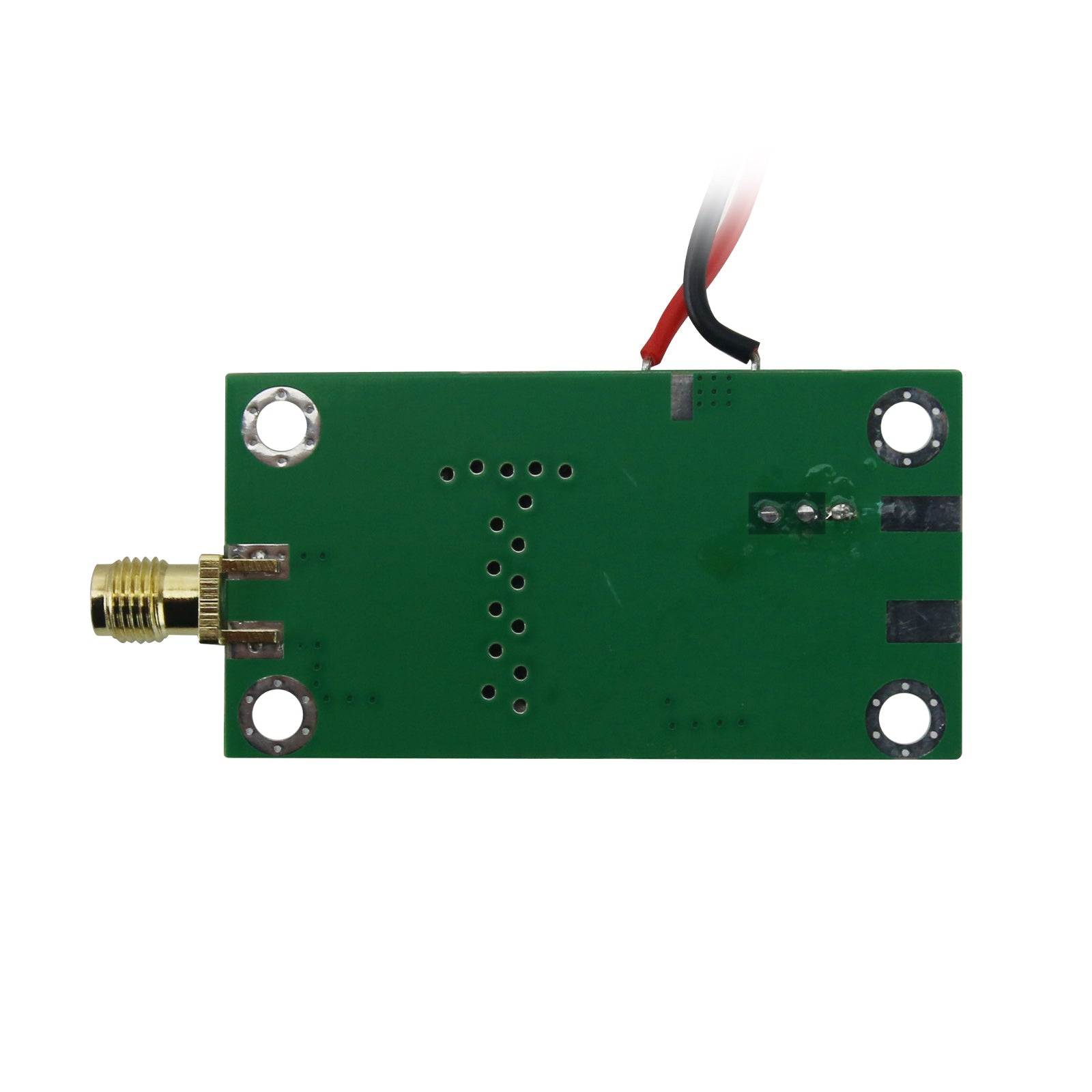

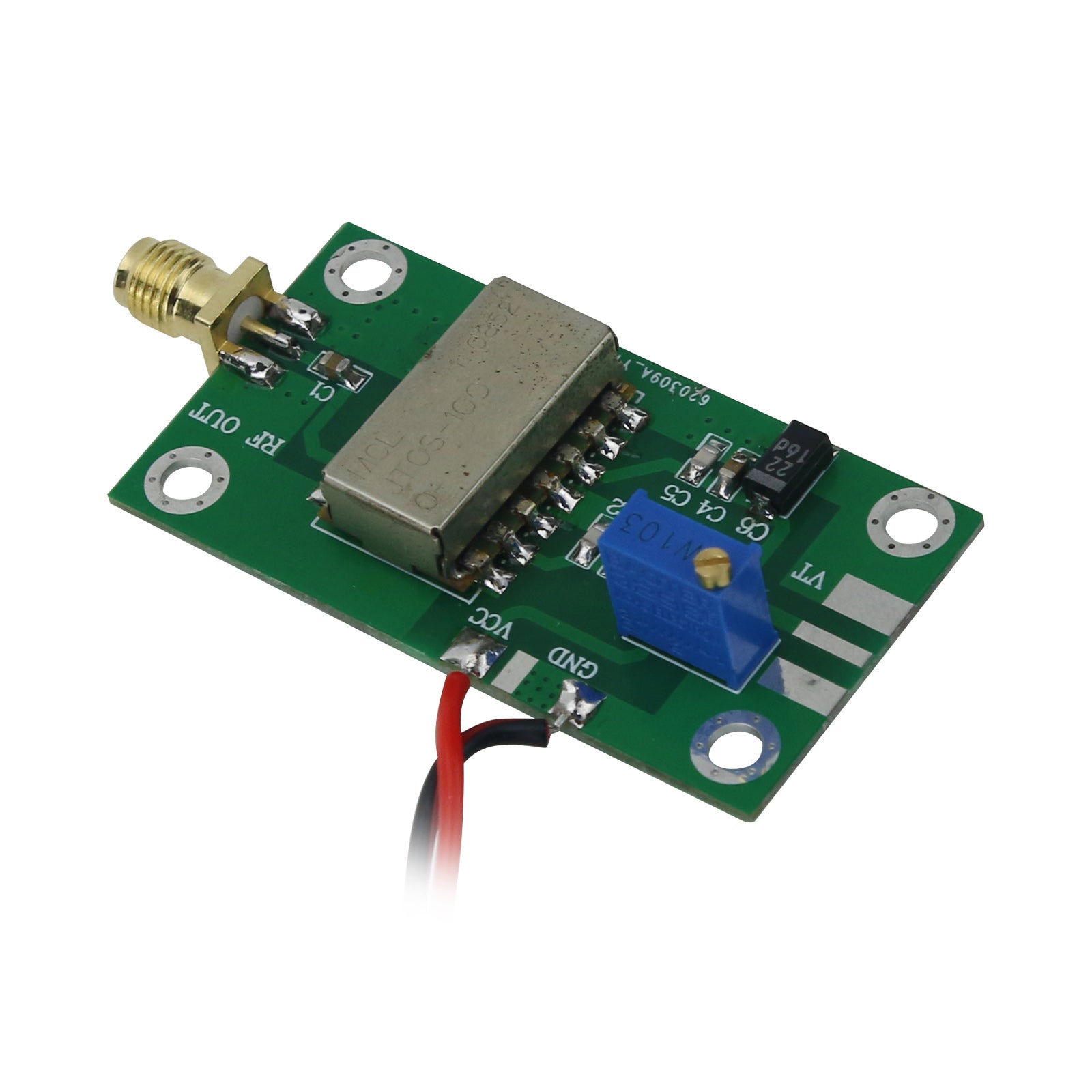

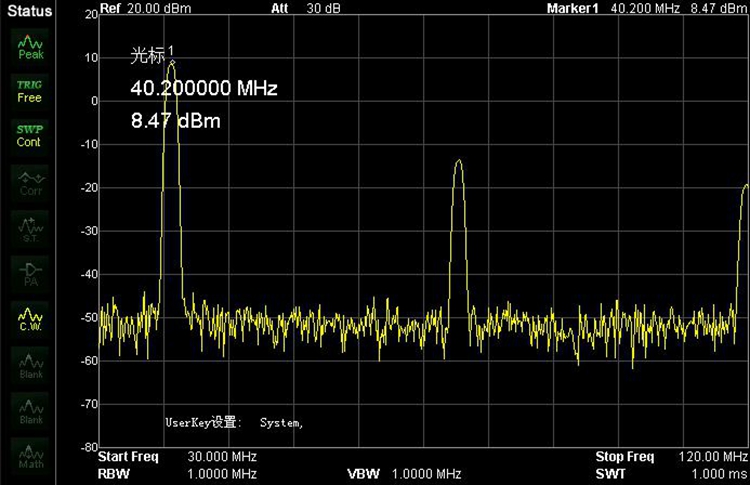

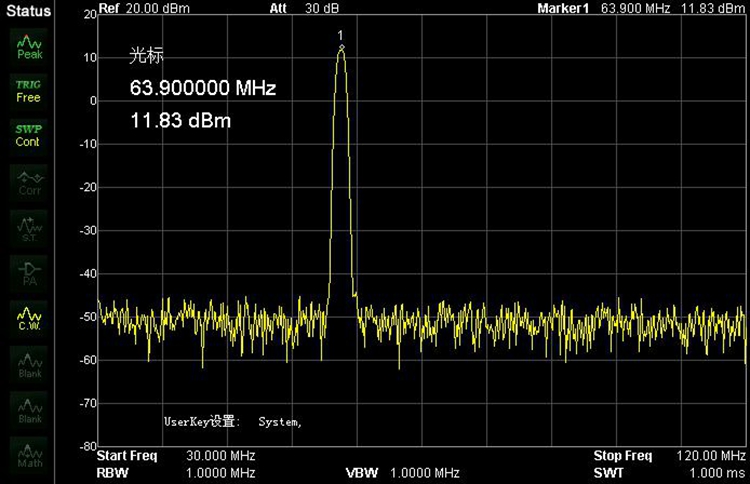

Adjust the potentiometer to VT = 0V:

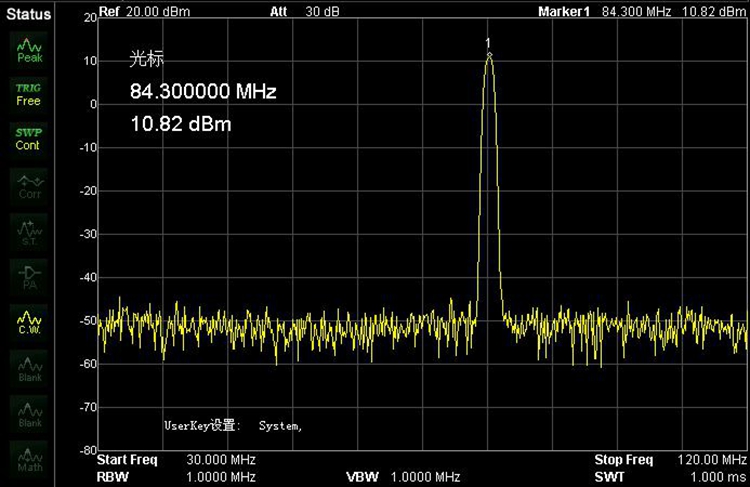

Adjust the potentiometer to VT = 5V:


Adjust the potentiometer to VT = 10V:

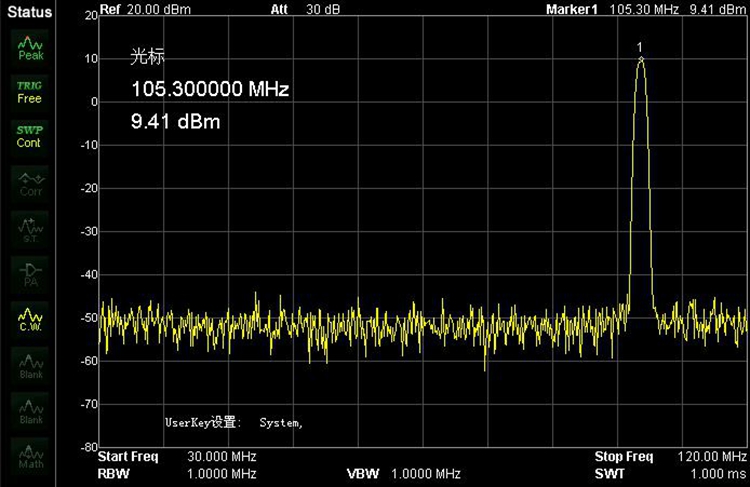

Adjust the potentiometer to VT = 15V:
