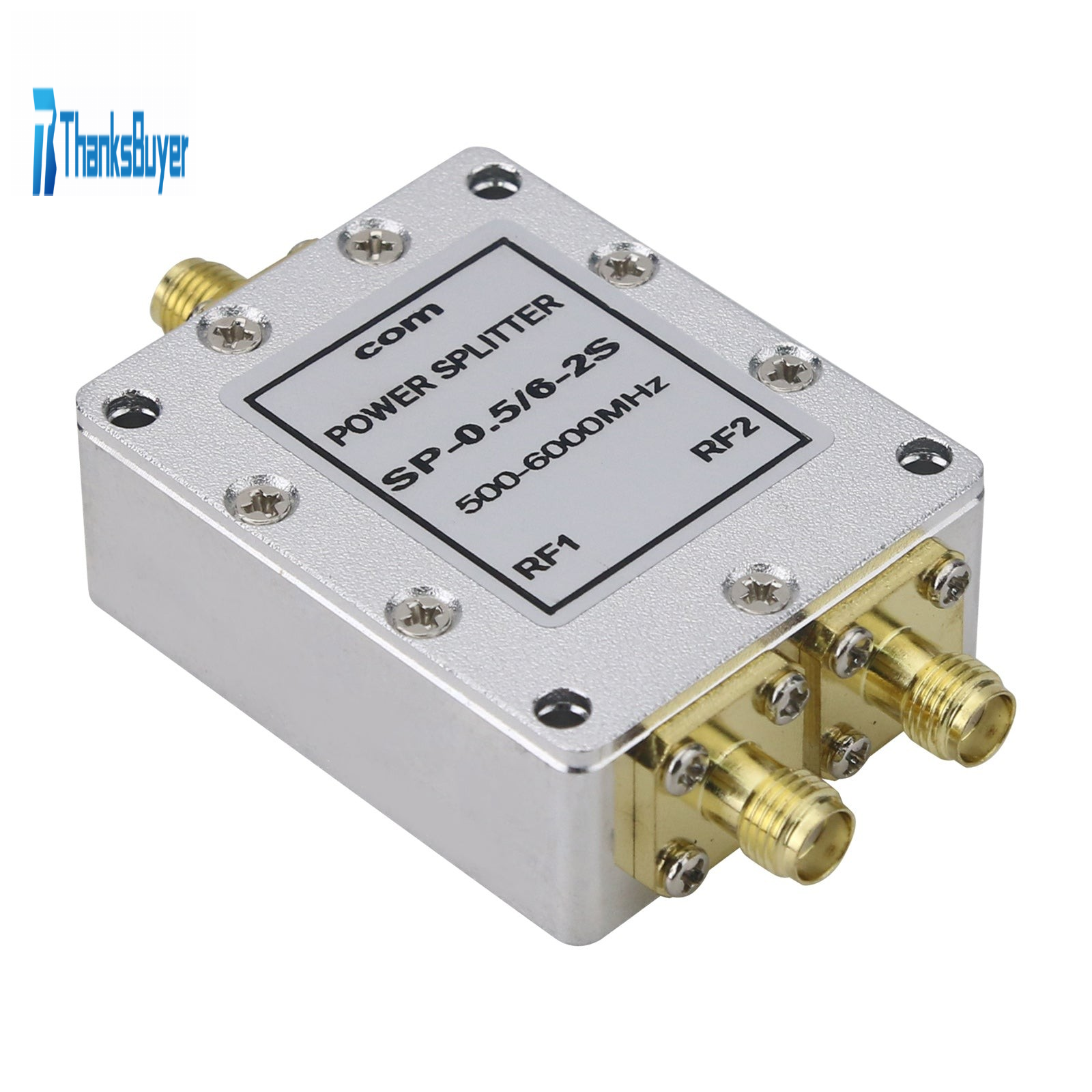

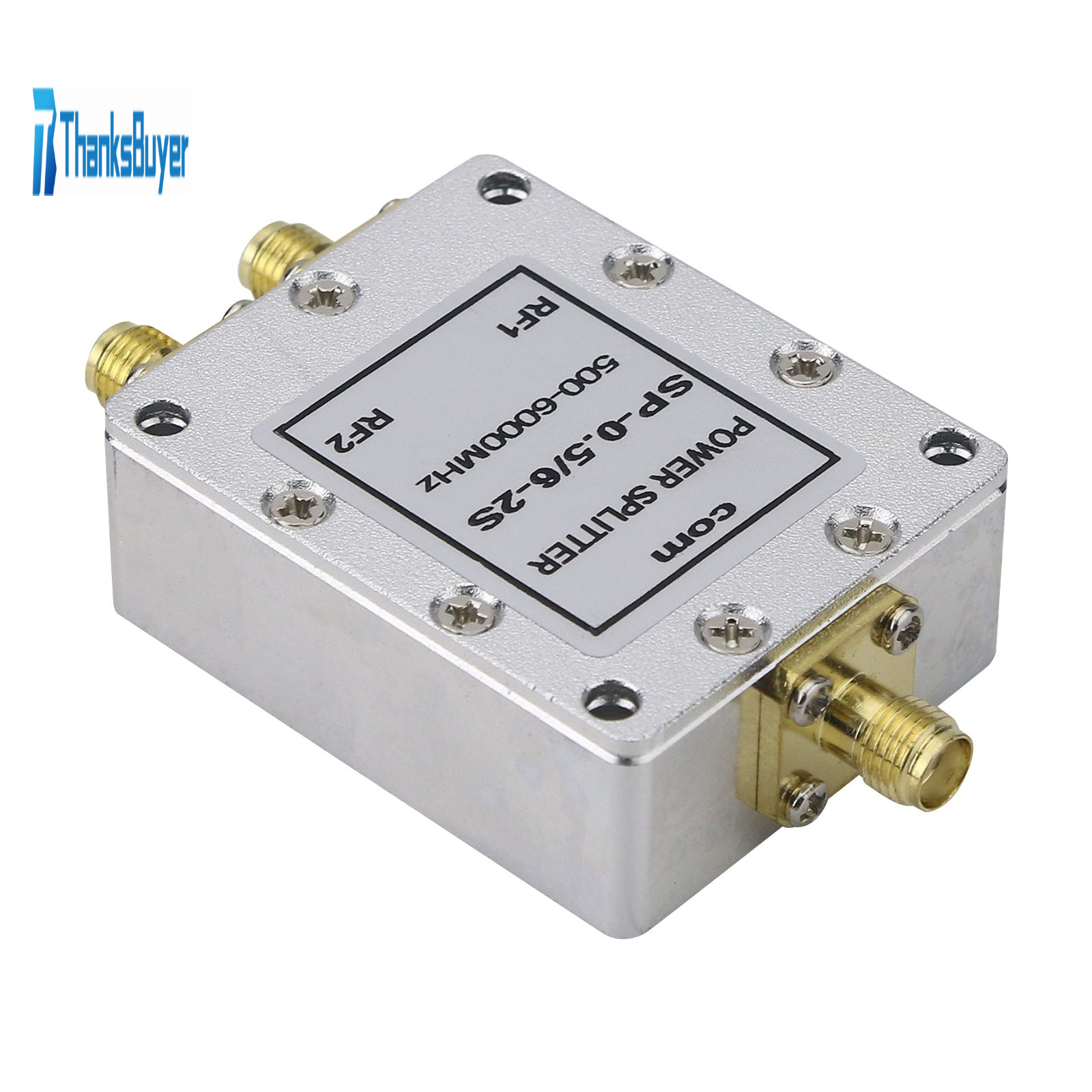

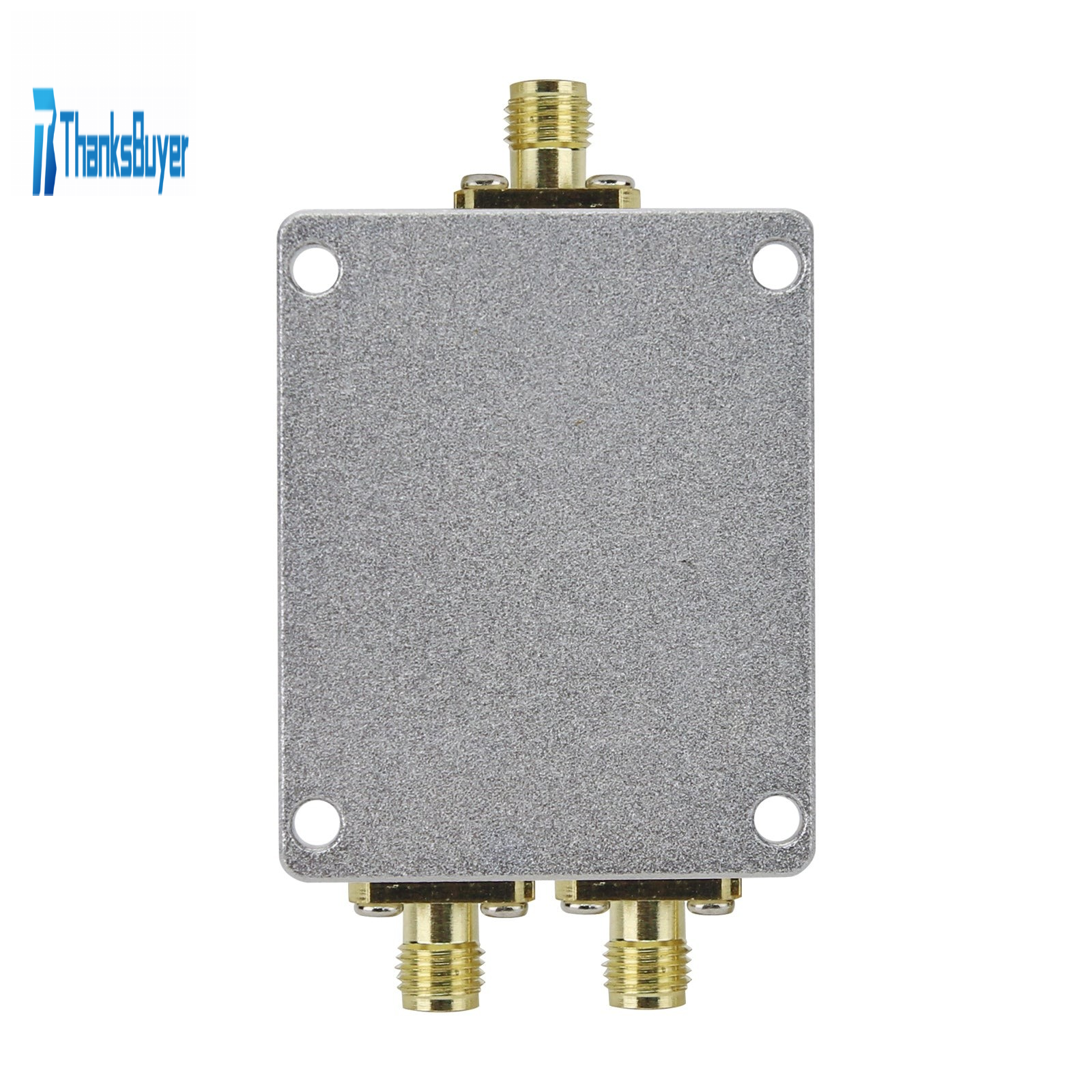

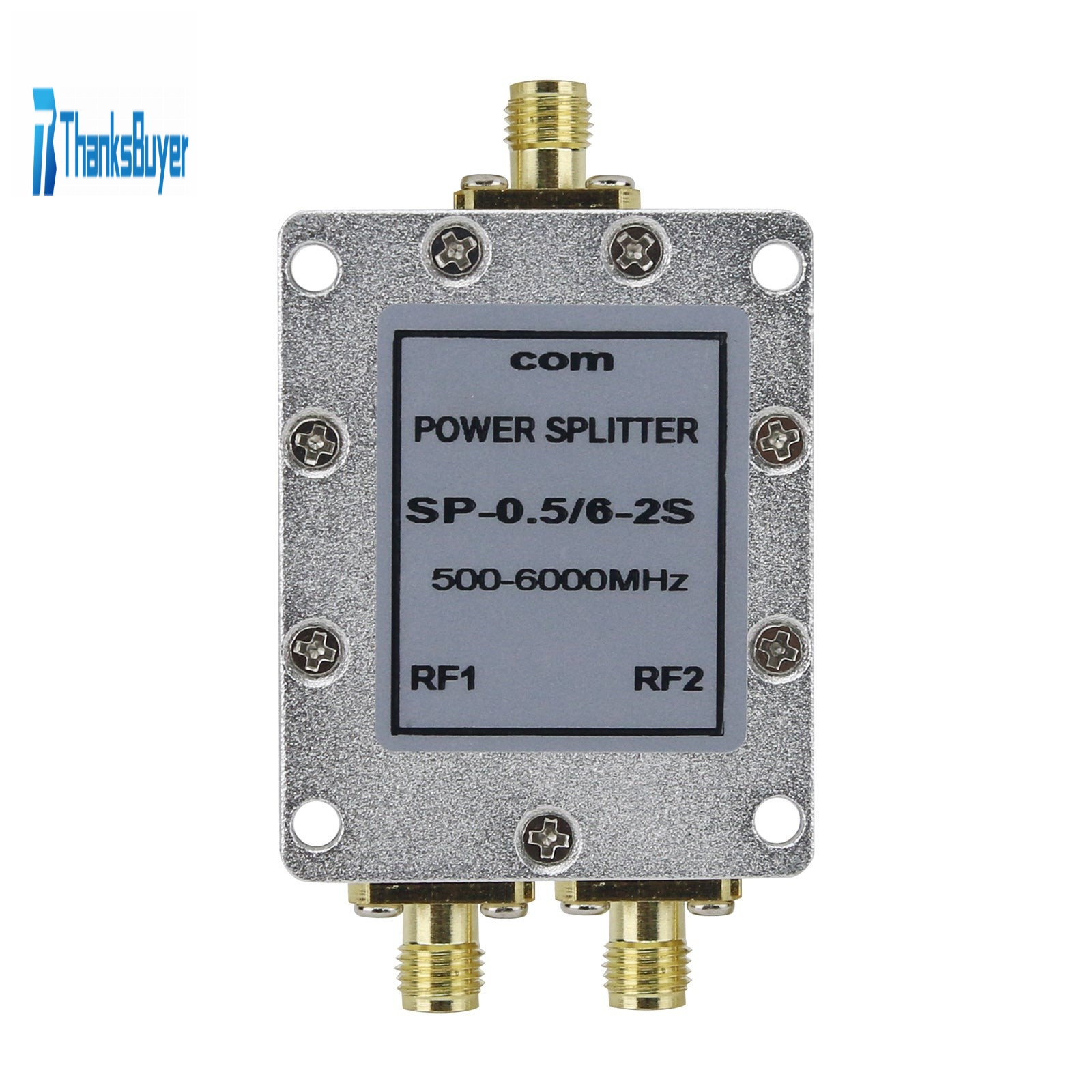

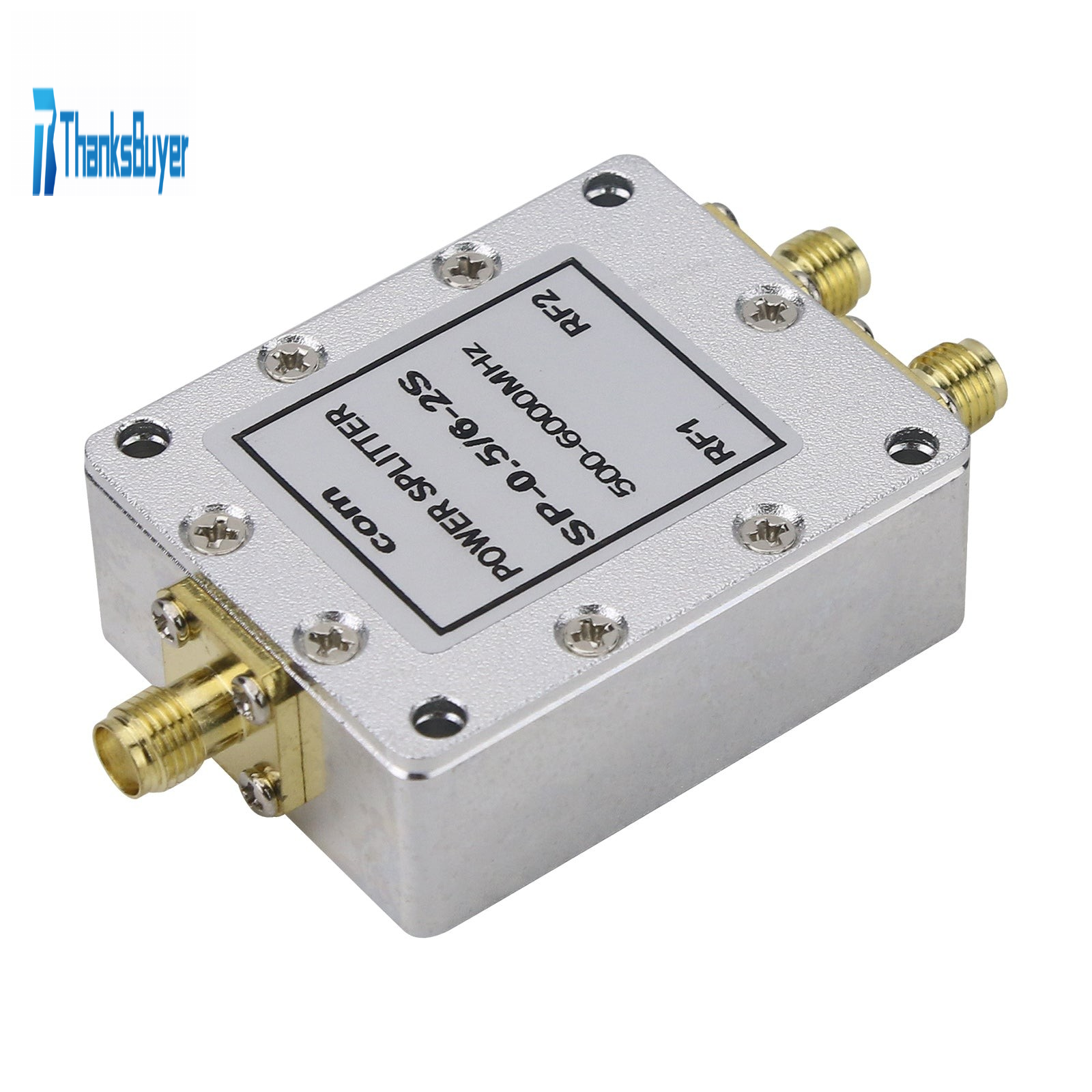

500 - 6000MHz Power Divider One to Two Microstrip RF Power Splitter with SMA Female Connector

500 - 6000MHz Power Divider One to Two Microstrip RF Power Splitter with SMA Female Connector

Specification:
- Frequency range: 500 - 6000MHz
- Insertion loss: ≤3.8dB (included distribution ratio)
- Isolation: ≥20dB
- Input SWR: ≤1.4VSWR
- Output SWR: ≤1.3VSWR
- Amplitude balance degree: ≤0.3dB
- Phase balance degree: ±5°
- Impedance: 50ohm
- Connector type: SMA - K
- Working temperature: -30℃ ~ +70℃
- Size: 32 x 33 x 12.5mm

Application:
- It can be used in CDMA, LTE, WIFI2.4/5.8, L band (1.0 ~ 2.0GHz), S band (2.0 ~ 4.0GHz), and so in the production and testing industries such as wireless intercom, GPS, BD, GLONASS satellite positioning and navigation products.

Package Included:
- 1 x Power Splitter
