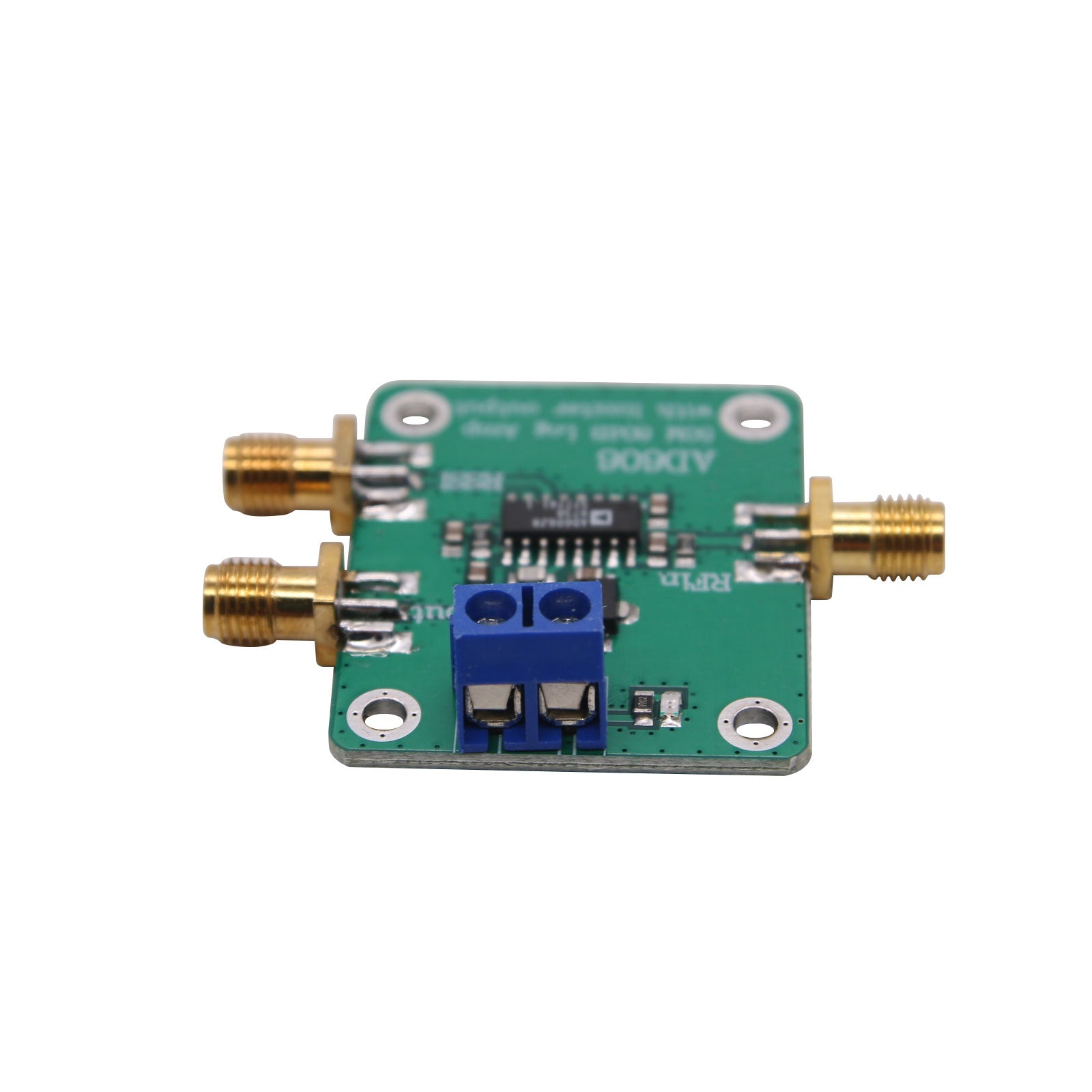

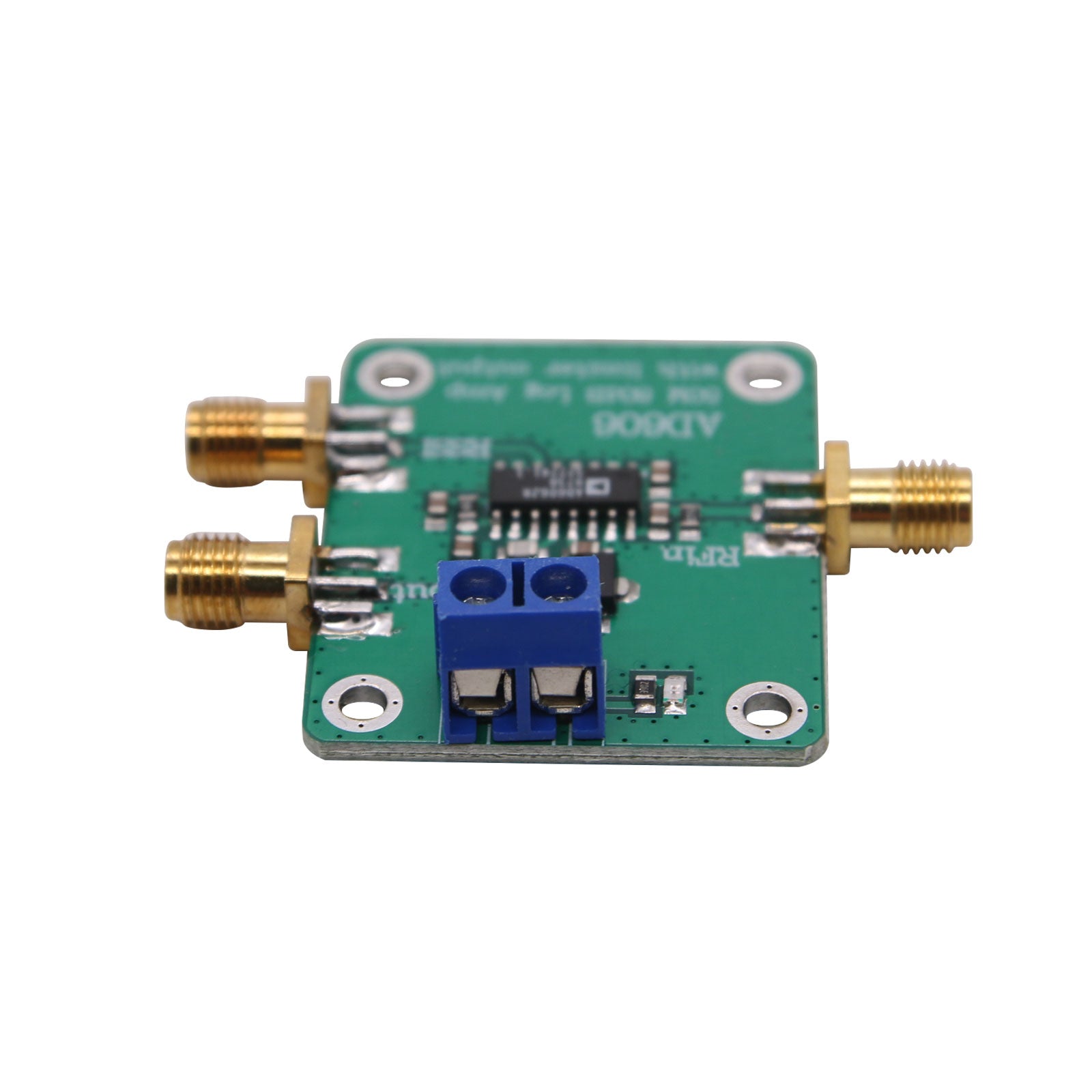

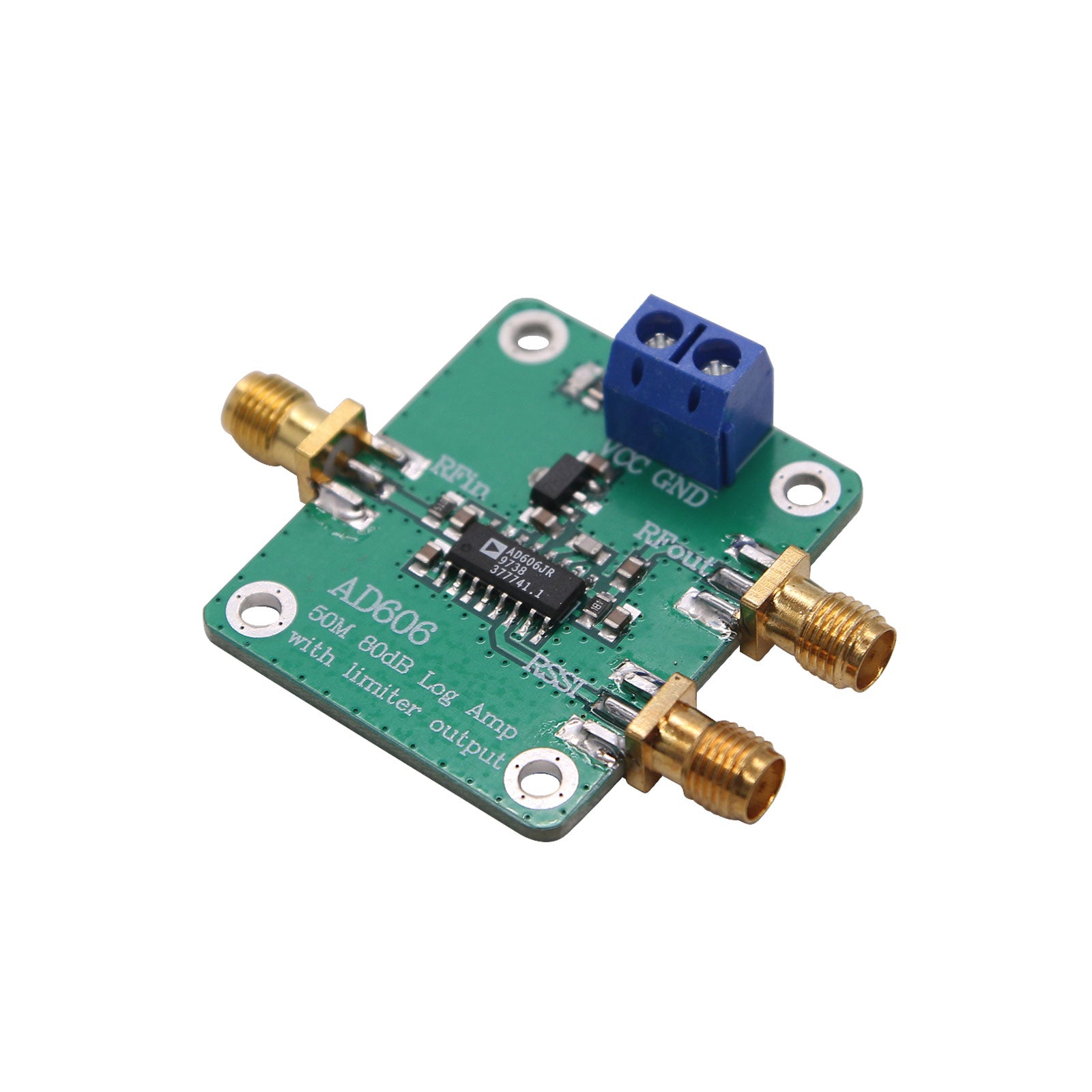

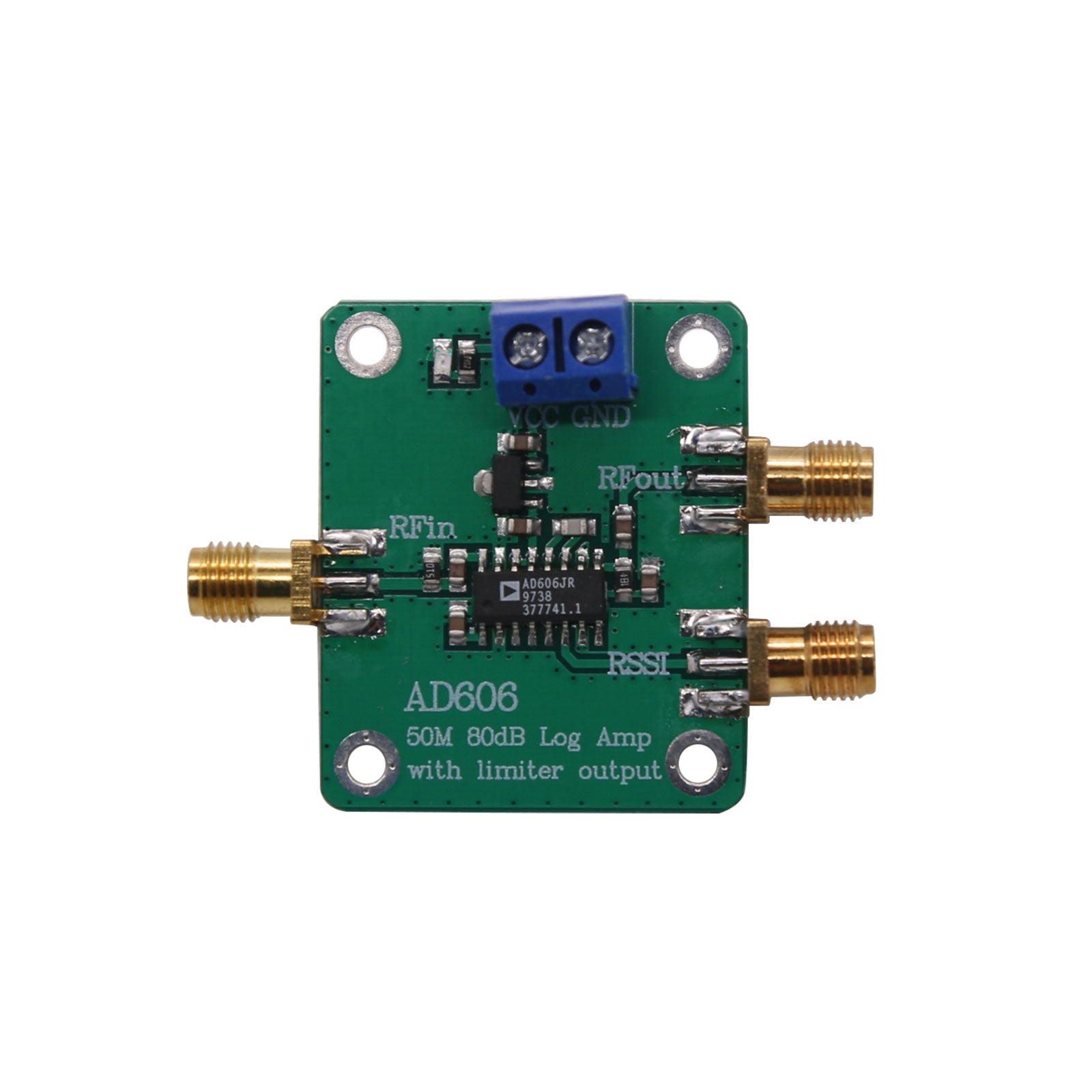

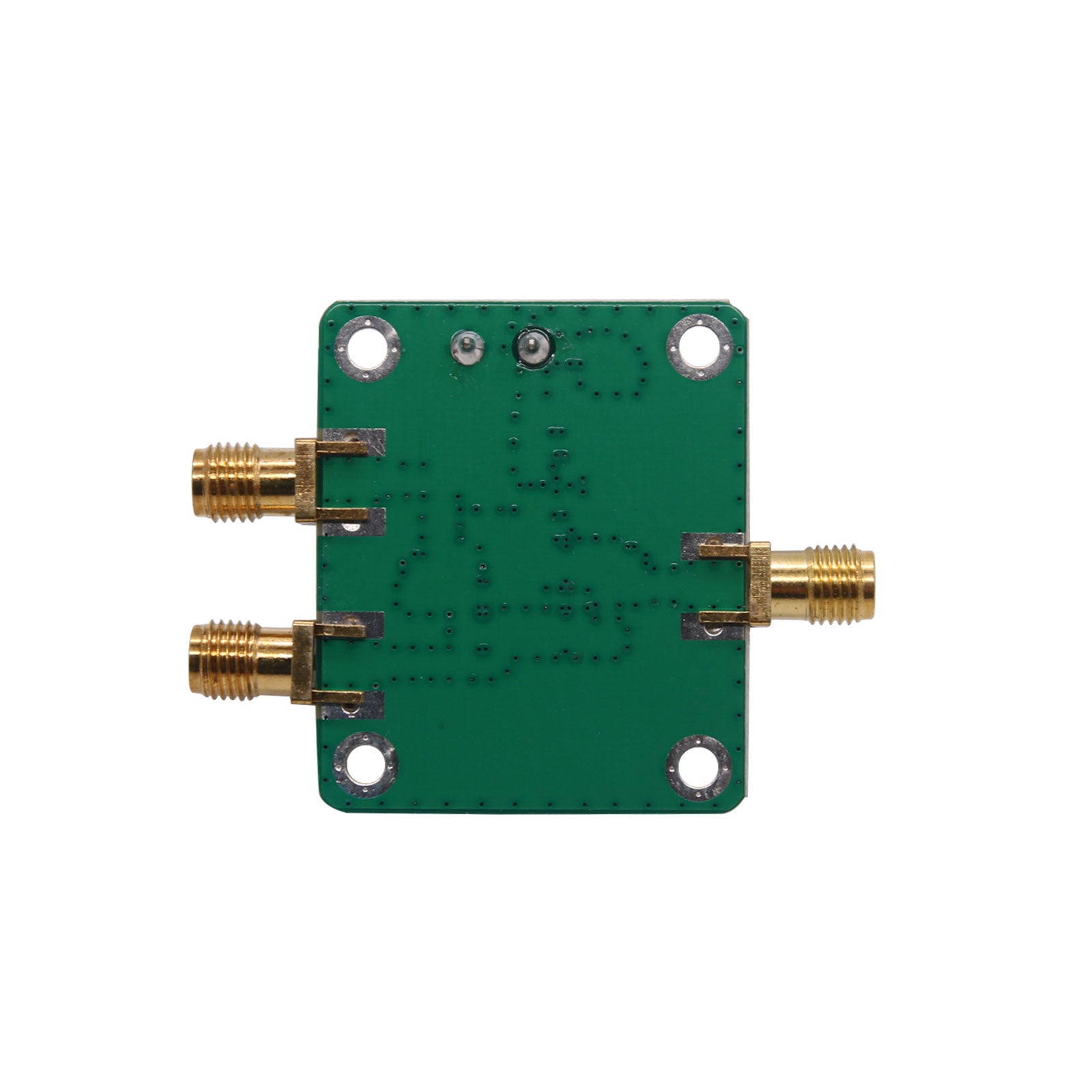

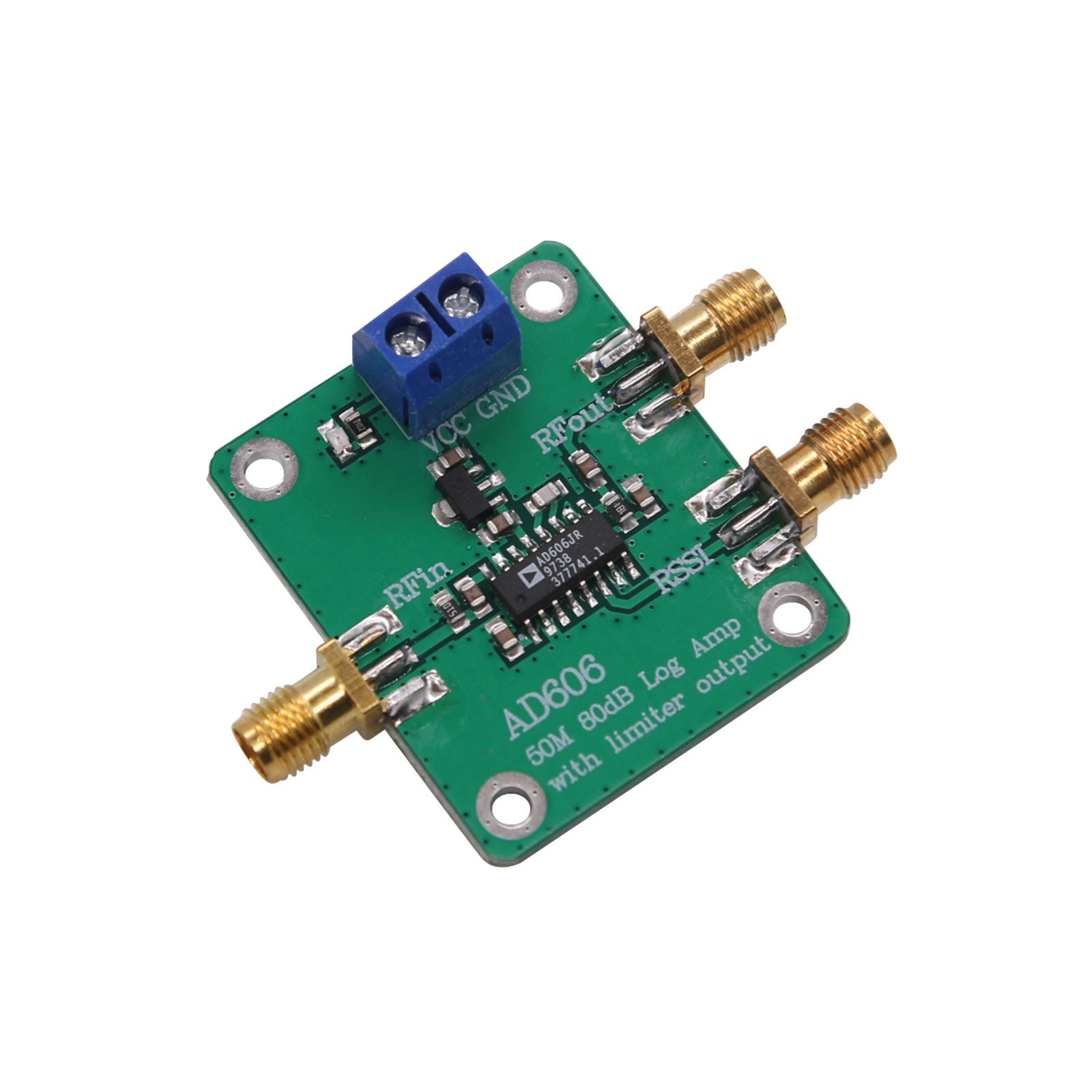

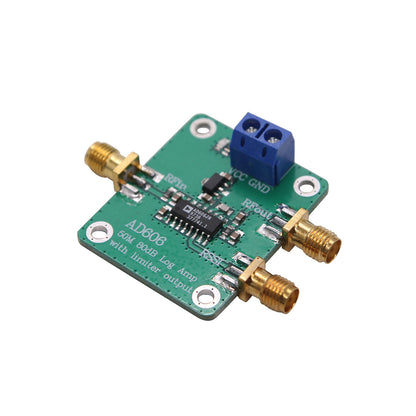

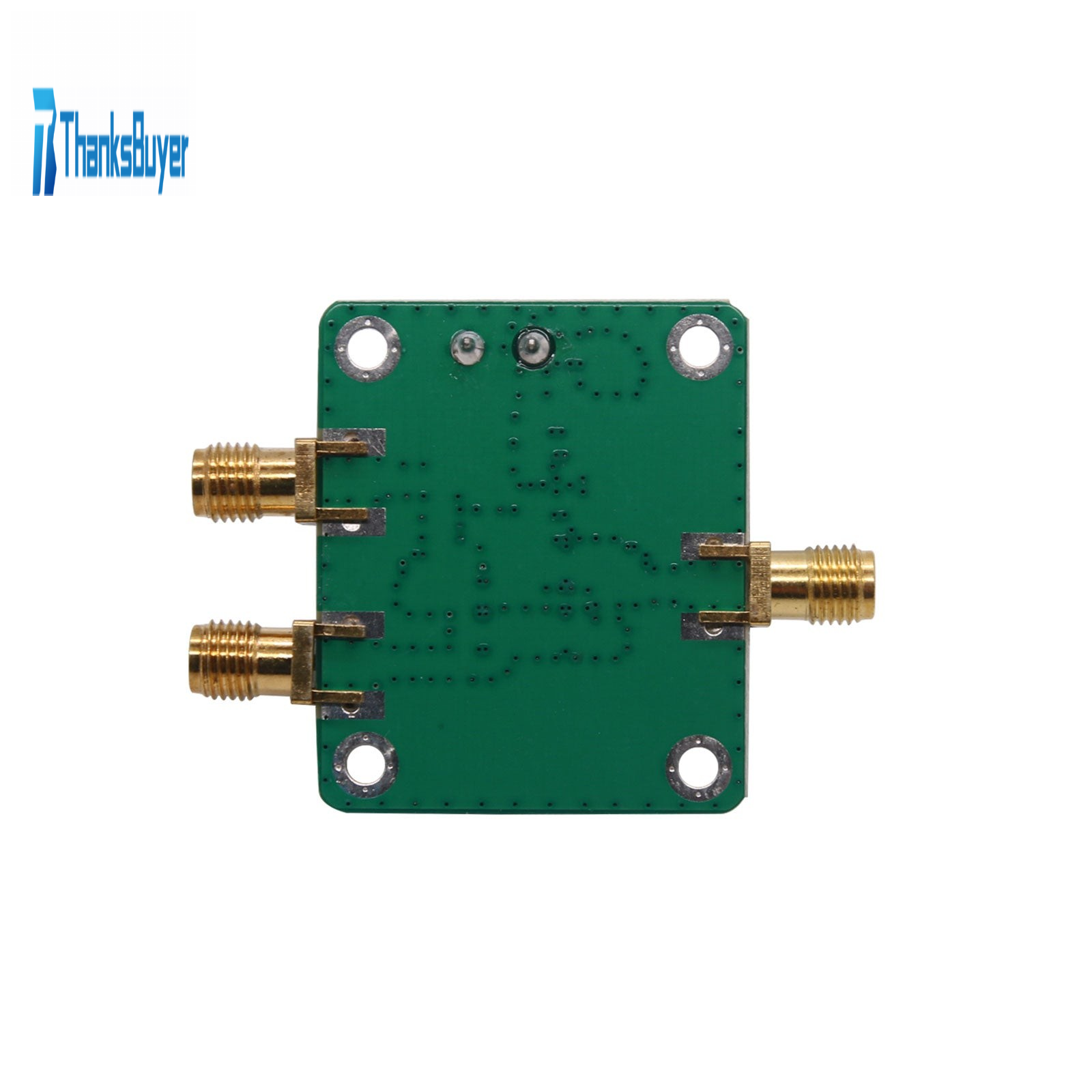

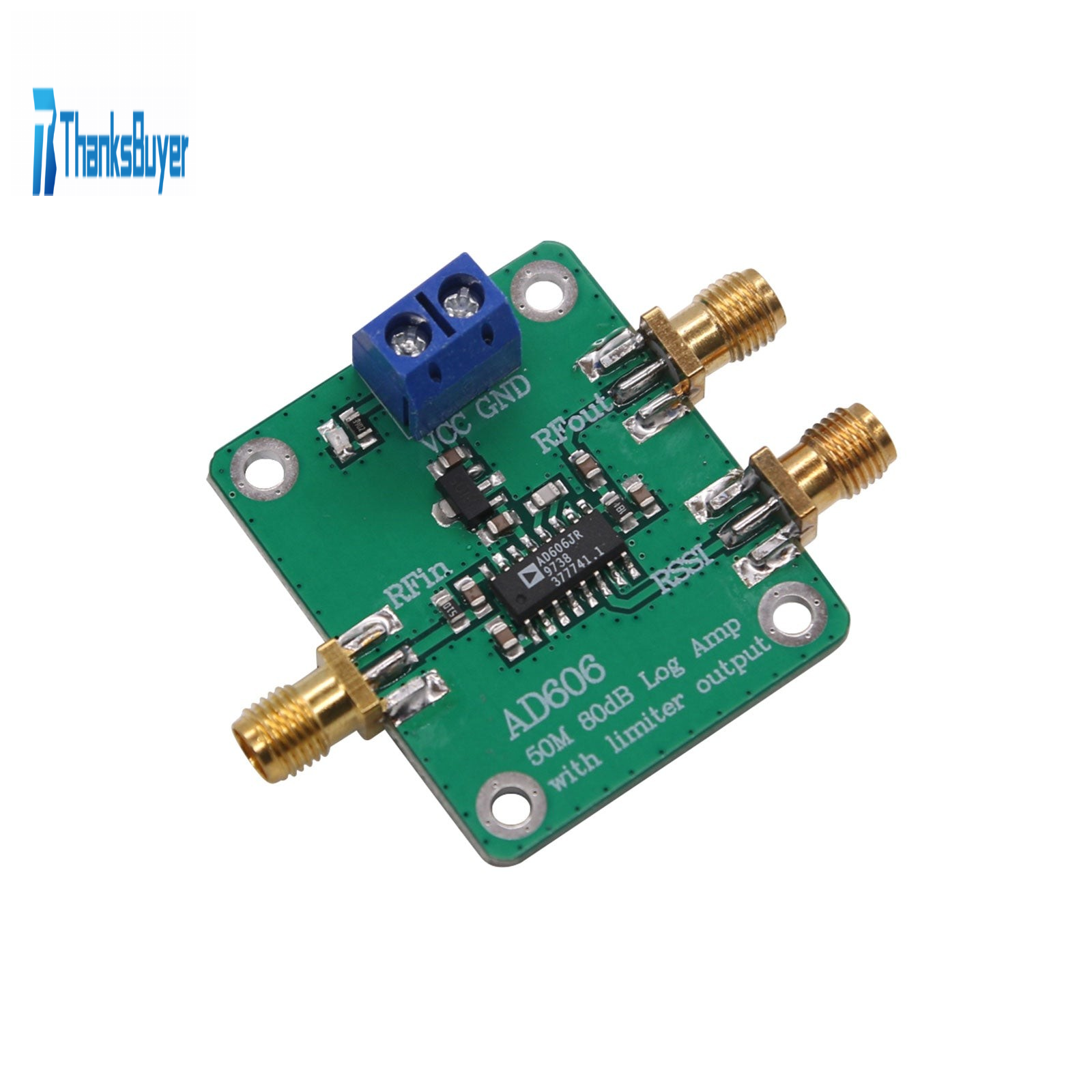

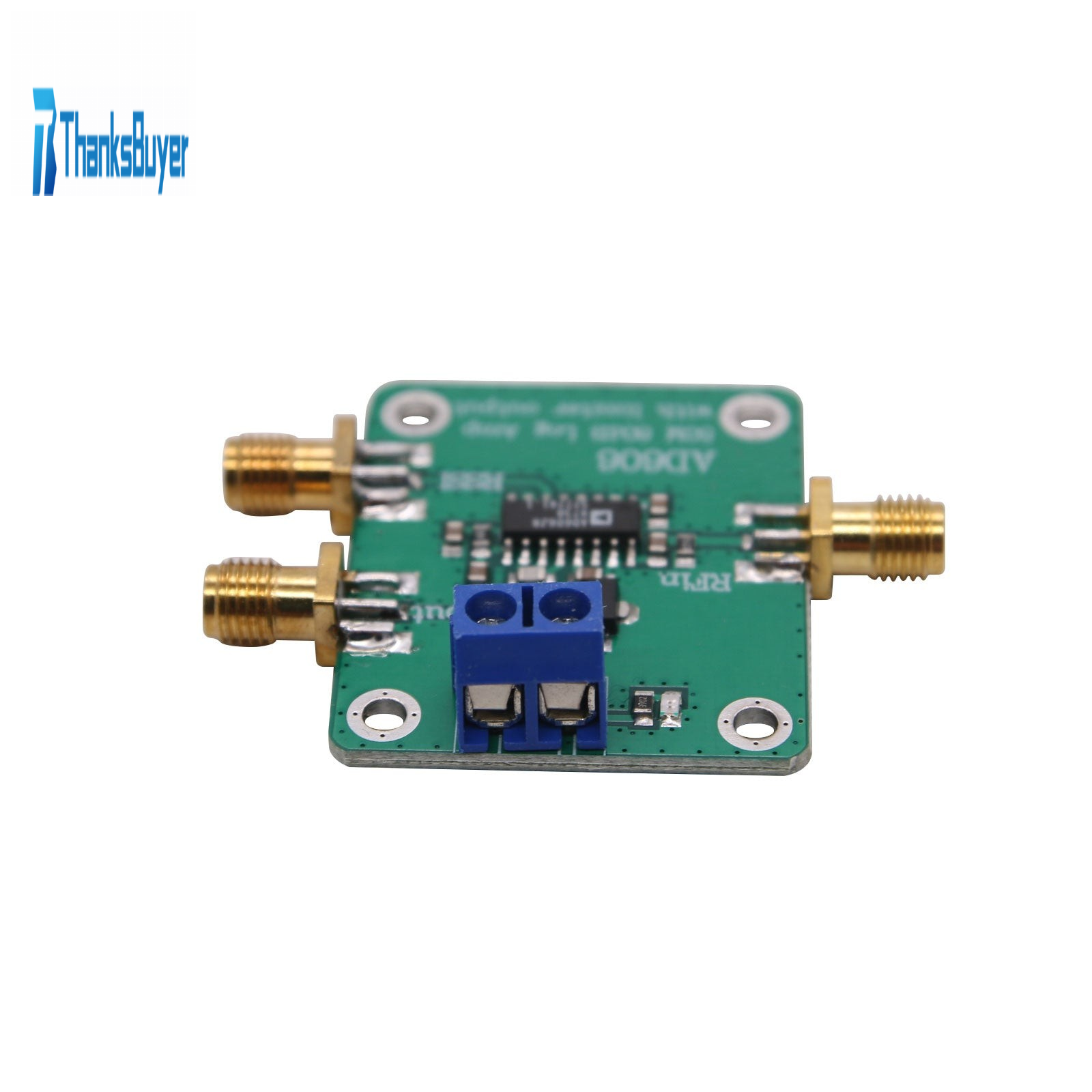

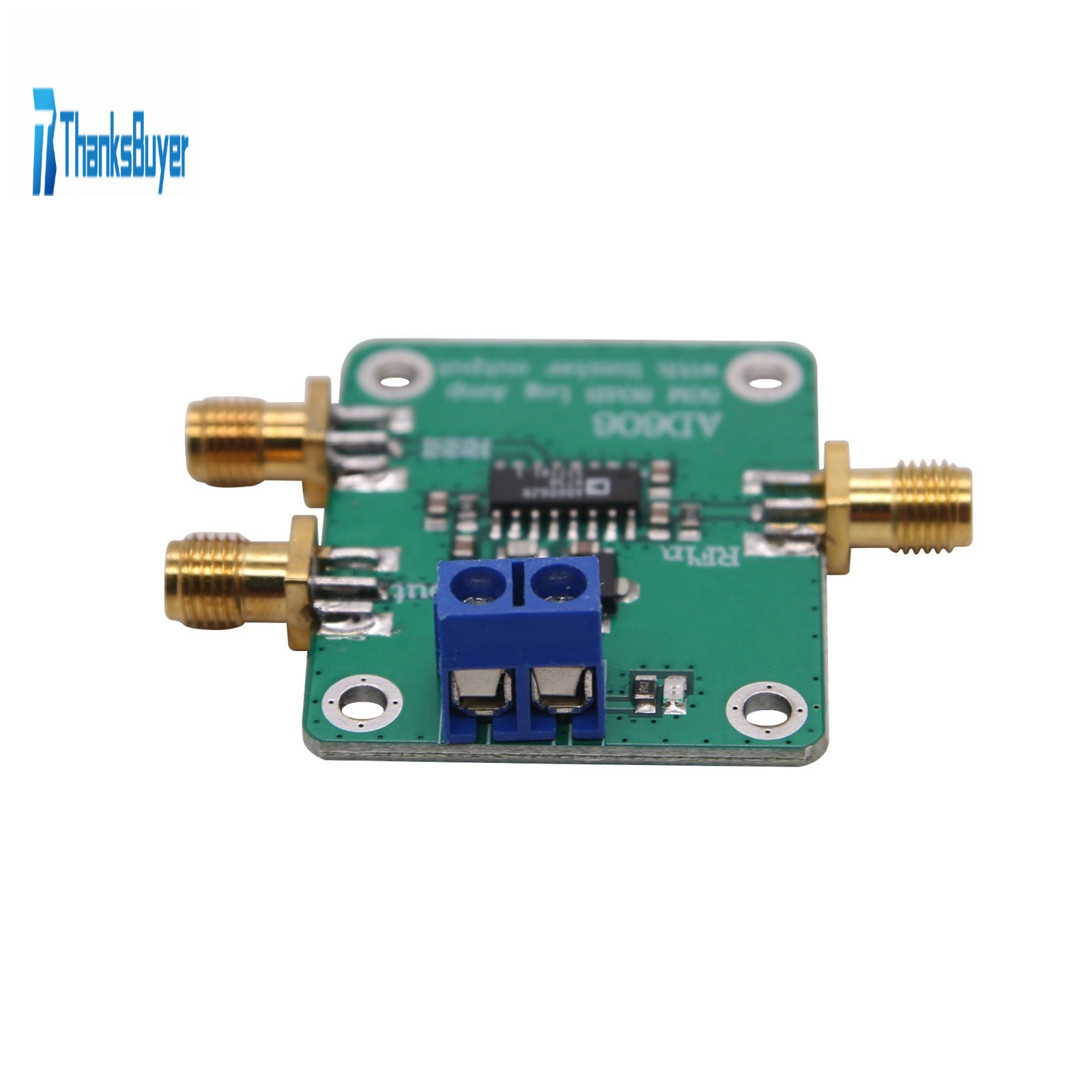

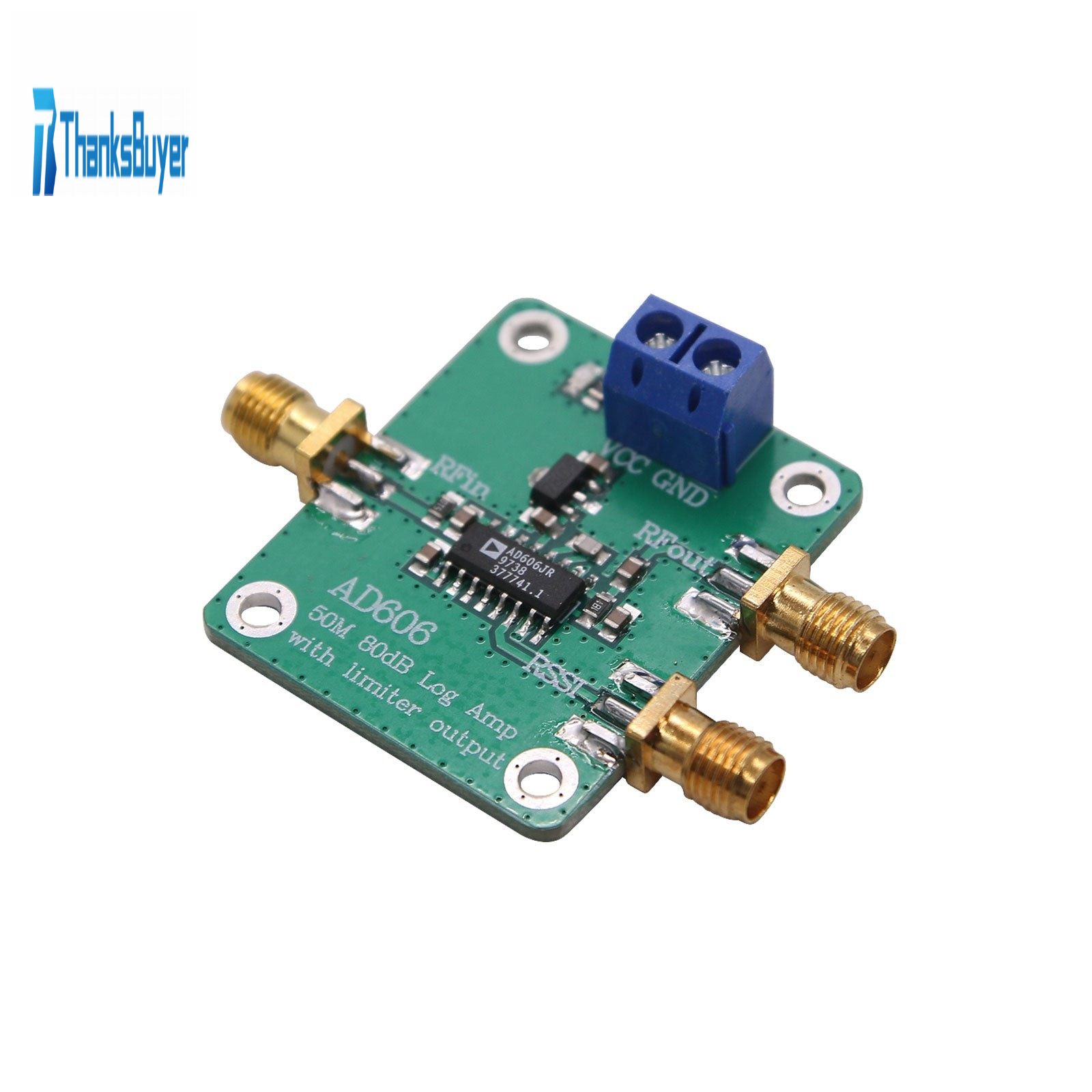

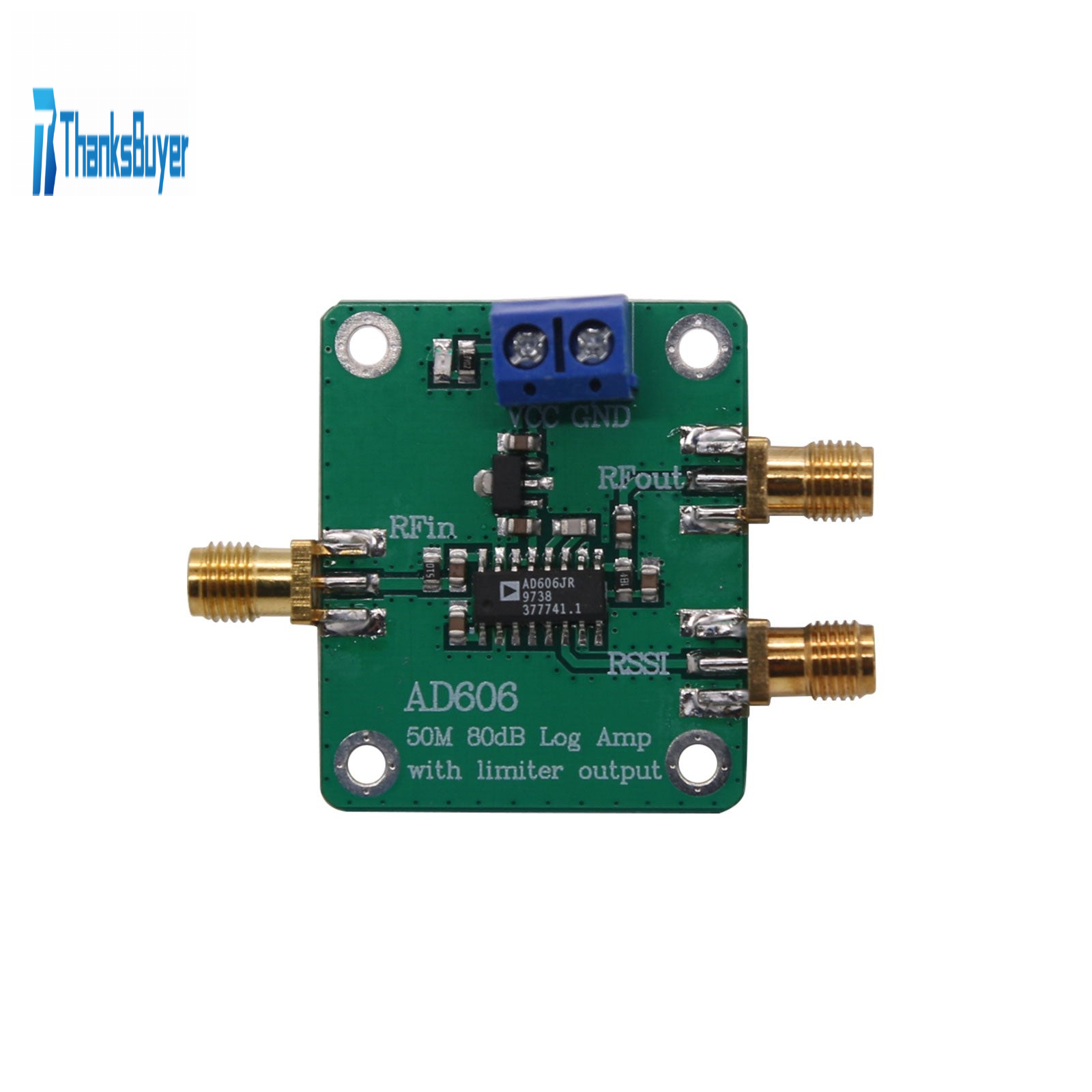

50MHz 80dB Demodulating Logarithmic Amplifier Log Amplifier with Limiter Output AD606 Module

50MHz 80dB Demodulating Logarithmic Amplifier Log Amplifier with Limiter Output AD606 Module

Logarithmic Amplifier Performance:
- Dynamic Range: -75dBm to +5dBm
- Input Noise: ≤1.5nV/√Hz
- Working Frequency: >50 MHz
- Voltage Output: 37.5mV/dB
- On-Chip Low-Pass Output Filter

Limiter Performance:
- Output Flatness: ±1dB (within 80dB)
- Phase Stability: ±3° (within 10.7MHz, 80dB)
- Adjustable Output Amplitude

Low Power:
- Single Power Supply: +5 V
- Typical Power Consumption: 65mW
- Energy-saving Mode Compatible with CMOS: 325μW (Typical Value)
- Enable/Disable Time: <5μs

Applications:
- Ultrasound and Sonar Processing
- Phase-Stable Limiting Amplifier to 100 MHz
- Received Signal Strength Indicator (RSSI)
- Wide Range Signal and Power Measurement

Package Included:
- 1 x Logarithmic Amplifier
