6-Digit Voltage Current Meter Power Analyzer Upgraded ±10µA~±20A (DF-6019) + 1m Shielded Data Cable

Features:
* 6-Digit Digital Display for Clear Readings
* Measures Voltage and Current with High Precision
* Ultra-Wide Current Range: ±10µA ~ ±20A, Auto Range, Expandable up to 60A; or ±0.5uA~±1A
* Voltage Measurement: DC up to 36V
* Supports Simultaneous or Separate Voltage/Current Measurement
* Rich Interfaces: USB-C and DC5 Socket for Flexible Connections
* Range Expansion Supported, Customizable Measurement Ranges
* High Accuracy: Full-scale Absolute Error < 0.5%
* PC Software Included for Real-Time Display and Data Storage
* Compatible with Upper Computer for Curve Analysis of Voltage, Current, and Power

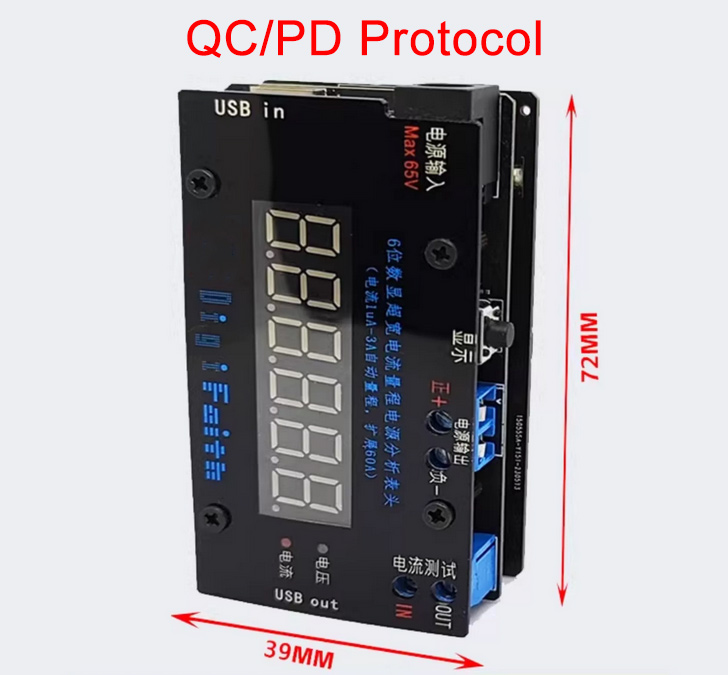

* Can Measure Mobile Phone Chargers and Other Devices. Supports QC/PD Protocol
* Professional Technical Support Throughout the Entire Process
* Supports Custom Development and Bespoke Requirements

Packing List:

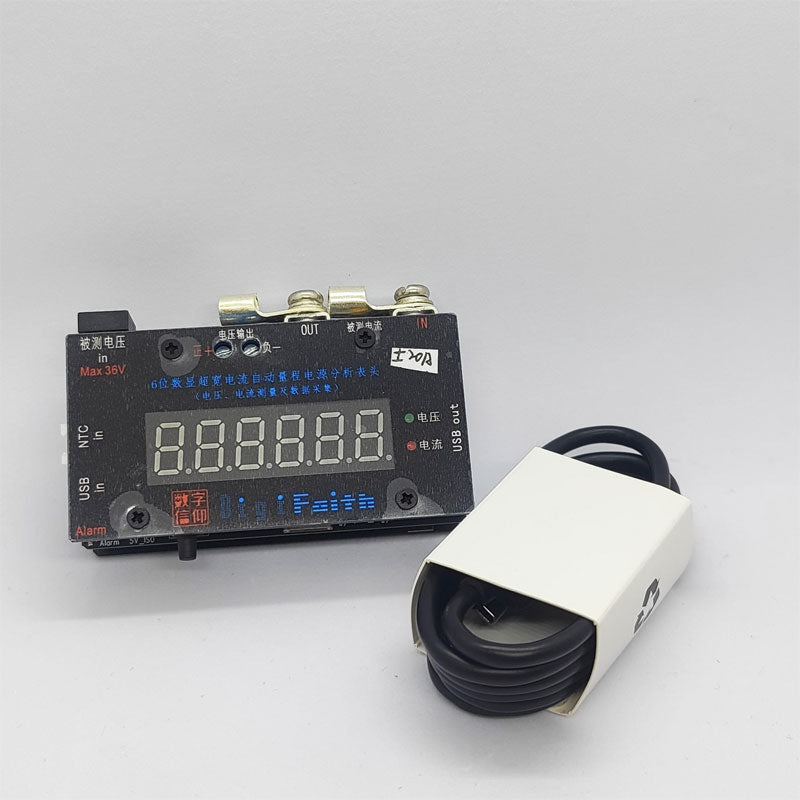

* 1 x Voltage Current Meter
* 1 x 1m Shielded Data Cable

Packaging Details:
* Package weight: 0.28kg

FAQ:
Q1: How often does the meter need to be calibrated?
A1: It is already calibrated at the factory; regular use does not require calibration. The design does not use adjustable components, so there will be no issues with parameter deviation after long-term use.

Q2: I open the software and it keeps prompting me that a .dll file is missing?
A2: DLL files may vary across different computers; you can download them from the data package.

Q3: Can this upper computer software record current and voltage in real-time?
A3: Yes. It records in real-time and automatically saves in CSV format.

Q4: What is the recording time interval like?
A4: The time interval is 10 milliseconds to 1 minute, which can be set by yourself within this range.

Q5: Is there a way to make the recording time interval longer?
A5: This can be achieved, but it requires customization.

Q6: Can an alarm notification function be added?
A6: This can be achieved, but it requires customization.

Q7: Will reversing the voltage or current at the measurement terminal burn the meter?
A7: Please pay attention to the positive and negative poles when wiring. Although the meter has anti-reverse protection, very high measured voltage or current may still cause damage to it.

Q8: Can the standard version 5-digit meter head be upgraded to the high-end version later?
A8: No, the standard version cannot use the upper computer software.

Q9: Can the 6-digit standard version meter head be upgraded to the high-end version with a shunt later?
A9: No. Furthermore, the shunt and the meter are calibrated in a 1-to-1 pairing at the factory, so mixing them is not recommended.
