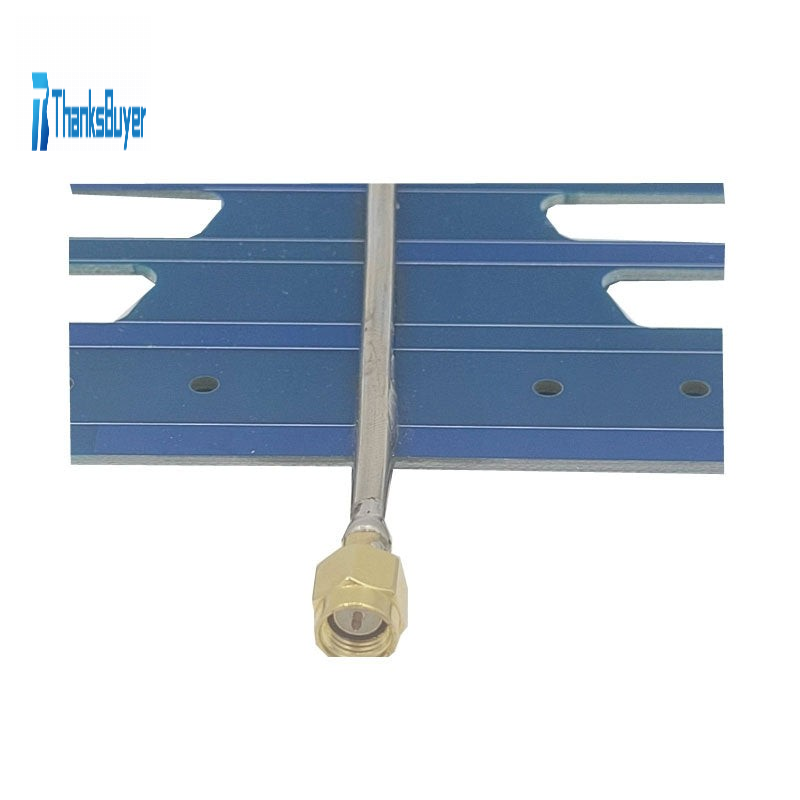

620MHz - 6500MHz UWB Dedicated Log Periodic Antenna Ultra Wideband High Gain Antenna (SMA Male Connector)

620MHz - 6500MHz UWB Dedicated Log Periodic Antenna Ultra Wideband High Gain Antenna (SMA Male Connector)

Description:
- This antenna is a broadband, high gain logarithmic periodic antenna that can be used for direction finding, spectrum analysis, signal analysis, positioning, broadband measurement, direction finding, etc.
- It can provide directional gain of 6-7dBi in the frequency range of 620MHz-6500MHz. Standing waves below 2 provide continuous high field strength requirements for EMC testing, making it an ideal testing antenna.

Specification:
- Antenna bandwidth: 620MHz - 6500MHz
- Impedance: 50ohms
- Gain: 6±1dBi
- Polarization: linear polarization
- VSWR: <2
- Connector type: SMA female connector
- Size: 300 x 200 x 1.6mm
- Material: FR4

Parameter:
- 2.4GHz: H=120°, E=74°, simulation gain: 7.8dBi
- 3GHz: H=84°, E=44°, simulation gain: 9.11dBi
- 4GHz: H=104°, E=63°, simulation gain: 8dBi
- 5.8GHz: H=118°, E=67°, simulation gain: 8.11dBi

Package Included:
- 1 x Log Periodic Antenna
