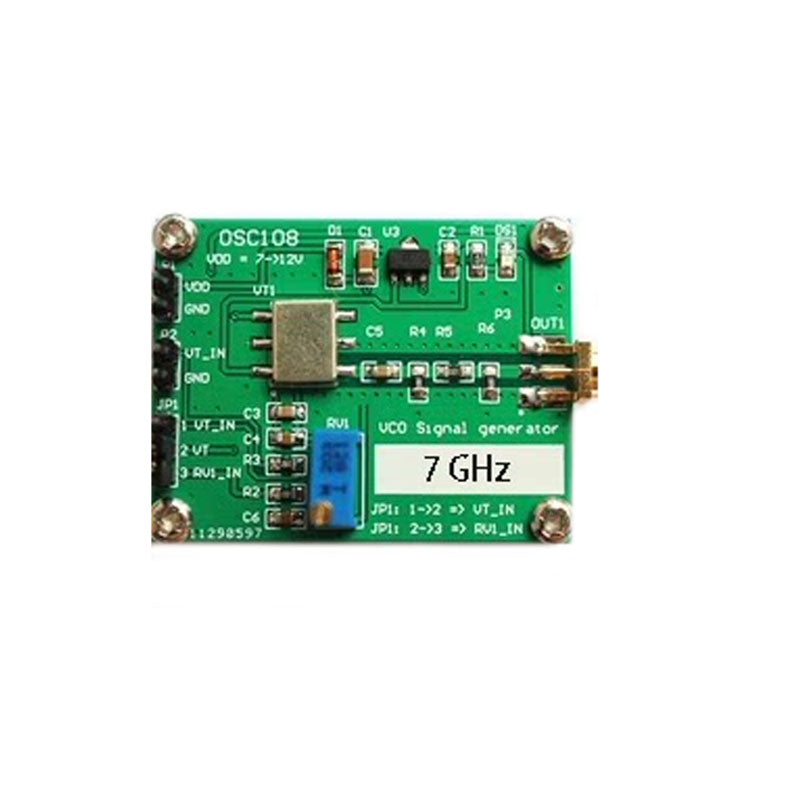

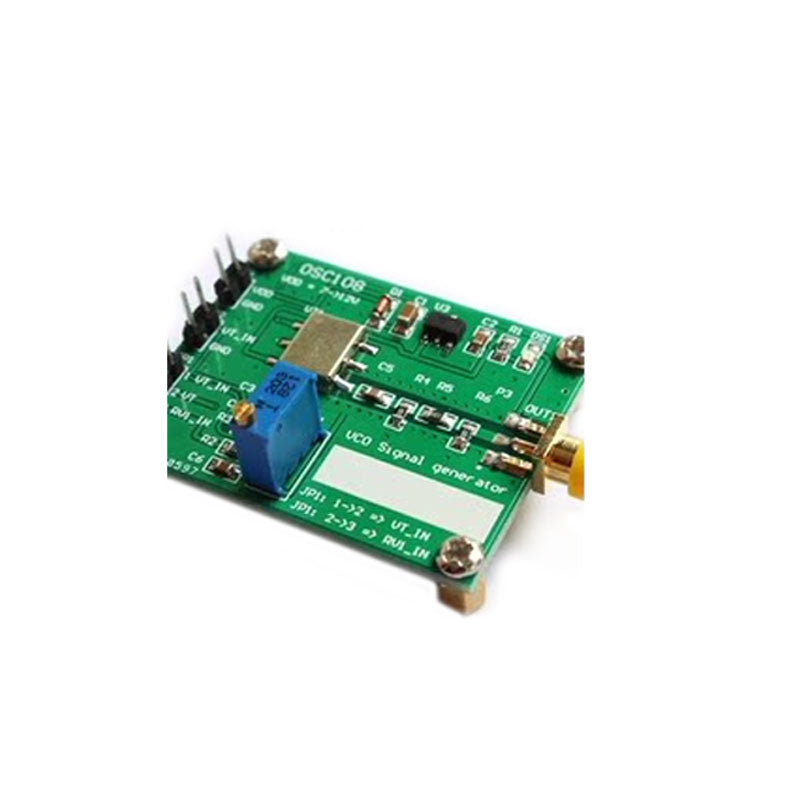

6500MHz-7100MHz RF Microwave VCO Signal Generator Voltage Controlled Oscillator Module

Specification:
- Output frequency range: 6500 - 7100MHz
- Maximum output amplitude: <5dBm
- Working voltage: 7 - 12V
- Product size: 45 x 35mm
- Net weight: 12g

Interface Definition:
- P1 interface:
  VDD: positive power supply
  GND: negative power supply
- P2 interface:
  VT_IN: input tuning voltage (VCO) signal (0~9V)
  GND: negative power supply
- P3 interface: output signal (RP SMA KE KHD outer screw inner hole)
- JP1 jumper: select external or internal (potentiometer) input tuning voltage
  JP1: 1->2 => VT_IN
  JP1: 2->3 => RV1_IN
- RV1: internal (potentiometer) input tuning voltage

Package Included:
- 1 x VCO Signal Generator
