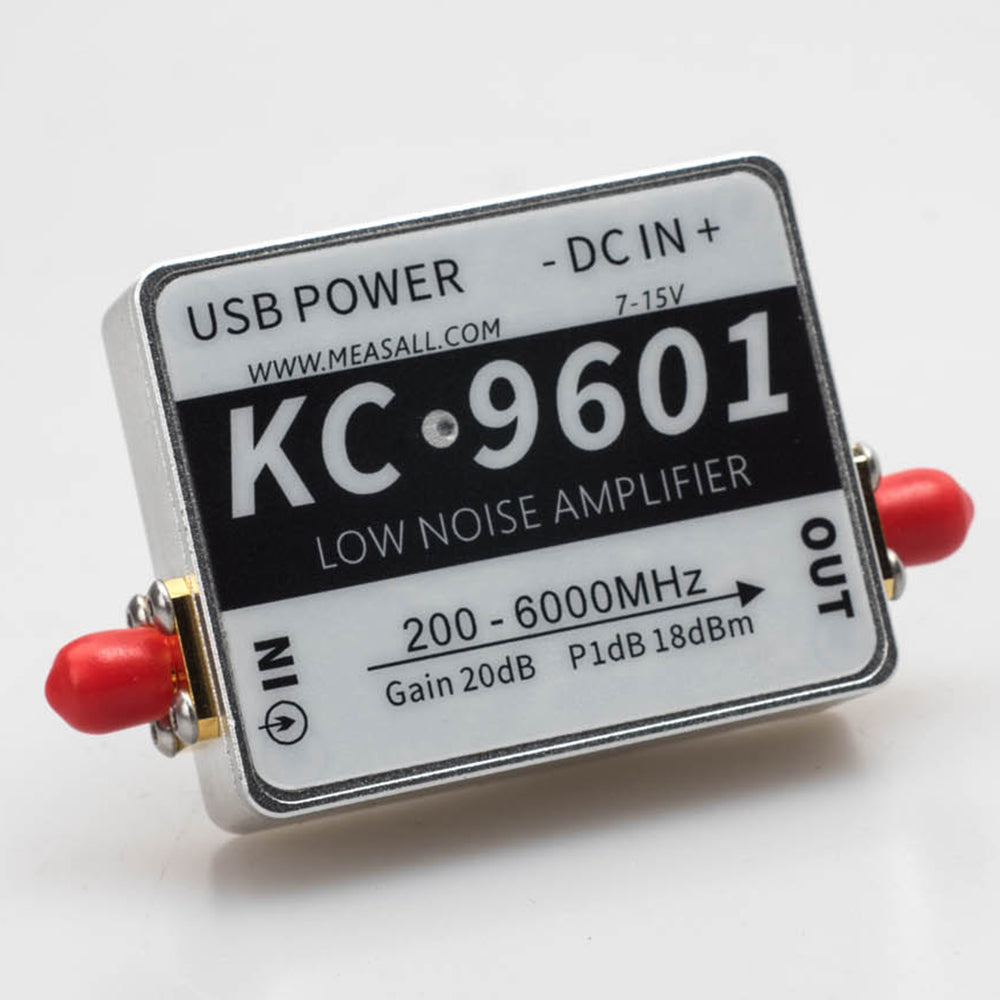

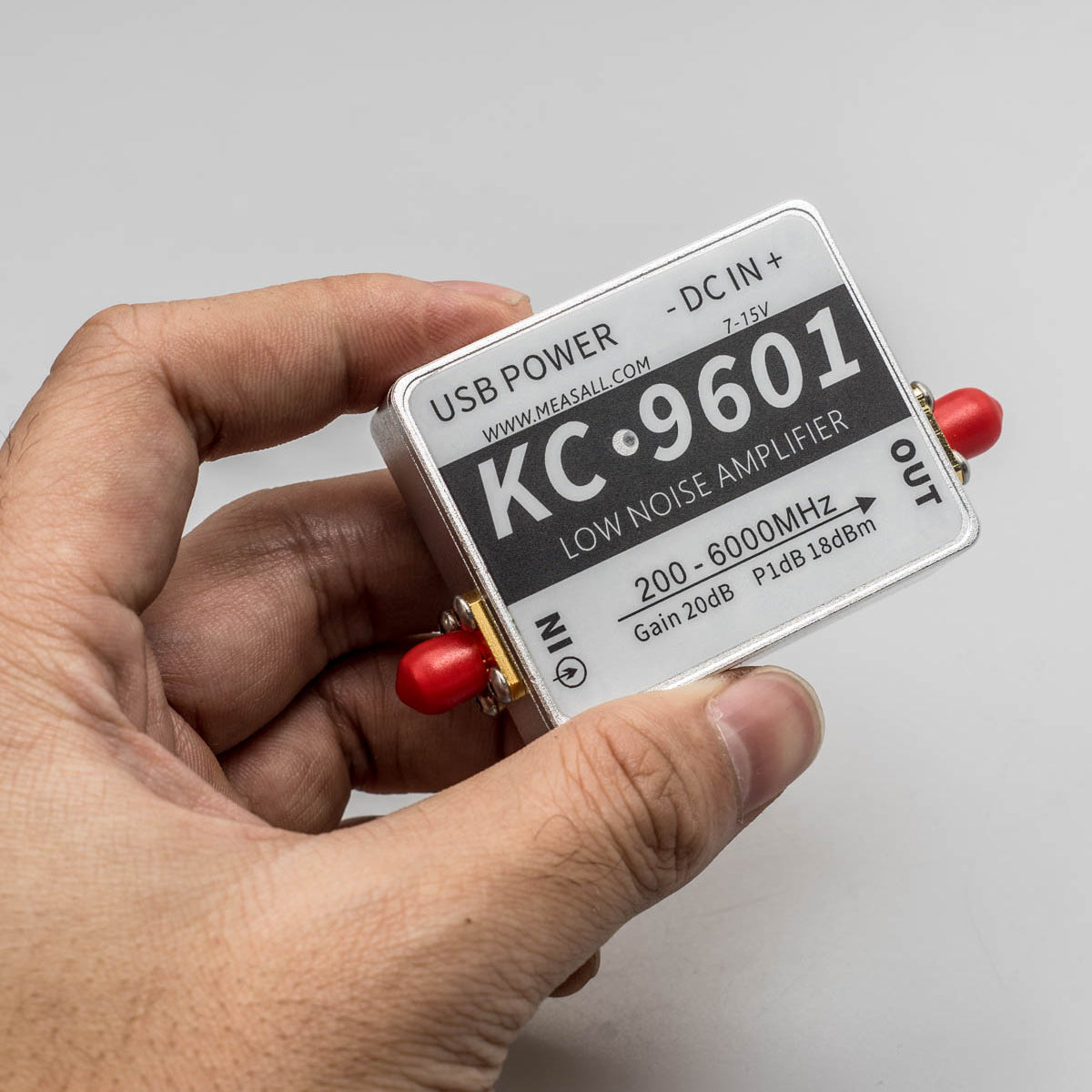

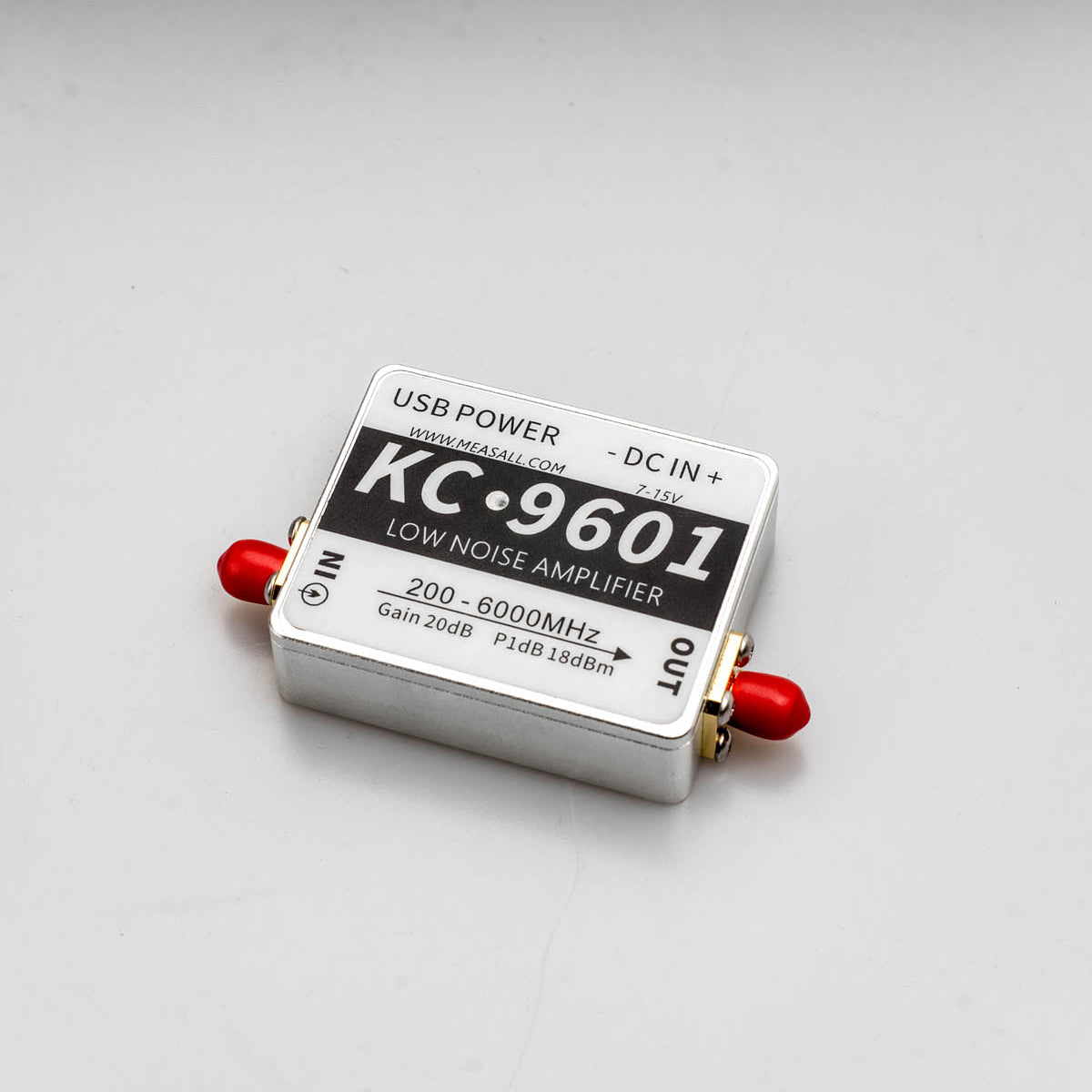

6GHz 20dB NF 1.3dB RF Low Noise Amplifier Module KC9601 5.8G RF Amplifier

6GHz 20dB NF 1.3dB RF Low Noise Amplifier Module KC9601 5.8G RF Amplifier

Specifications:
- RF low noise amplifier
- Frequency: 200MHz-6000MHz

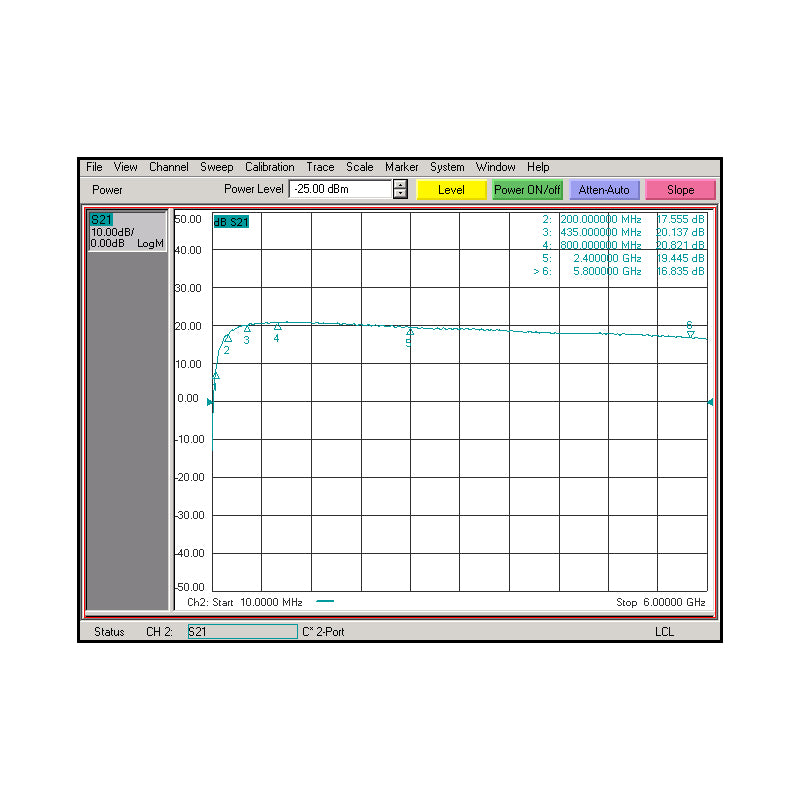

- Typical gain: 20dB (see the test chart for details)
- Minimum gain: 15dB
- Output Po1dB: 18dBm
- Typical NF: 1.3dB
- RF Interface: Standard SMA Female (hole)
- Supply voltage: 5V USB / 7-15V power outlet

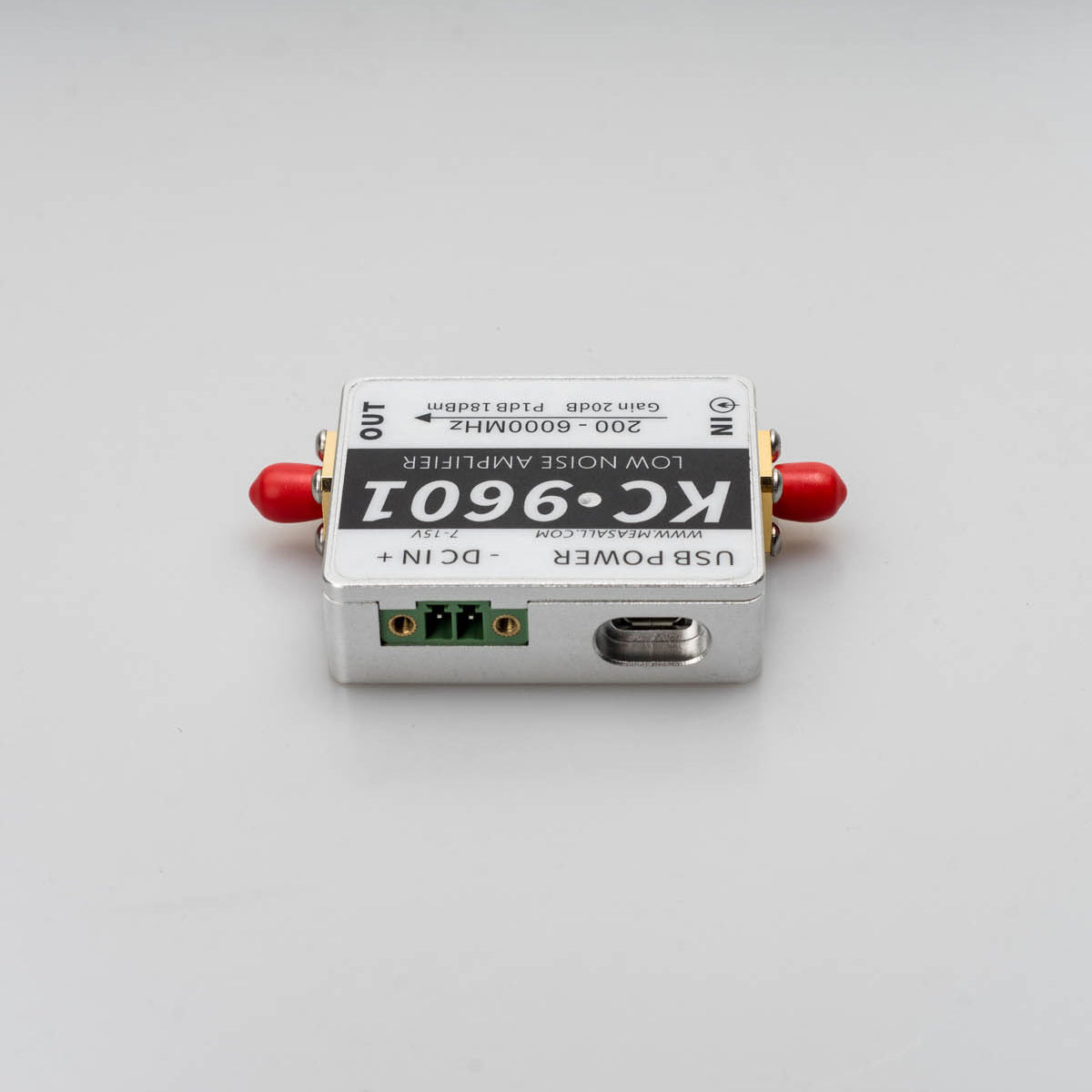

- Power Interface: USB / power outlet
- Temperature range: -40 ~ +60 ℃
- Included accessories: power plug

Package Included:
- 1pc  New 200MHz-6000MHz 20dB NF:1.3dB RF Low Noise Amplifier Module KC9601
