845 5CH Antenna Power Distribution System Antenna Distributor with 470MHz-960GHz Large Main Unit

845 5CH Antenna Power Distribution System Antenna Distributor with 470MHz-960GHz Large Main Unit

Features:
- It is a 5-channel antenna distribution system.
- There are two active directional antennas.
- It comes with a large main unit.
- The antenna distributor is your ideal choice.

Specifications:

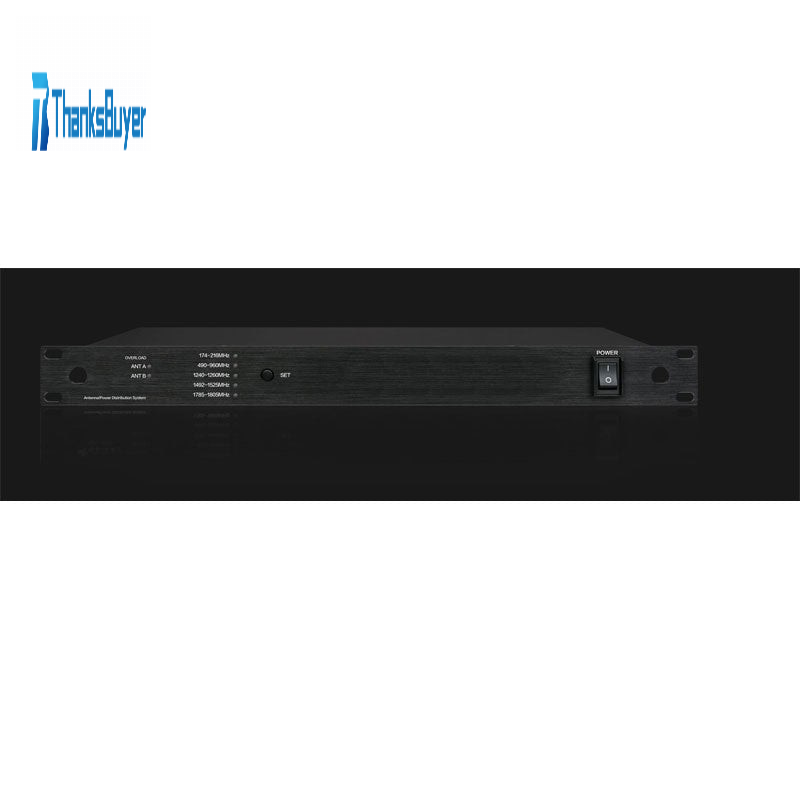

1. Antenna Main Unit
- Frequency response: 470MHz~960GHz
- Impedance: 50 ohms
- Gain: 7.5dB
- Power supply: DC-12V-3A
- Output external power supply: DC-12V-800MA

2. Antennas
- Antenna type: Log periodic dipole array (LPDA) antenna
- Working voltage: DC-10V
- Connection terminal: Fixed right-angle BNC female socket
- Gain range: 0-12dB

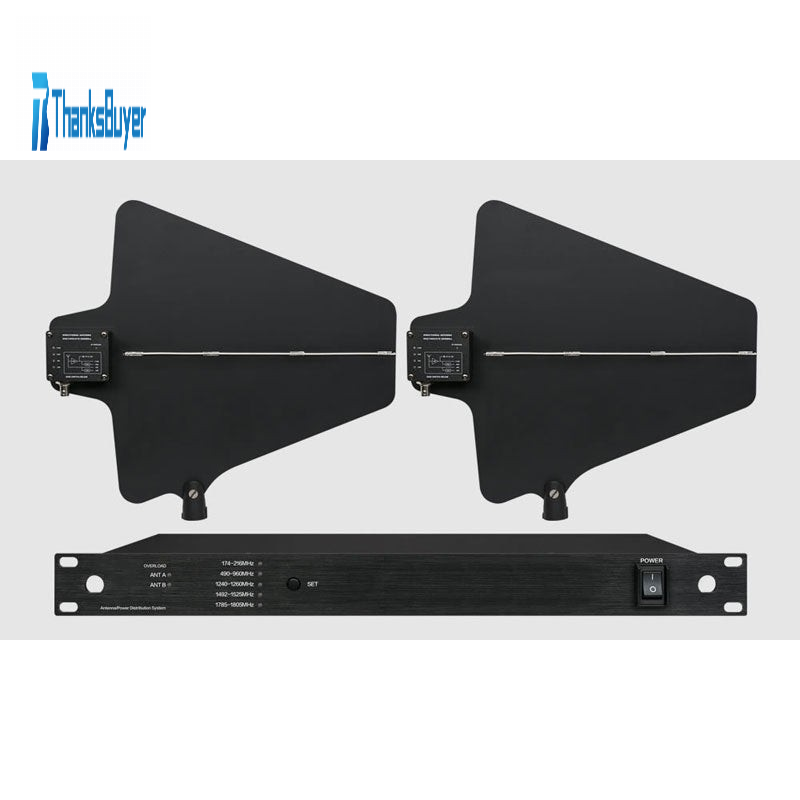

Package Included:
- 1 x Main unit
- 2 x Antennas
- 1 x Power adapter
- 4 x DC power cables
- 2 x 2.5m connection cables
- 10 x 0.5m connection cables
- 2 x Bracket connectors
- 10 x Screw-on adapters
- 1 x Aluminum case

Packaging Details:
- Weight: 8kg
