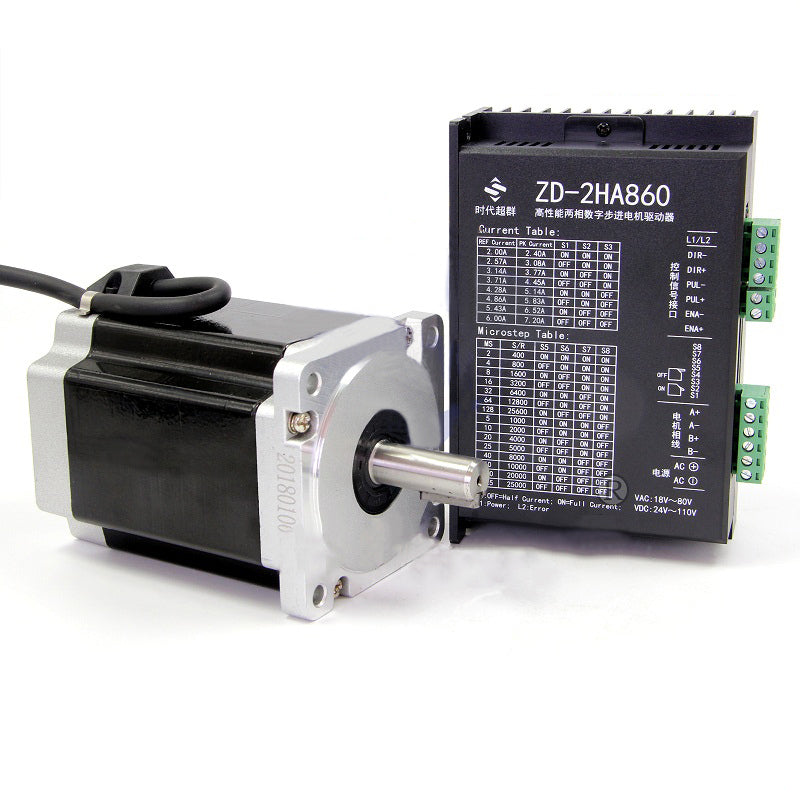

86 Stepper Motor 2-Phase 8.5Nm + Stepper Motor Driver For 57/ 86 Stepper Motors ZD-2HA860

86 Stepper Motor 2-Phase 8.5Nm + Stepper Motor Driver For 57/ 86 Stepper Motors ZD-2HA860

Package Included:
- 1 x 86 Stepper Motor
- 1 x Stepper Motor Driver

86 Stepper Motor 8.5Nm:
Features:
- Sealed against dust and water
- With oil seal

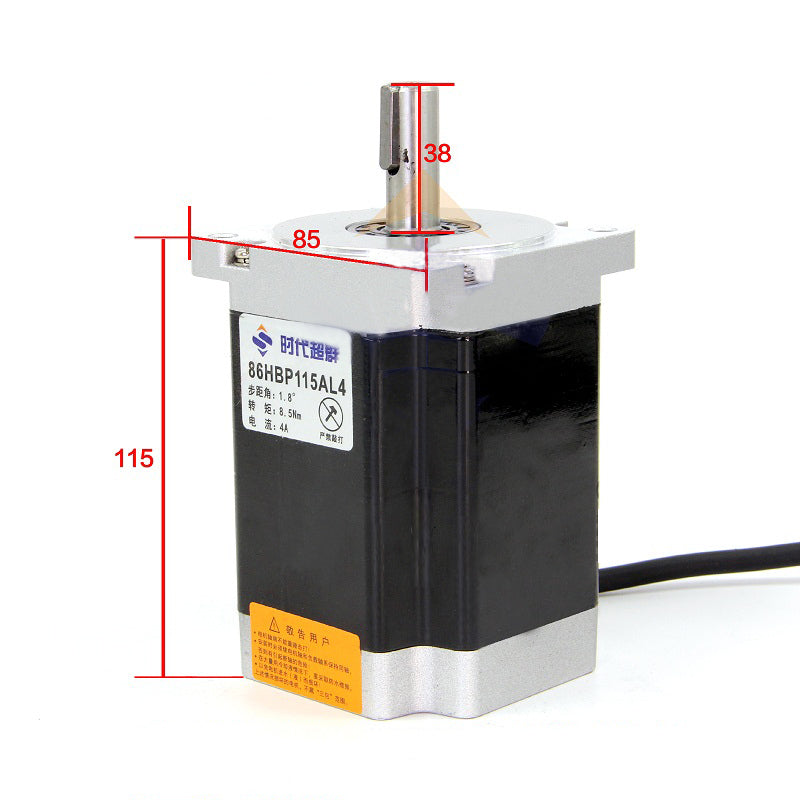

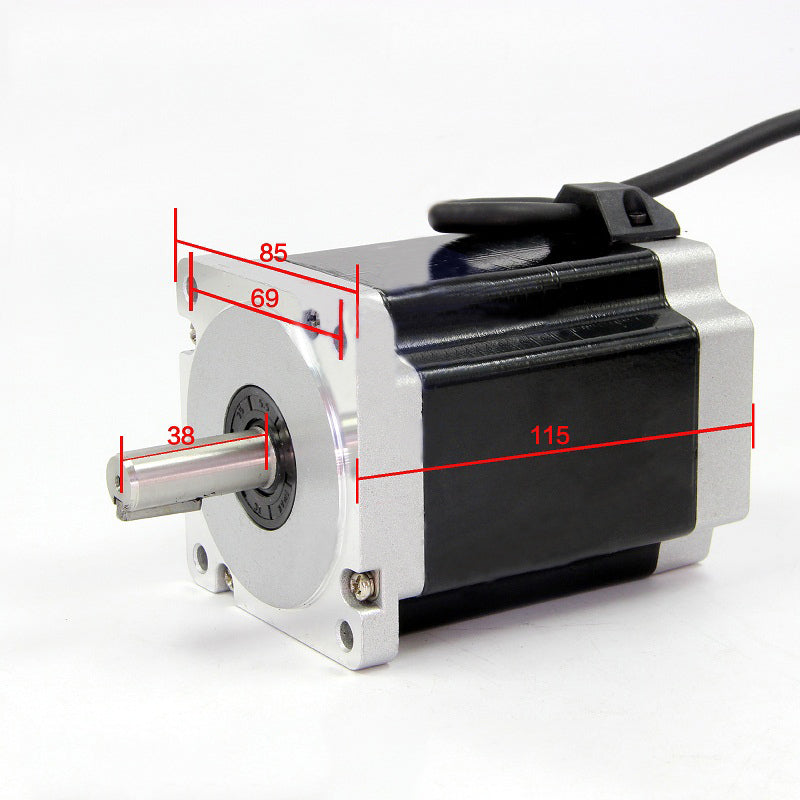

- Body length 115mm
- High-strength metal makes it last long
- Side wall with metal matte texture for enhanced friction
- Low Noise: Using German technology, it can avoid burrs on the surface after carbon steel oxidative grinding, preventing noise from rising

Parameters:
- Step Angle: 1.8°
- Insulation Resistance: 500V DC 100mΩMin.
- Insulation Strength: 500V AC 50Hz 1mA 1Minute
- Environment Temperature: -20℃ to 40℃
- Temperature Rise: 80K Max.
- Insulation Level: B
- Static Torque: 8.5Nm
- VDC: 36-80
- Current: 4A
- N.W.: 3.7kg

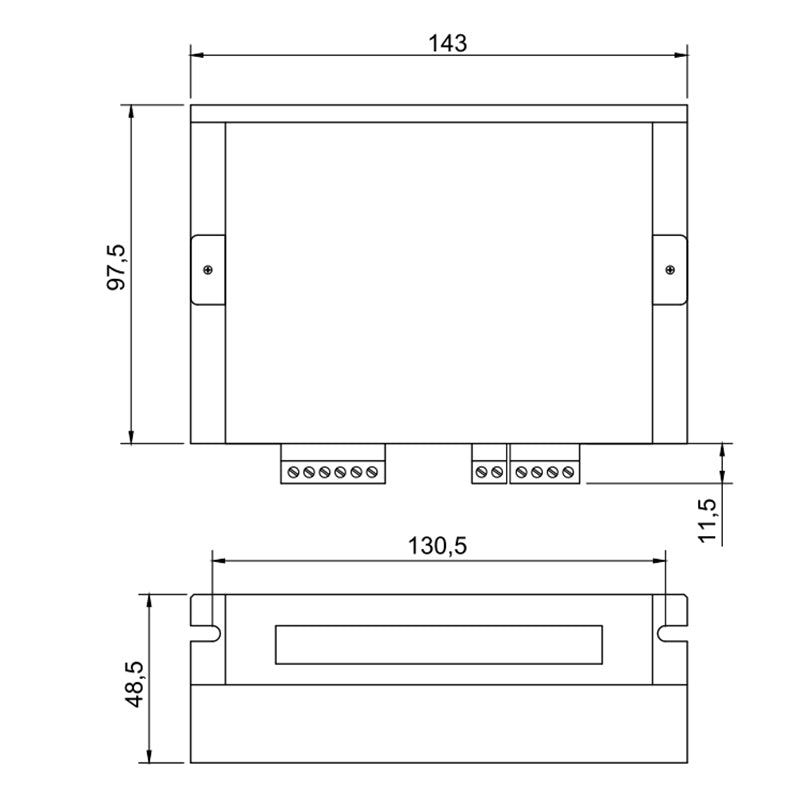

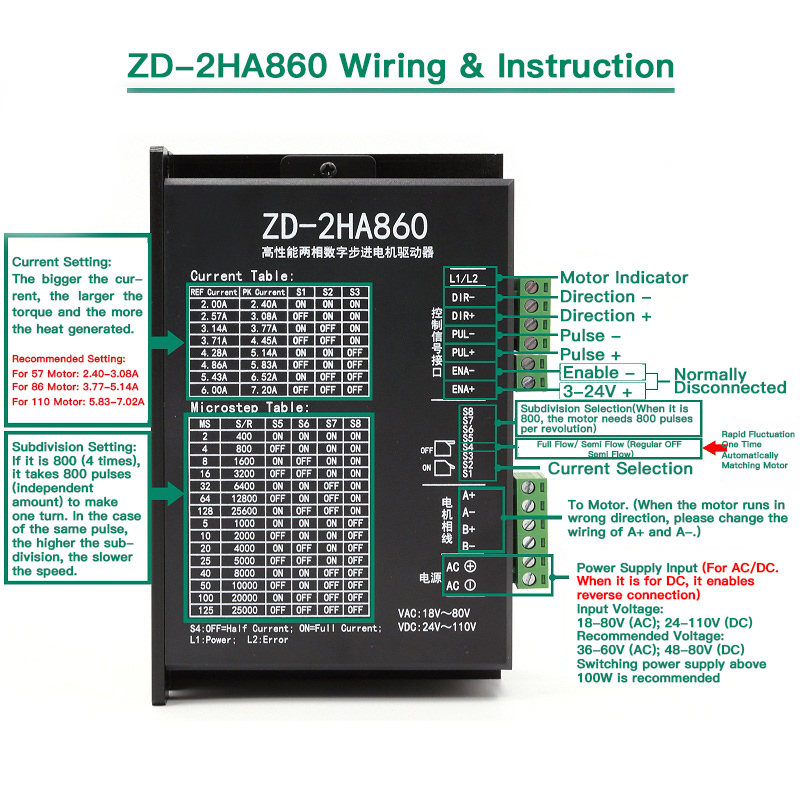

Stepper Motor Driver:
Features:
- Interface is isolated by ultra-high speed optocoupler
- Strong resistance to high frequency interference

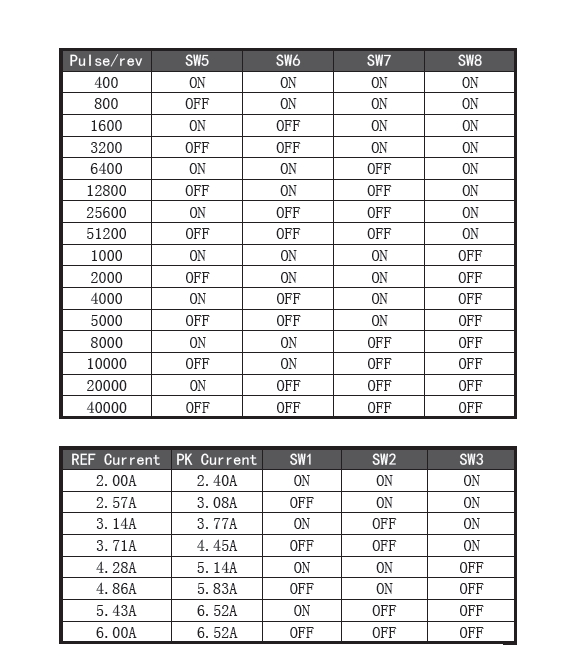

- 16 different segments to switch randomly
- Automatic semi-flow locking
- 8-level adjustable current
- Support offline, enable, lock and other functions
- Over-voltage, under-voltage, over-current protection

Operating Requirements:
- Environment Temperature: -30℃ Min. 80℃ Max.
- Storage Temperature: -55℃ Min. 150℃ Max.
- Input Voltage (DC): 24V Min. Rated 100V. 110V Max.
- Input Voltage (AC): 24V Min. Rated 72V. 80V Max.
- Peak Output Current: Min. 2.4A. 7.2A Max.
- Voltage of Control Port:
  H: 23V Min. Rated 24V. 24.5V Max.
  L: 0V Min. Rated 0V. 0.5V Max.
