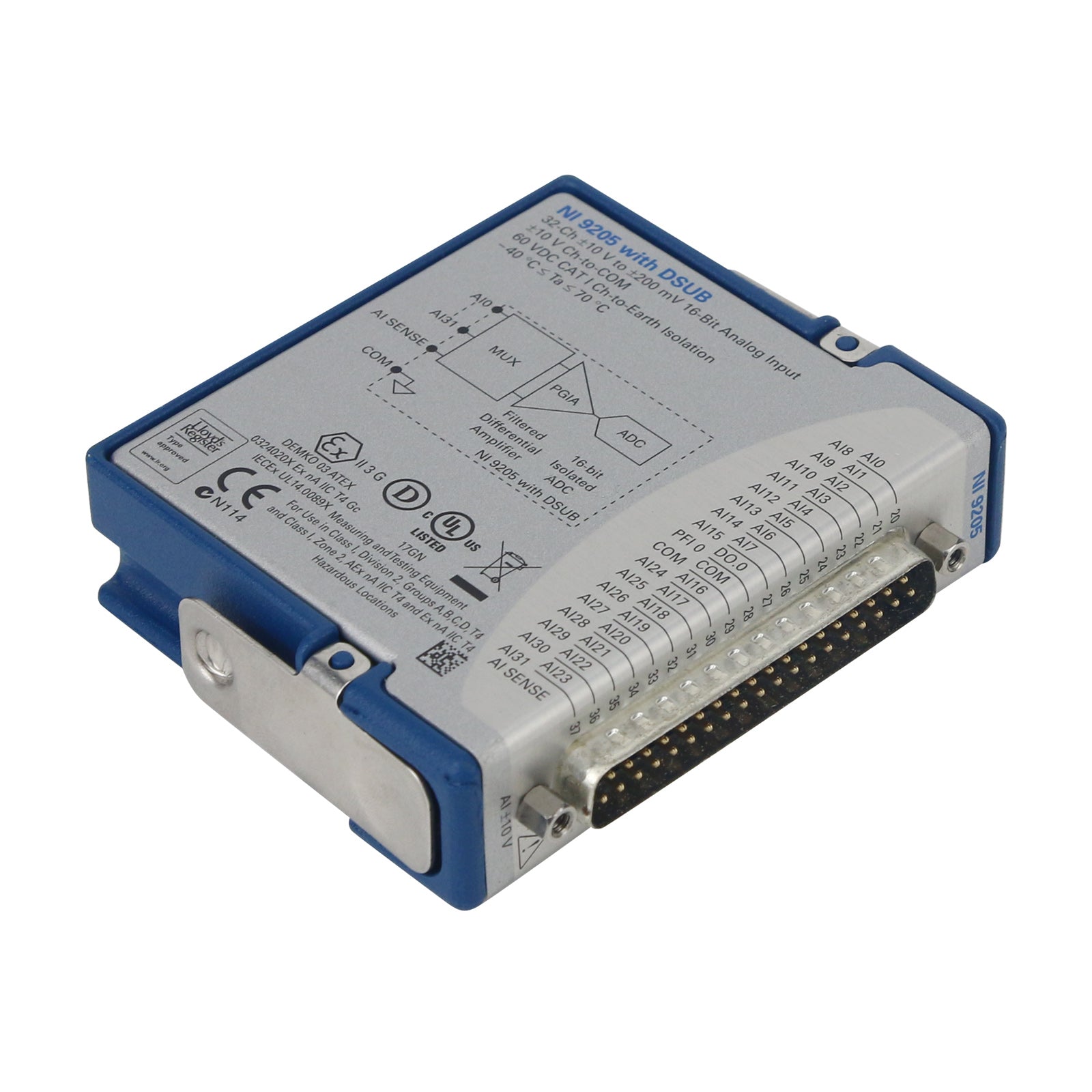

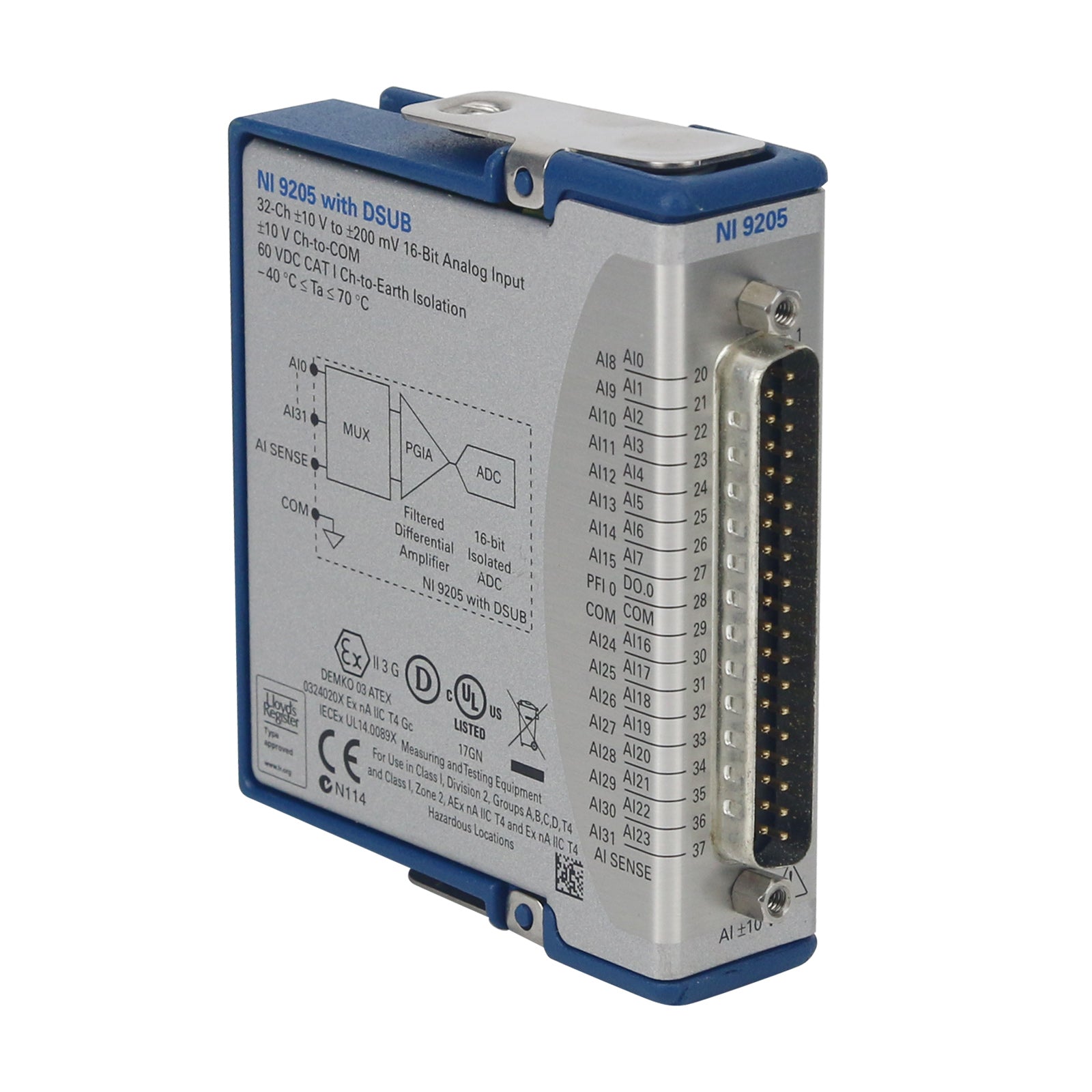

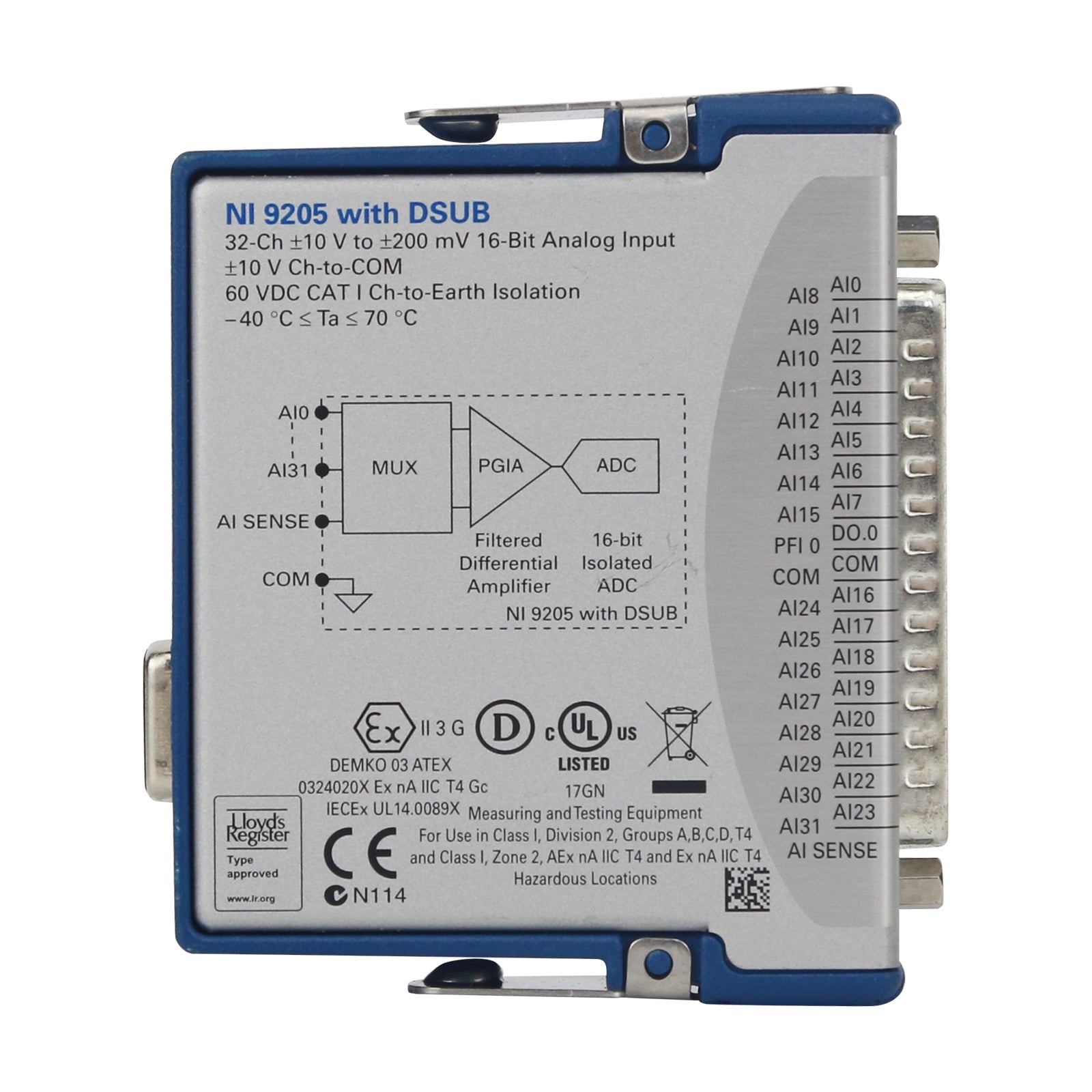

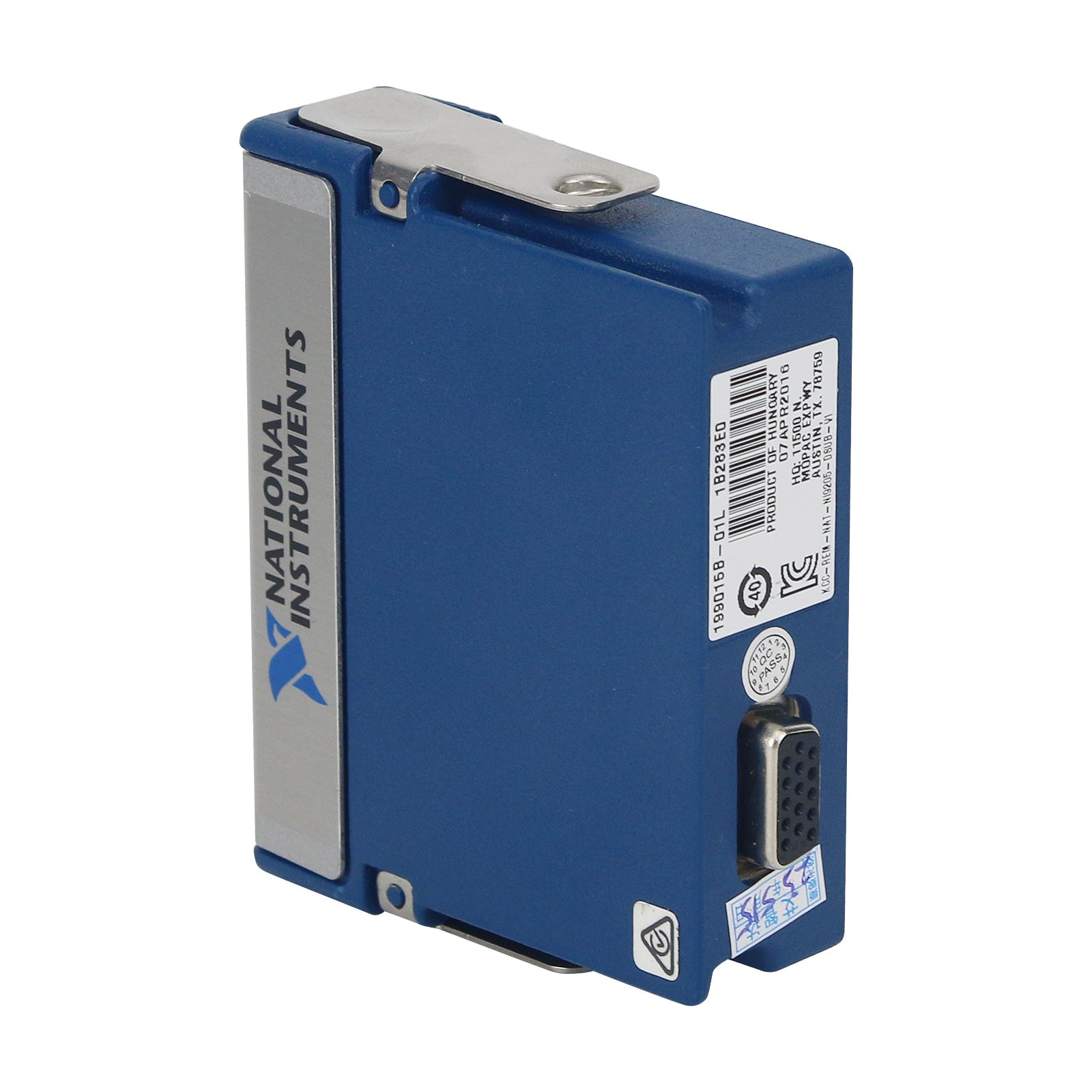

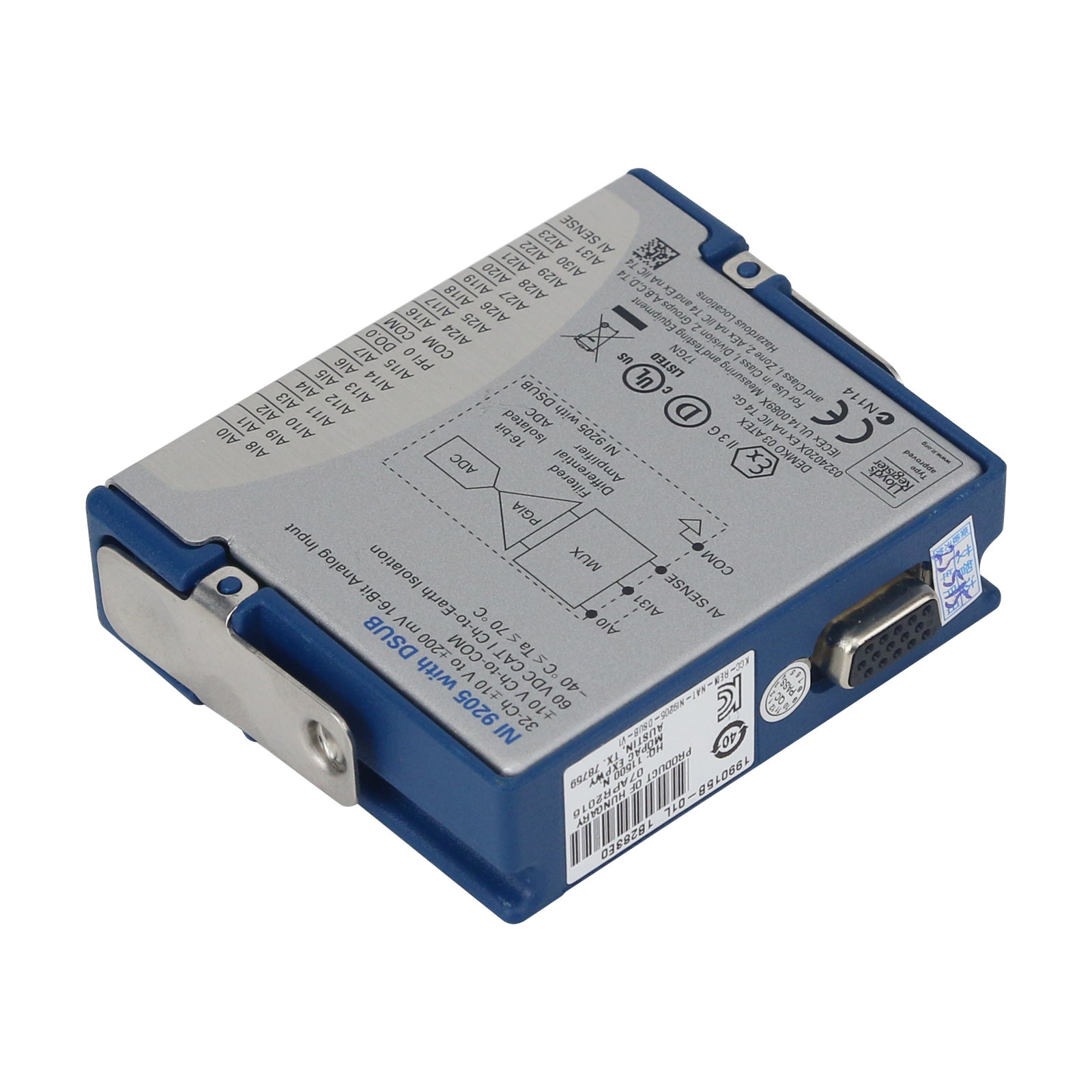

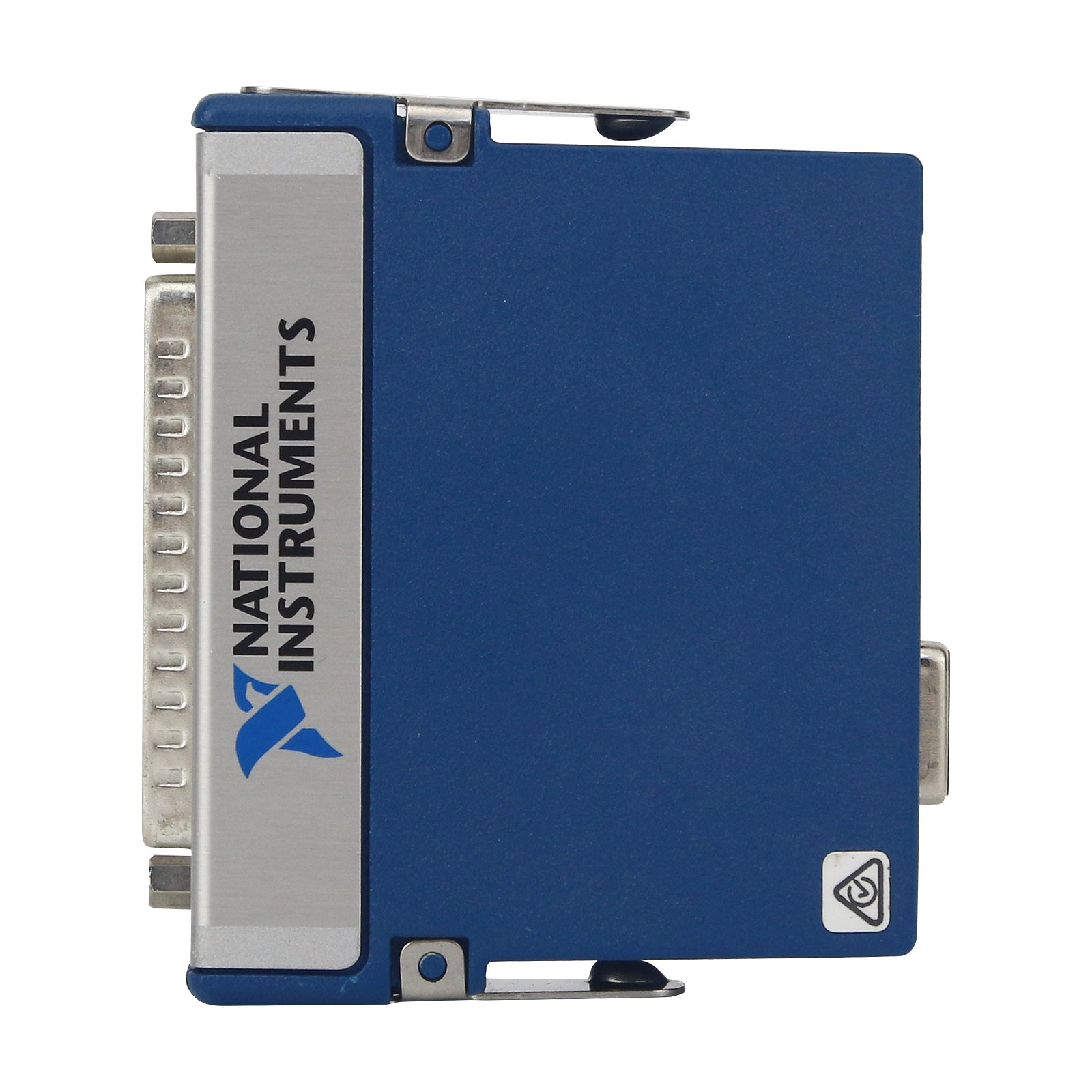

9205 779357-01 Original C Series Voltage Input Module 37-Pin D-SUB for NI National Instruments
Description:
9205 is a C series module for use with CompactDAQ for NI and CompactRIO chassis. It has 32 single-ended or 16 differential analog inputs, 16-bit resolution and a maximum sampling rate of 250kS/s. Each channel has programmable input ranges: ±200mV, ±1V, ±5V, and ±10V. To prevent signal transients, the 9205 also has over-voltage protection up to 60 V between the input channel and COM. In addition, it also features dual channel-ground-ground isolation for safety, noise immunity, and a high common-mode voltage range. It has 1,000Vrms of transient over-voltage protection. The 9205 is available in two types of connectors: a 36-pin spring-loaded terminal connector or a 37-pin D-Sub connector that can be connected directly.
We recommend the 9940 (for NI) strain relief connector accessory to add strain and high voltage protection to the 36-pin terminals of the ENET9205.
The 9205 enables D-Sub connectivity. It features an industry-standard 37-pin D-Sub connector with low-priced cable options. It can be connected to a wide range of accessories for NI and other brands. Many suppliers also offer D-Sub cable customization services, providing encapsulated pin-out cables that meet your application needs. 9333 for NI (and other 37-pin D-Sub connector) is required for use with 9205 with D-Sub.
Features:
* 9205 32-channel, ± 200 mV to 10 V, 16-bit, 250kS/s analog input module
* 32 single-ended or 16 differential analog inputs
* 16-bit resolution
* 250kS/s total sample rate
* Programmable input ranges: ±200 mV, ±1, ±5, and ±10 V
* Hot-swap operation; with over-voltage protection and isolation
* Calibration traceable to NIST
* Operating temperature range: -40°C to 70°C
* Spring terminal or D-Sub connection
Package Included:
* 1 x Voltage Input Module
