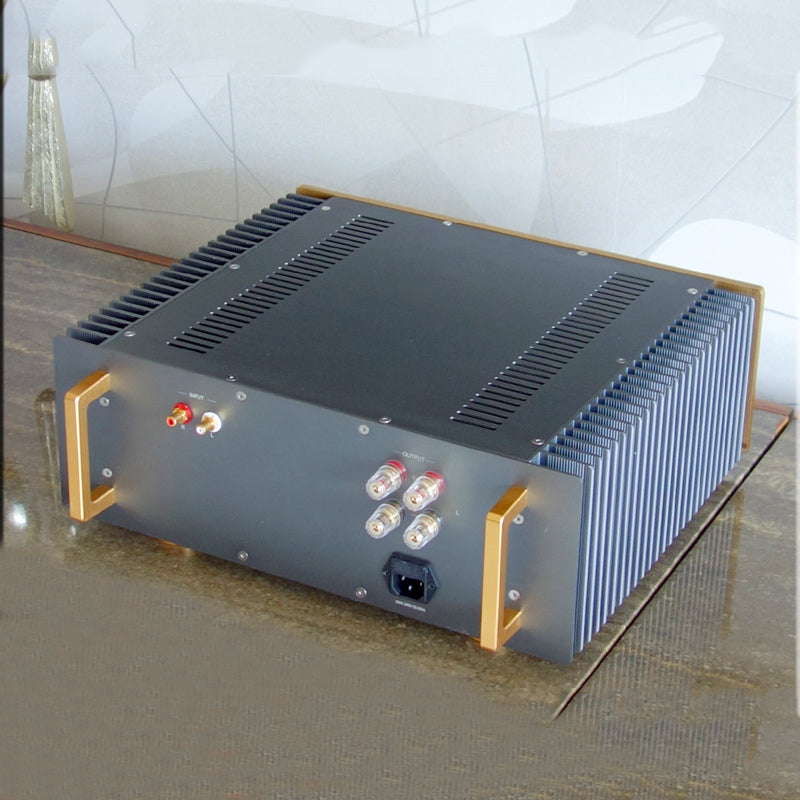

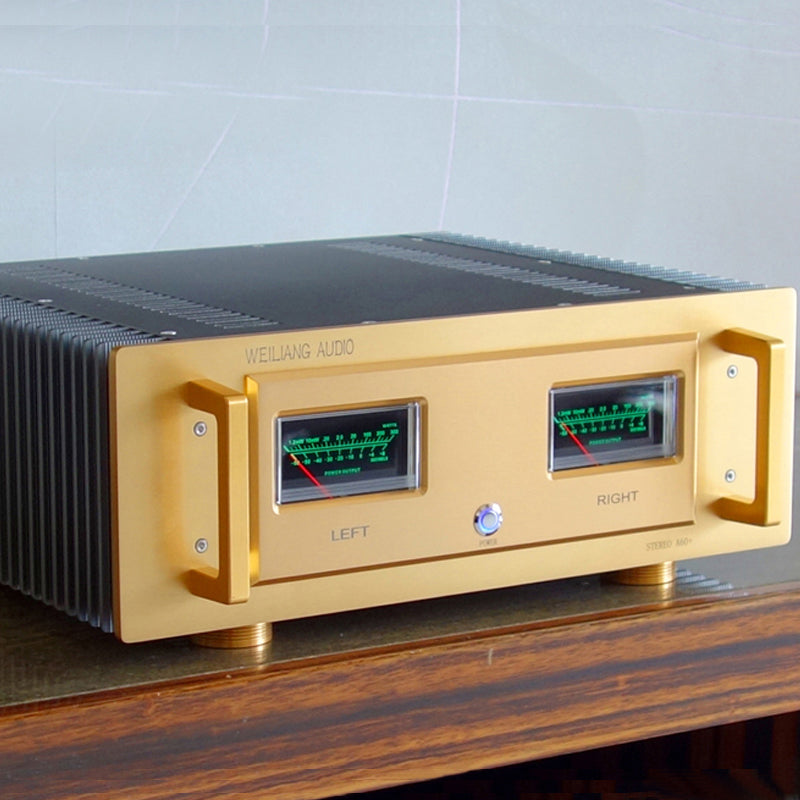

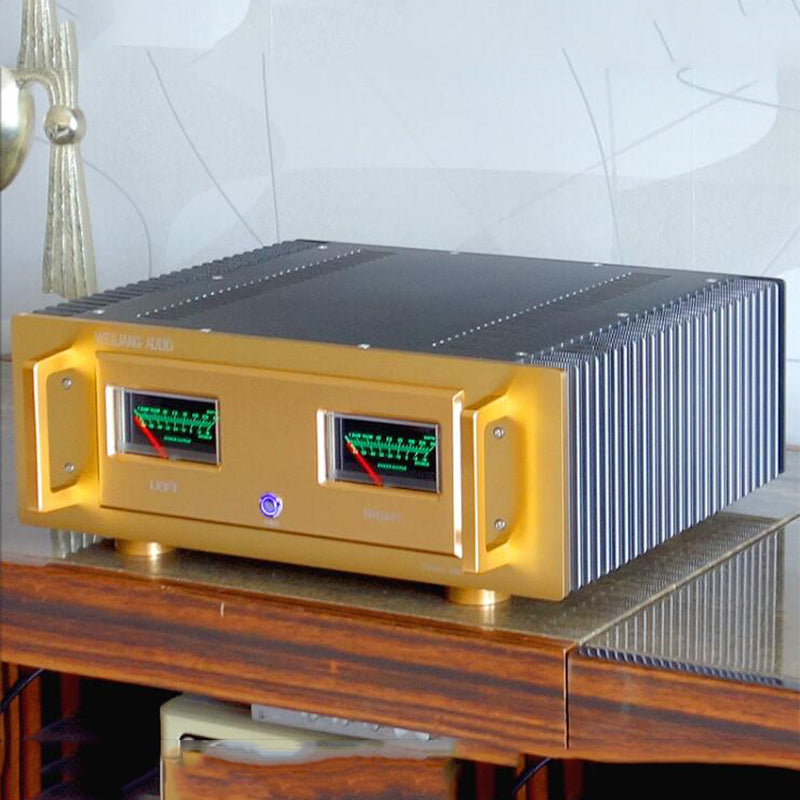

A60 Power Amplifier Chassis Shell Aluminum Amplifier Case DIY Amp Box Enclosure with VU Meter

A60 Power Amplifier Chassis Shell Aluminum Amplifier Case DIY Amp Box Enclosure with VU Meter

Specification:
External dimensions: width 430mm x depth 359mm (with front and rear handles 419mm) x height 150mm
Internal dimensions: width 330mm x depth 348mm x height 142mm
Weight: 12.0kg
Radiator: 348mm x 148mm x 50mm (there is one on left and right each side)
Thickness of plate: front panel: 10mm; rear panel:3mm; upper and lower cover: 4mm

Package List:
-1 x Aluminum Chassis

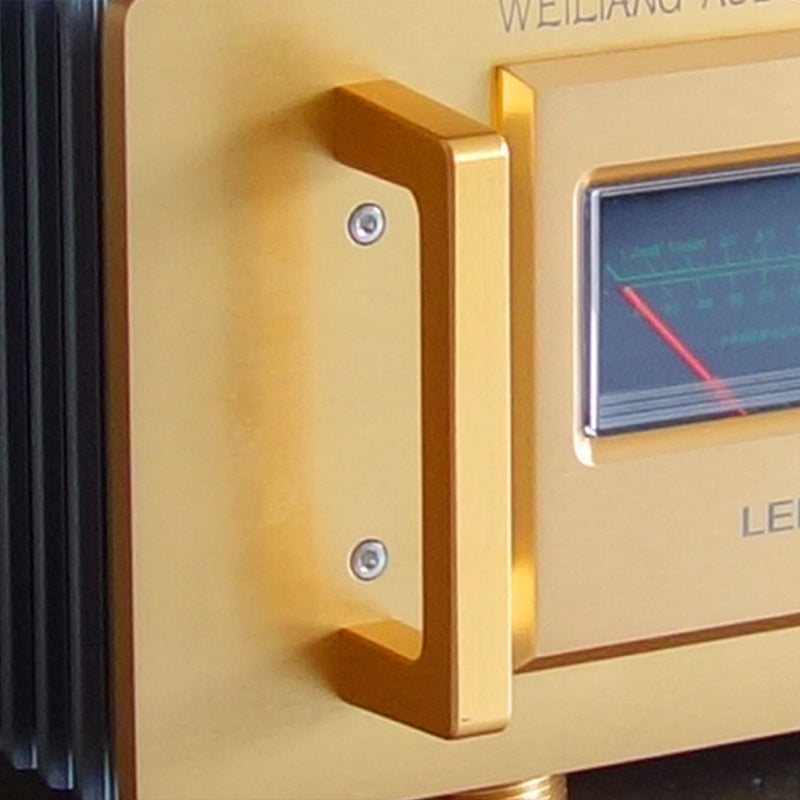

-4× Handles
-4× Aluminum Feet

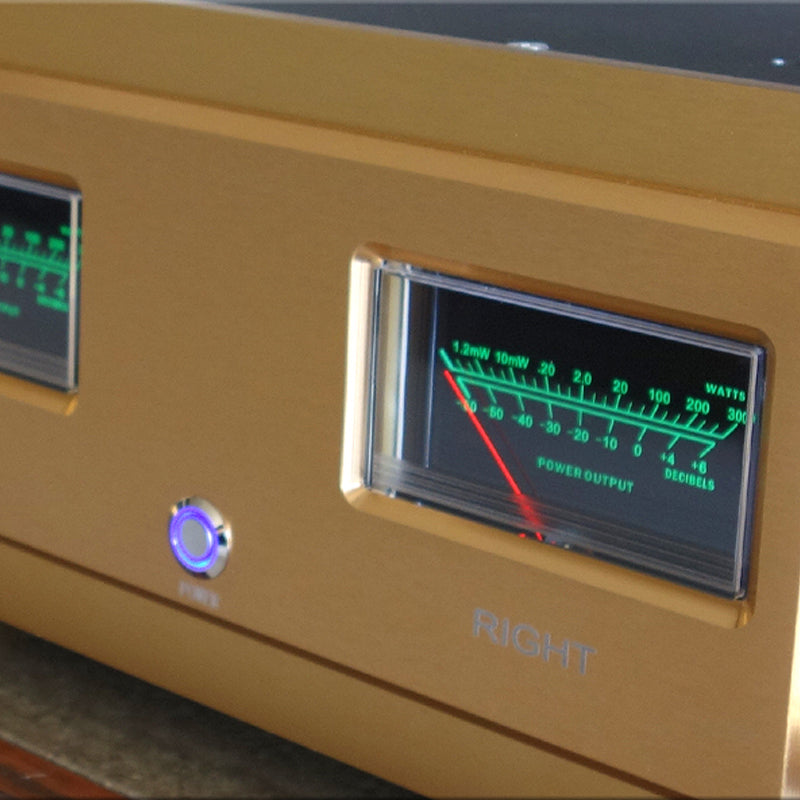

-2× VU Meter
-1 x Power Switch
-1× Power Socket

Note:
1. The VU meter LED cannot be directly connected to a voltage greater than 3V, need to connect 10K-33K step-down resistor in series.
2. The product package does not include 2 RCA sockets and speaker terminals.
