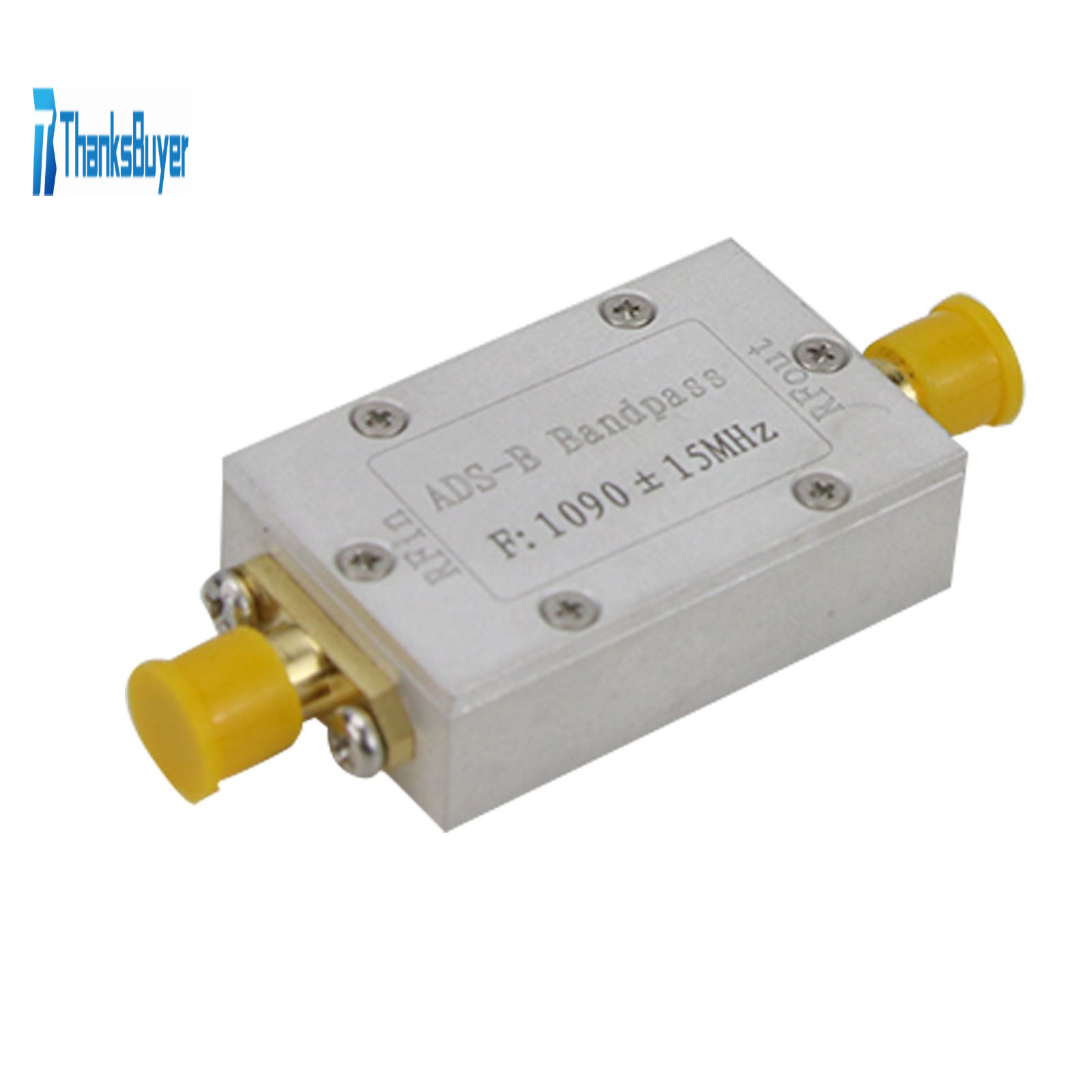

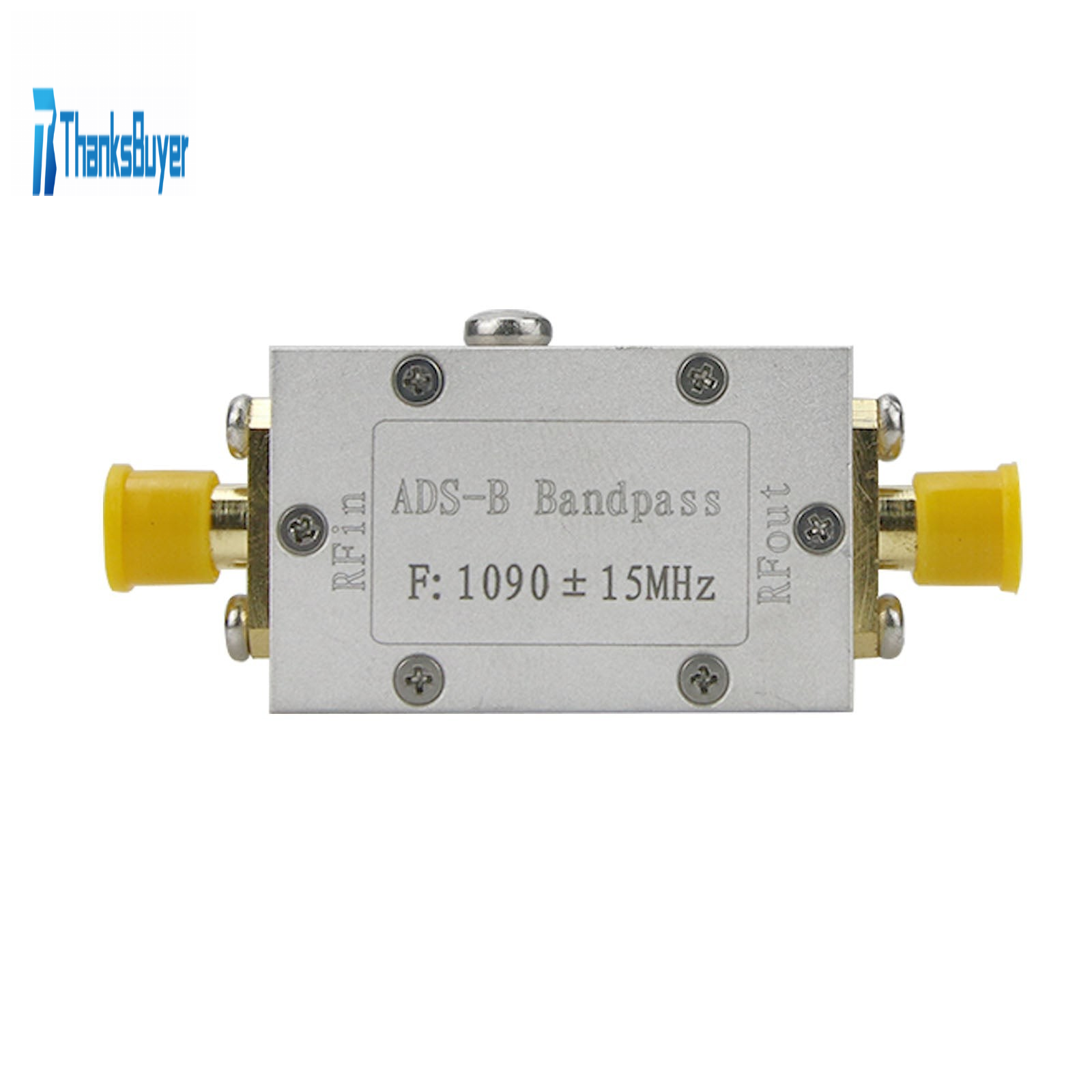

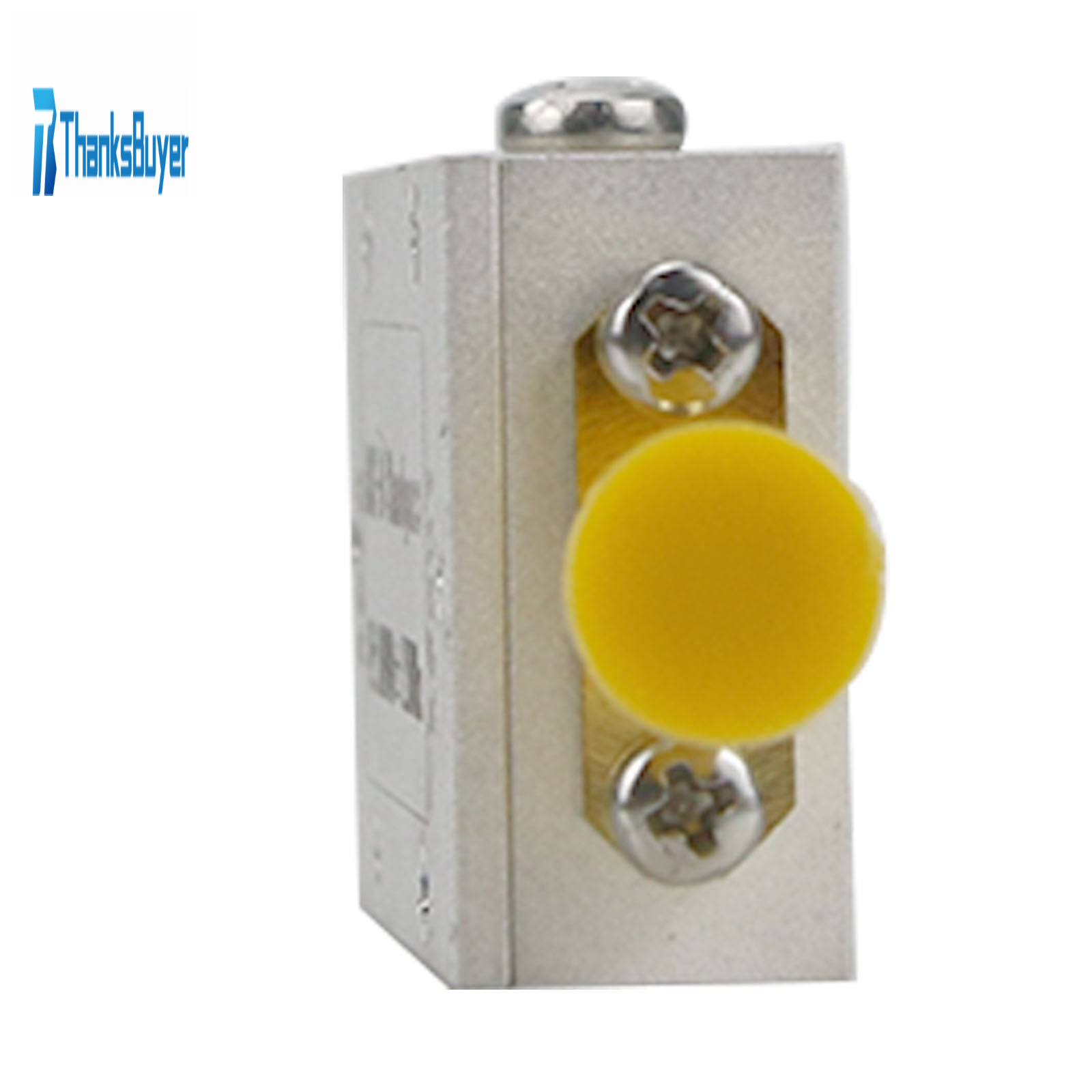

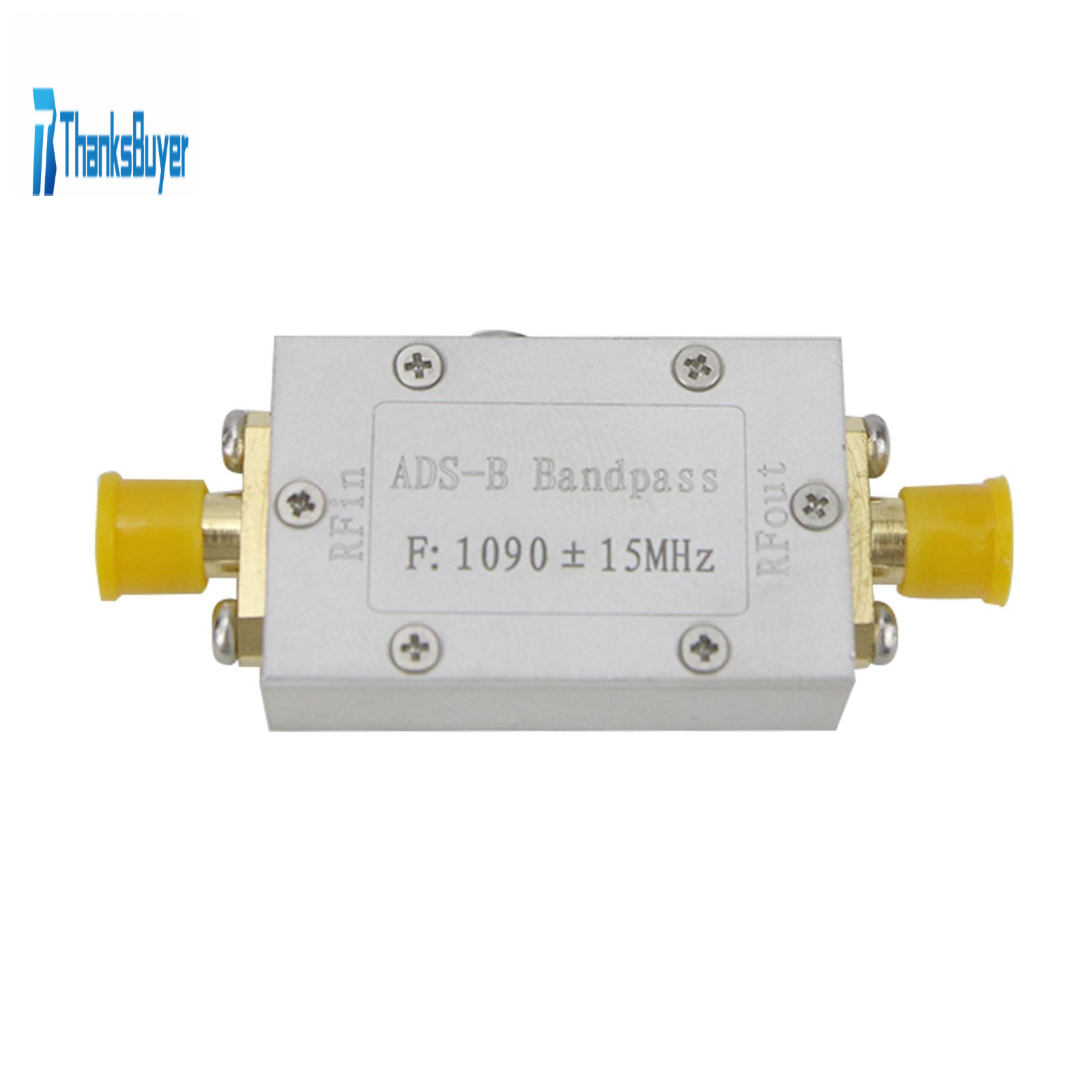

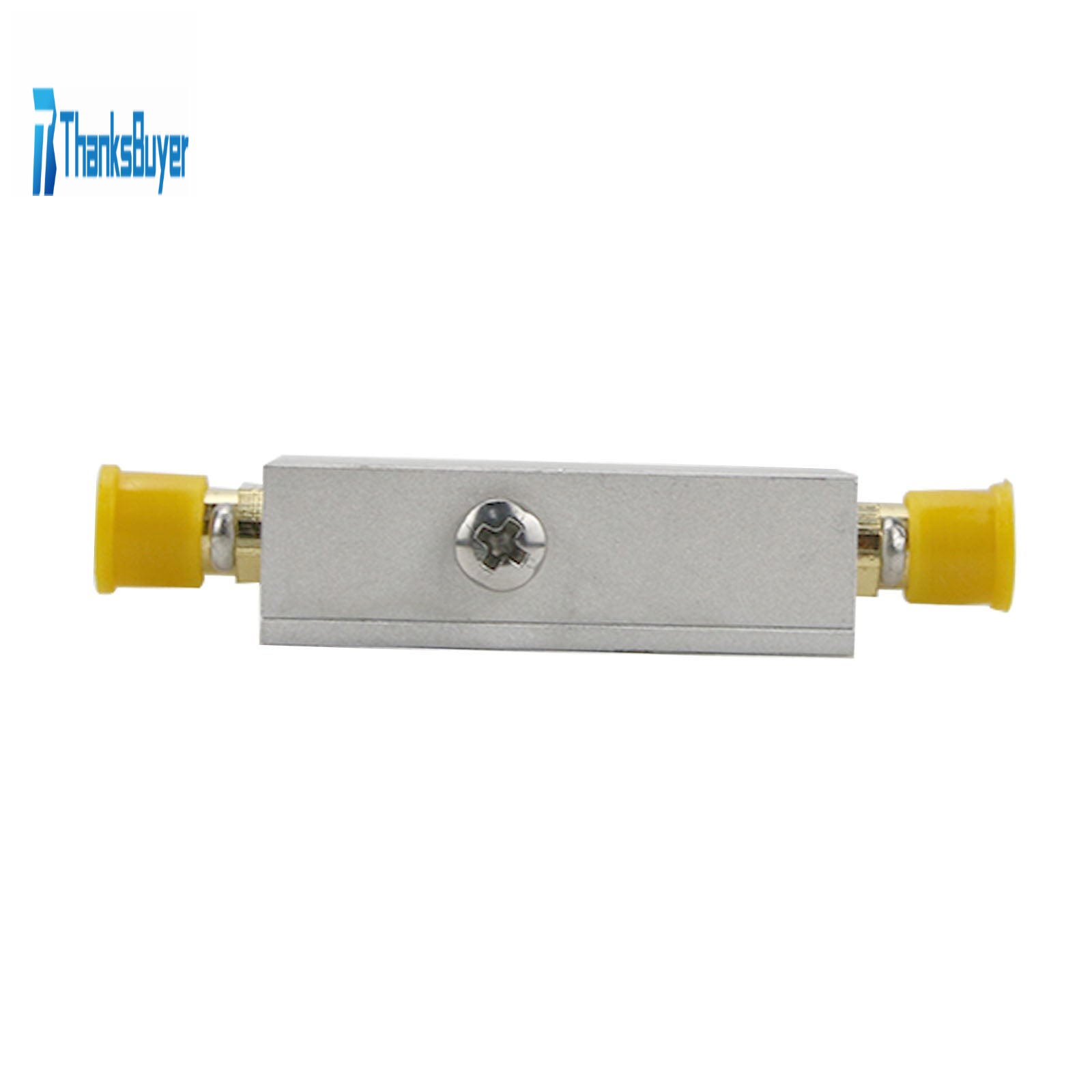

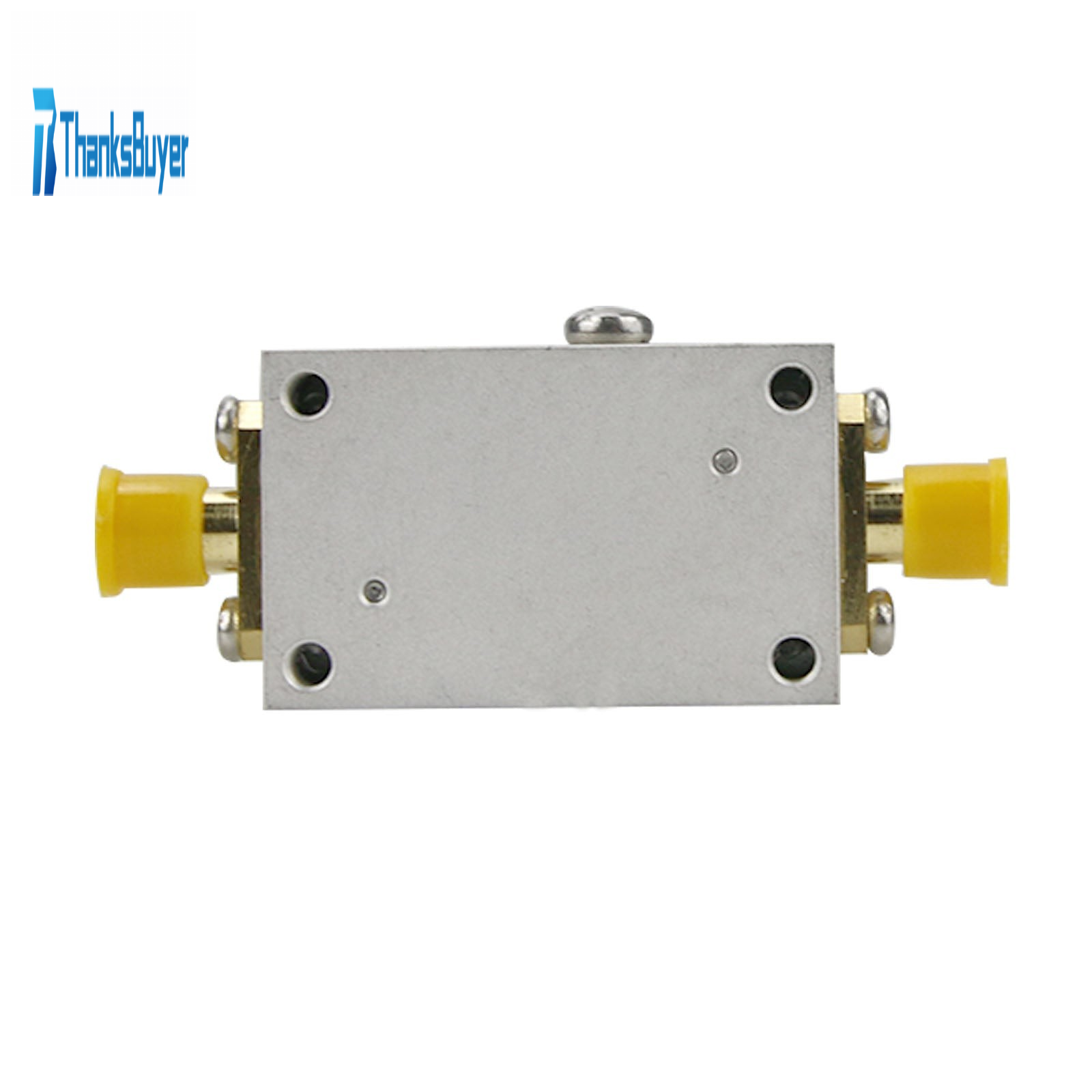

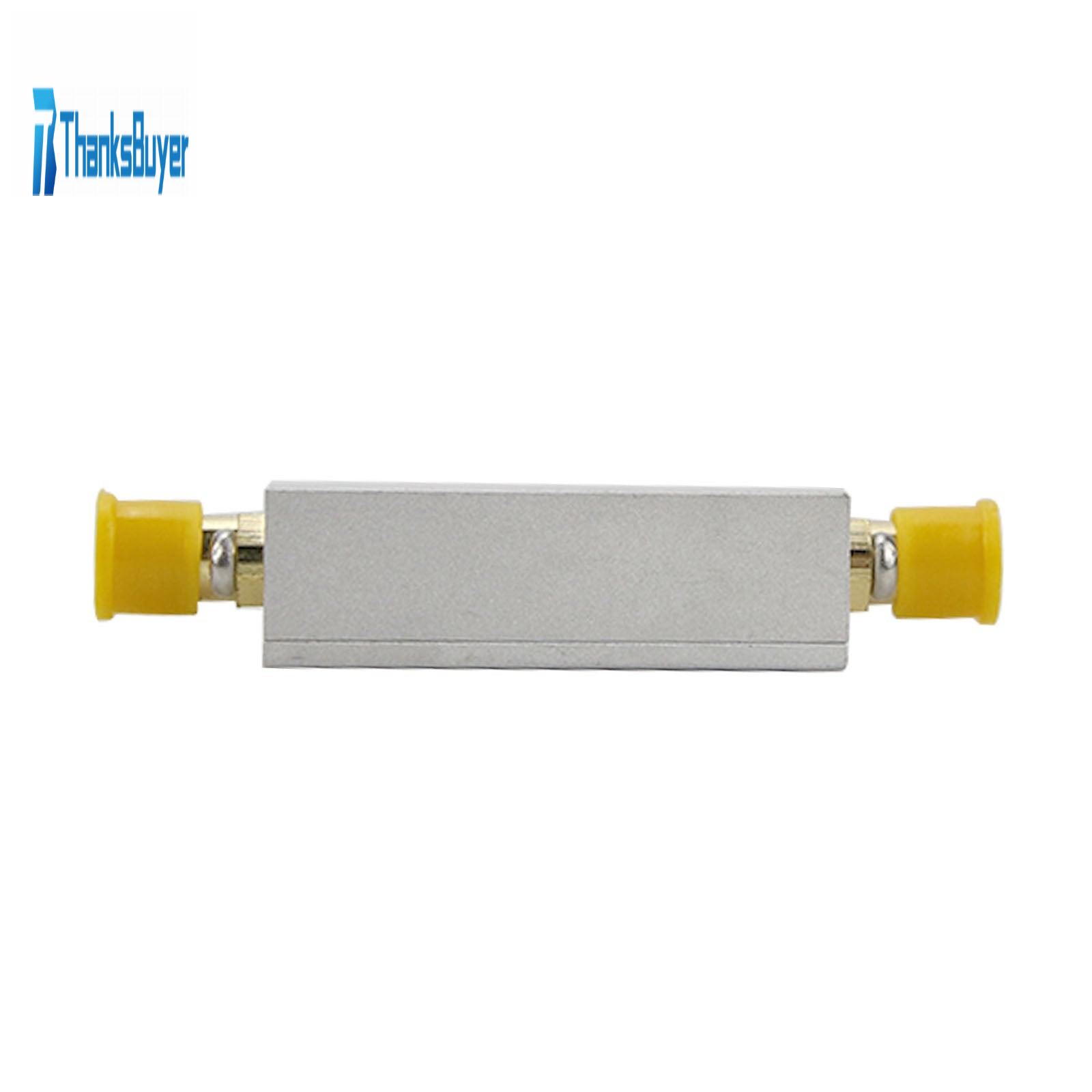

ADS-B Filter Band Pass Filter BPF Filter 1090MHz Passive Software Radio SDR Narrowband Filter
Regular price
$18.27
Regular price
Sale price
$18.27
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Availability:
2000 in stock
SKU:
66883
Regular price
$18.27
Regular price
Sale price
$18.27
ADS-B Filter Band Pass Filter BPF Filter 1090MHz Passive Software Radio SDR Narrowband Filter
Technical Indicators:
- Center frequency: 1090MHz
- Bandwidth: ±15MHz
- Insertion loss: 1.5db
- Out-of-band suppression: 40dB@50MHz
- Input impedance: 50 ohms
- Output impedance: 50 ohms
- Maximum input signal strength: 13dbm (20mw)
- Input interface: SMA-K (SMA female connector)
- Output interface: SMA-K (SMA female connector)
- No power supply
Package Included:
- 1 x Band Pass Filter

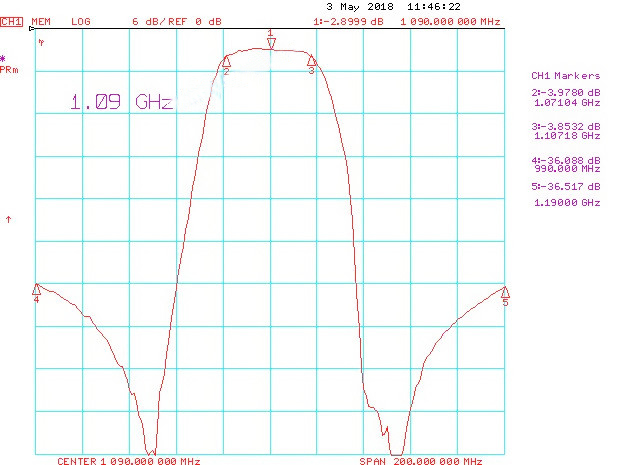

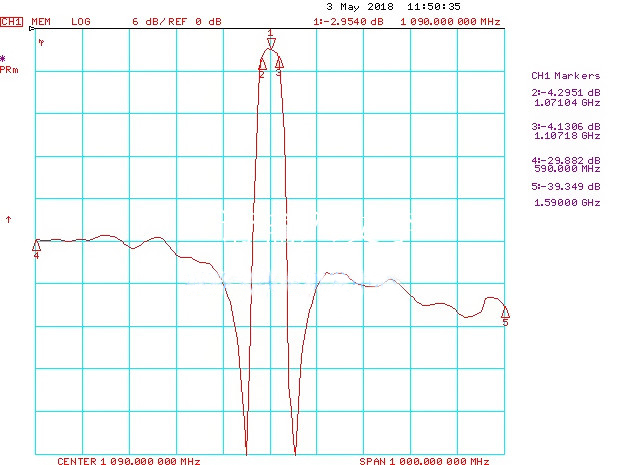

Test Charts:
