AU-401 4 Channel Audio Mixer Sound Mixer 5DB Gain with 4 Inputs 1 Output for Stereo Audio Sources
Description:

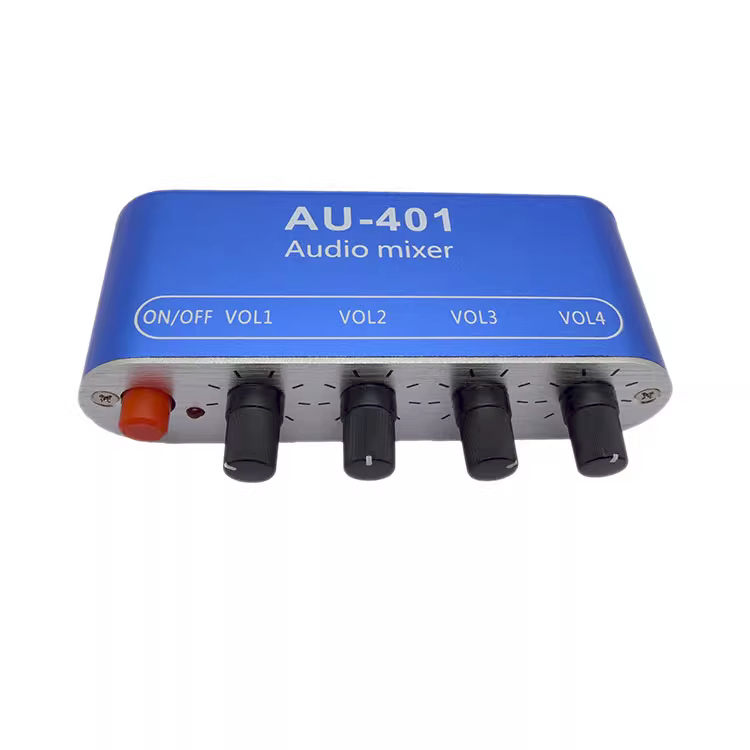

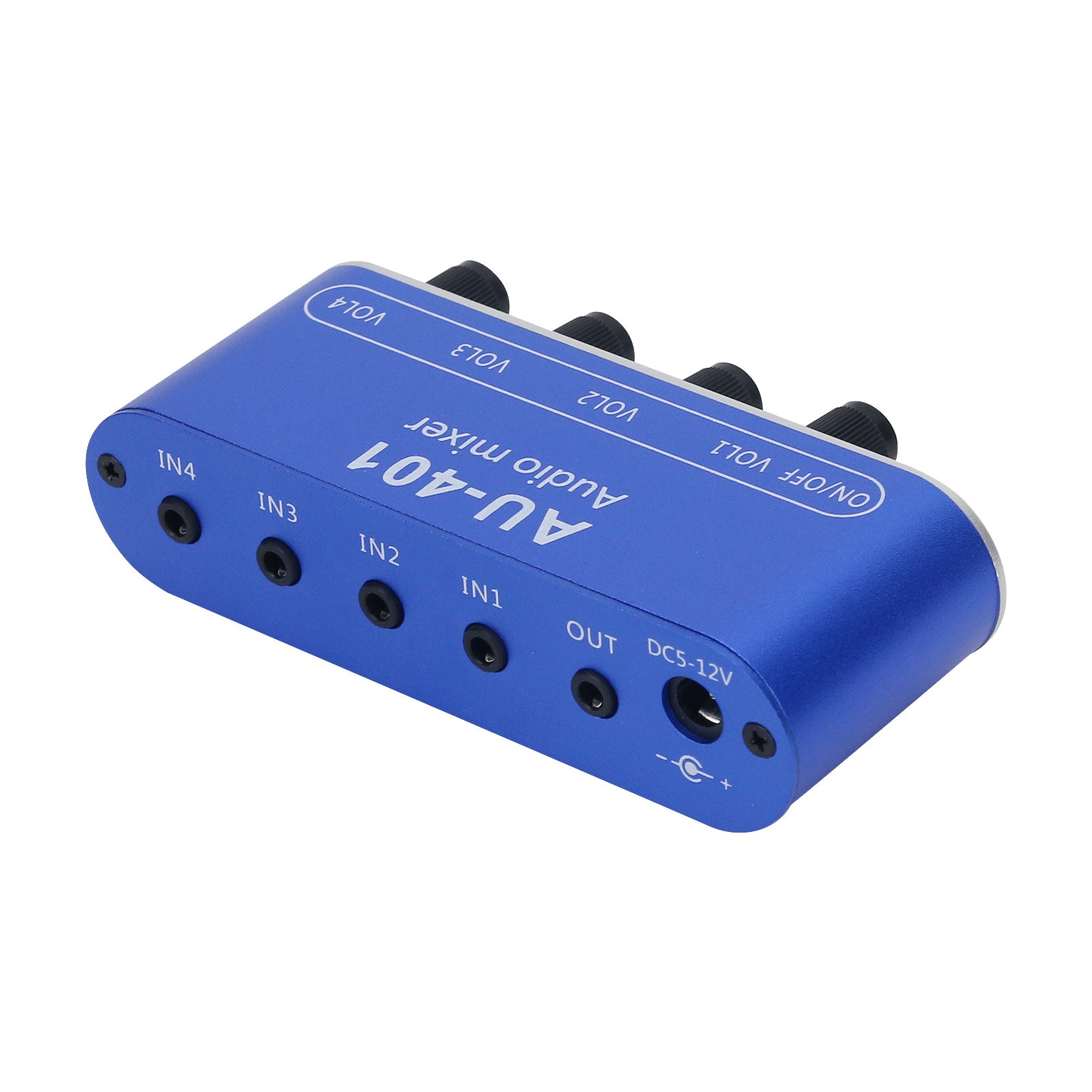

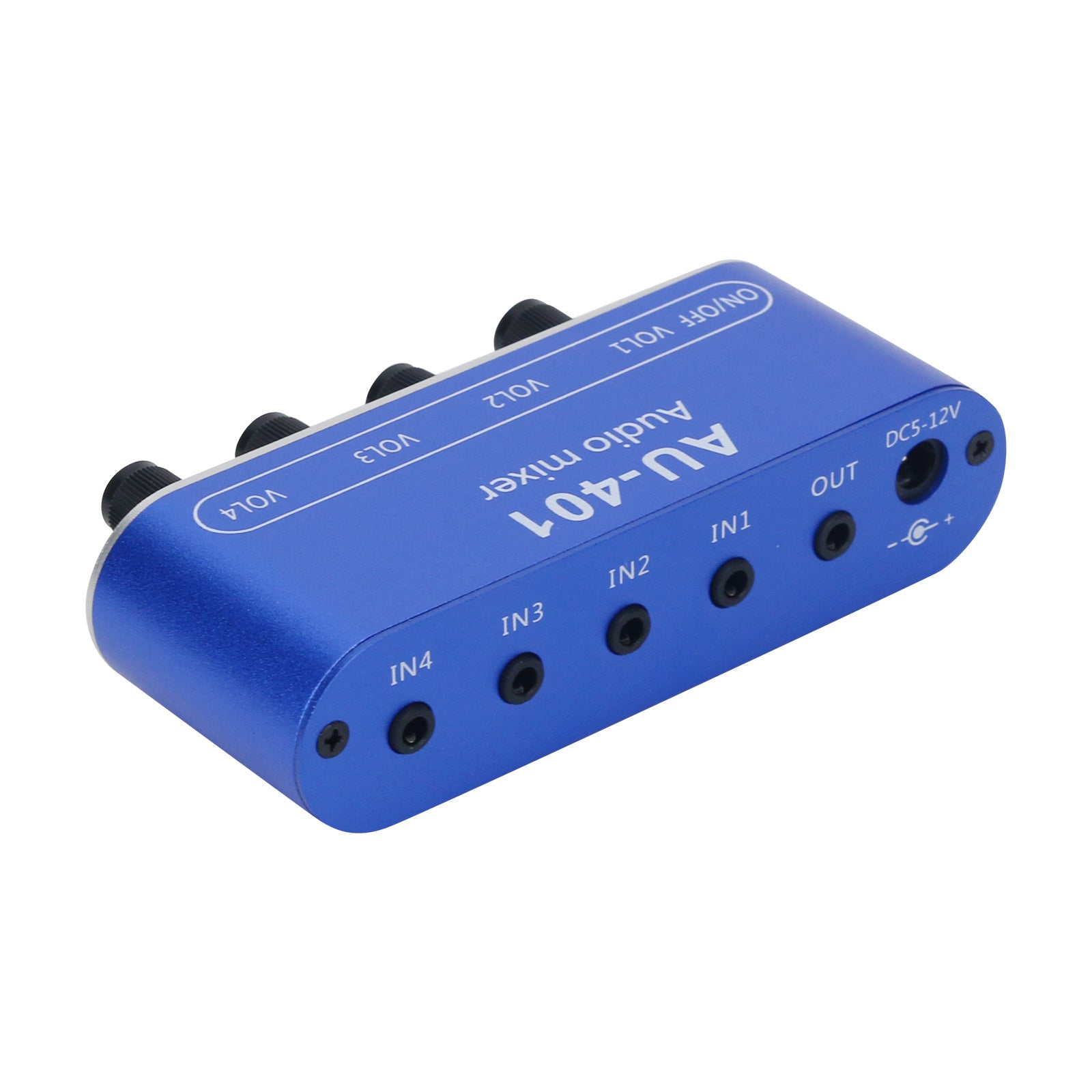

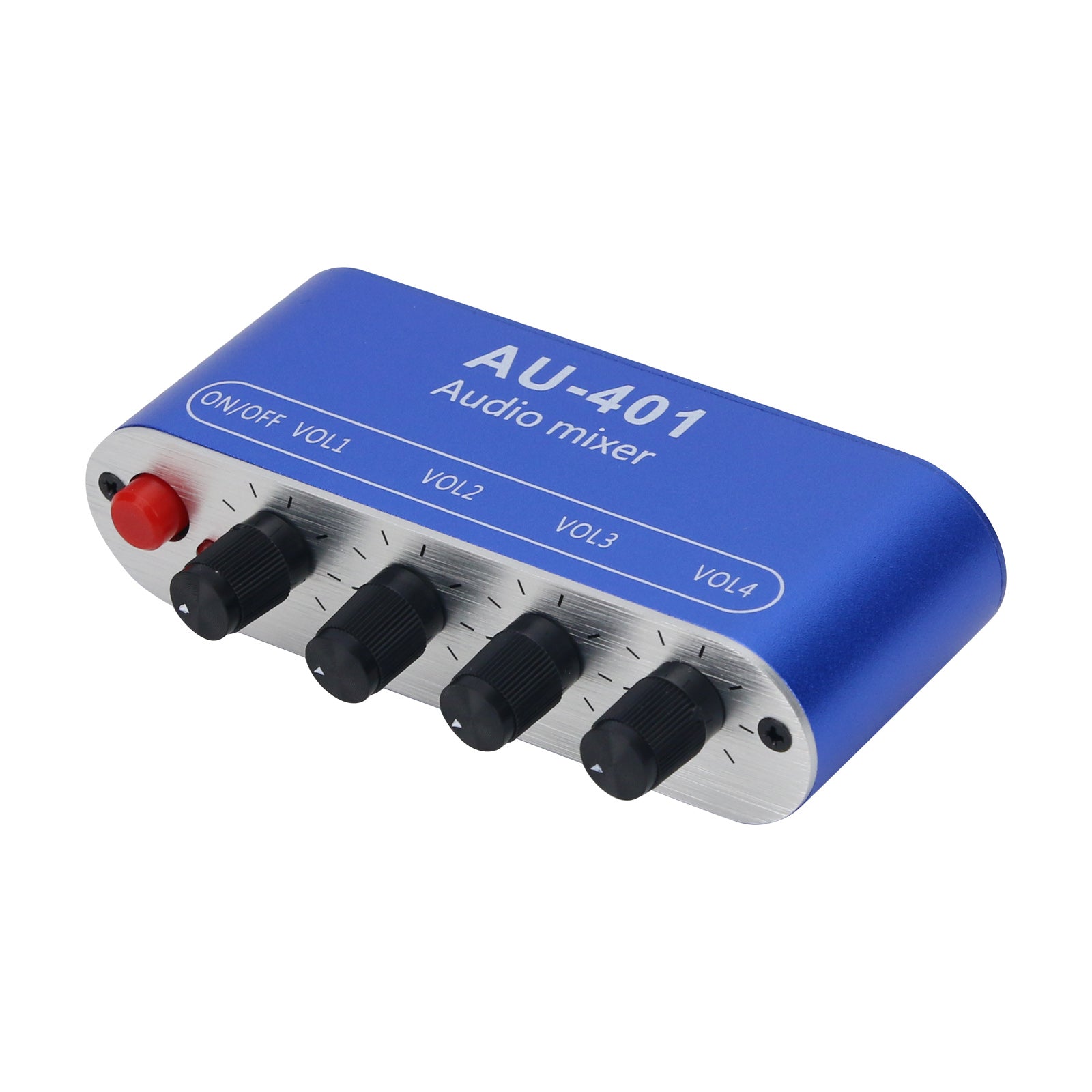

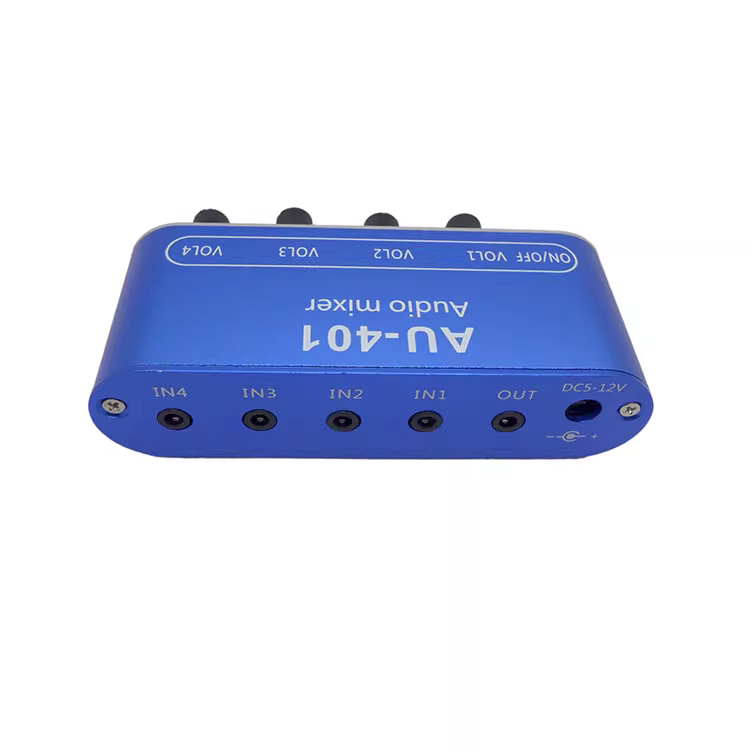

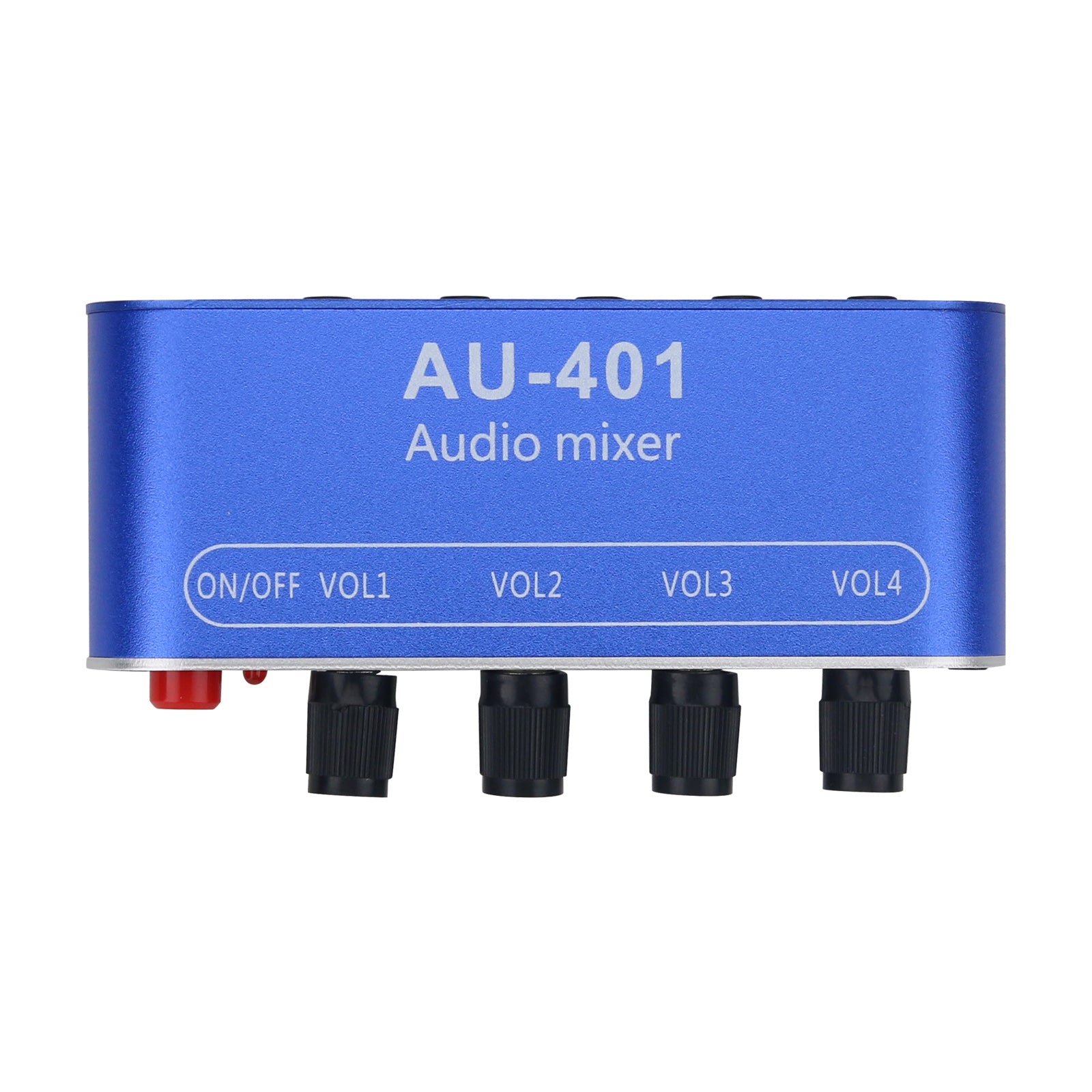

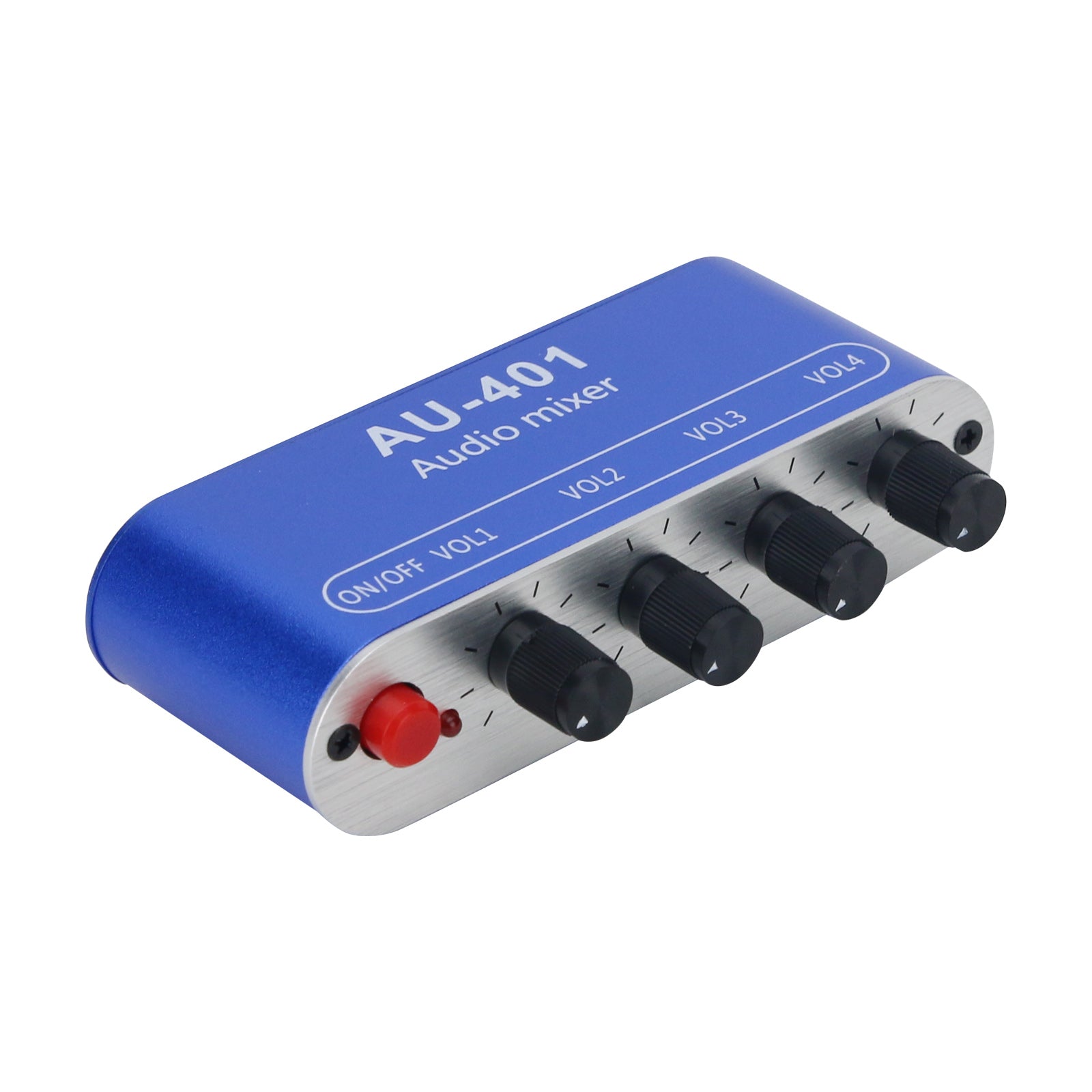

Four stereo audio inputs are mixed into one stereo output. There is a 3.5mm headphone socket, and the audio mixer can directly drive headphones or connect to a power amplifier. Potentiometers control the volume of each channel individually.
The quiescent current is about 15mA. Using Japanese NJM4580 and NJM4556A high-current op amp, the maximum driving current is 70mA. It can drive headphones or be connected to amplifiers.
Specifications:
- Power supply range: DC5-24V
- Quiescent current: About 15MA
- Frequency response: 20HZ-20KHZ
- Gain: About 5dB
Package Included:
- 1 x Audio Mixer
Attention:
- Please use a low ripple power supply and a shielding wire as the audio cable.
