AUNE Black SC1 Digital Audio Clock HiFi OCXO Clock 10MHzX4 2XSquare Wave + 2XSinewave Output

AUNE Black SC1 Digital Audio Clock HiFi OCXO Clock 10MHzX4 2XSquare Wave + 2XSinewave Output

Specification:
- Output frequency: 10MHz x 4
- Output power: 10MHz > 7dBm (50ohms)

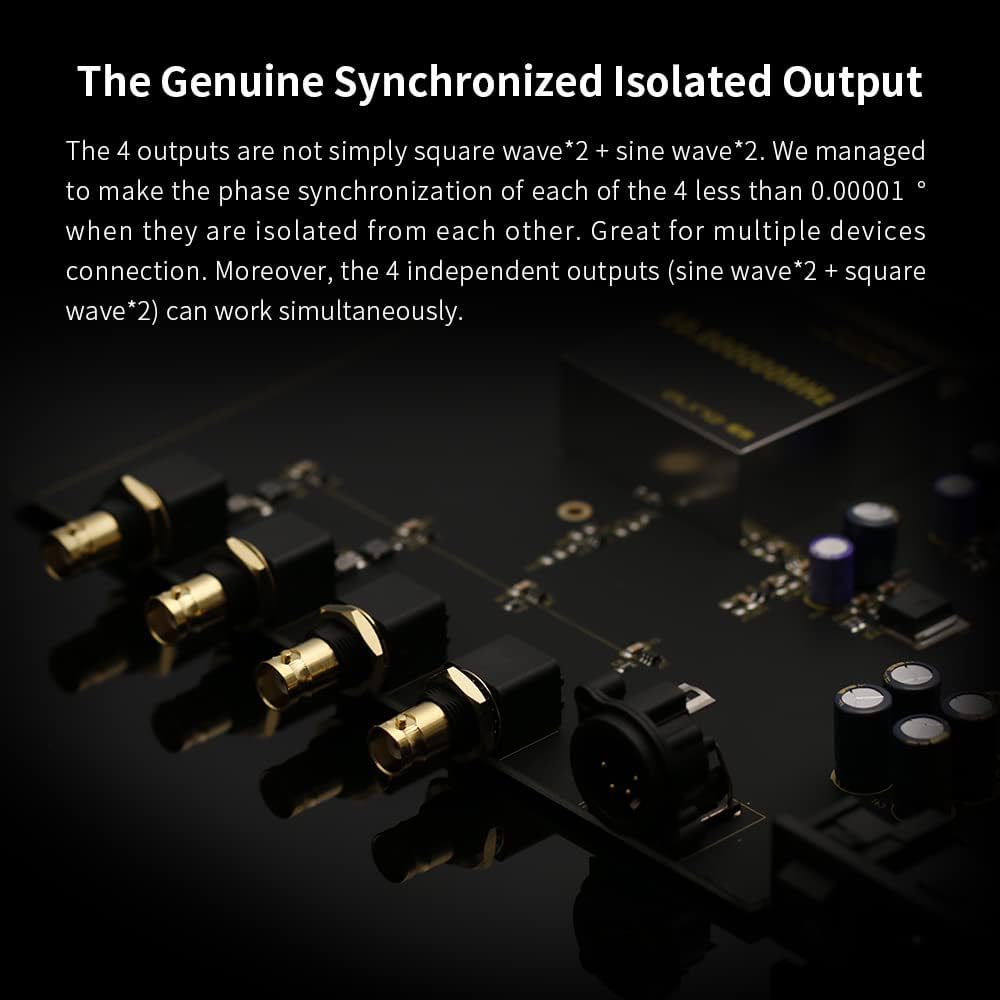

- Output waveform: 2 x square wave/ 2 x Sinewave
- Frequency precision: <±0.02ppm
- Jitter (when OCXO output): < 200FS BW 1Hz - 1MHz
- Warm-up time: 5 minutes at basic warm-up

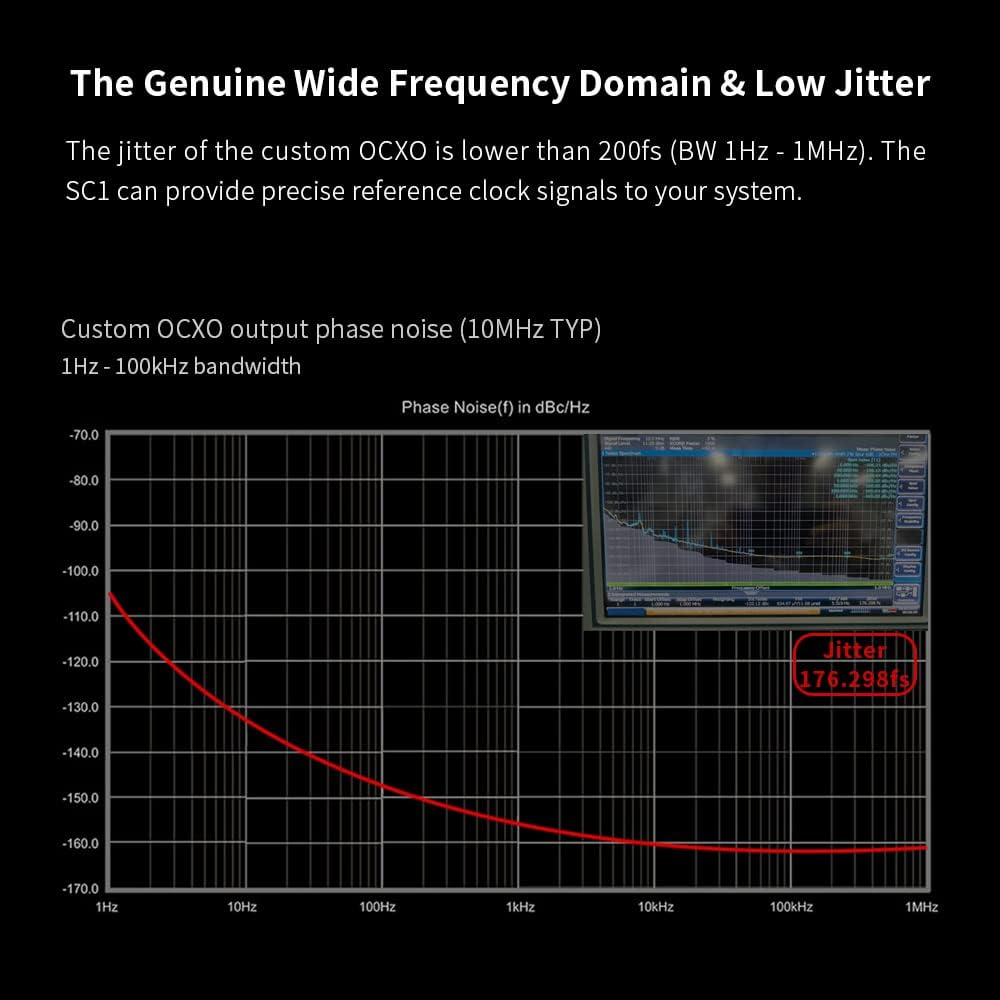

- Phase noise: < -100dBc at 1Hz offset; < -125dBc at 10Hz offset; < -145dBc at 100Hz offset; < -155dBc at 1kHz offset; < -160dBc at above 10kHz offset
- Working temperature: 0℃ ~ 50℃
- Recommended environment: 15℃ ~ 35℃

Package Included:
- 1 x Audio Clock
