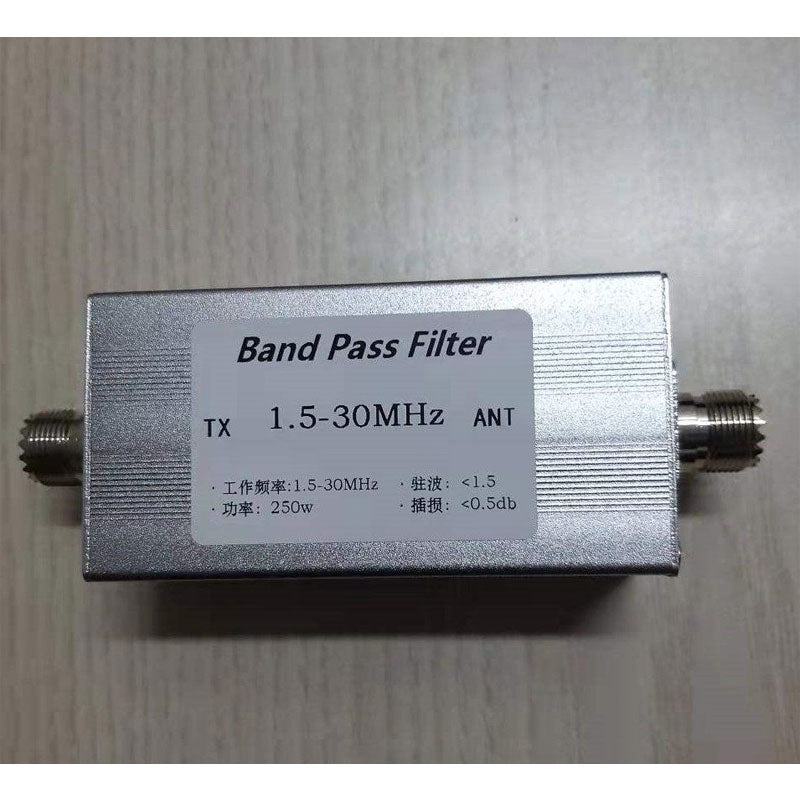

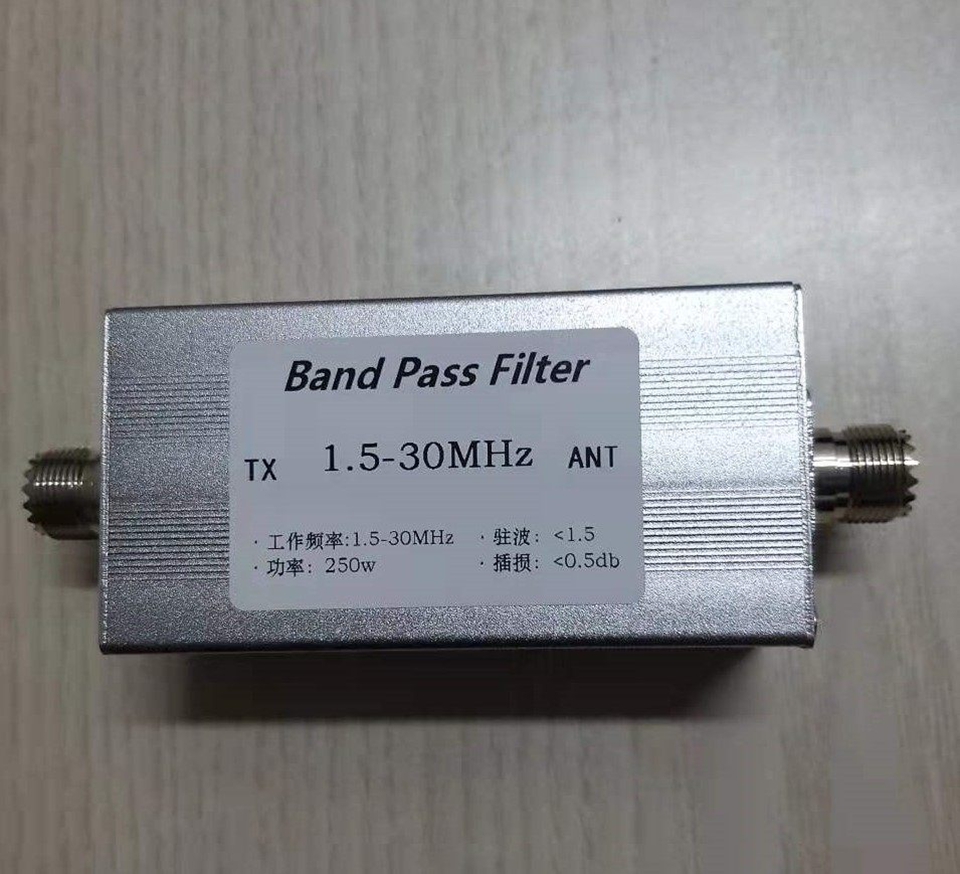

BPF-1.5-30M-250W Shortwave Band Pass Filter 1.5-30MHz 250W Anti-interference RF BPF with SL16-F Connector

Specification:
- Input impedance: 50ohms
- Output impedance: 50ohms
- Bandwidth: 1.5 - 30MHz
- Insertion loss: < 0.5dB
- TX terminal: connect to radio; ANT terminal: connect to antenna
- Power: 250W (SSB, CW, AM, FM, FT8)
- SWR: < 1.5

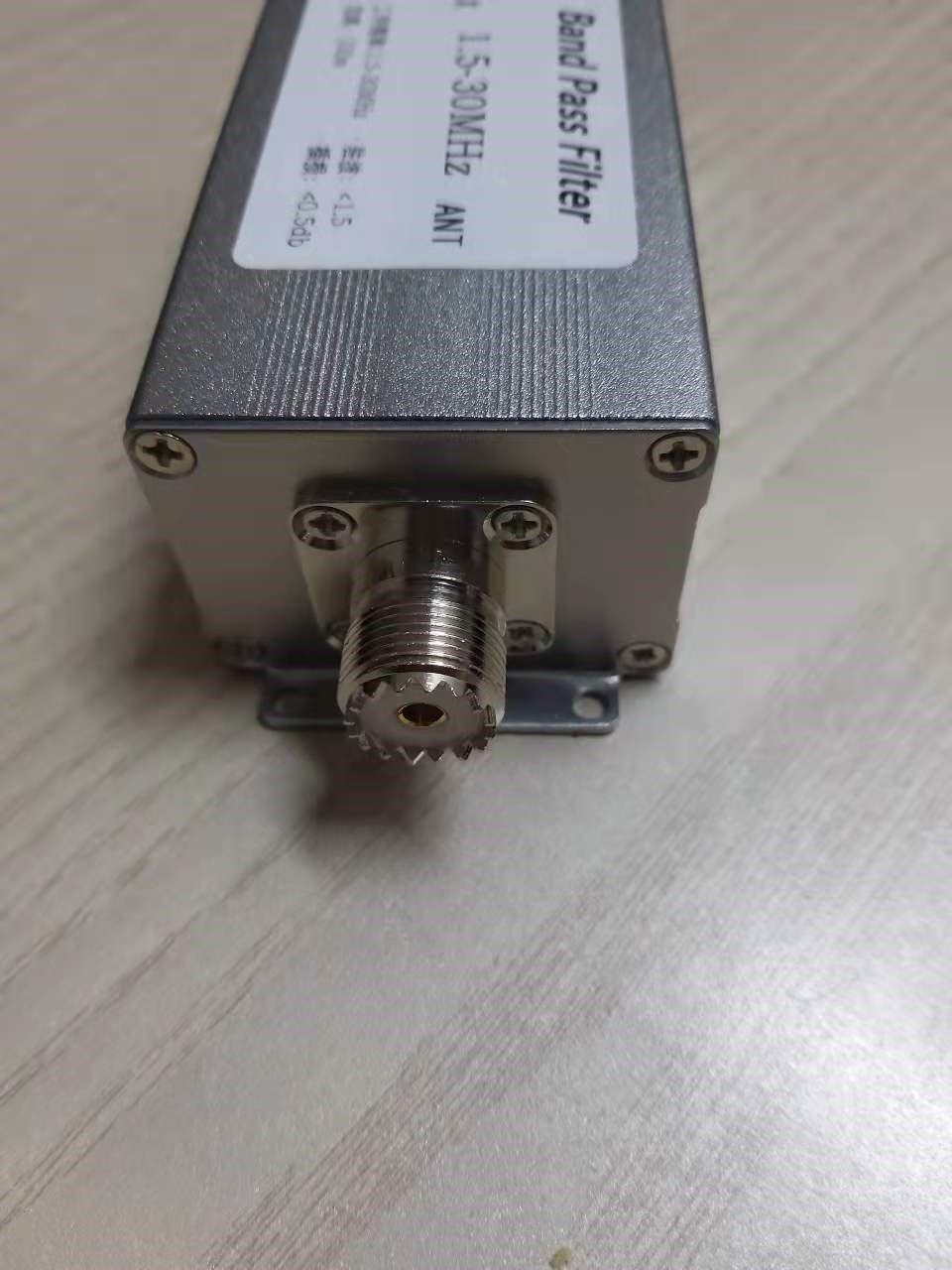

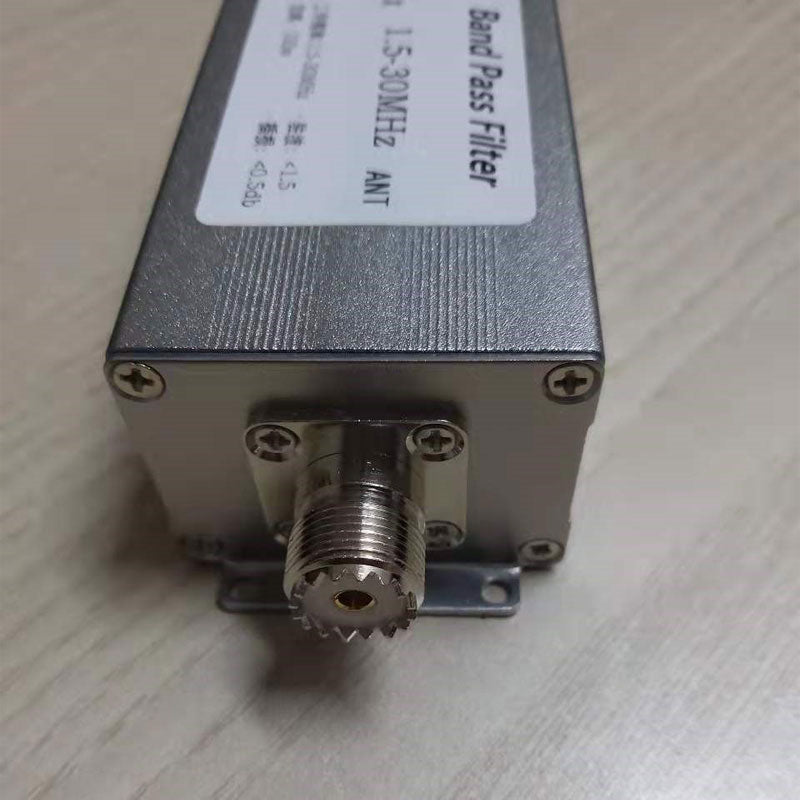

- Interface: SL16-F (M connector)
- Product size: 140 x 53 x 38mm
- Net weight: 245g

Precaution:
- Special occasions: This bandpass filter is suitable for use in shortwave communication where the radio station is very close to the medium wave radio station or is subjected to strong medium wave interference. It can also be used in situations where the shortwave radio station interferes with cable TV users during transmission.
- General occasions: When a shortwave radio is working, in order to minimize electromagnetic interference from the surrounding area, this bandpass filter can be connected, which will greatly improve the signal-to-noise ratio.
- Special note: If the interference comes from within the passband of 1.5-30MHz, this filter has no effect.

Package Included:
- 1 x Band Pass Filter
