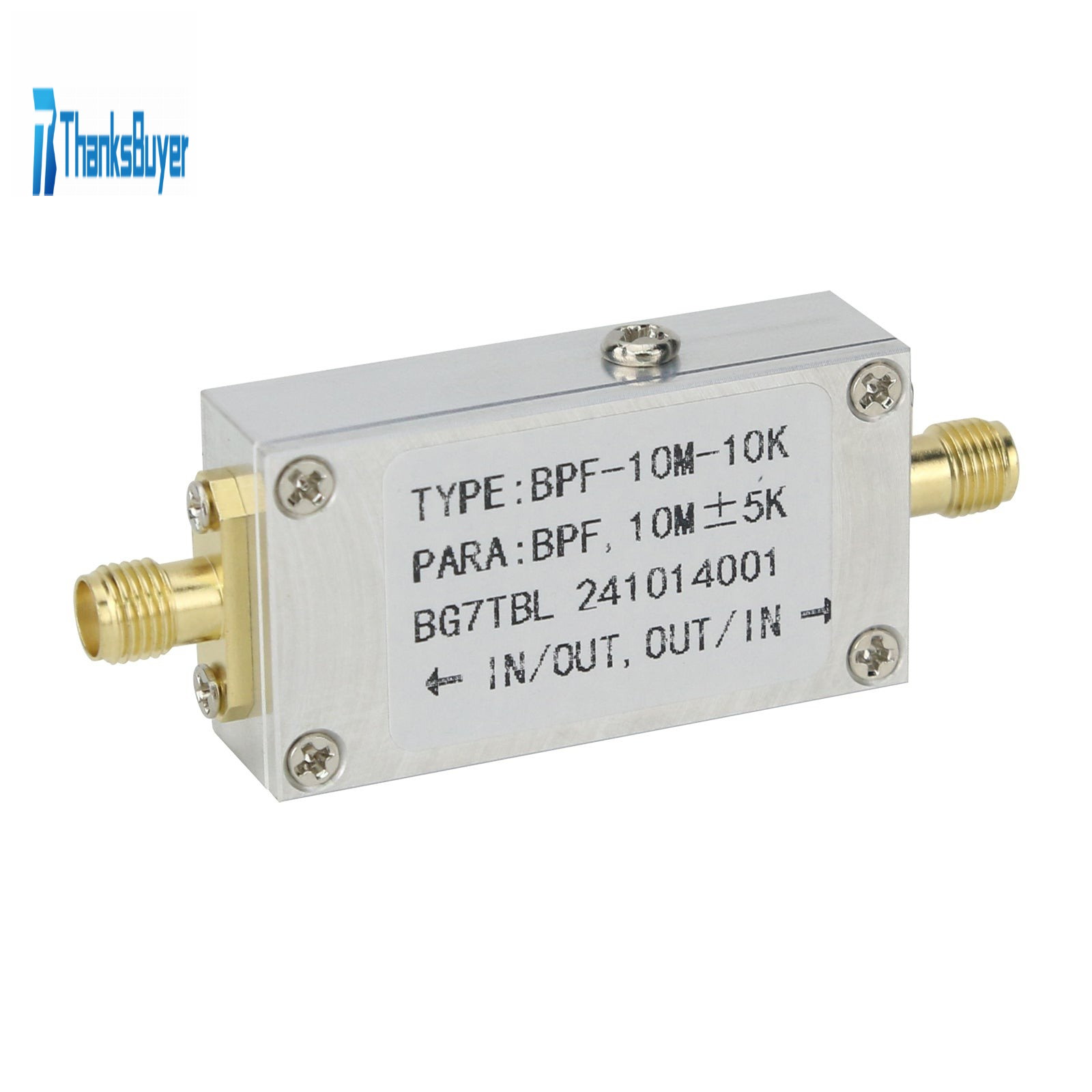

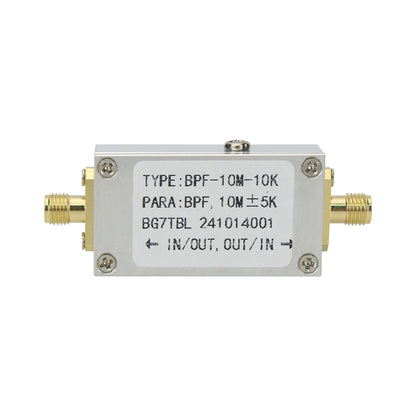

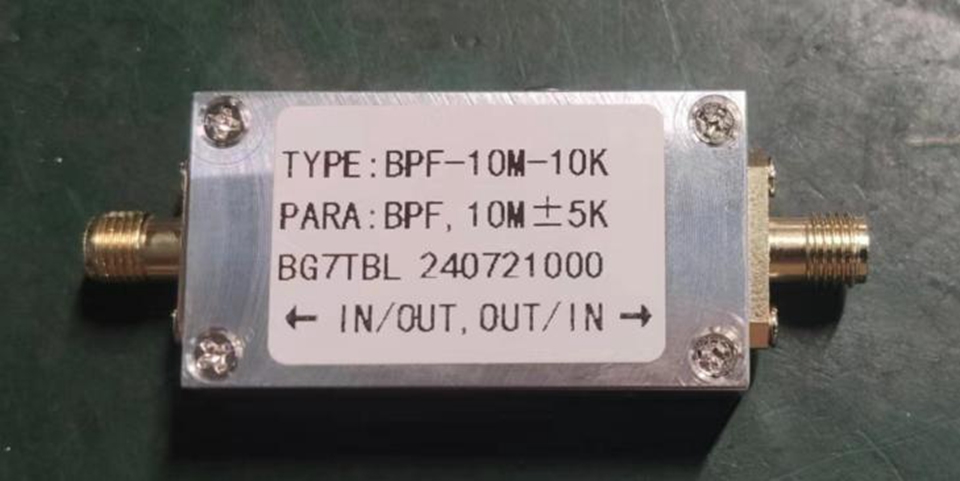

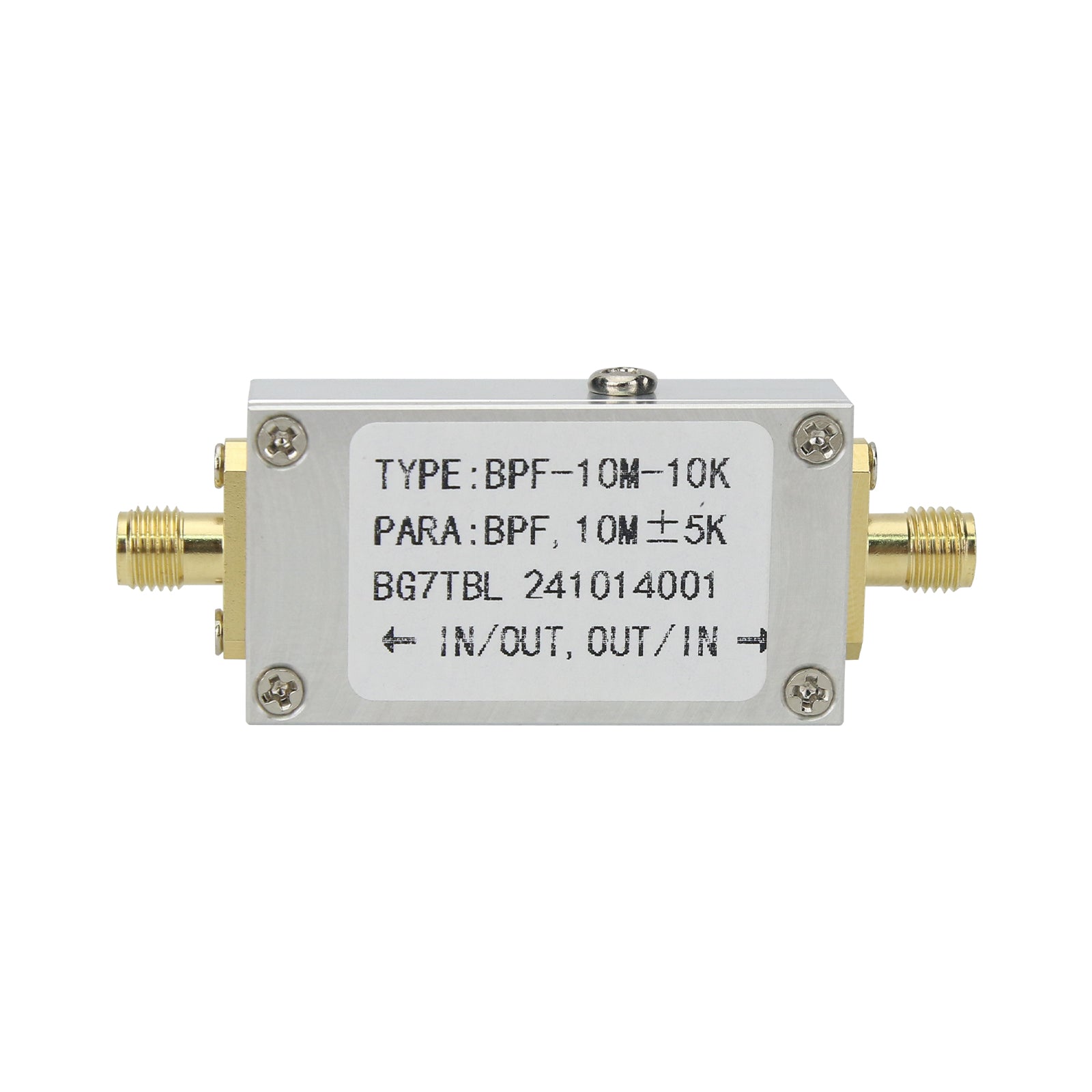

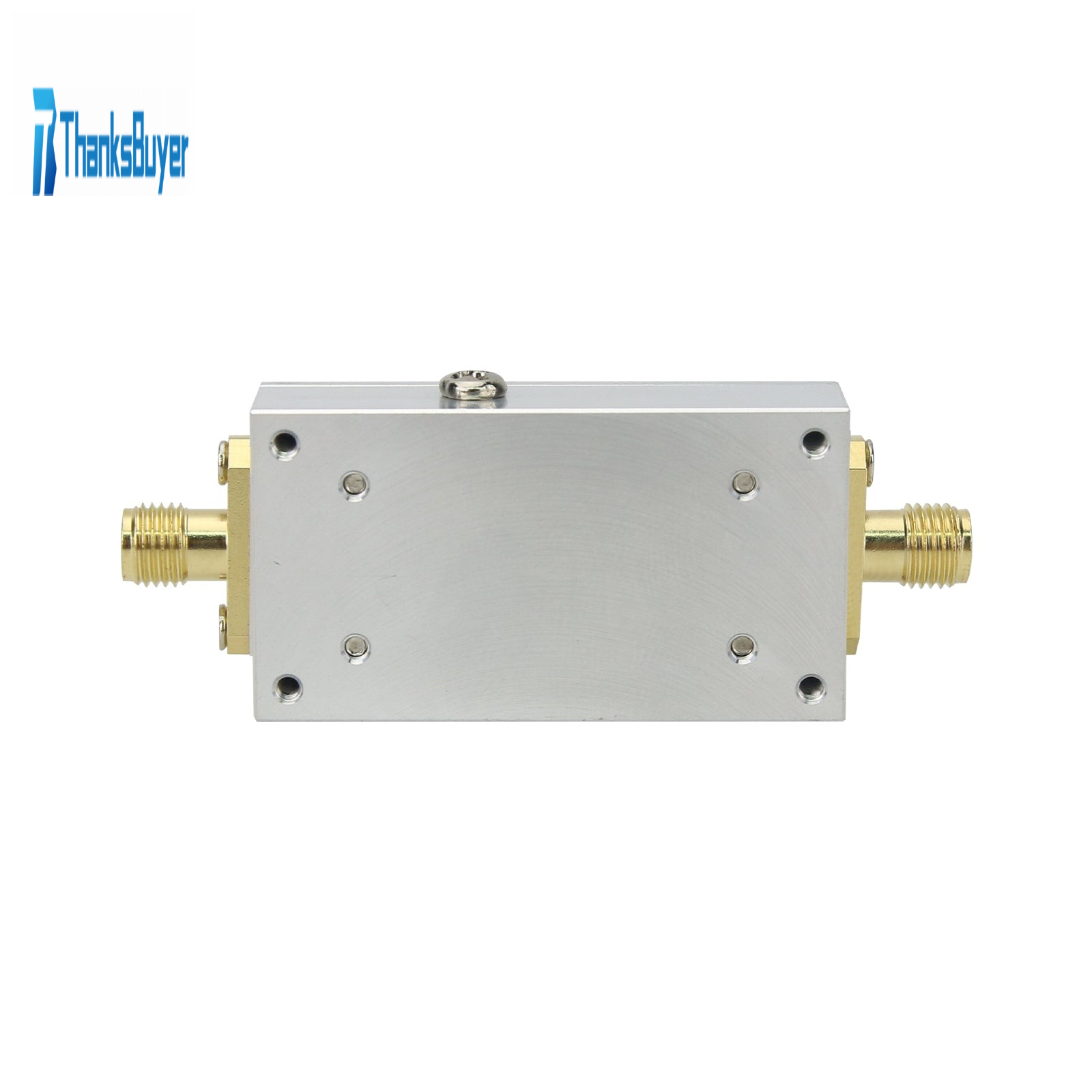

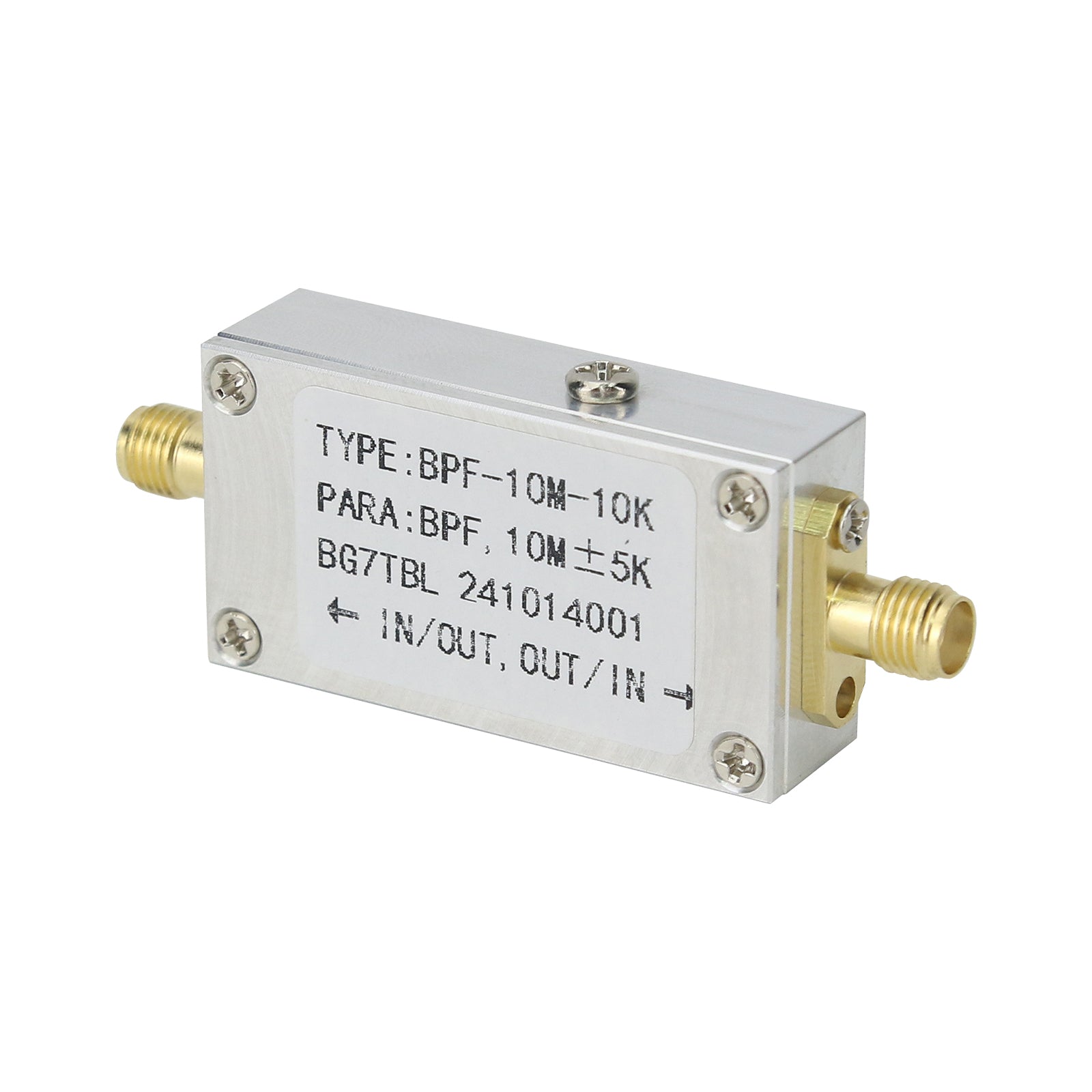

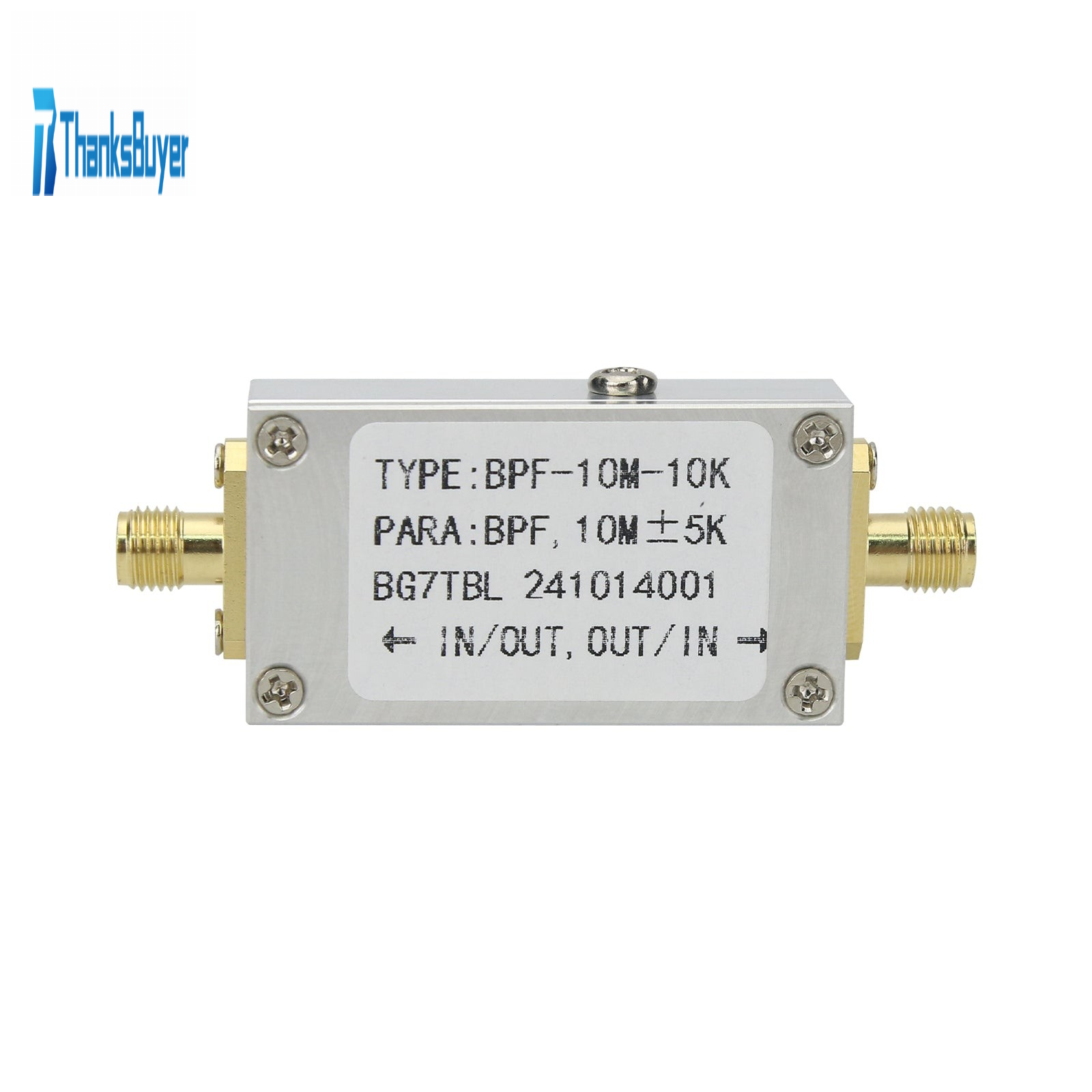

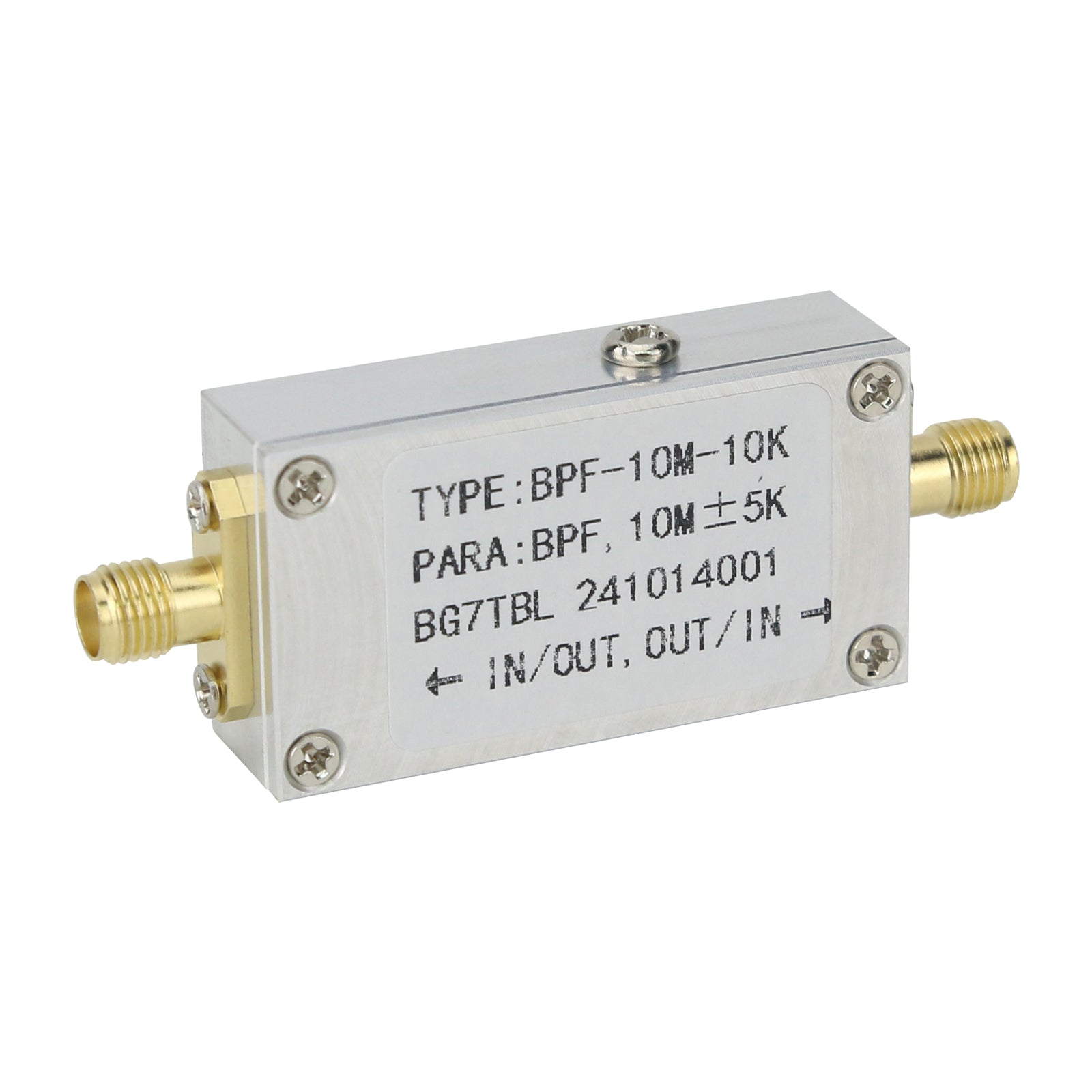

BPF-10M-10K 10MHz Narrow Bandpass Filter 50ohms RF Accessory Crystal Filter with SMA Female Connector

BPF-10M-10K 10MHz Narrow Bandpass Filter 50ohms RF Accessory Crystal Filter with SMA Female Connector

Specification:
- Model: BPF-10M-10K
- Centre frequency: 50ohms
- Input and output impedance: 50ohms

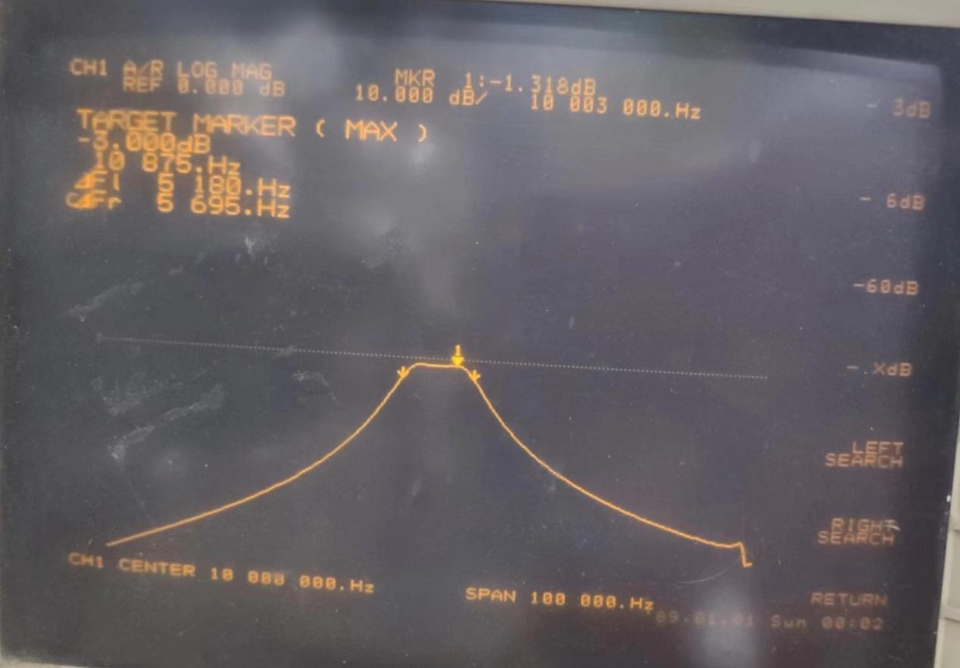

- 3dB bandwidth: ±5k
- Insertion loss: <2dB

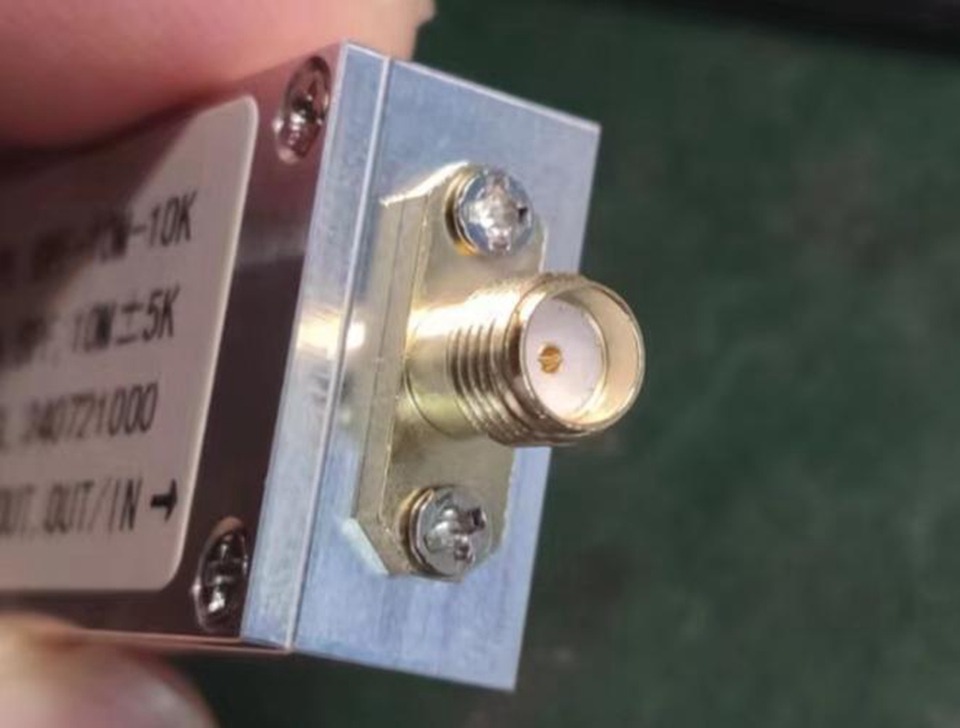

- Connector: SMA female connector
- Maximum input power: +13dBm
- Product size: 62 x 25 x 12mm
- Net weight: 30g

Application:
- Filtering of 10M frequency harmonics and spurious emissions
- 10M intermediate frequency filter

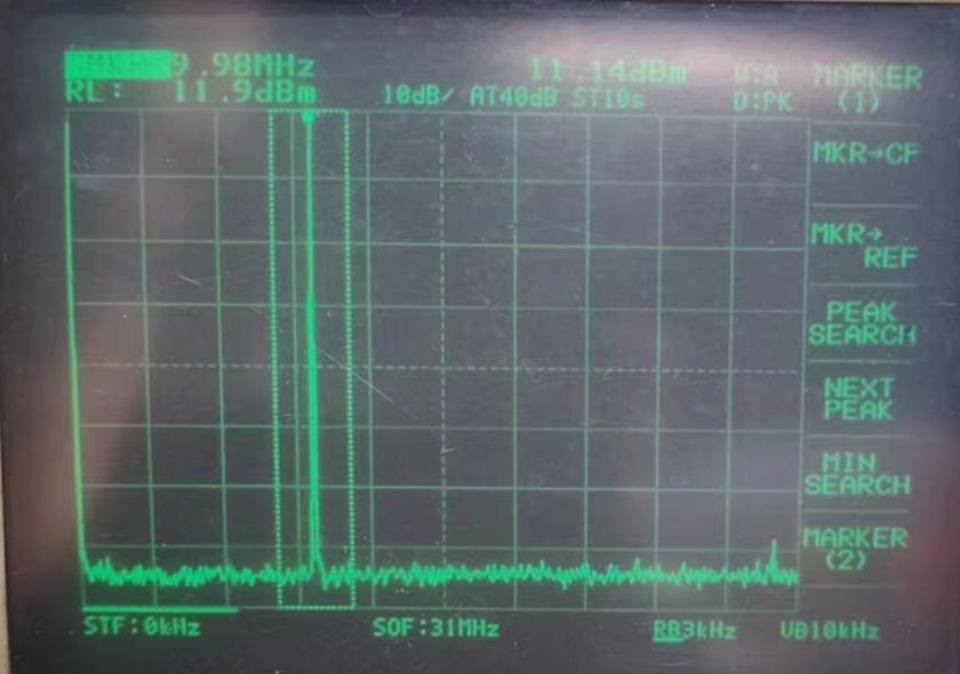

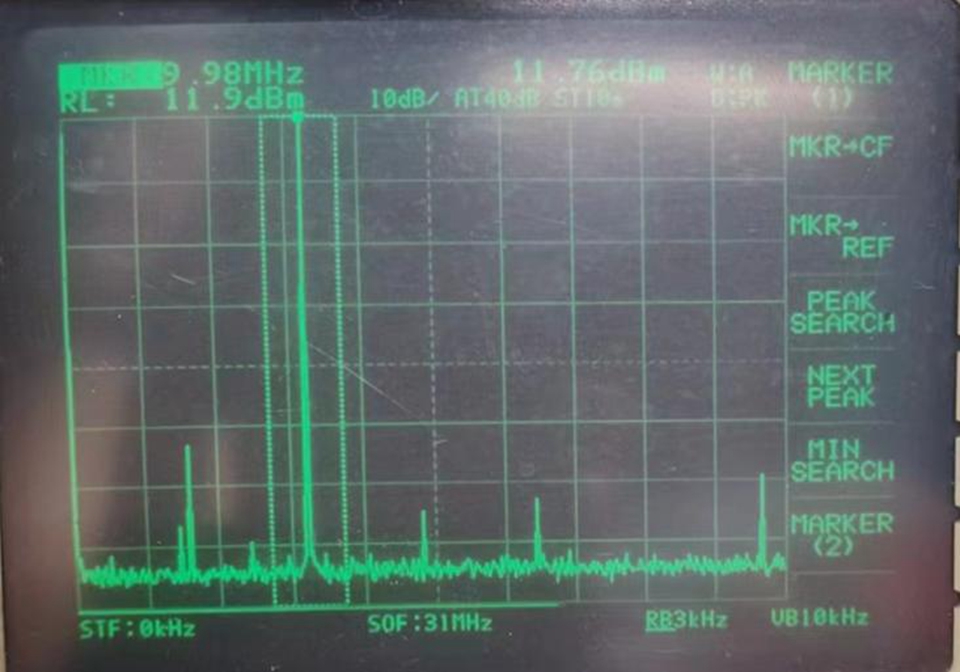

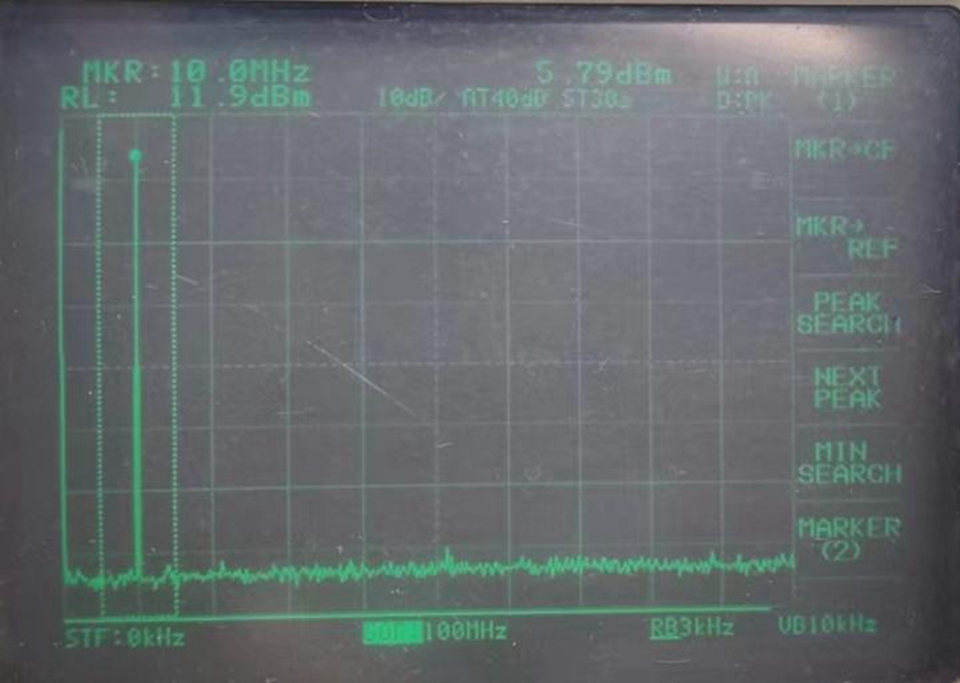

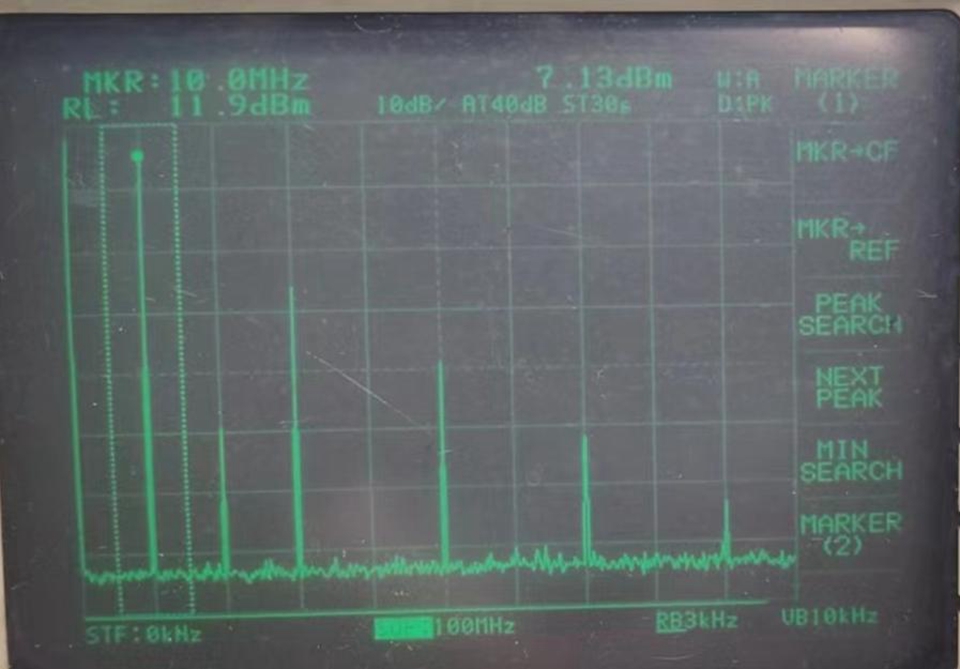

- Application Case 1: 10M constant temperature crystal oscillator output filtering, unfiltered spectrum, with harmonics and spurious emissions.

Package Included:
- 1 x Bandpass Filter
