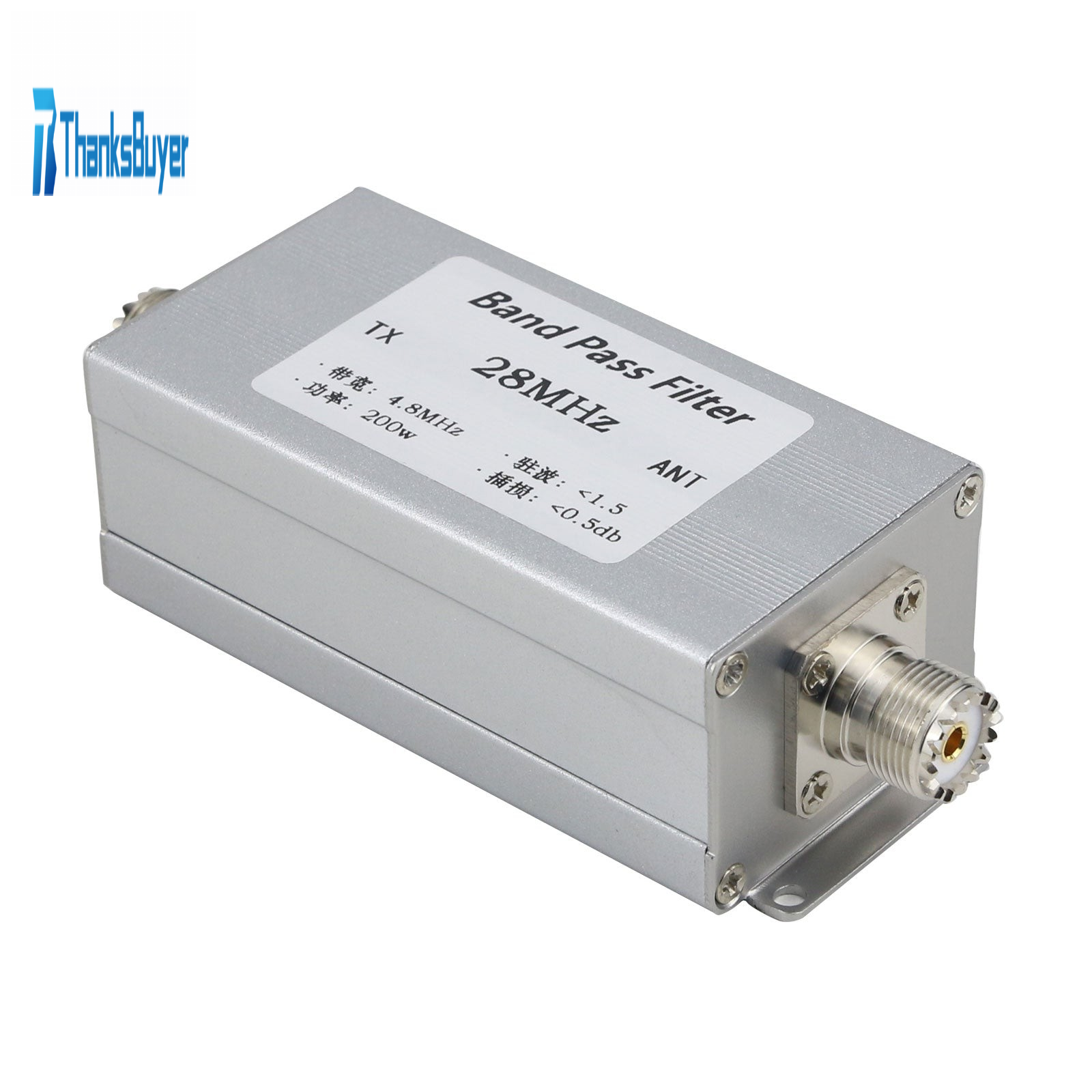

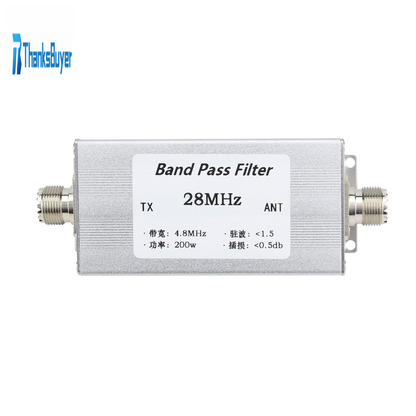

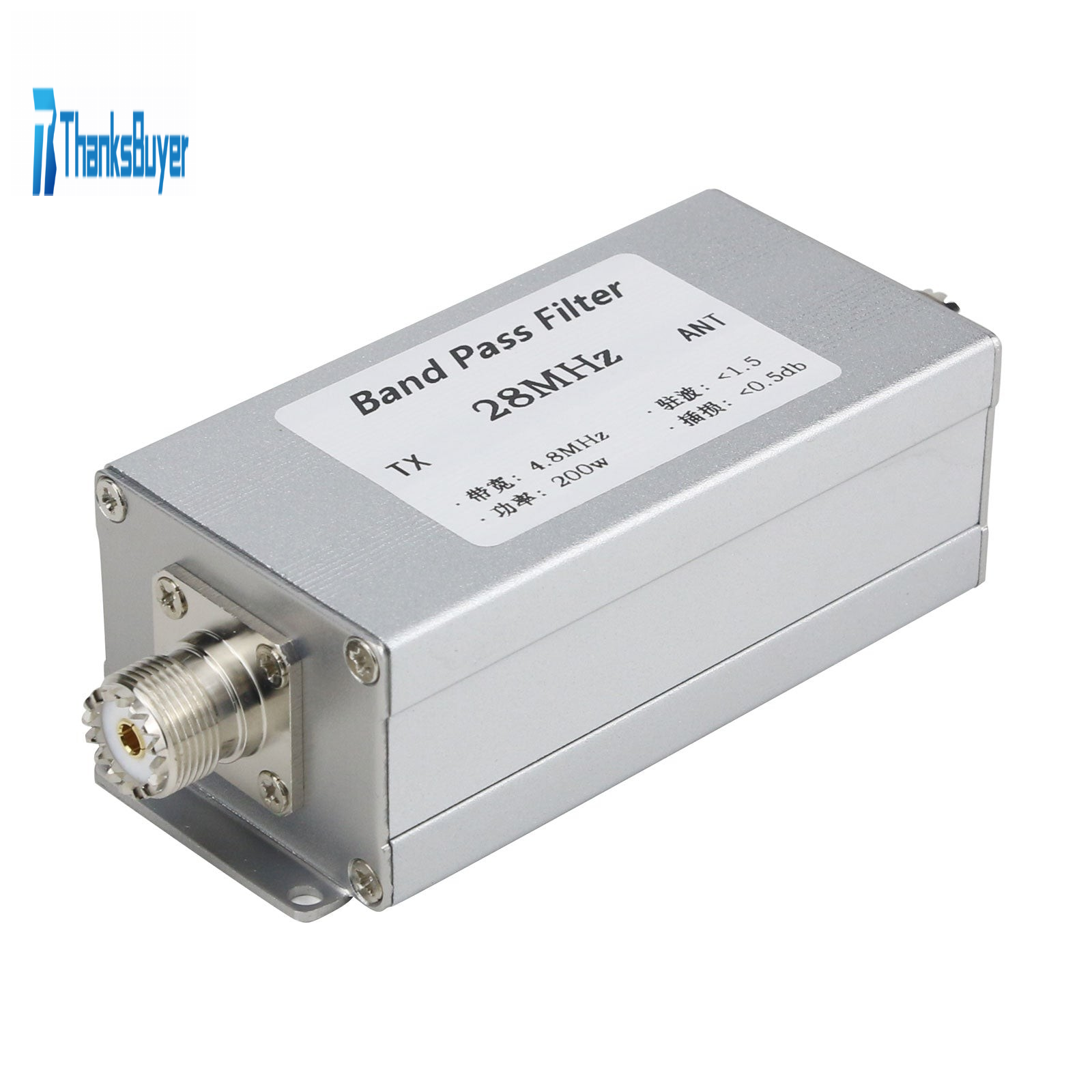

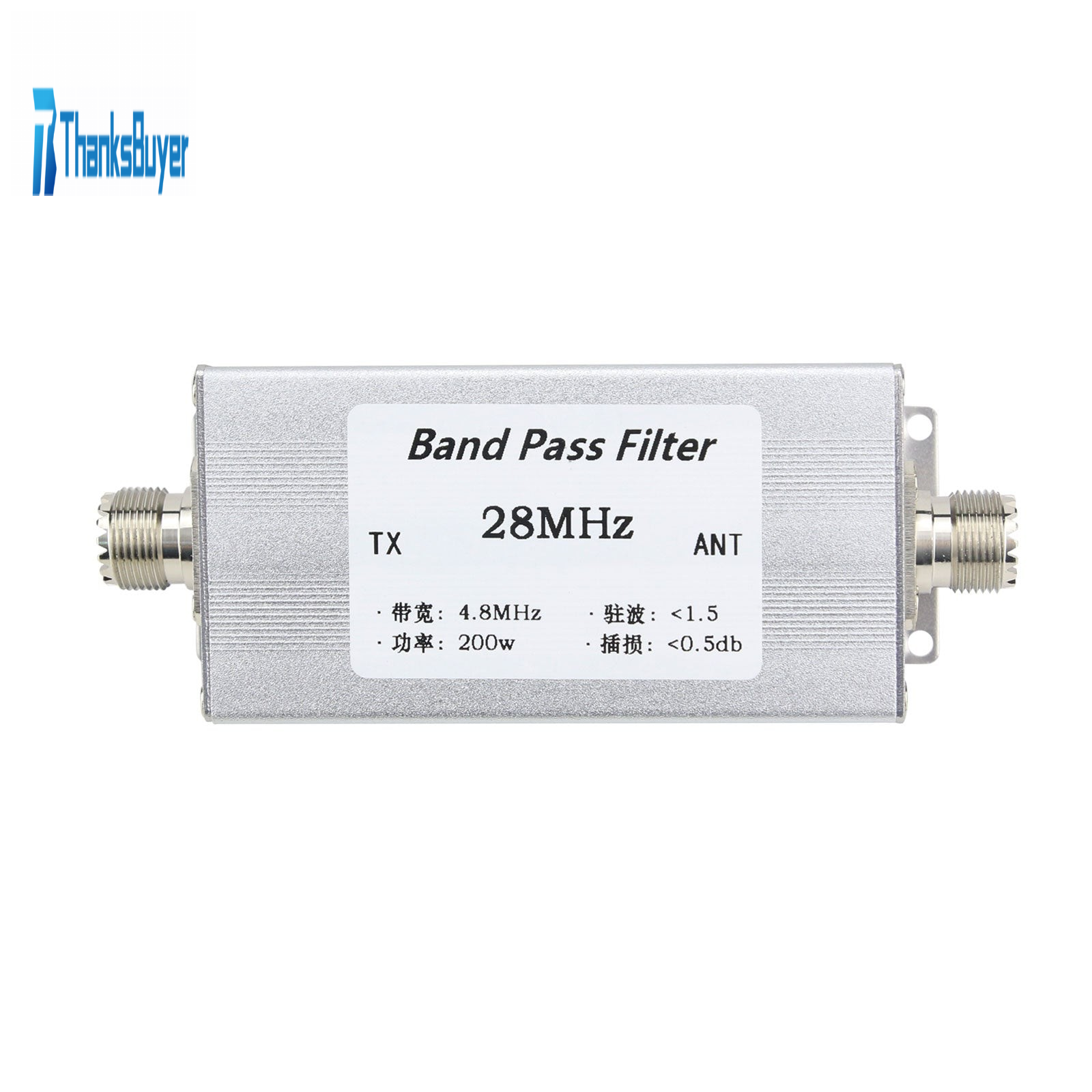

BPF-28-200w Band Pass Filter Shortwave 28MHz BPF High Isolation Bandpass Filter Narrowband For Radio
Description:

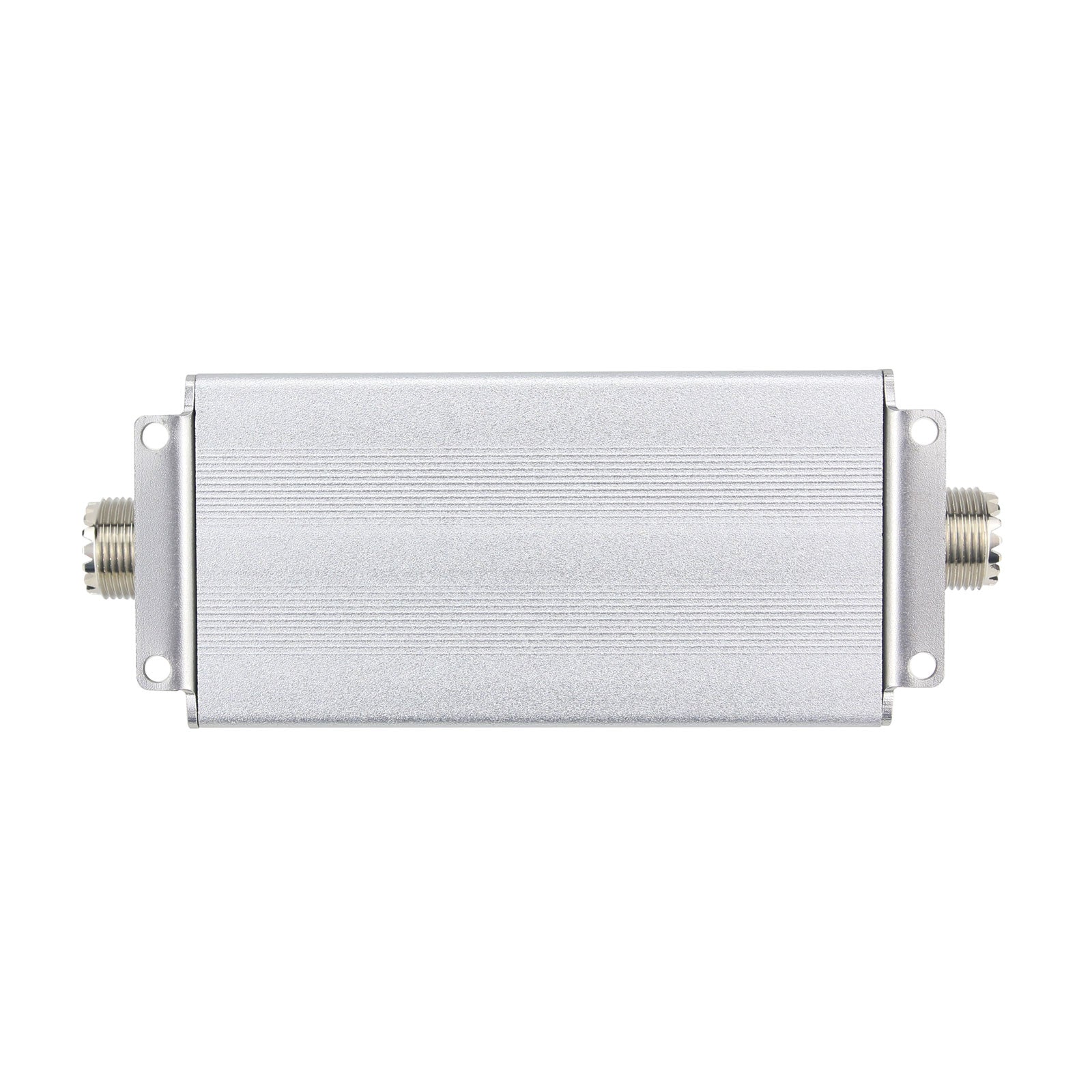

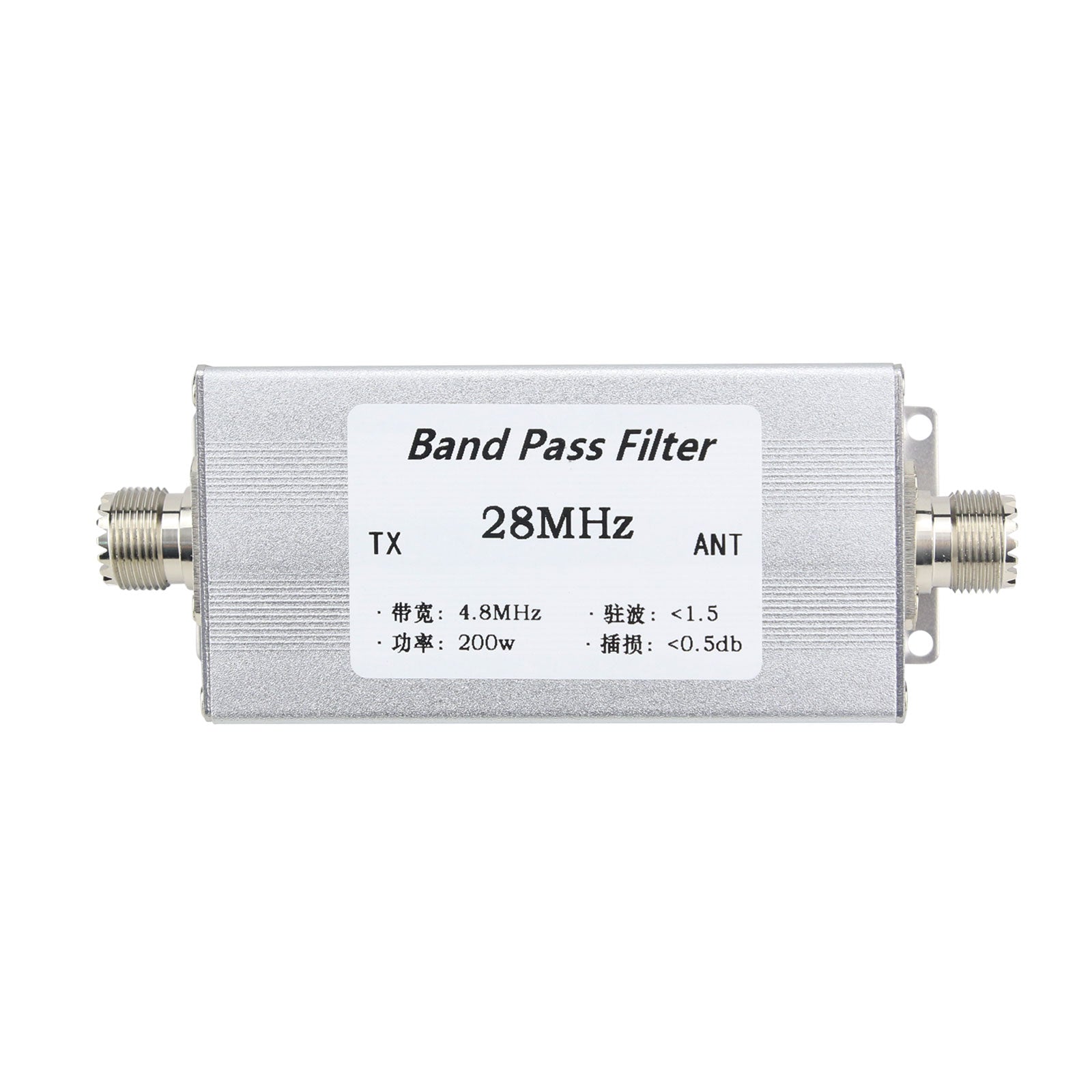

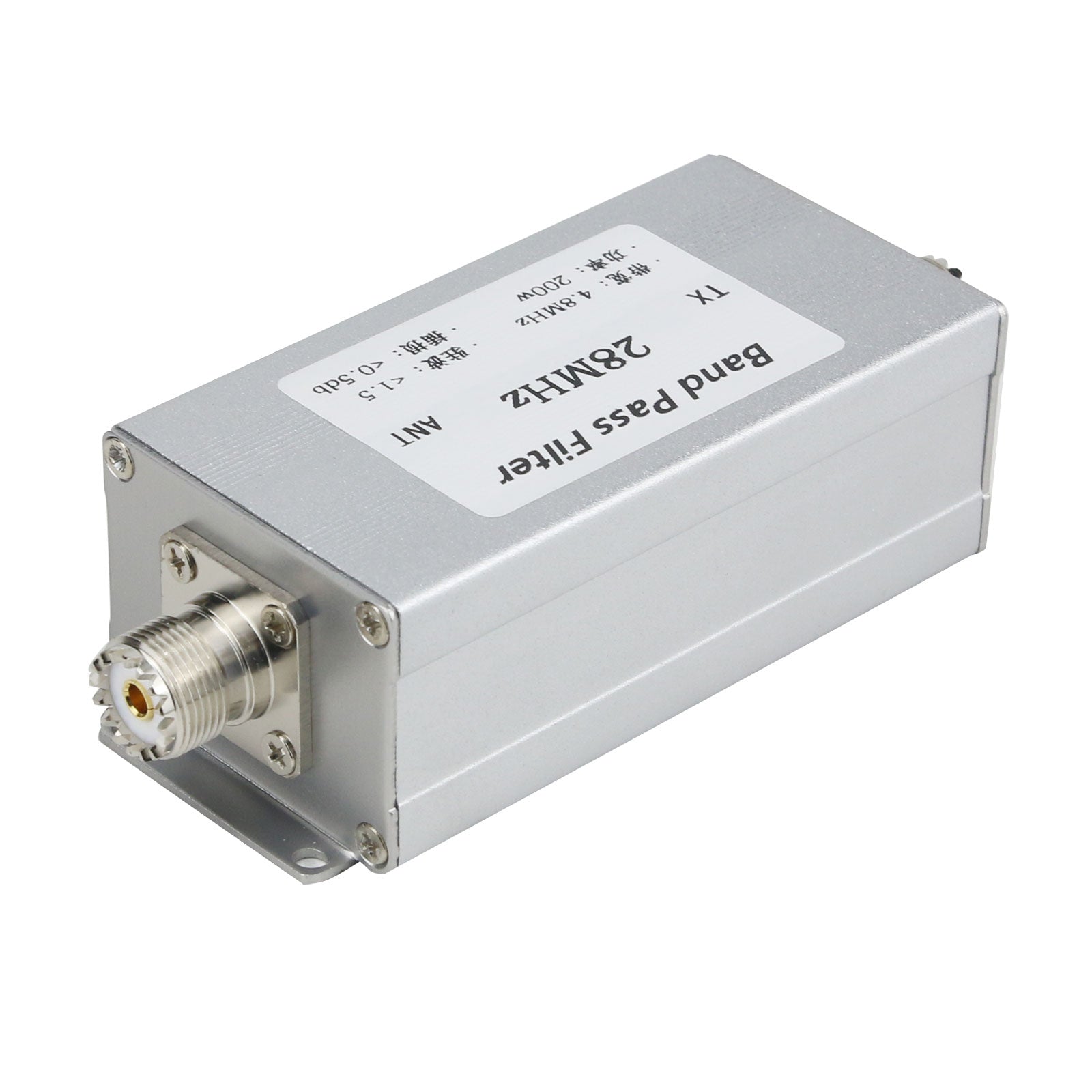

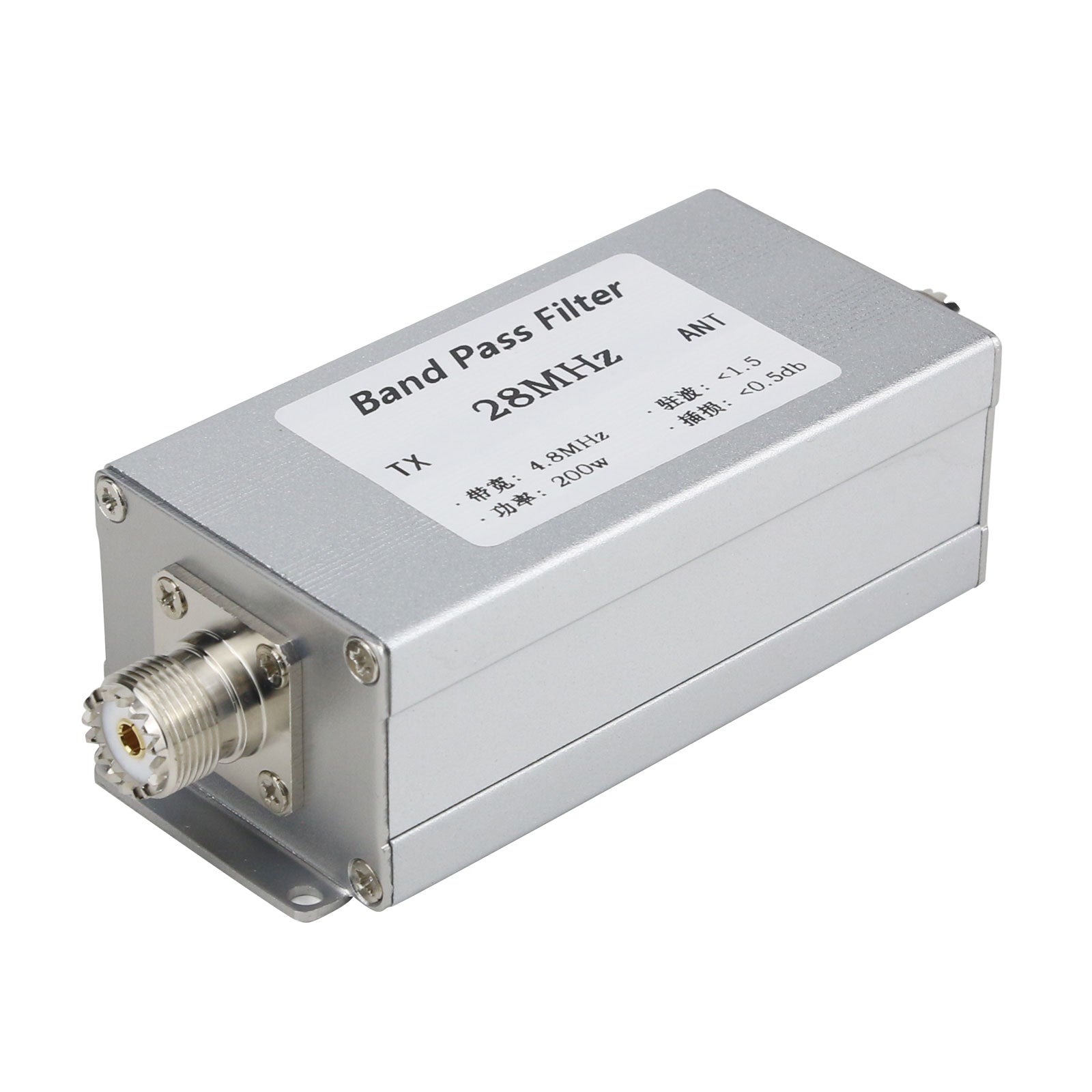

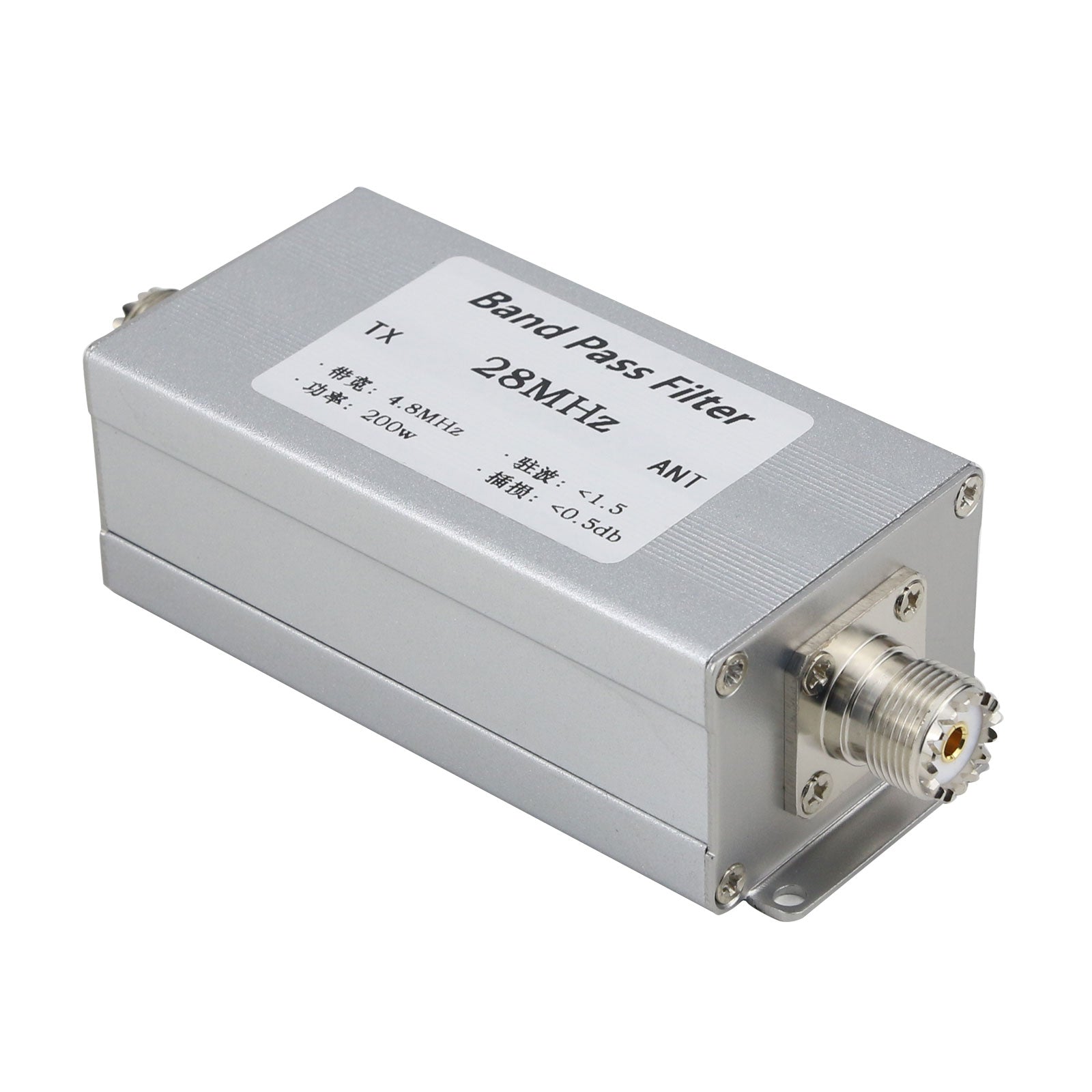

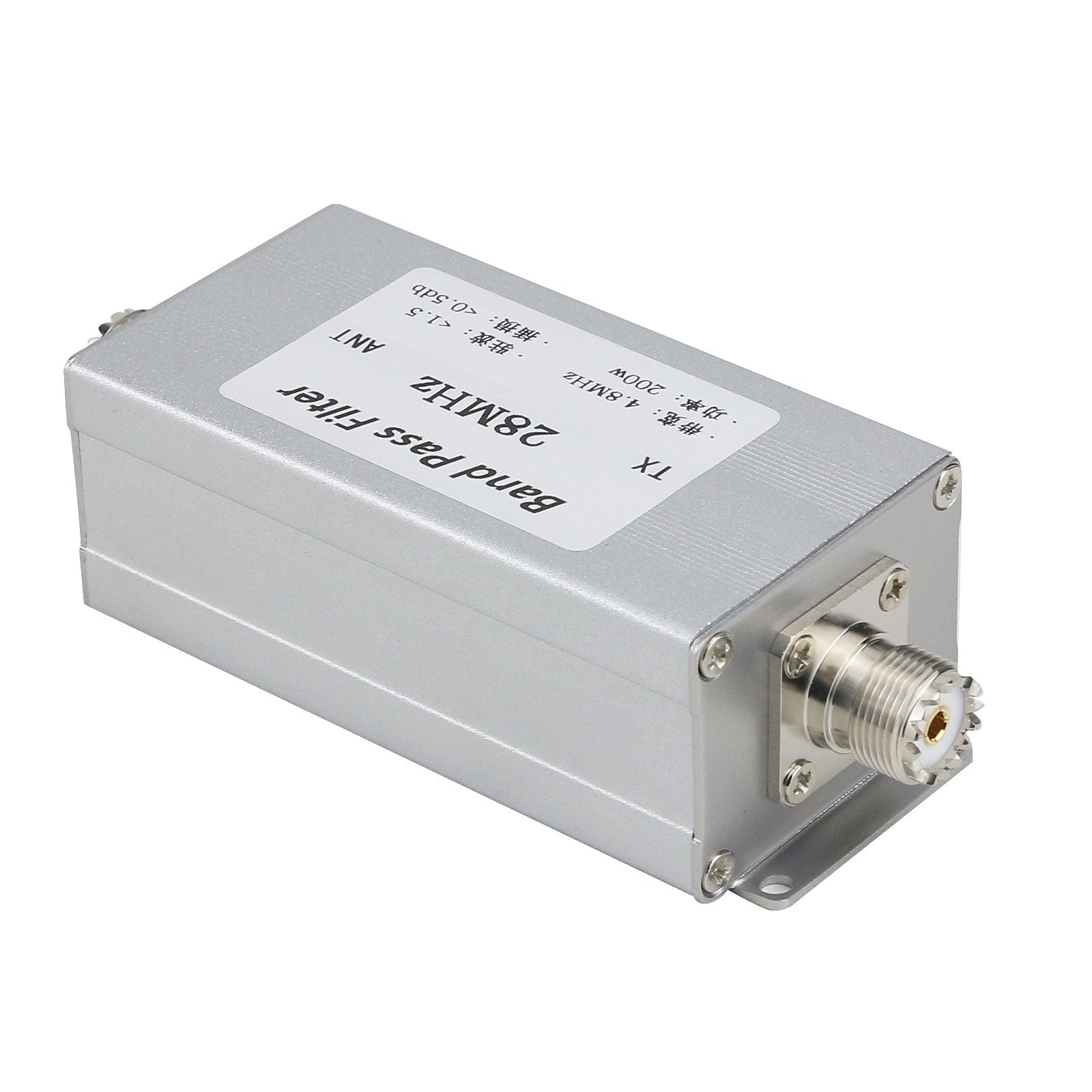

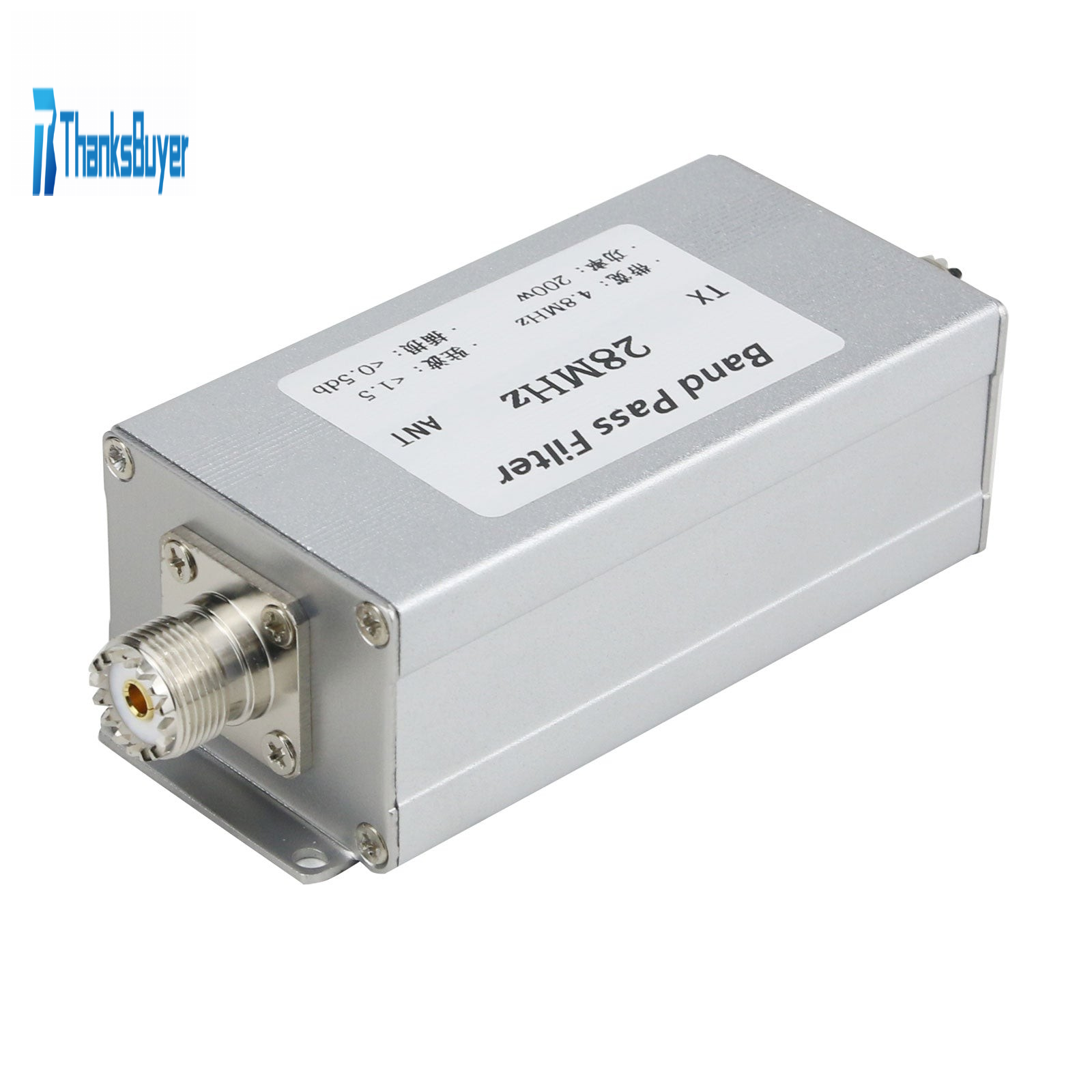

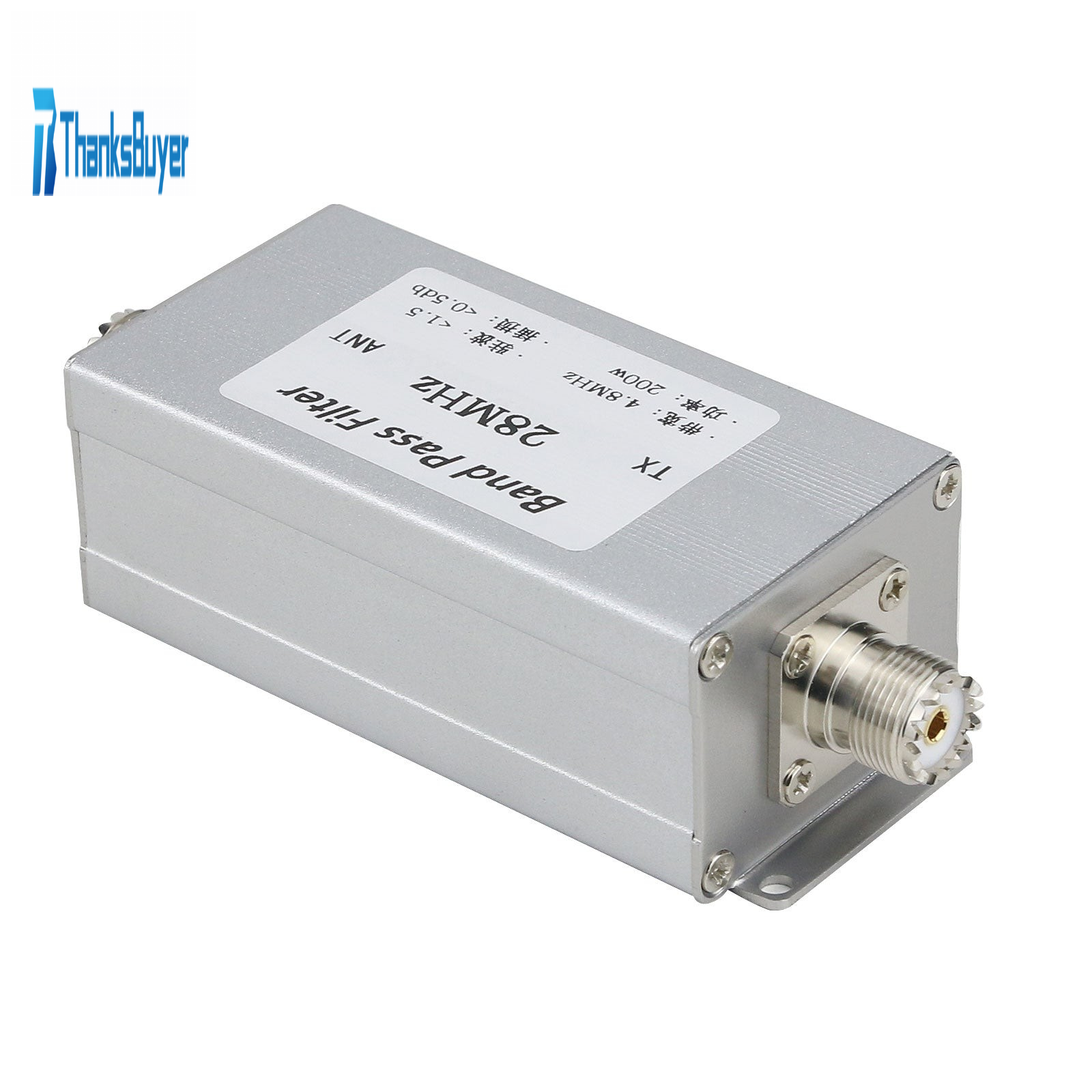

BPF-28-200w is a high quality, high isolation shortwave bandpass filter (BPF).
Specifications:
1. Center frequency: 28MHz
2. Bandwidth: 4.8MHz
3. Insertion loss: ＜0.5db
4 Power: 200w (SSB). 100w (CW) 50w (AM FM FSK FT8) higher power can be customized
5. Standing wave: ＜ 1.5
6. Interface: SL16-F (Block M)
7. Input impedance: 50 ohms; output impedance: 50 ohms.

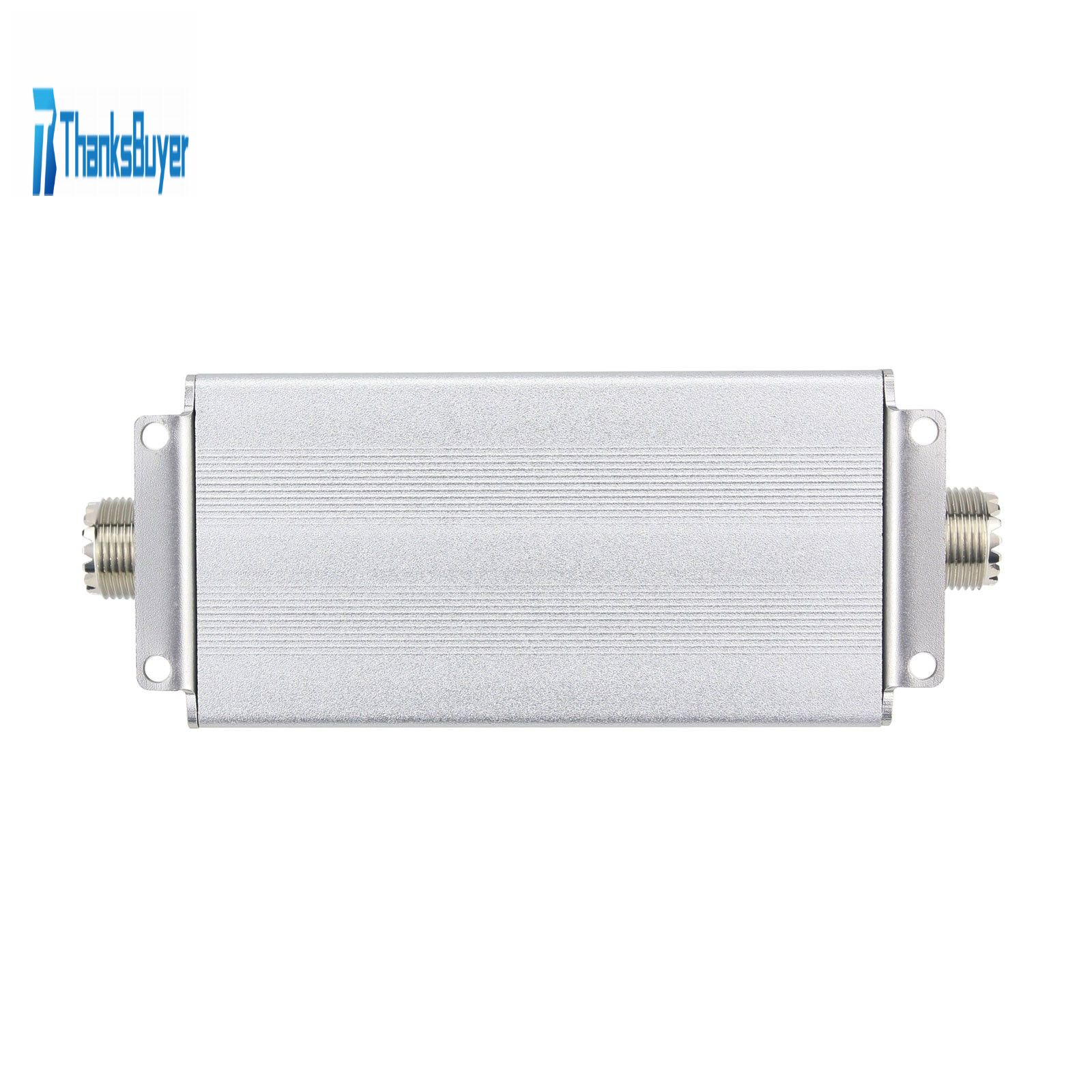

8. External dimensions: 140*53*38mm
9. If you need a band-pass filter with higher power and higher isolation, please contact us
Application:
1. Special Occasion:
A: This band-pass filter is suitable for the occasions where 2 or more shortwave antennas are set up in the same place and work at different frequencies at the same time. Such as the occasion of communication competition.
B: Bandpass filter (BPF) with higher isolation is suitable for occasions where 2 or more shortwave radio stations share a multi-band shortwave antenna and need to work at the same time.
2.General occasions: In order to minimize the electromagnetic interference from the surroundings when the shortwave radio is working, this band-pass filter can be connected, which will greatly improve the signal-to-noise ratio.
Package Included:
- 1 x Bandpass Filter
