C09 Set 1 Waveform Ammeter Support 0-40V Voltage Measurement Charging Test with 4-inch IPS Screen

Specification:
- Input voltage: DC 0-40V
- Detection current: 0-8A
- Protection voltage: <60V
- Protection current: <15A
- Banana connector output voltage and current: 40V, 8A
- USB output voltage and current: 20V, 2A
- Voltage resolution: 1mV
- Current resolution: 0.1mA

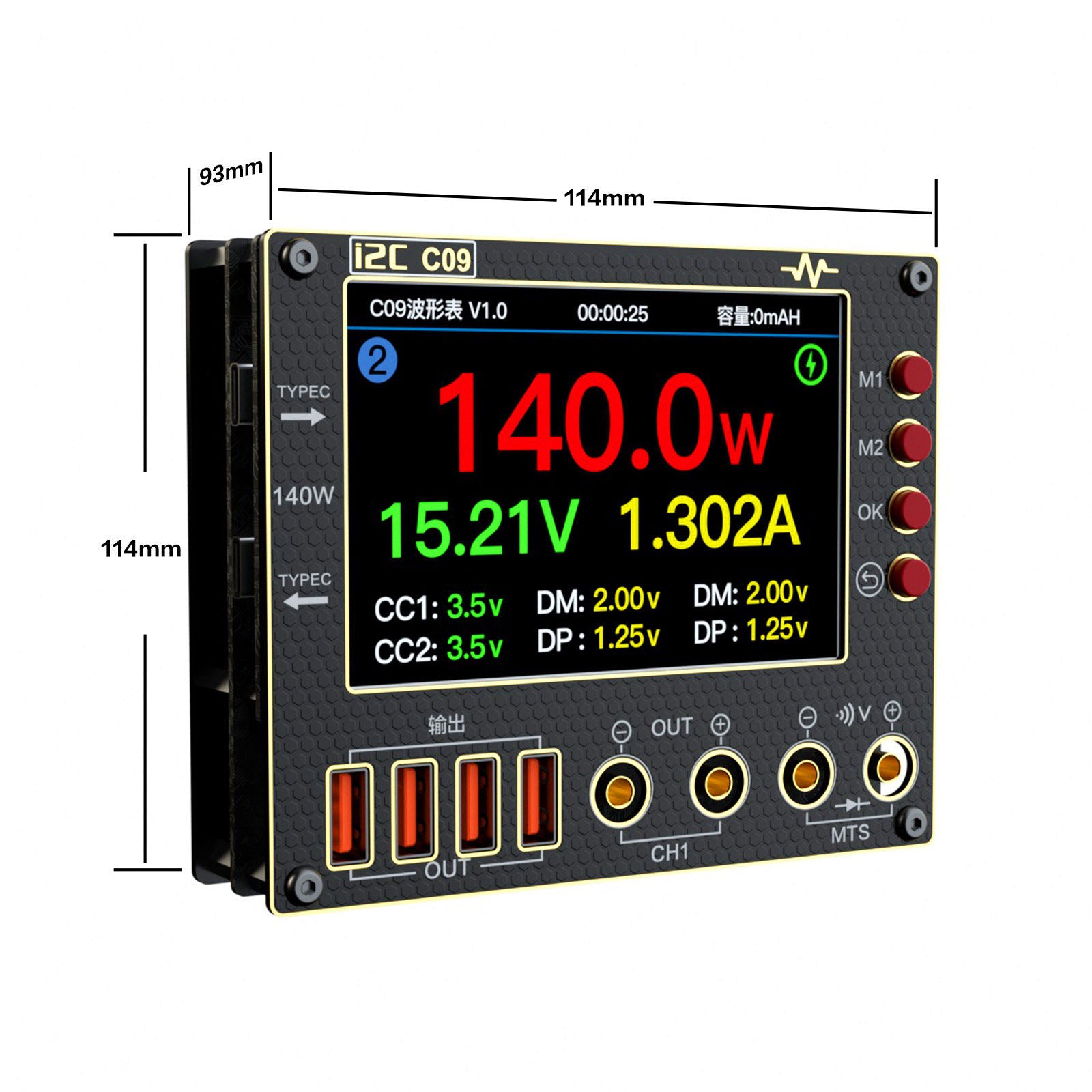

- Product size: 11.4 x 9.3 x 2.9cm
- Current accuracy: 100uA
- Screen size: 4.0-inch
- Screen resolution: 320 x 480
- Power supply: 5V 2A
- Diode test: 0 - 2.8V
- Valid resistor: 0 - 50K
- Voltage measurement: 0 - 24V
- 2-Chanenl voltage measurement: 0 - 40V

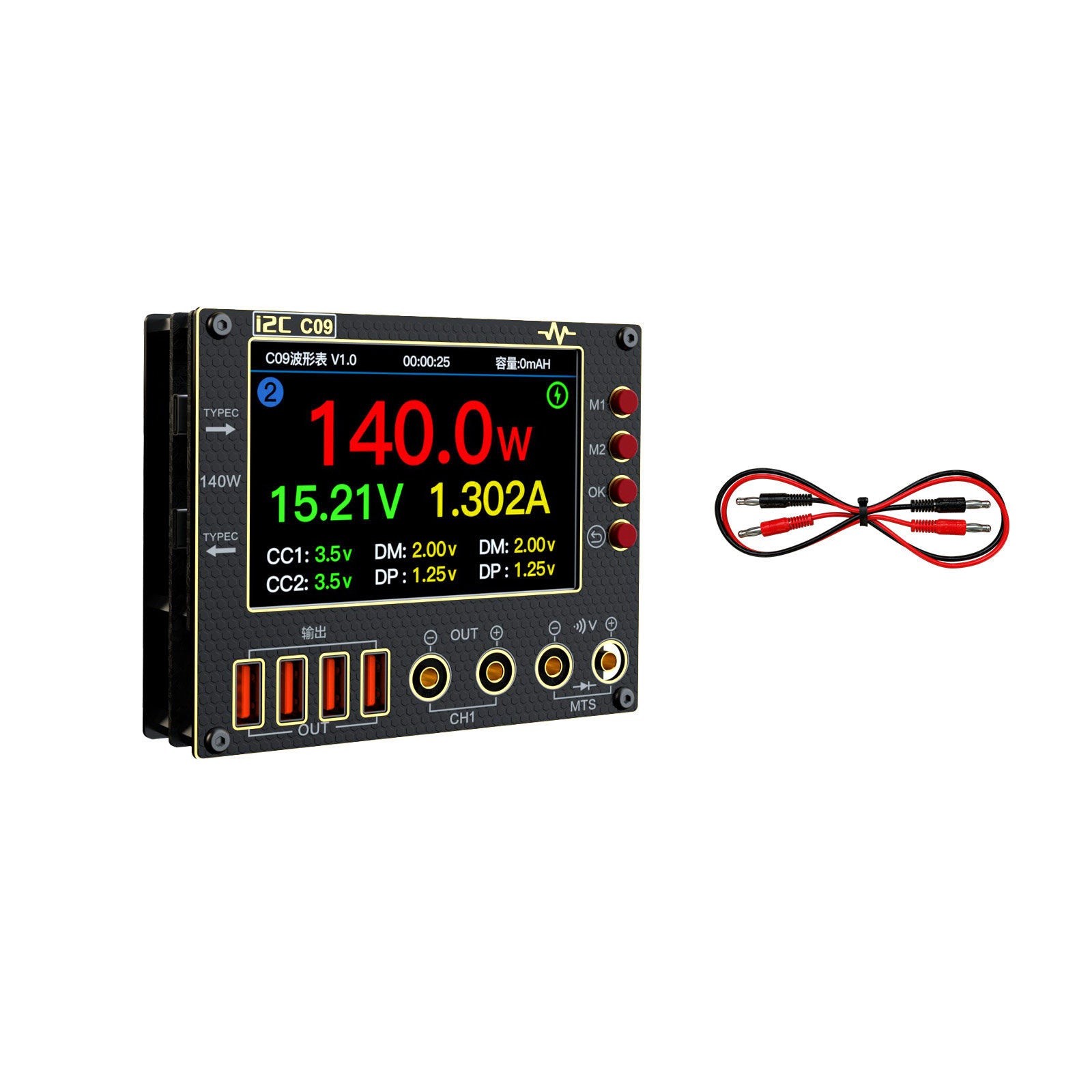

Package Included:
- 1 x Waveform Ammeter
- 1 x Banana Connector 10A Connection Cable
