Carrier Board Base Board Only Small Size Rich Interfaces For Jetson NX Version UAV Applications

Carrier Board Base Board Only Small Size Rich Interfaces For Jetson NX Version UAV Applications

Description:

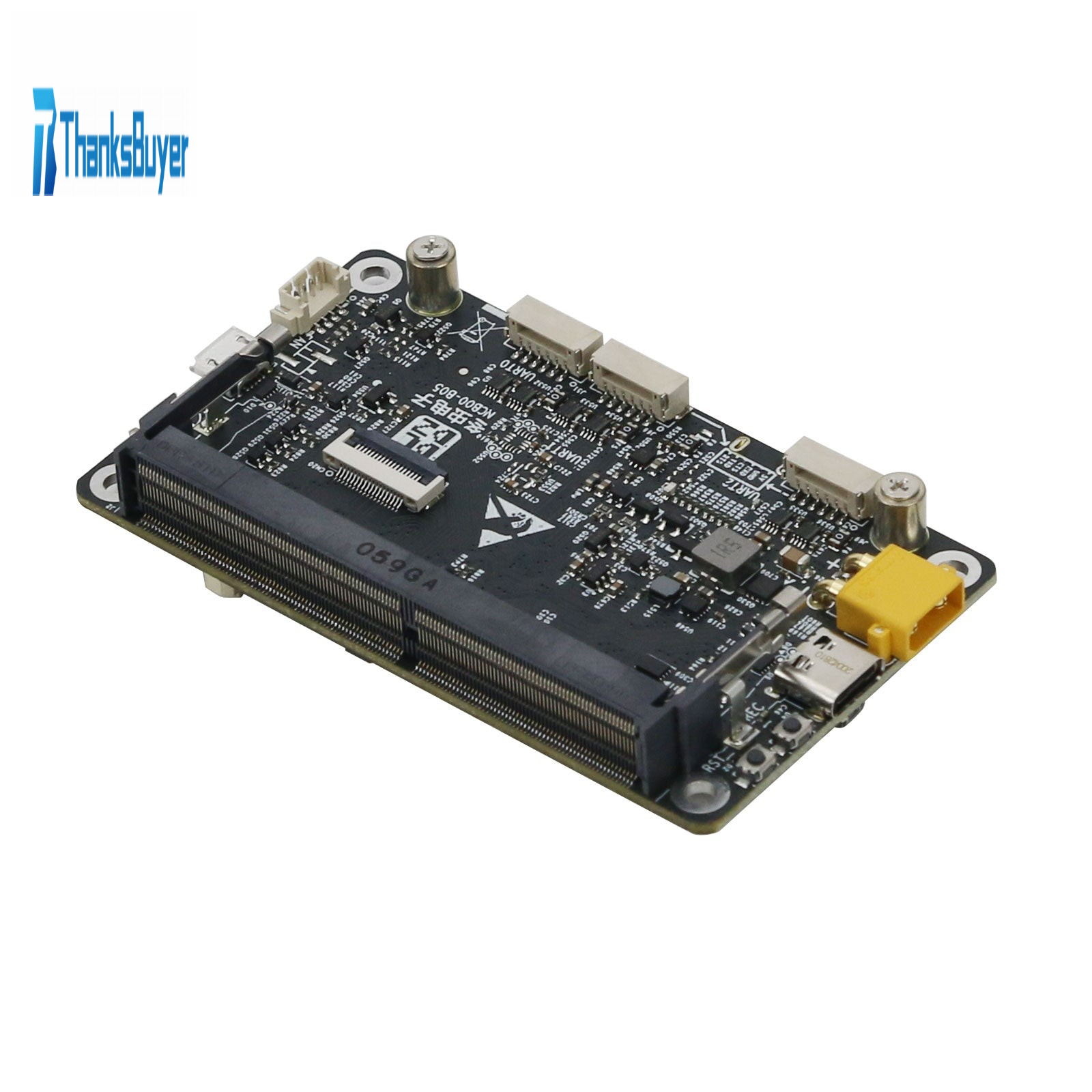

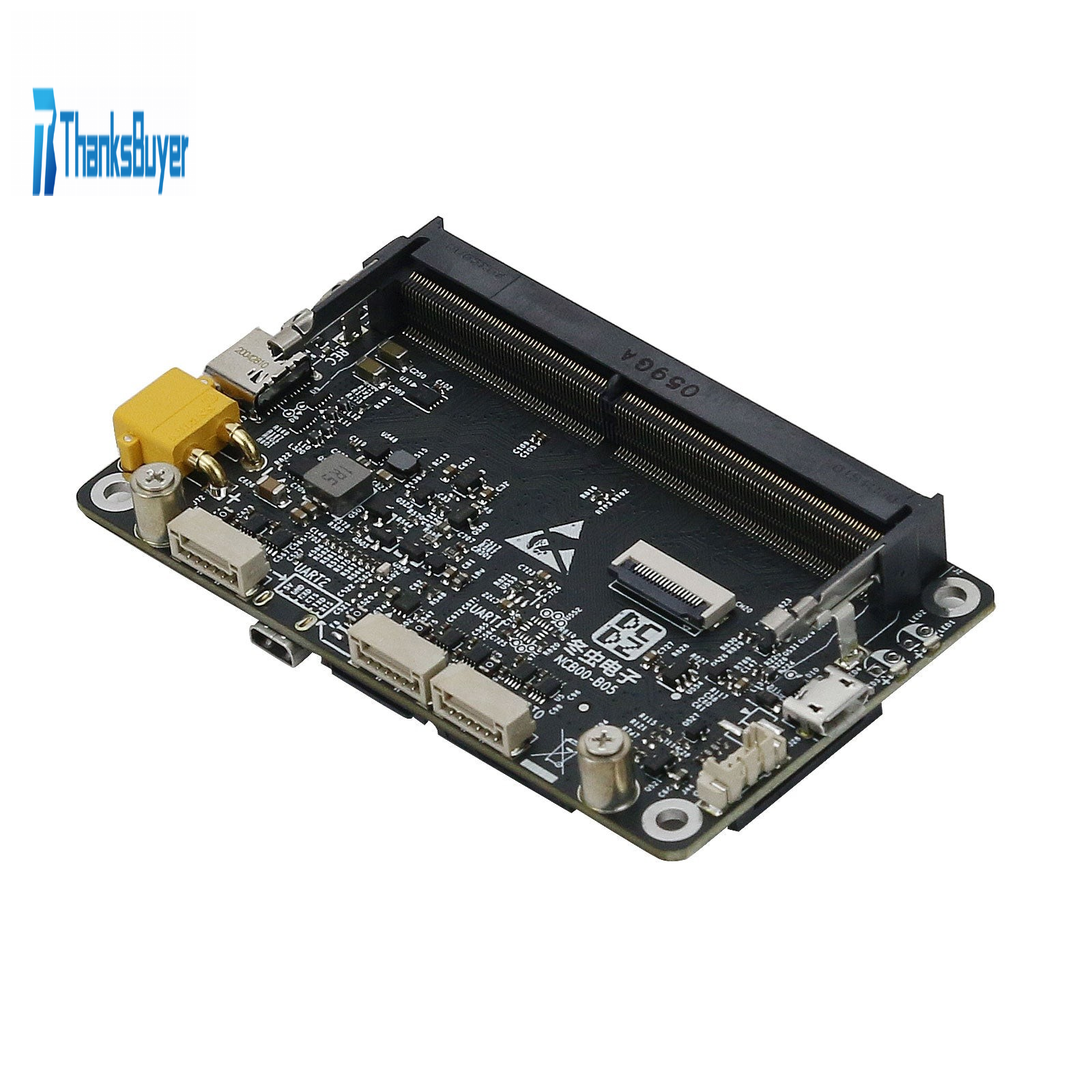

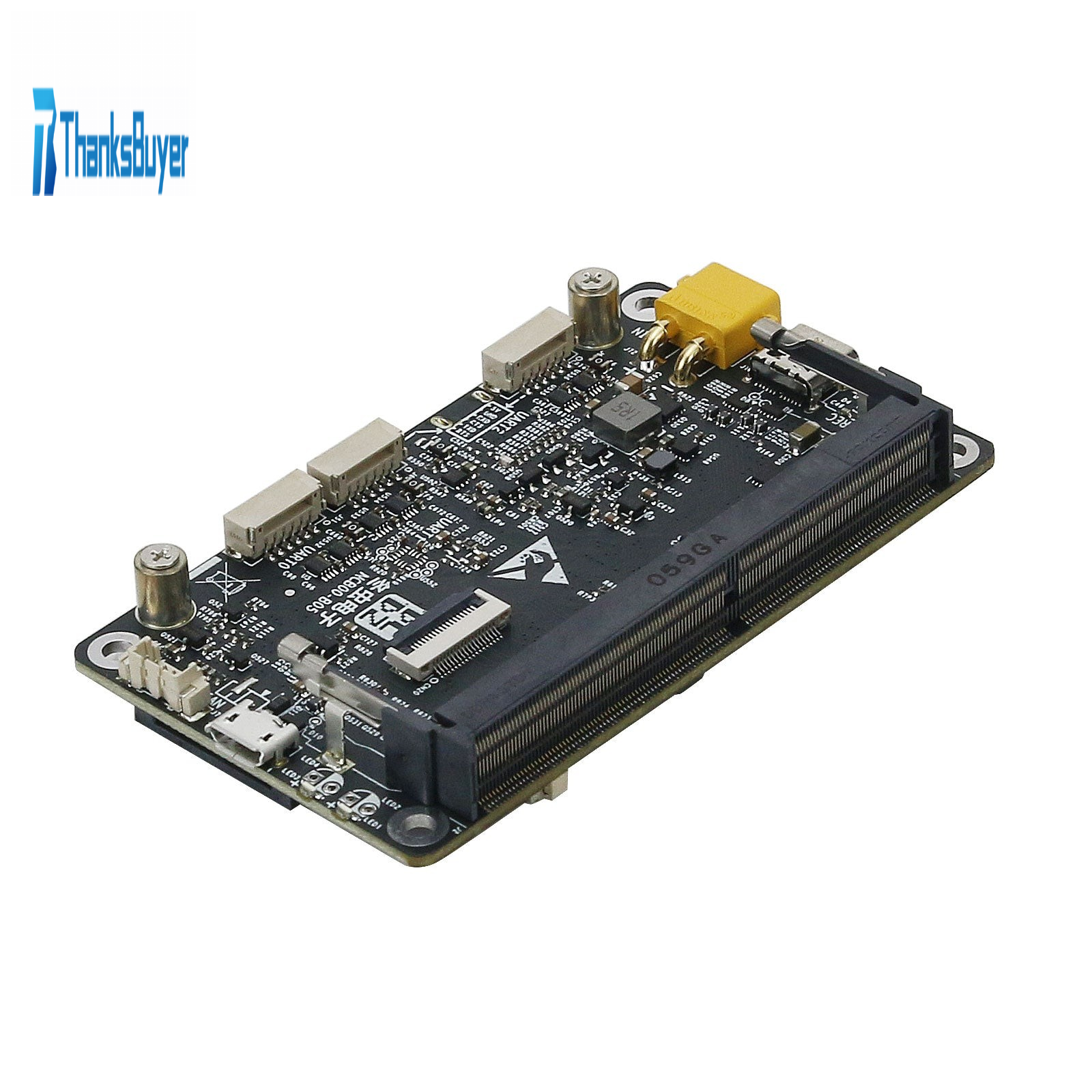

Self-developed carrier board is perfect for Jetson NX.

Performance:
- Compatible with development board for Jetson NX. The system can be used directly without modification
- Standard XT30 battery interface, power supply range 7~26V, support 2S~6S battery power supply, support power supply through Micro USB interface (battery is not included)
- By default, it will automatically turn on after power-on (you can select a button to turn on, please contact customer service). Power supply sequence control, support automatic shutdown and sleep function

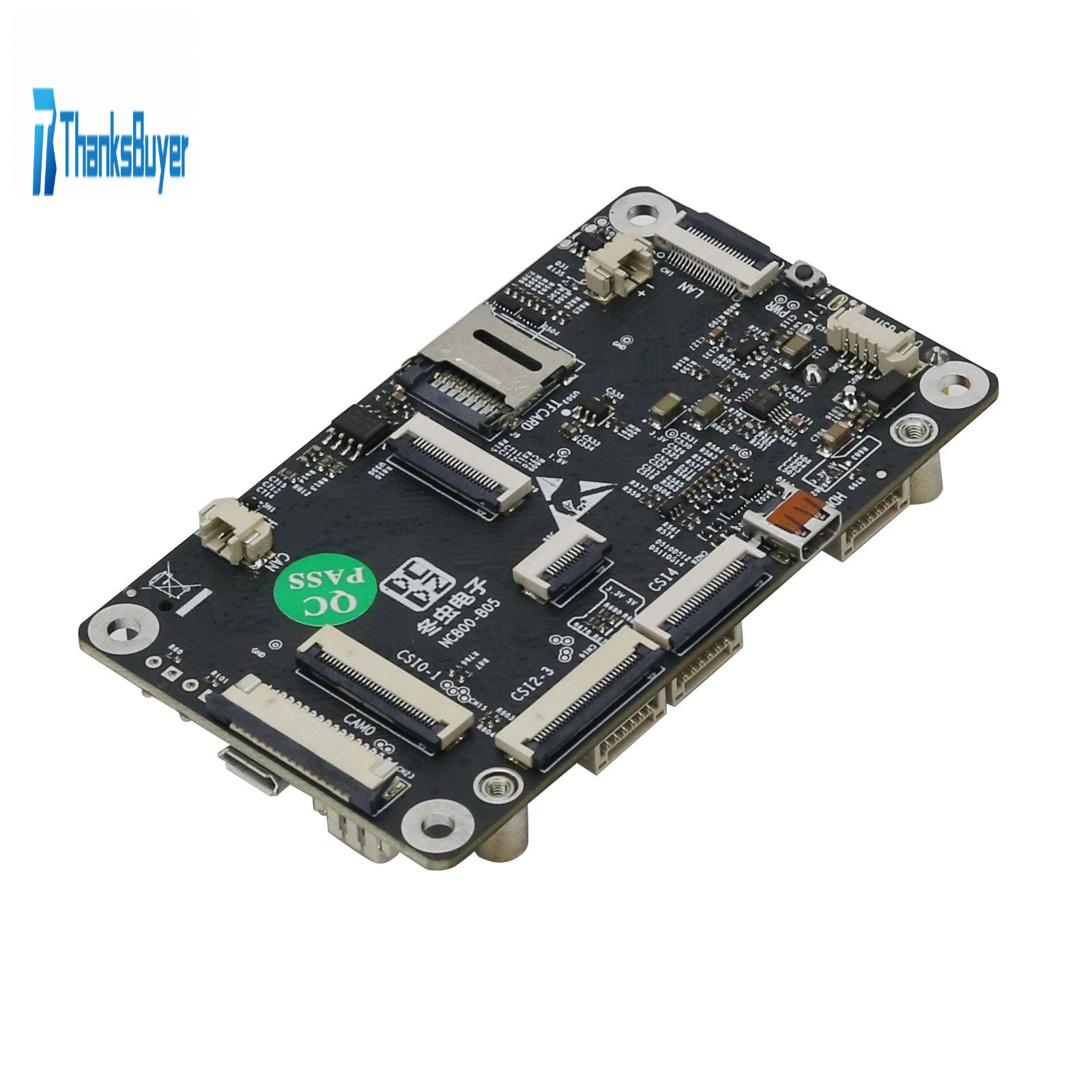

- 5pcs CSI2 interfaces, all CSI signals. To use with a NCB-6CAM board, up to 6 cameras can be connected. The interfaces are suitable for TX2 base board XCB-Lite theoretically all CSI2 video collecting modules for XCB-lite can be used
- One USB type C interface. Can be converted to standard USB3.0
- One USB2.0 lead out seat
- One Micro USB interface
- Onboard IMU for NV official ISAAC intelligent robot platform (optional)
- PCIE expansion interface
- Onboard 2k bits EEPROM
- Fan interface
- 3 physical side buttons, switch, reset button, flash button
- 3 UART interfaces, for TX2 base board XCB-Lite

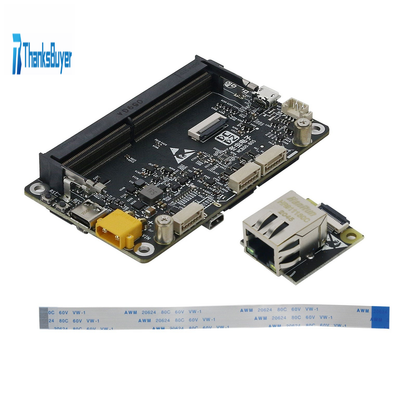

- FPC Ethernet port socket, for TX2 base board XCB-Lite
- One Micro HDMI interface
- One programmable red LED and one programmable green LED
- One SPI expansion interface
- One TF/Micro SD card socket
- Size: 87 x 50 x 15mm
- Weight: 30g
- Working temperature: industrial grade -40 to 85℃

Package Included:
- 1 x Carrier Board

Note: Battery is not included.
