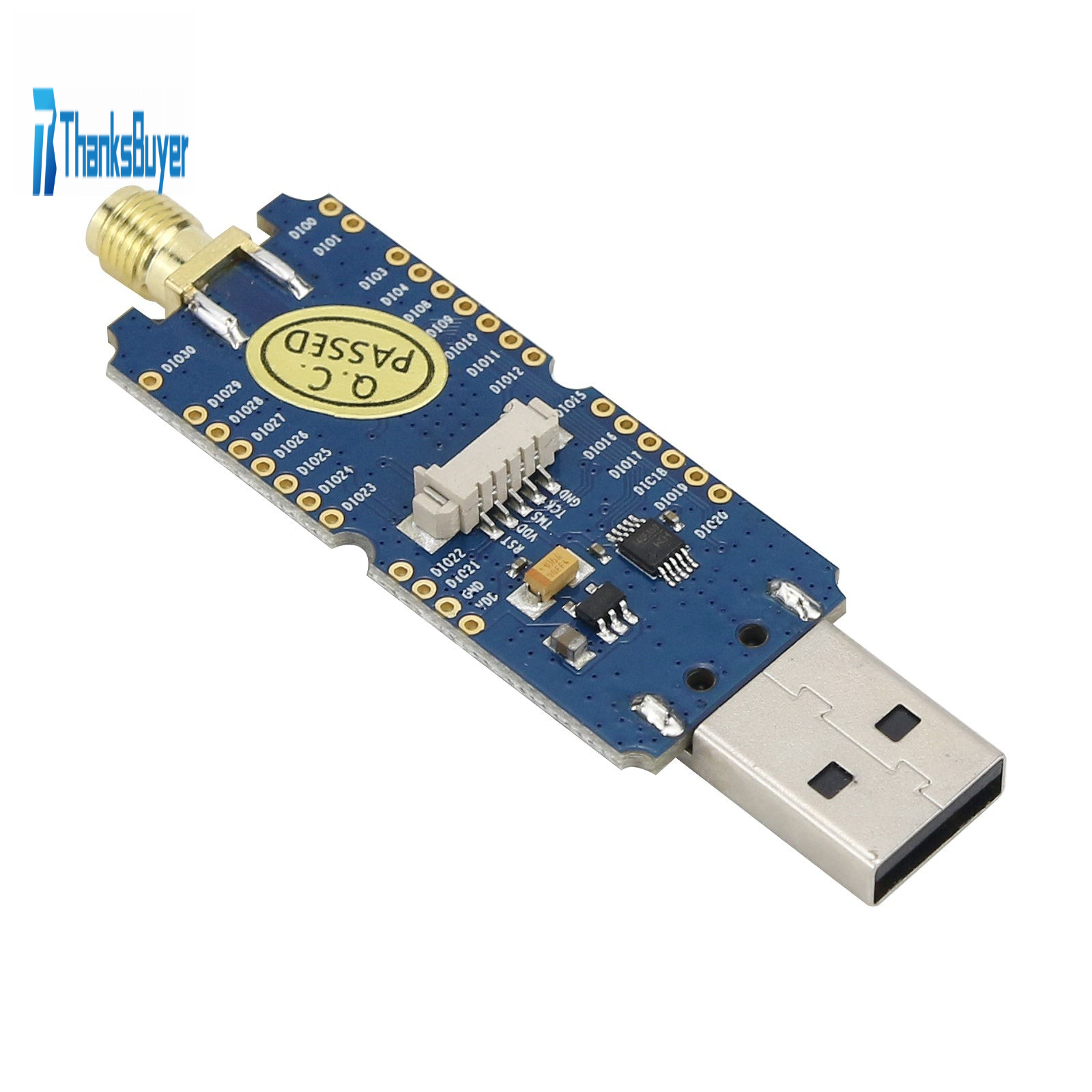

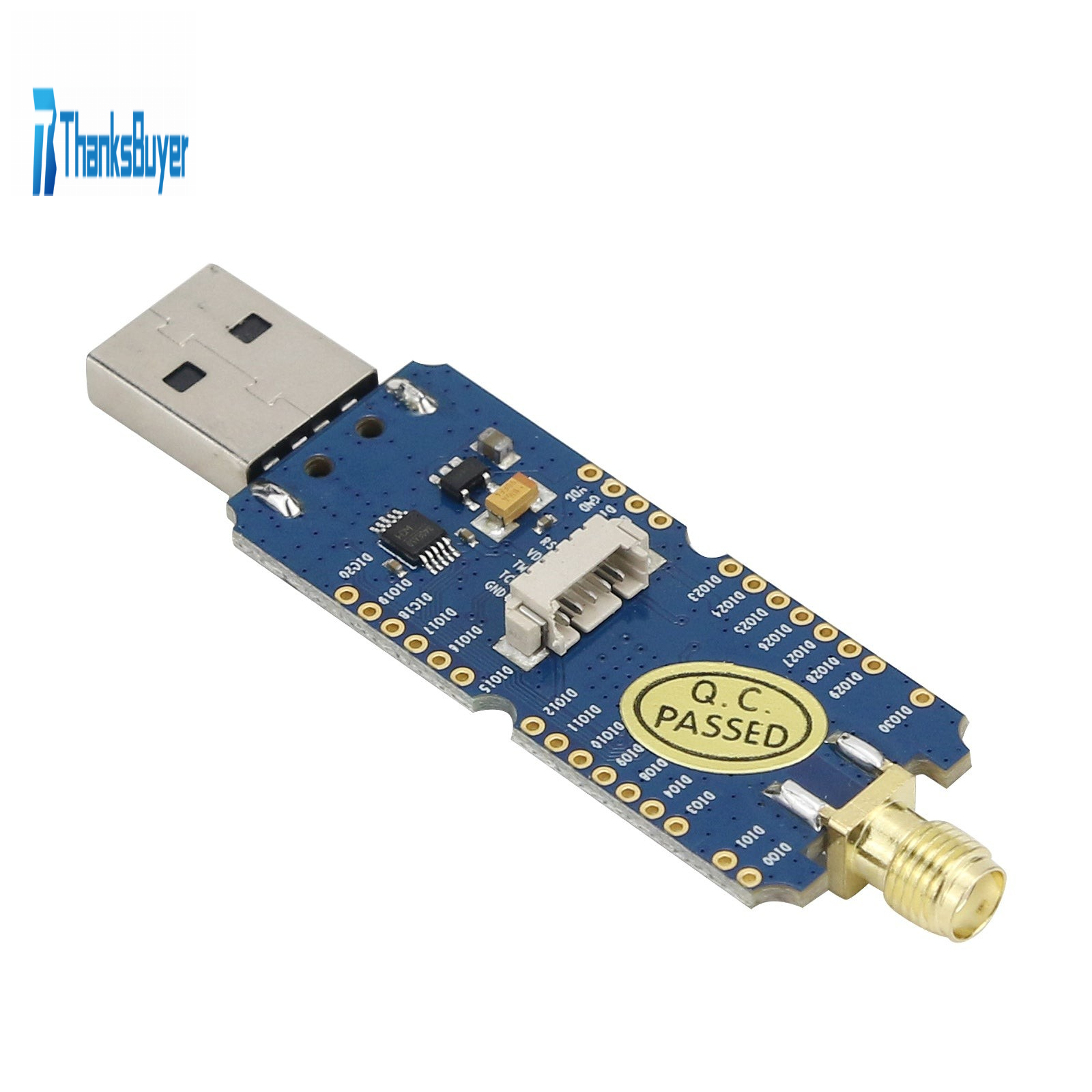

CC2652 Zigbee BLE Simplelink 2.4G Zigbee2mqtt Thread Home Assistant E469747 With Shell

CC2652 Zigbee BLE Simplelink 2.4G Zigbee2mqtt Thread Home Assistant E469747 With Shell

Cool Features:
- Super tiny CC2652R1 multi-protocol 2.4GHz development dongle
- Zigbee coordinator/router or as an border router for Openthread
- Zigbee2MQTT adapter
- Compatible with LAUNCH-XL CC2652R1
- DIO break out with 2.0mm pitch hole

On Board Functions:
- 3xLED(Red--3.3V/Green--DIO7/Blue--DIO6)
- 3xButton (BTN1--DIO13/BTN2--DIO14/RST--RESET)
- Integrated with CH340E
- Ultra-low power LDO

Usage:
- Zigbee2MQTT
- Sniffer
- For Contiki/Openthread/Simplelink study

Dimension:
- 5.5 x 2.3 x 1.3cm/2.2 x 0.9 x 0.5"

BOM:
- For MuRata Capacitor/Inductor
- For EPSON Crystal
- For MuRata 2.4G Balun

Link:
https://www.zigbee2mqtt.io/information/supported_adapters.html

Firmware:
https://github.com/Koenkk/Z-Stack-firmware/tree/master/coordinator/Z-Stack_3.x.0/bin

Package Included:
- 1 x Set of CC2652 Dongle
