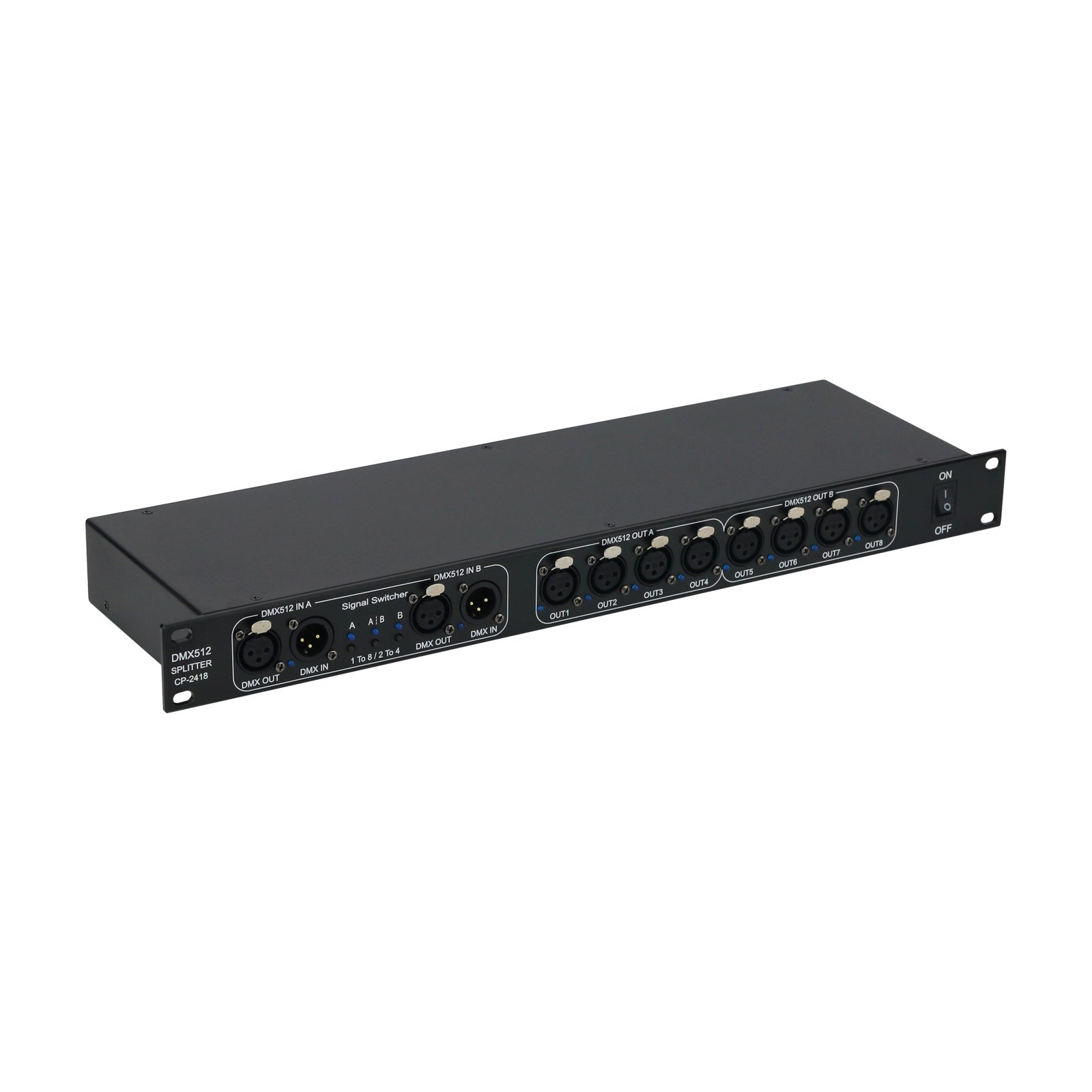

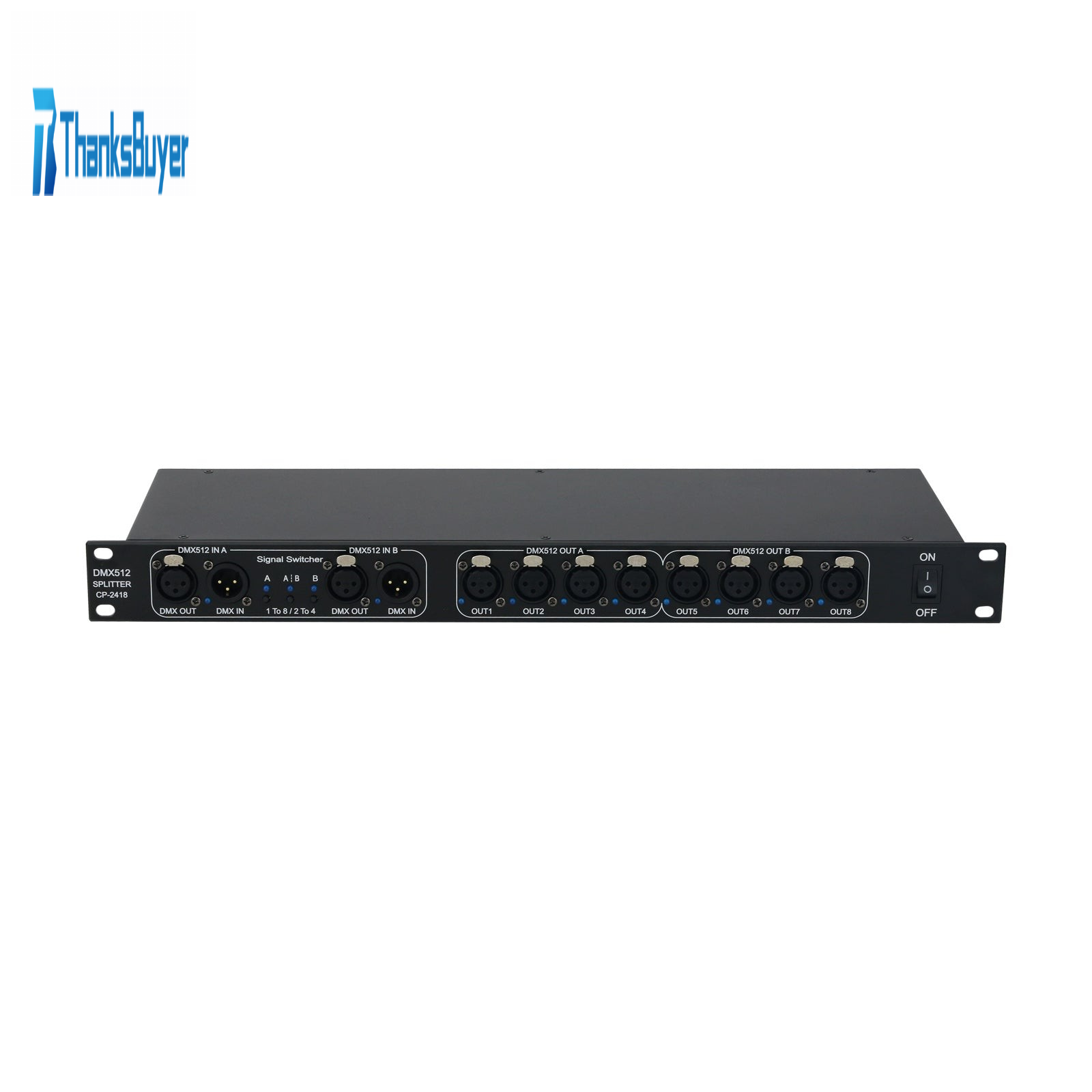

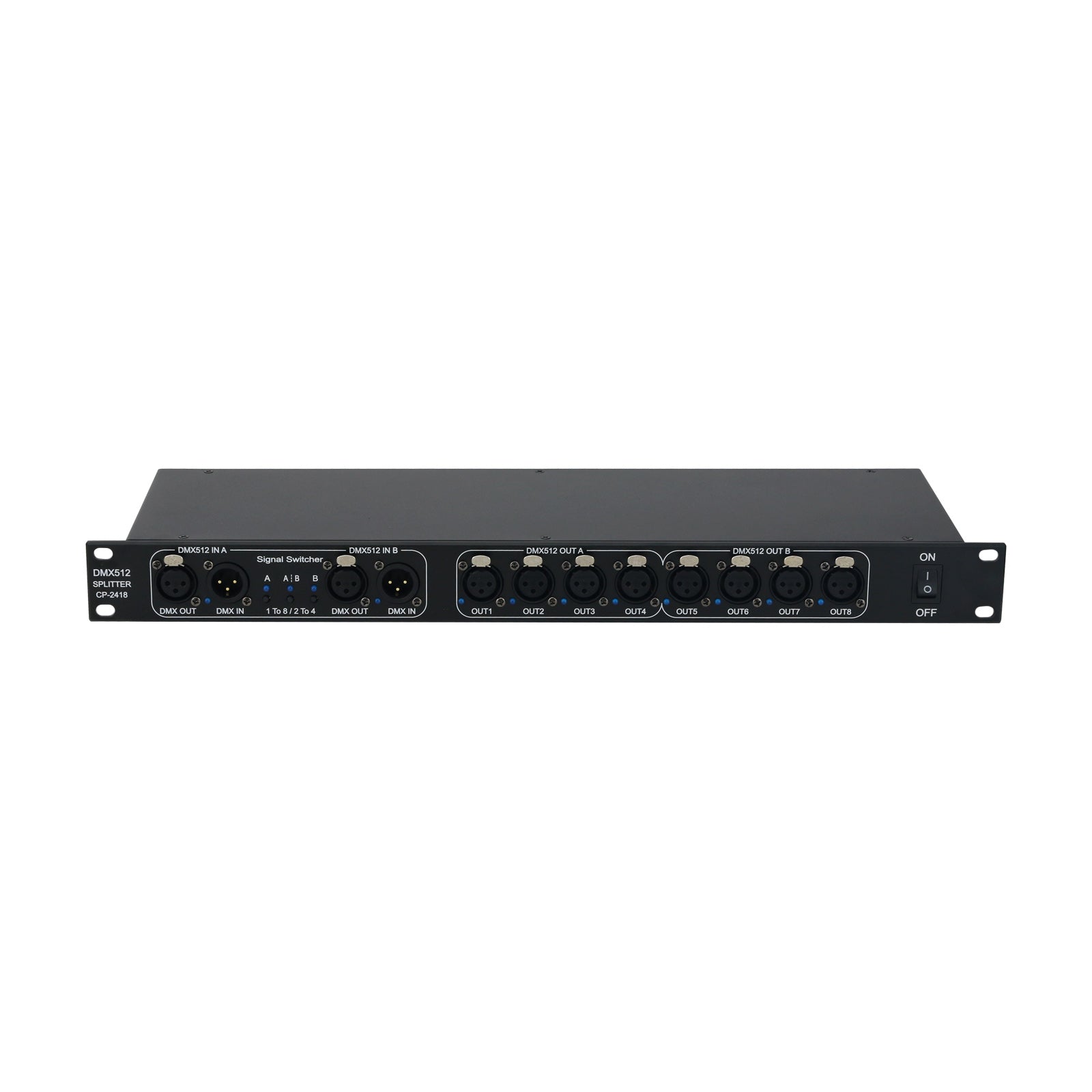

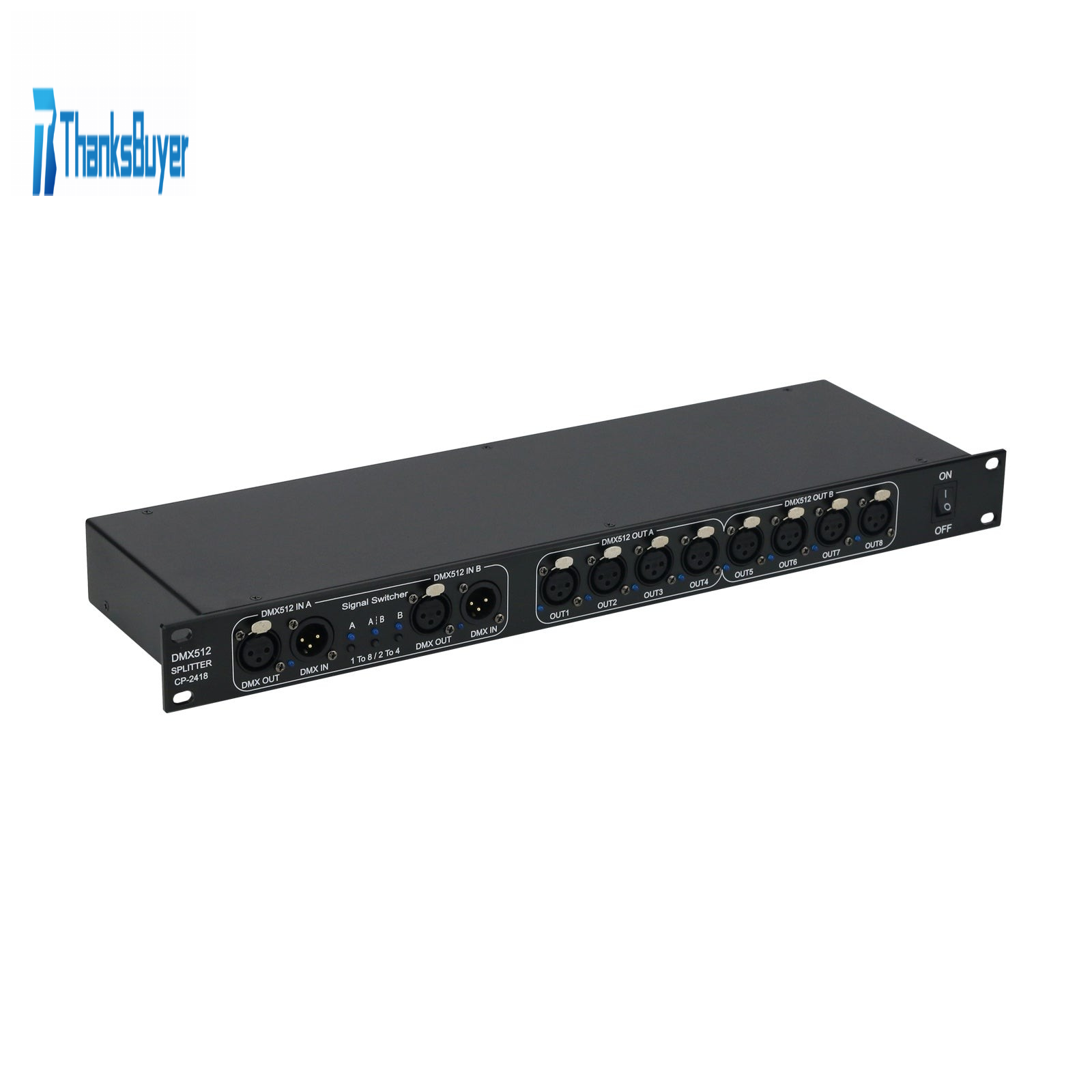

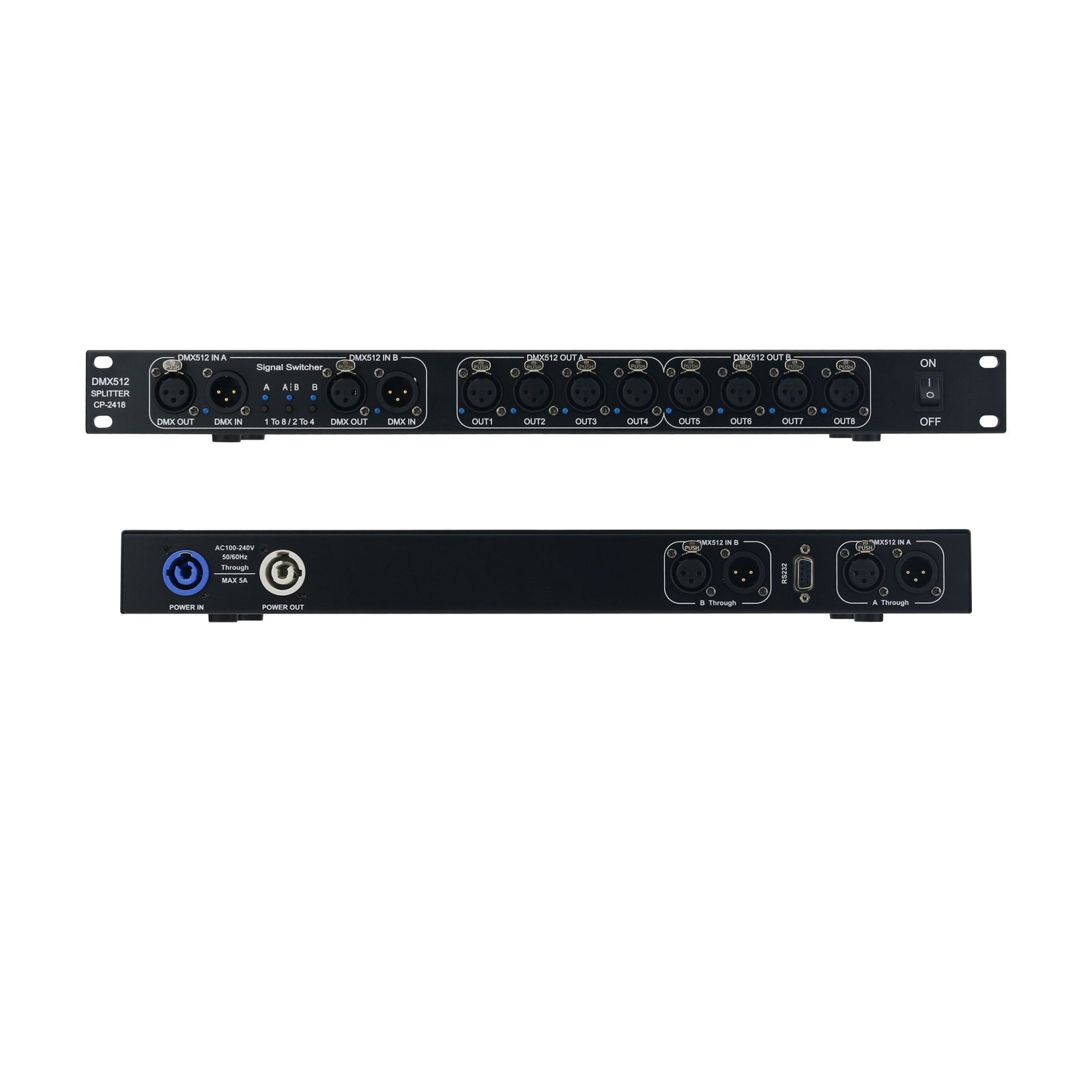

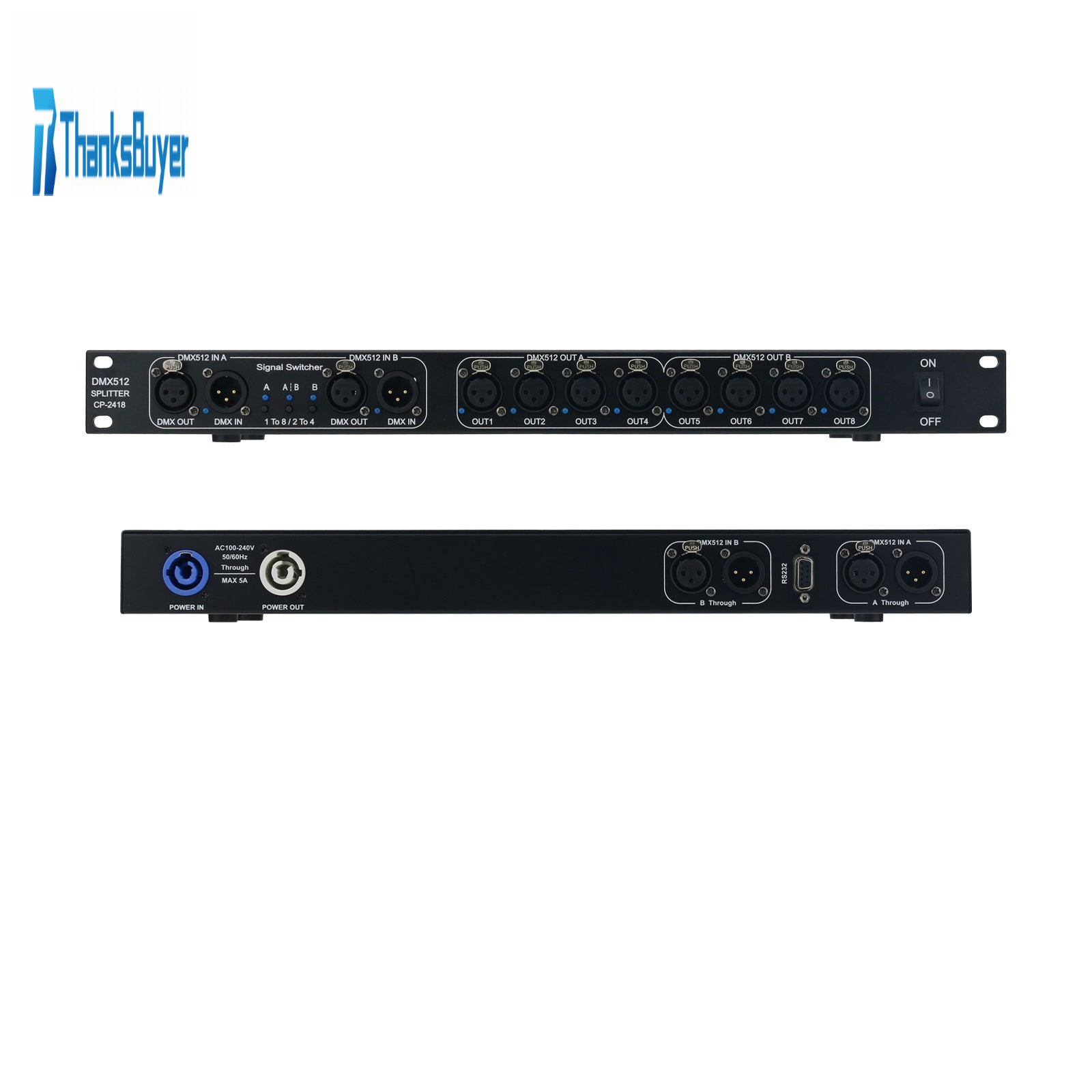

CP-2418 DMX Splitter DMX Amplifier DMX512 Distributor 2 Signal Input 8CH Output for Stage Light PAR

CP-2418 DMX Splitter DMX Amplifier DMX512 Distributor 2 Signal Input 8CH Output for Stage Light PAR

Functions:
* 3-in-1 DMX amplifier and signal switcher. One-out-of-two input and 8ch output; 2ch inputs independently to 4ch outputs
* With 3ch dimming test function to detect whether the line signal is normal
* Input and output signals with photoelectric isolation and TVS protection. Using Mornsun power supply and original gold-plated XLR sockets for NEUTRIK
* Built-in high-quality CPU. The brightness of signal indicators can be set by yourself. Say goodbye to dazzling lights. Input signal flashing indication can be set for the indicator lights

Features:
* 8Ch DMX512 signal amplifier for stage lights
* With Blue indicator lights and gold-plated XLR sockets
* One-out-of-two input and 8ch output. 2ch inputs independently to 4ch outputs
* Input and output signals with photoelectric isolation
* Anti-interference: with isolation function when fast switching
* High-fidelity DMX signal
* Anti-high voltage and independent control (using Mornsun power supply)
* Built-in high-quality CPU and fully integrated motherboard enable stable and reliable operation

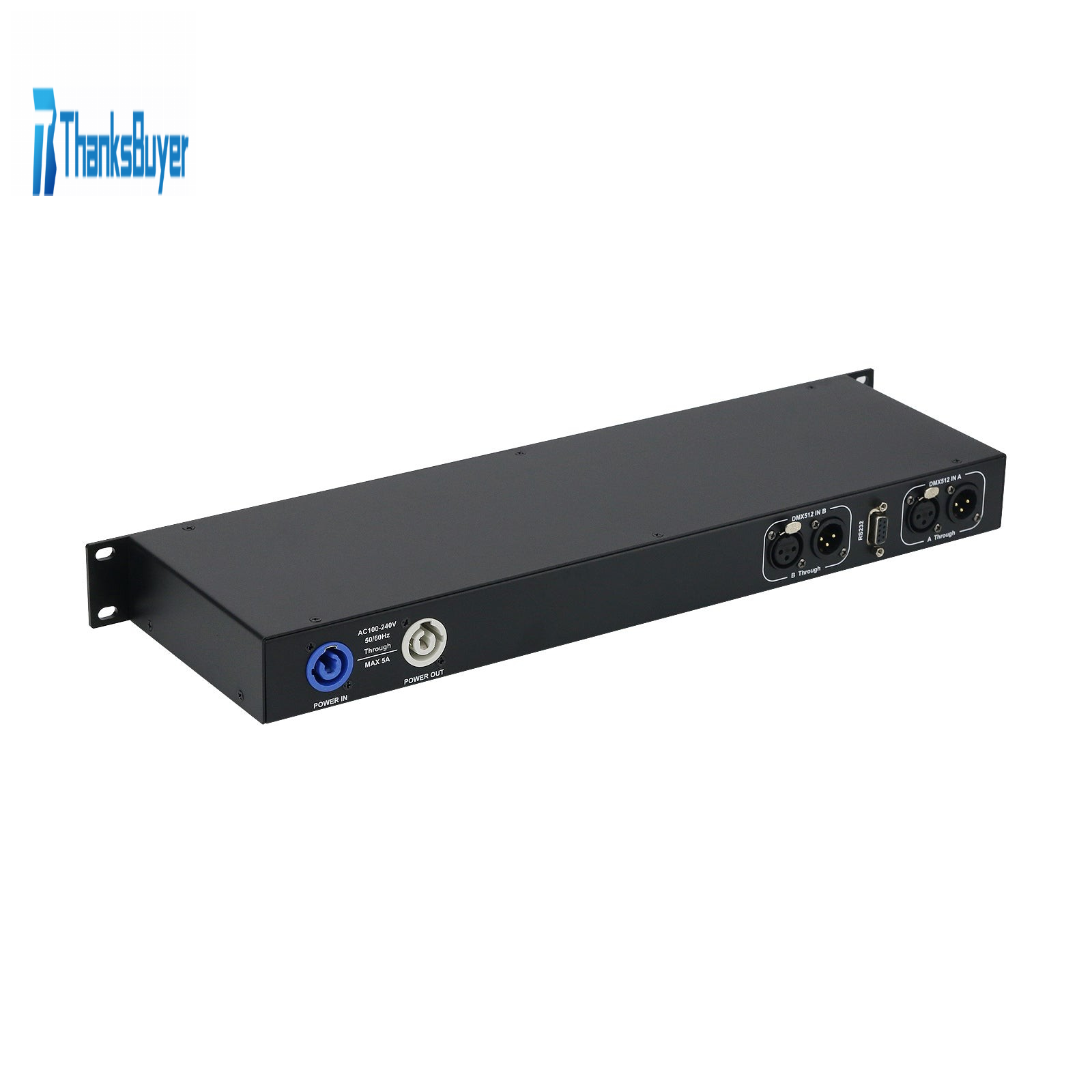

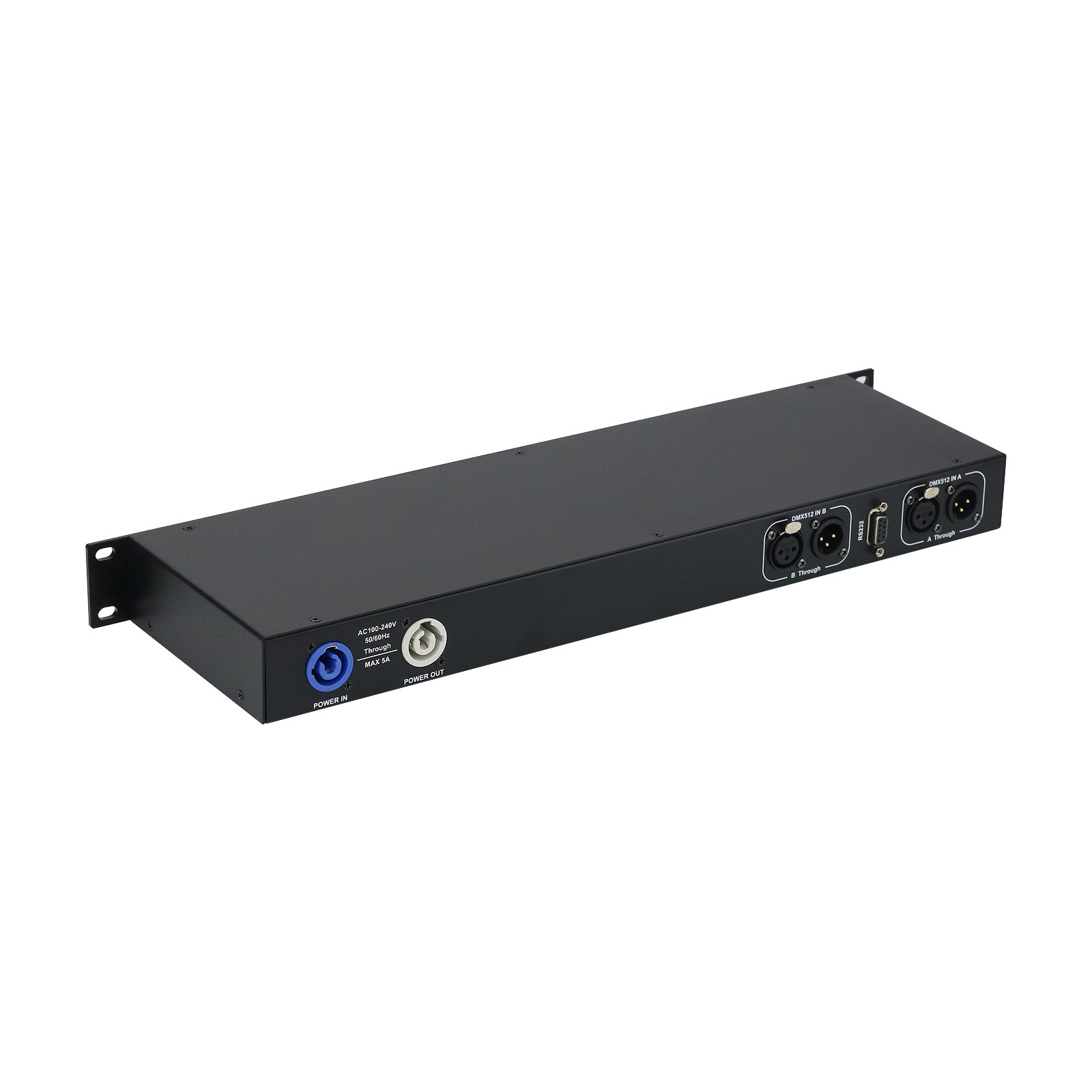

* With a 220V output interface
* Strict quality test and control: it has passed 72-hour aging test

Technical Parameters:
* Power supply: AC90-240V, 50/60HZ
* Power: <5W
* Interface type: MDX512, input and output signals with opto-isolation
* DMX signal connector: XLR-3pin/5pin
* Setting method: by buttons
* Product size: 1U, 48.2 x 13.6 x 4.4cm/19 x 5.4 x 1.7"

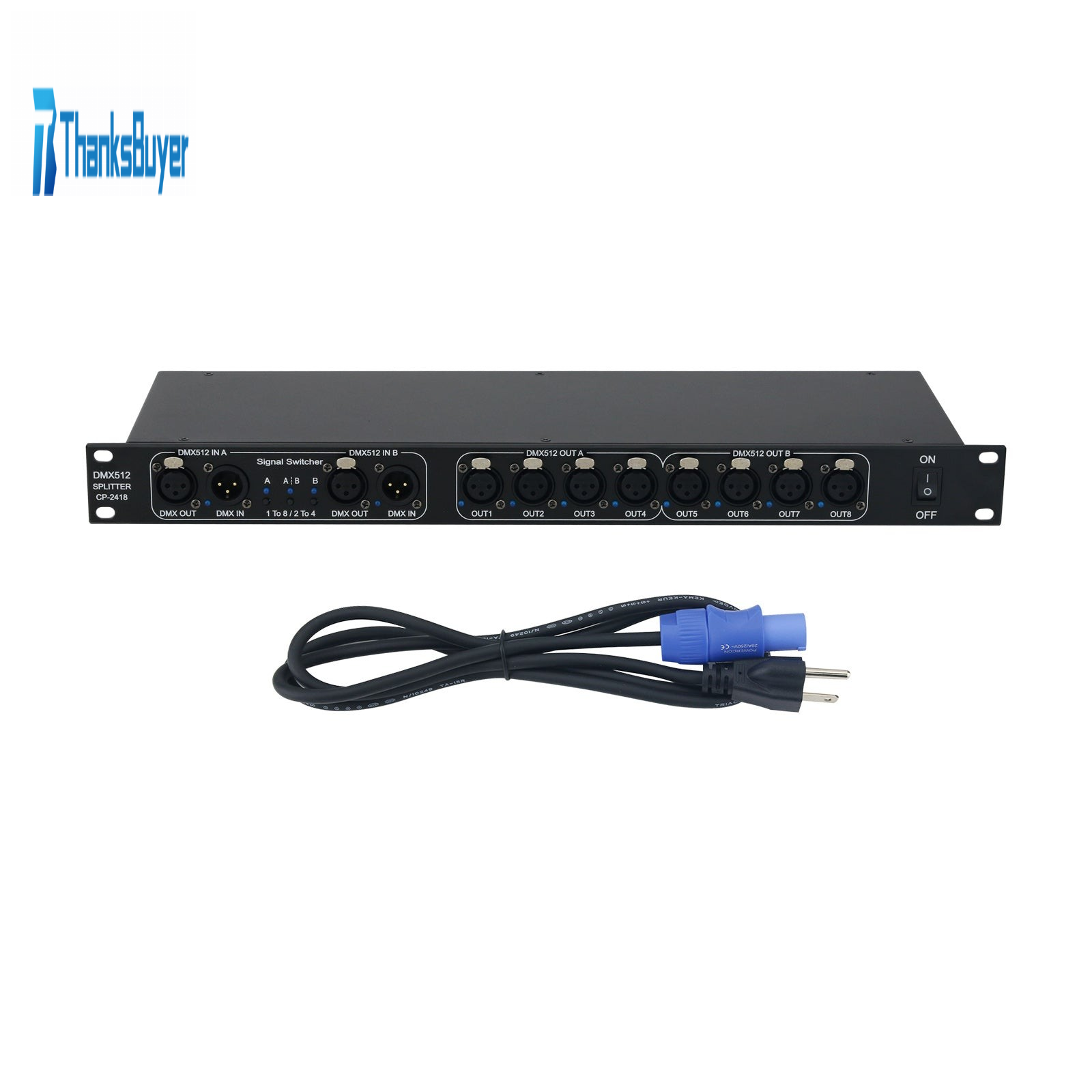

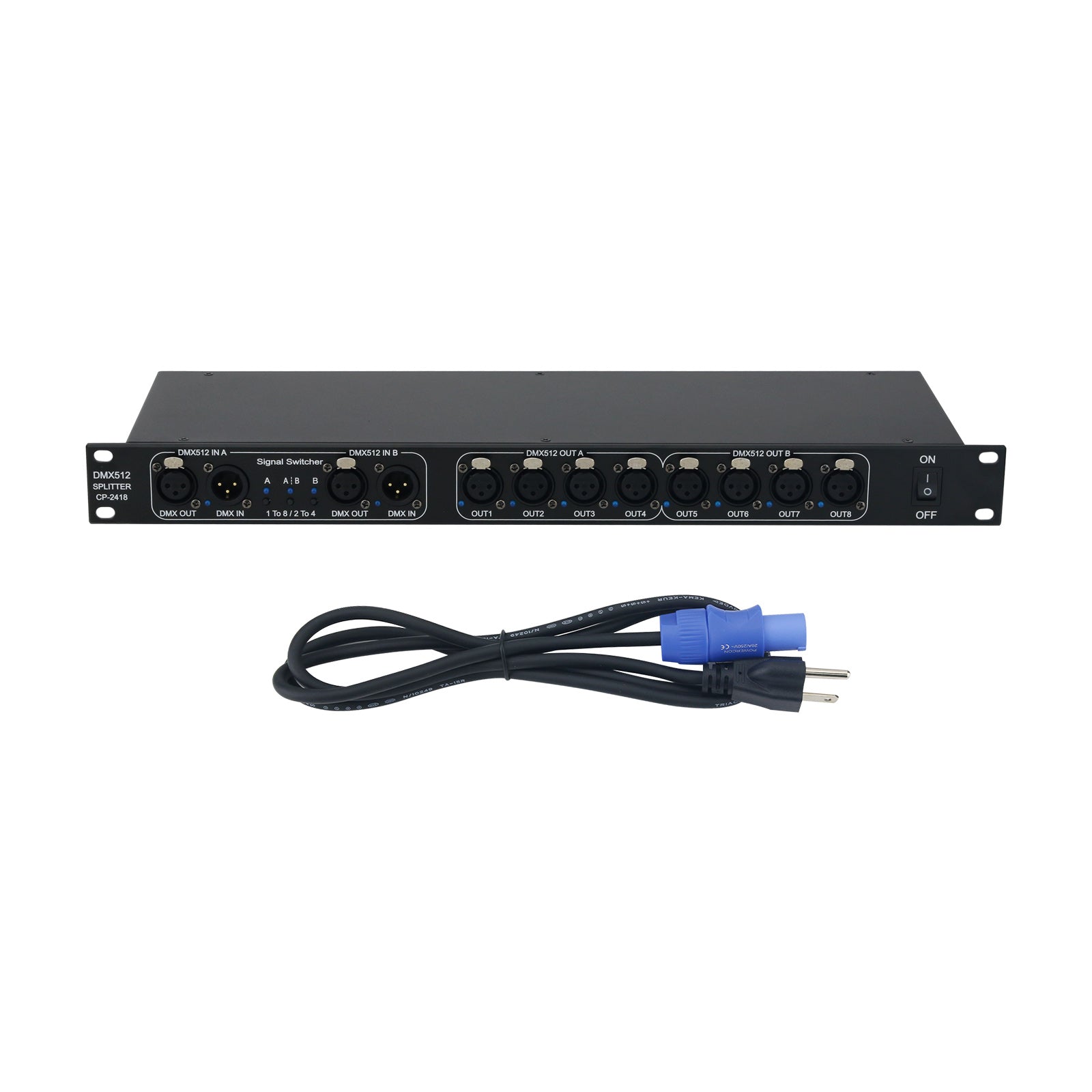

Package Included:
* 1 x DMX512 amplifier
* 1 x Power cable
* 1 x User manual

FAQ:
Q: Can it control 2ch outputs independently?
A: Yes. This amplifier supports 2ch inputs and 2ch outputs at the same time, that is, independently controls the DMX512 lights of A and B channels. It has photoelectric isolation, which is very stable and does not interfere with each other.
