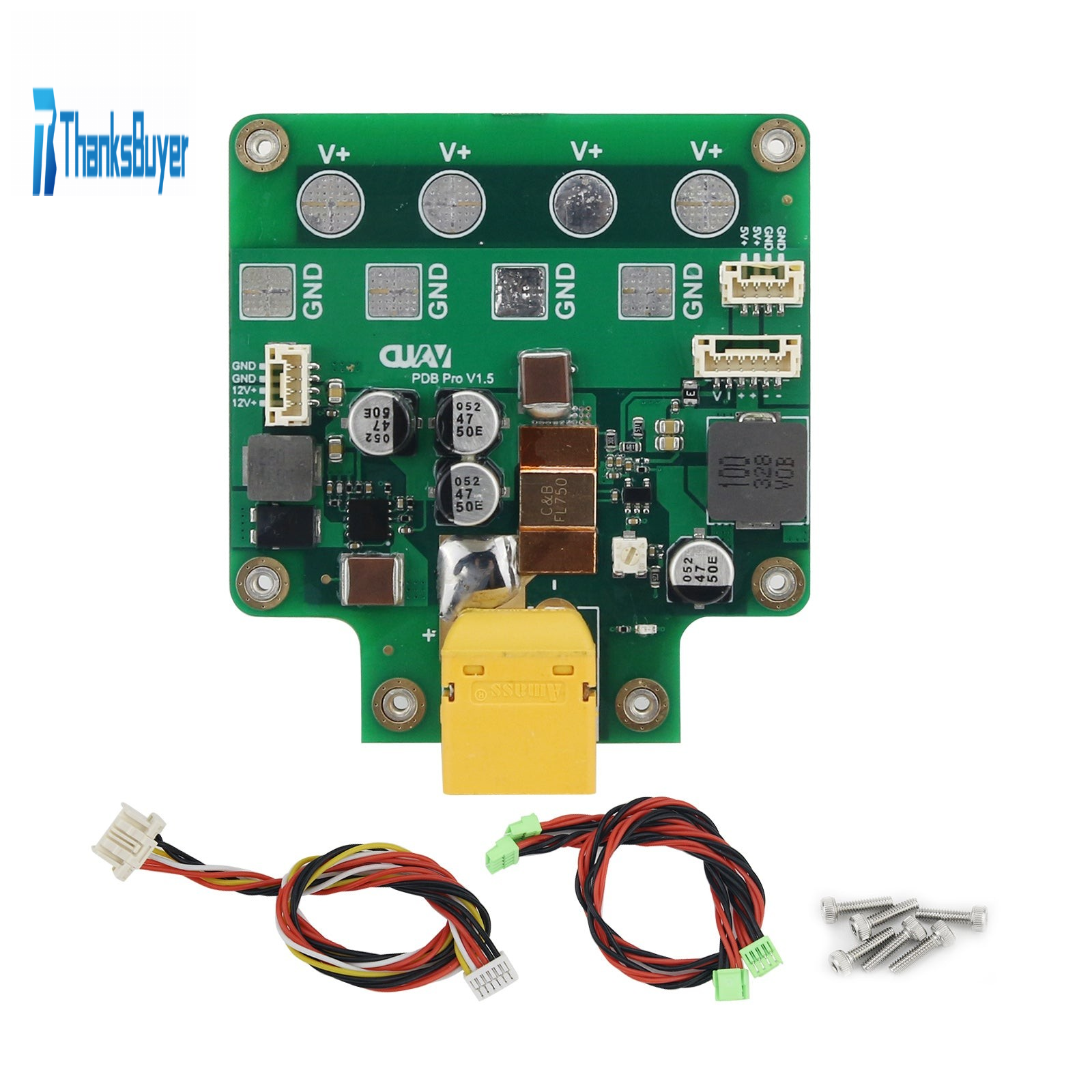

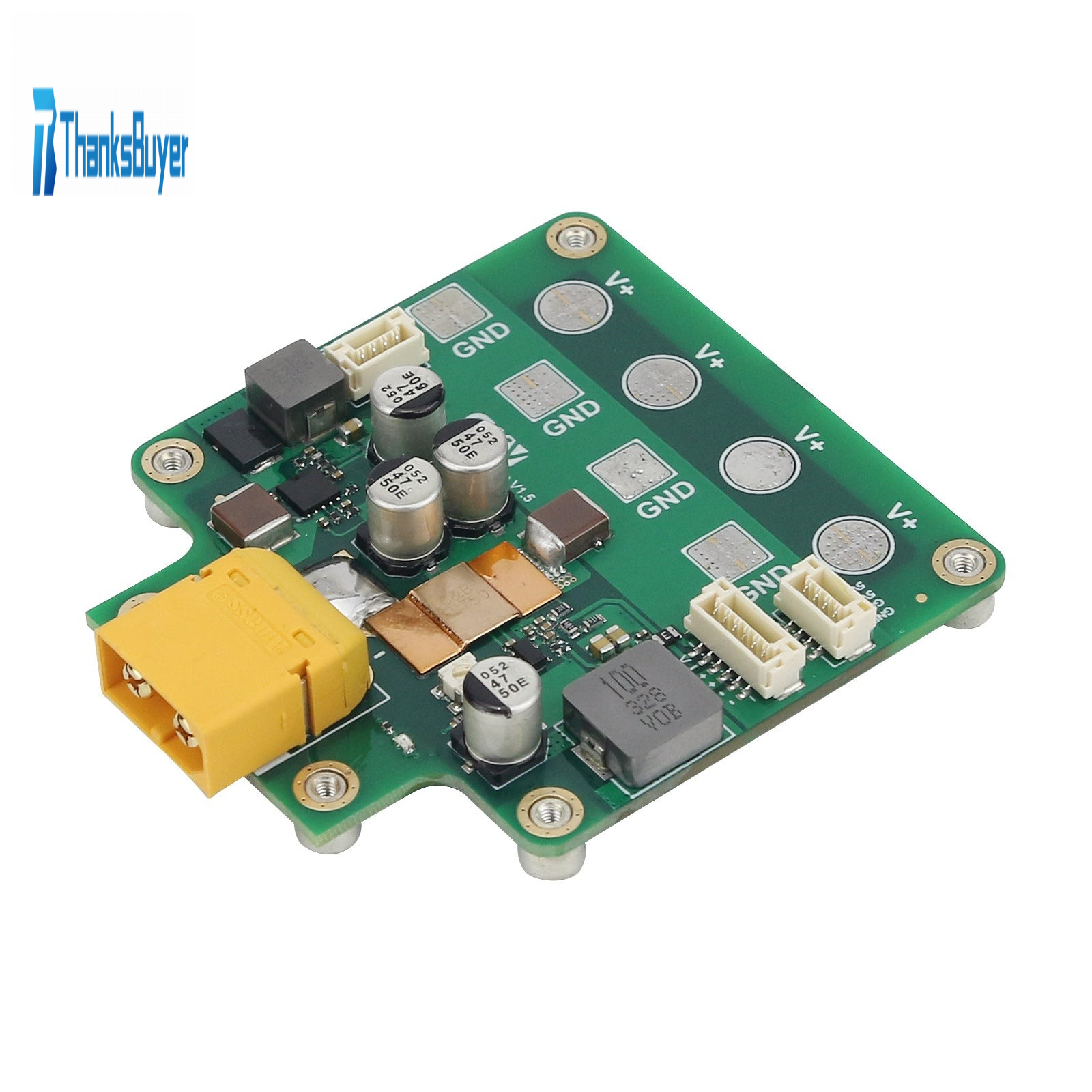

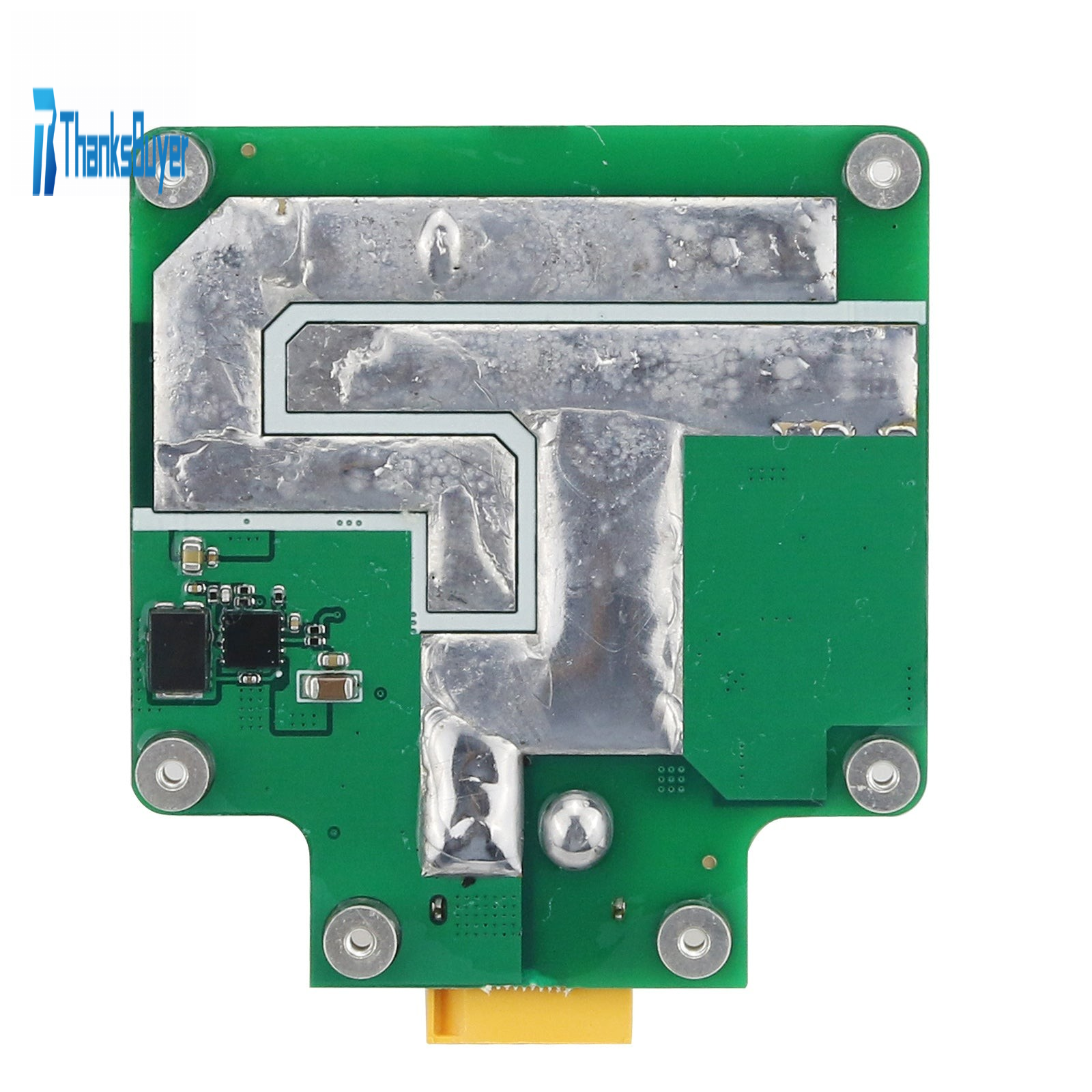

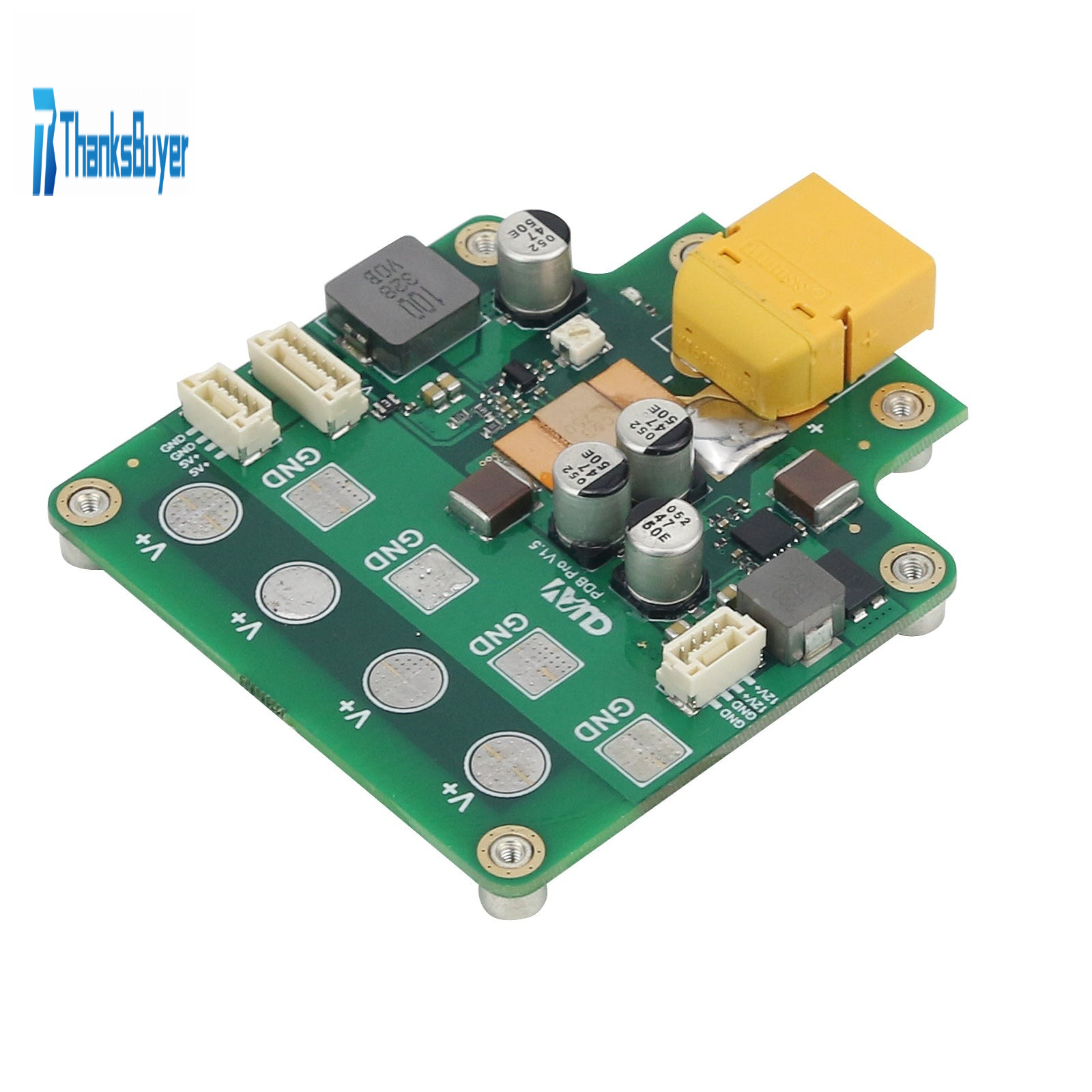

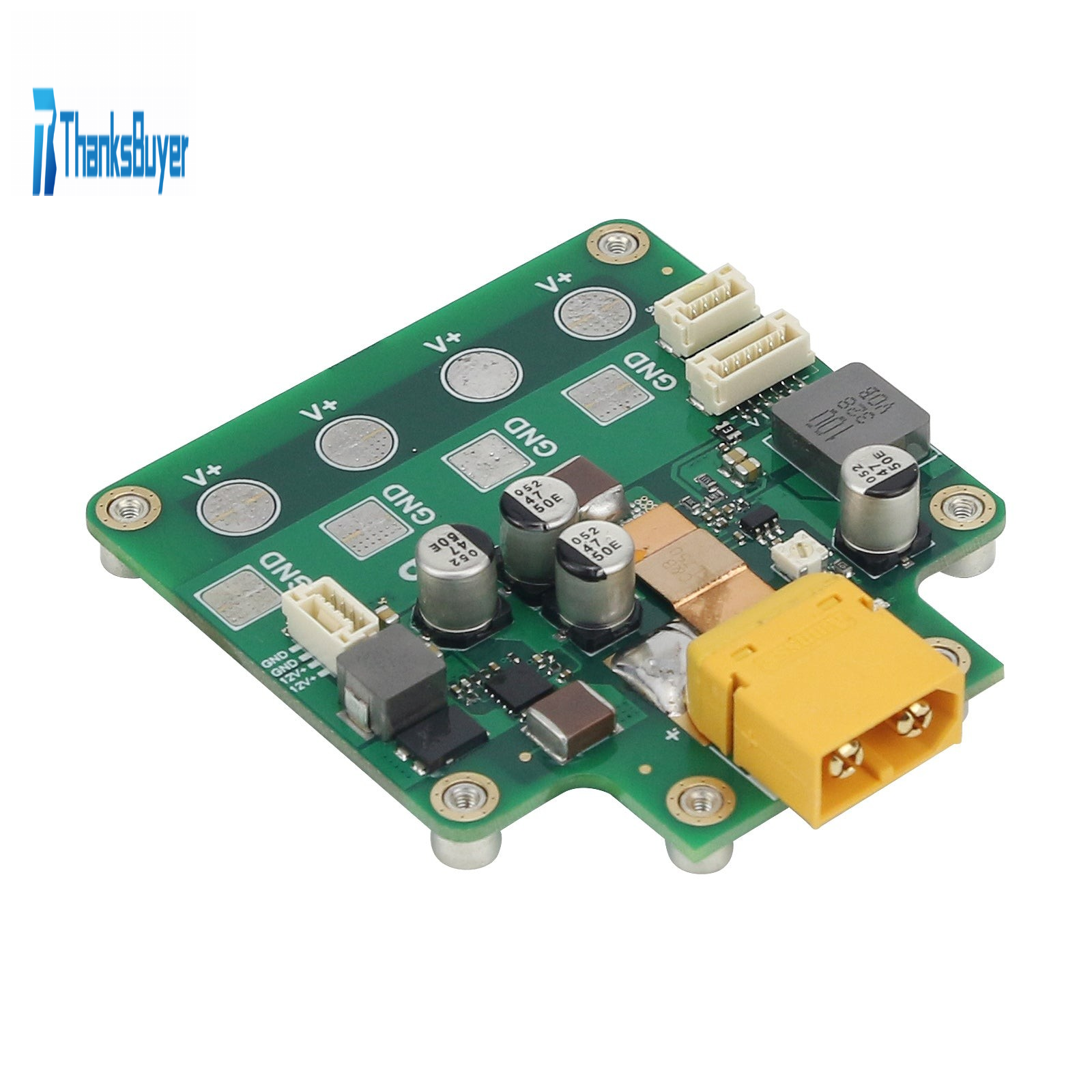

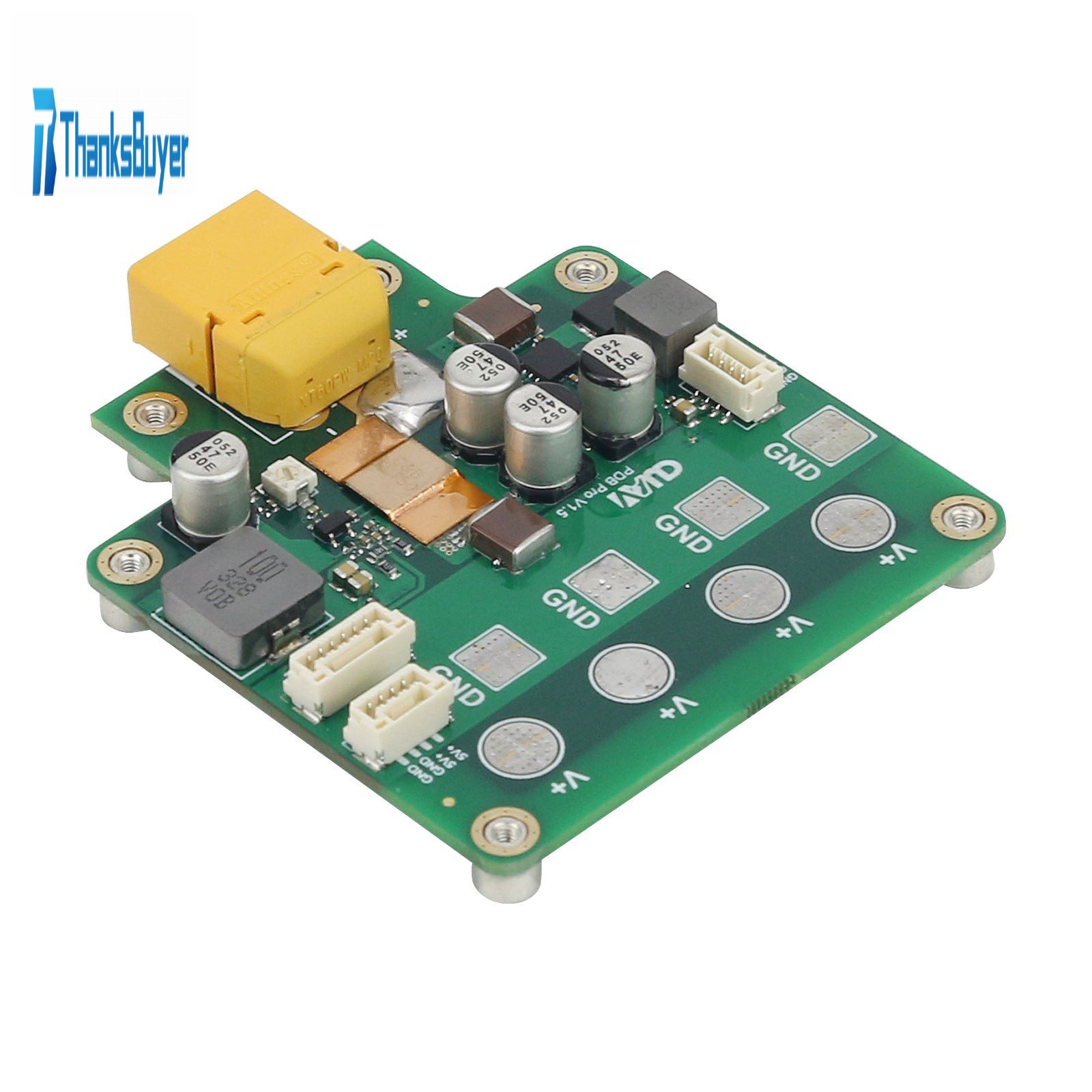

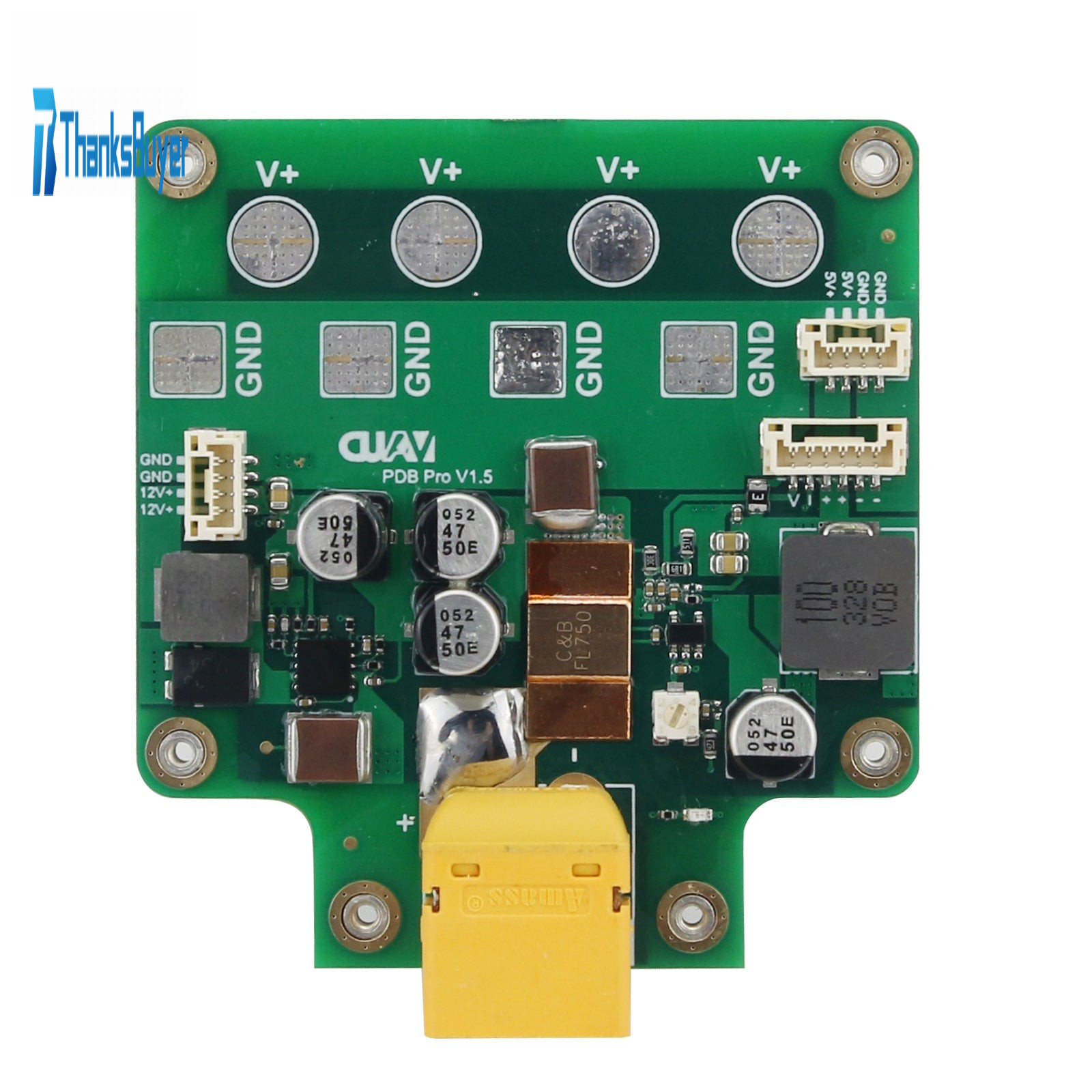

CUAV CPDB Pro High-Voltage Drone Power Distribution Board 10-60V For Multirotor Drones X5 Series

Description:
CPDB Pro is a UAV power distribution board with integrated current meter. It features high accuracy and high working voltage. It is mainly used for multi-rotor UAVs.

Features:
- Support higher input voltage: 10V-60V (3s-14S battery) (Battery is not included)
- More precise current and voltage detection: voltage detection accuracy: ±0.1v; current detection accuracy: ±0.2A
- Support higher power port output current: 5A
- Maximum (detection) current: 60A
- Maximum output current: 60A
- Independent 12V 4A interface

Specifications:
- Working voltage: 10~60v
- Working current: 0~80A (maximum measurable current 60A)
- Current accuracy: 0.2A
- Voltage accuracy: 0.1V
- ESC power interface: 4
- Power interface load capacity:
* 12v out: 4A
* 5V out: 2A
* FC power: 5A
- Interface Type:
* Battery interface: XT60 (Battery is not included)
* 12V OUT/5V OUT/FCP Power: GH1.2
- Product weight: 35g

Package Included:
- 1 x Power Distribution Board

Note:
- Battery is not included in the package.
