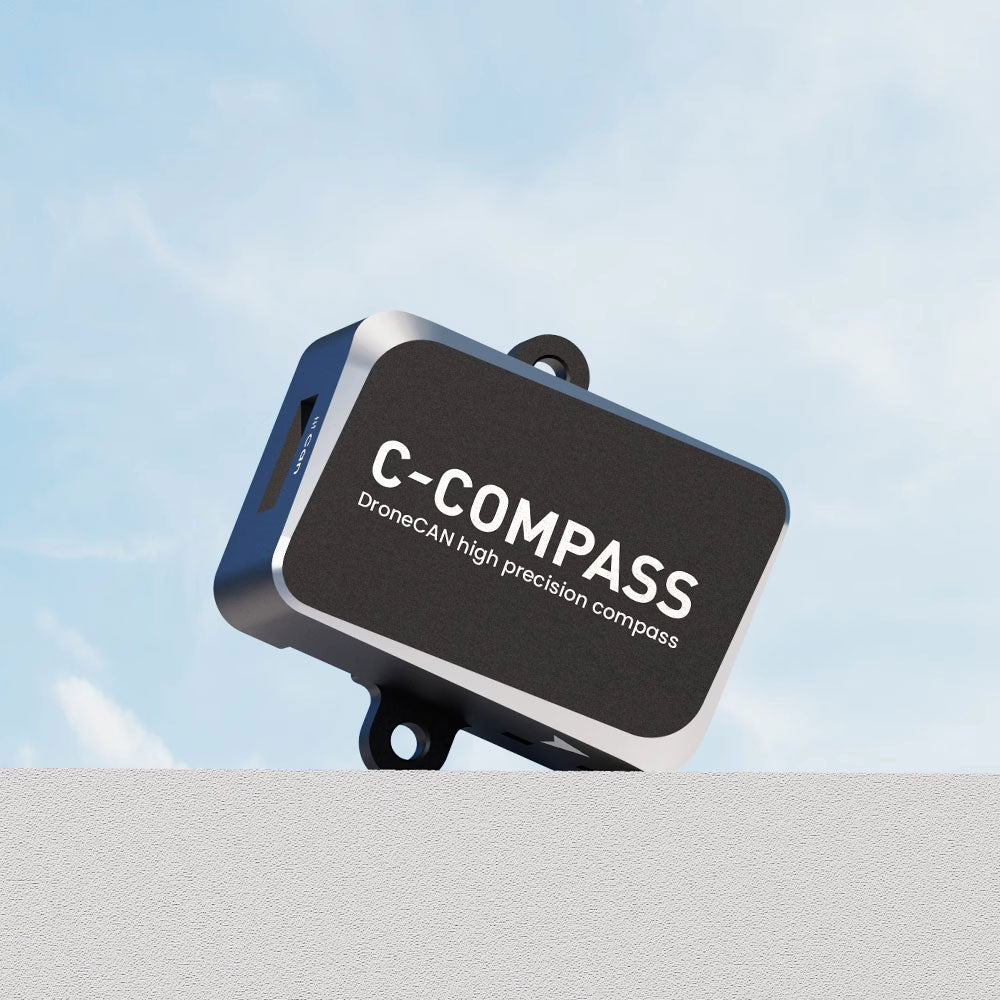

CUAV DroneCAN High Precision Magnetic External Compass Anti-interference Compass Module Support for APM/PX4

CUAV DroneCAN High Precision Magnetic External Compass Anti-interference Compass Module Support for APM/PX4

Description:

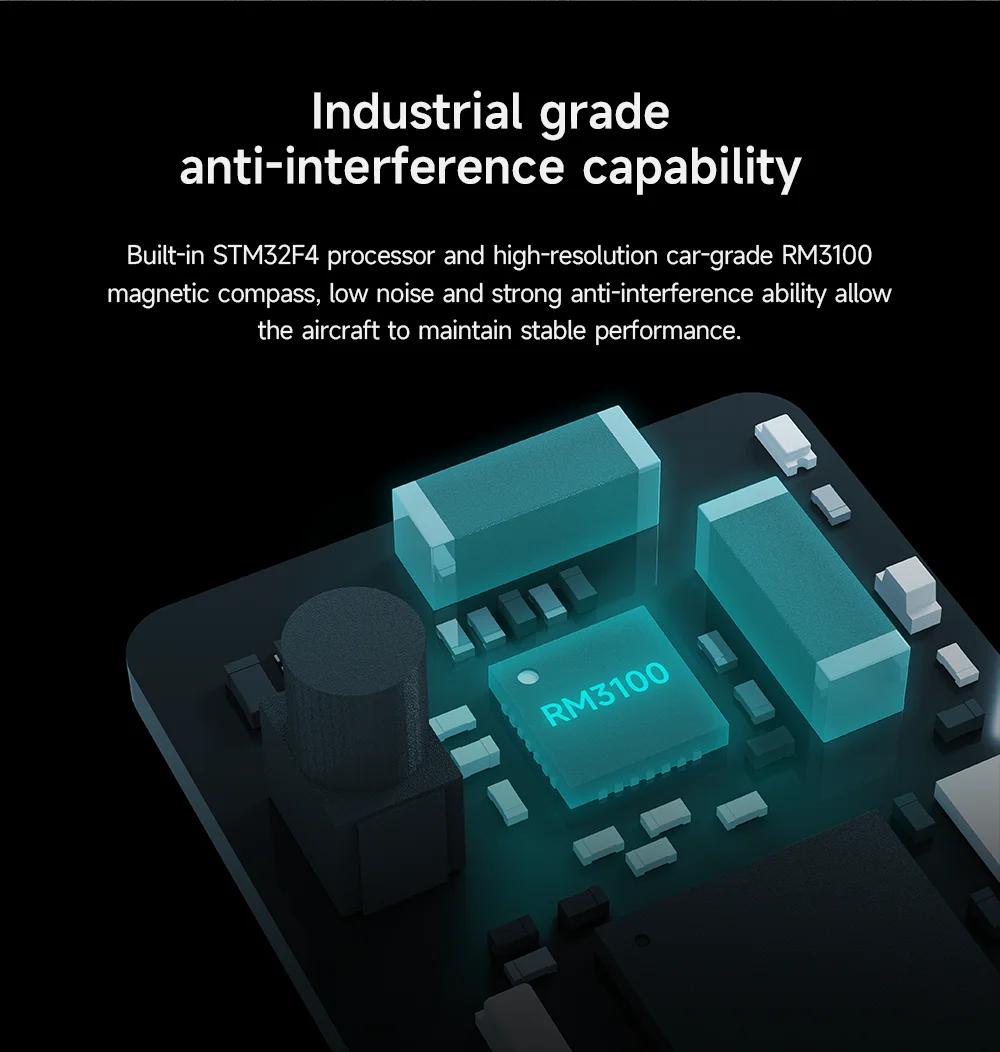

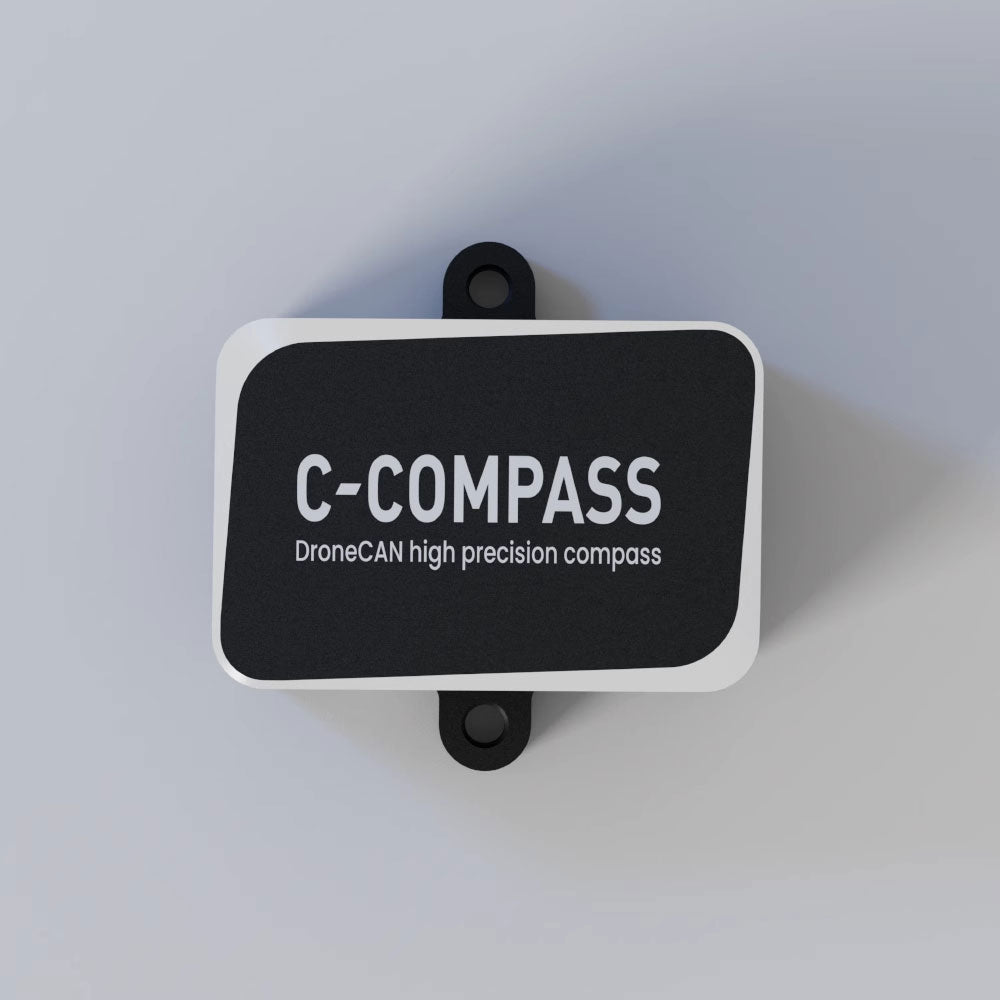

- C-Compass is a compact, high precision magnetometer with a built-in RM3100 magnetic sensor. It has low noise and strong anti-interference capabilities, allowing the aircraft to maintain stable performance, using DroneCAN bus communication and is smoothly compatible with platforms for ArduPilot and PX4.

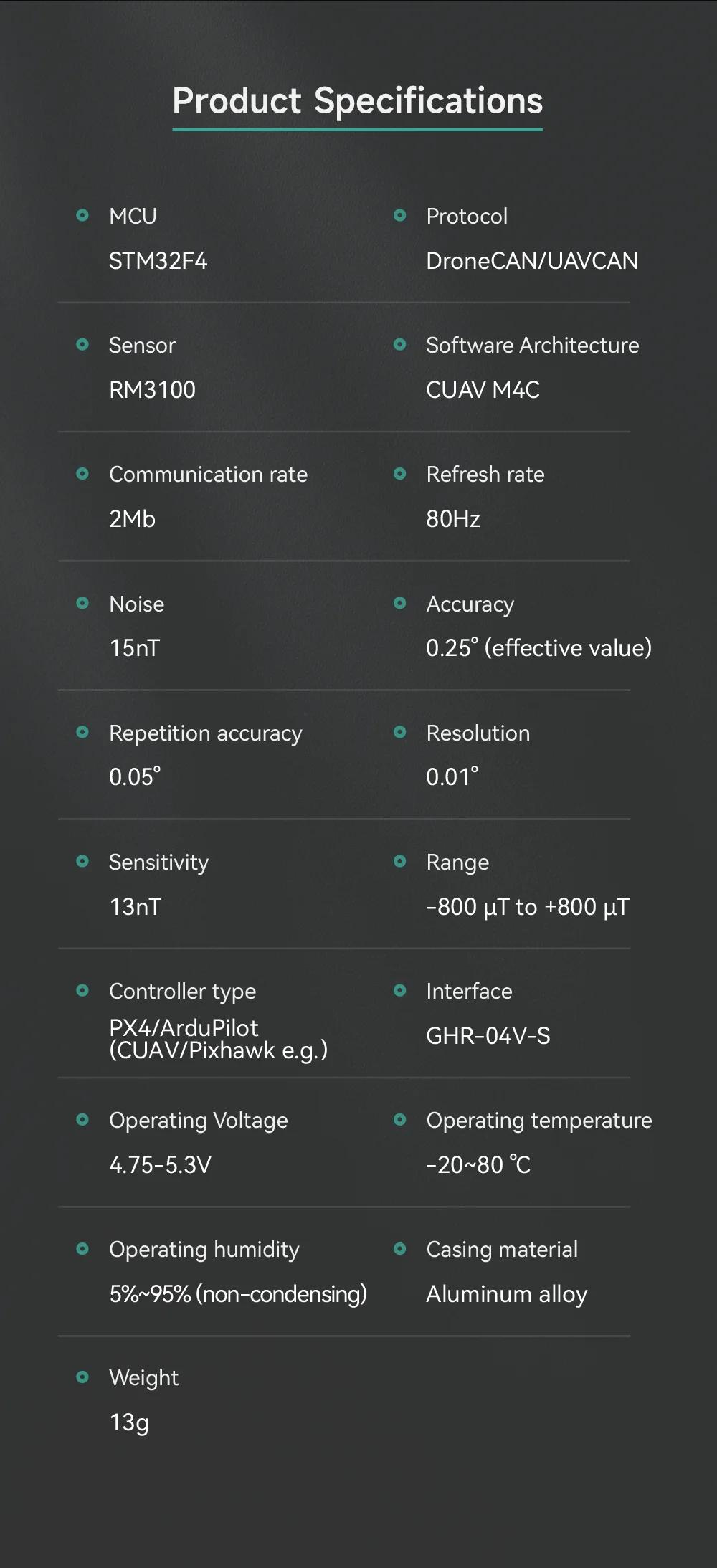

Specification:

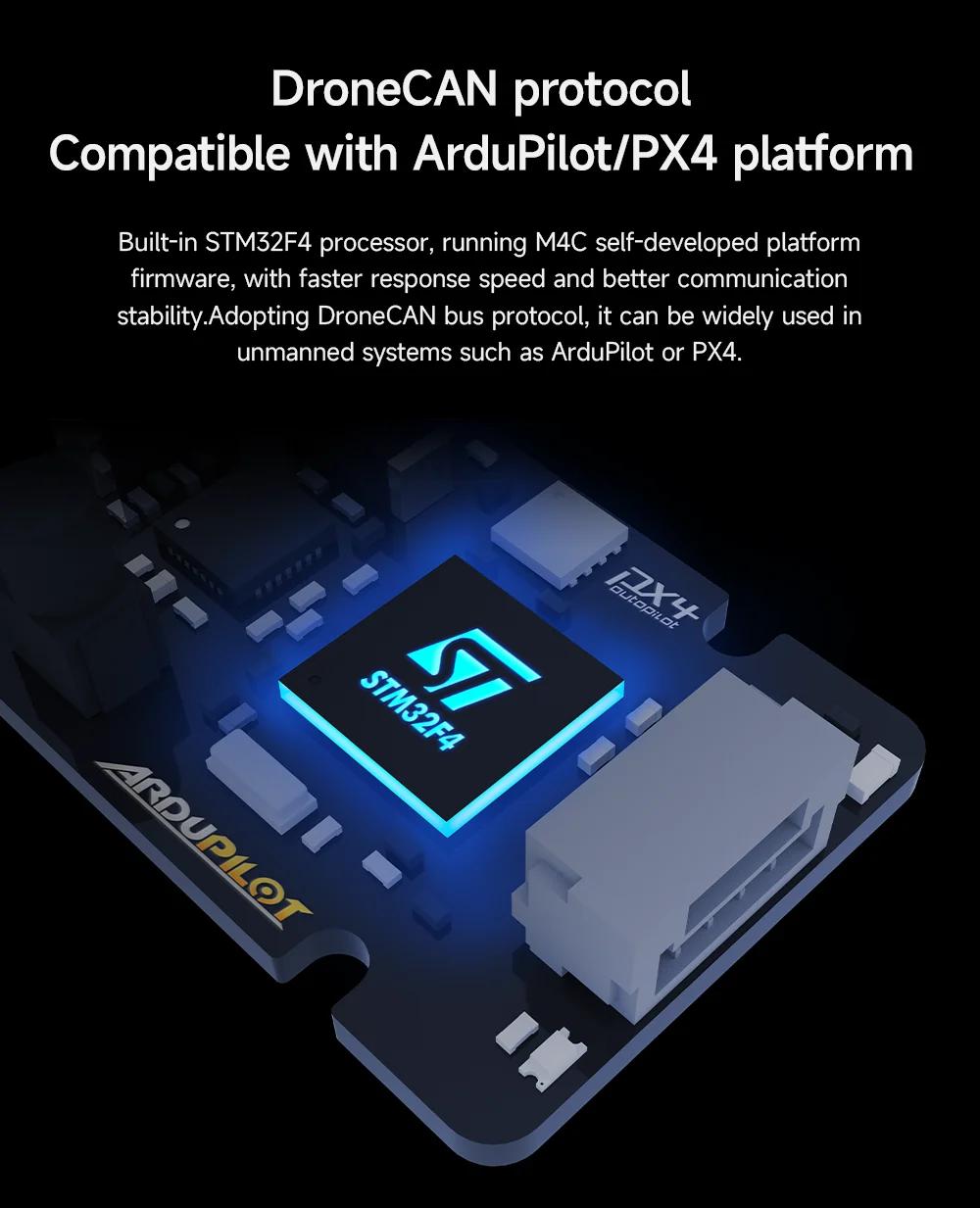

- Processor: STM32F4
- Communication protocol: for DroneCAN/UAVCAN
- Sensor: RM3100

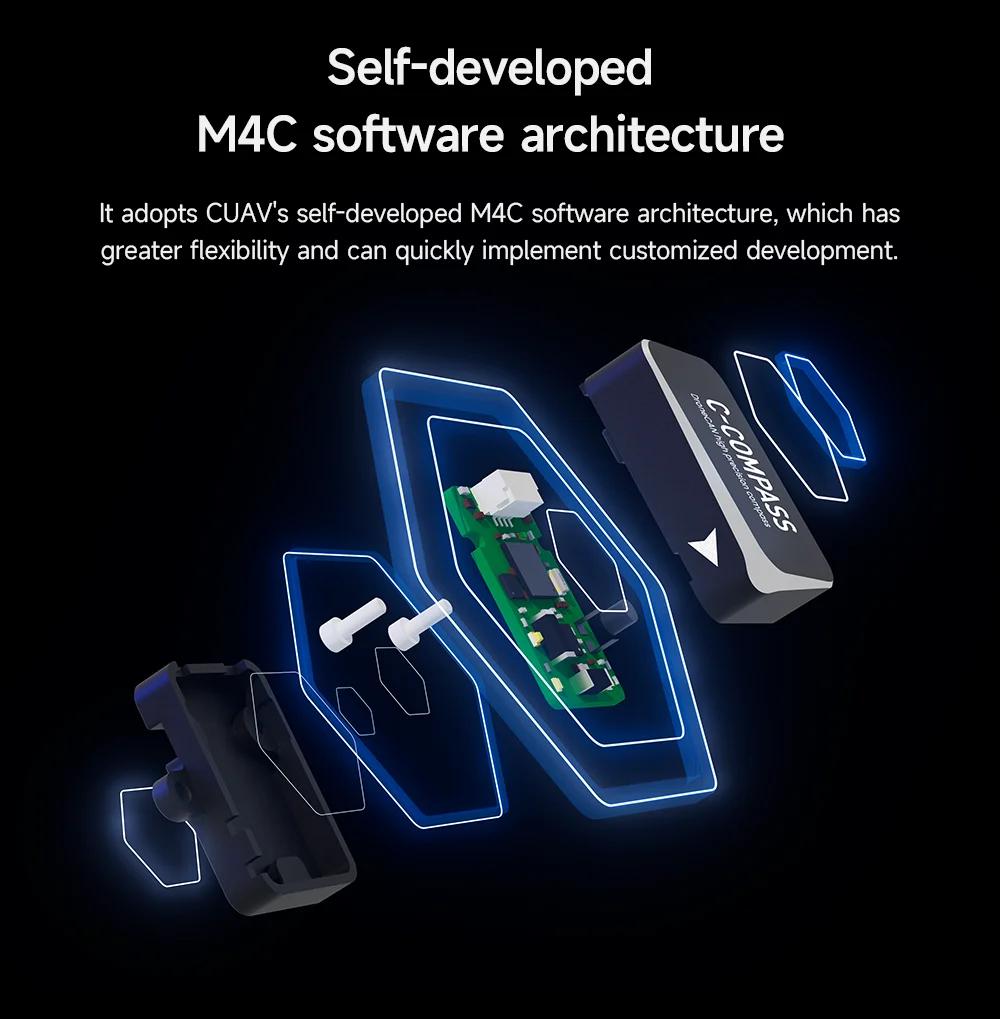

- Software structure: self-developed M4C
- Communication speed rate: 2Mb
- Refresh rate: 80Hz
- Noise: 15nT
- Accuracy: 0.25° (valid value)
- Repeat precision: 0.05°
- Resolution: 0.01°
- Sensitivity: 13nT
- Range: -800uT to +800uT
- Controller type: for PX4/ArduPilot (CUAV/Pixhawk, etc.)

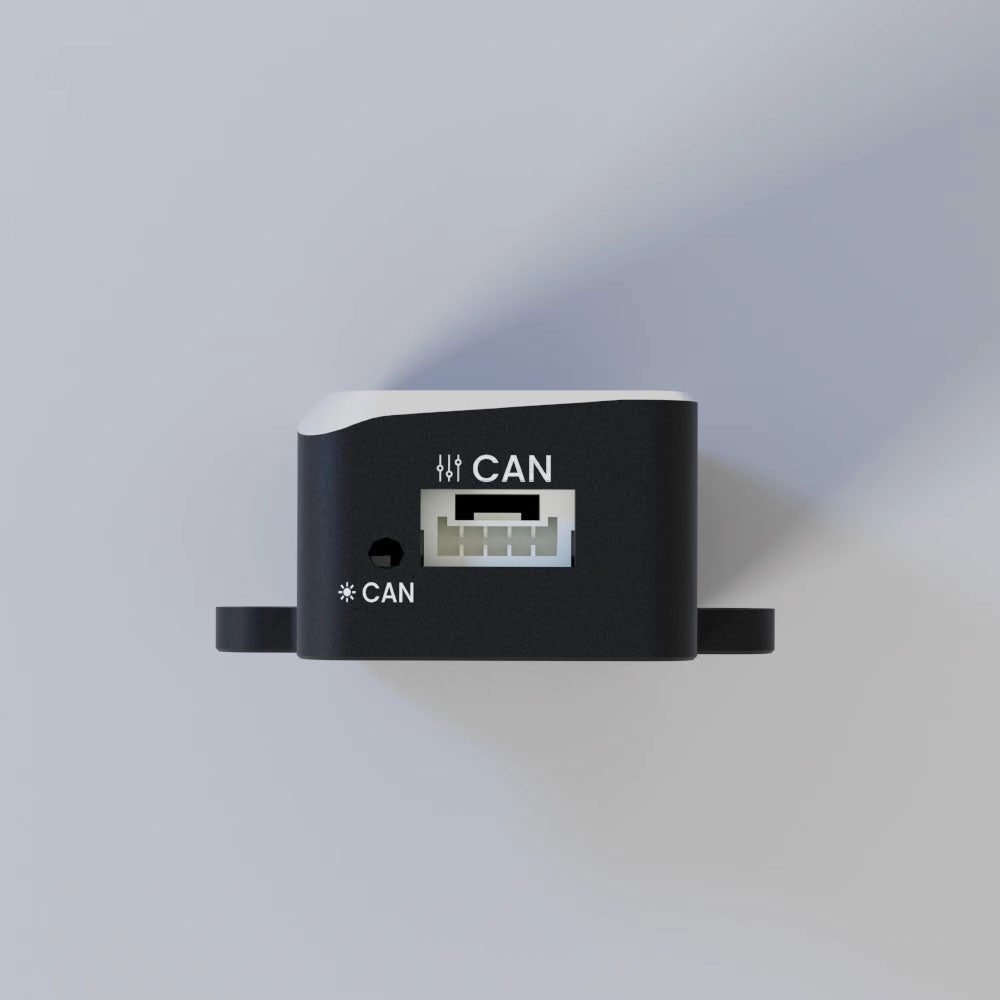

- Interface: GHR-04V-S
- Working voltage: 4.75 - 5.3V
- Working temperature: -20 ~ 80℃
- Working humidity: 5% - 95% (non-condensing)
- Case material: aluminum alloy
- Net weight: 13g

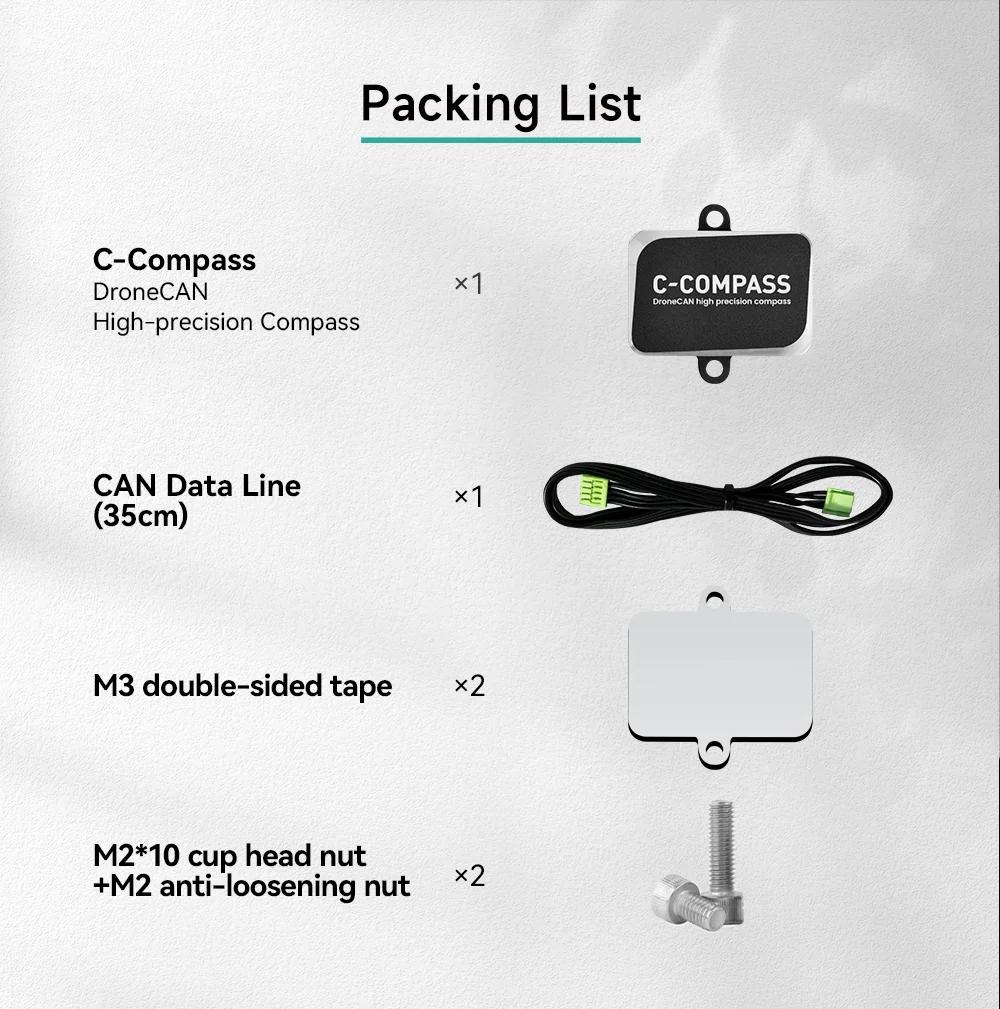

Package Included:
- 1 x Compass Module
- 1 x CAN Data Cable (35cm)
- 2 x 3M Double-sided Adhesive
- 2 x Screws
