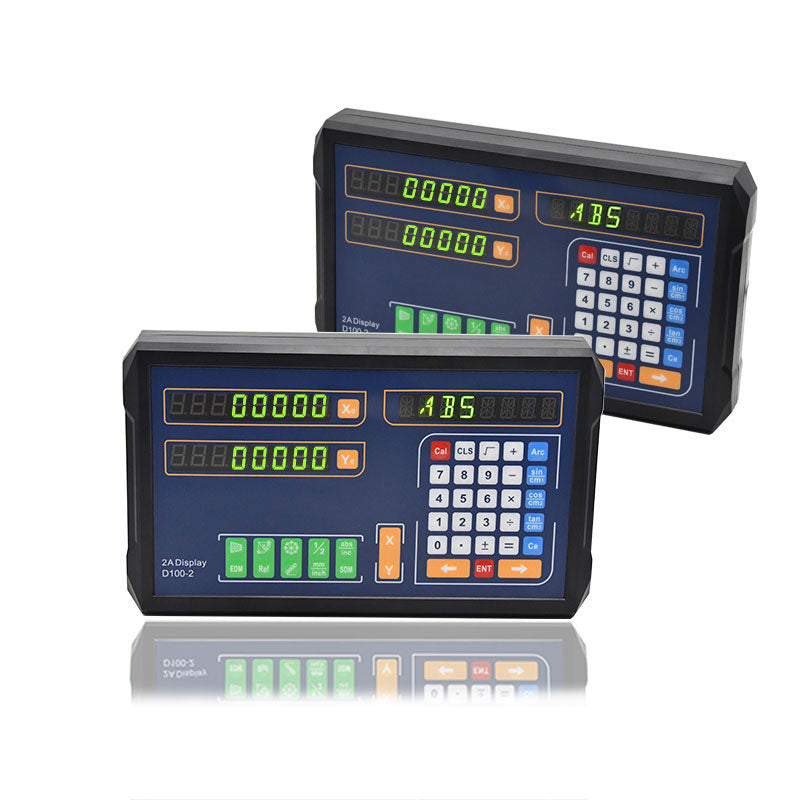

Ditron D100-2V Industrial 2-Axis Digital Readout Support EDM Function for Milling Machine Linear Scales

Features:
- Displaying as 8 digits with green LED.
- Unique film makes covering on the Windows makes the displaying much more recognizable.
- High integration makes the performance be stable.
- Switching on & switching off can meet more than 100000 times.
- Adopting the advanced digital filtering makes the counting be more accurate and stable.

Technical Parameters:
- Voltage range: AC80V-260V/50Hz-60Hz
- Power dissipation: 15W
- Working temperature: -10℃ to 60℃
- Coordinate display: 2 Axis
- Input signal: 5V TTL/RS422
- Input frequency: ≤4MHz
- Resolution (can be set): 0.1um, 0.2um, 0.5um, 1um, 2um, 2.5um, 5um, 10um

Basic Functions:
- Zeroing and Data Recovery
- Value Inputting
- Metric and Imperial Switching
- Power off Memory
- Encoder Selection (Rotary or Linear)
- Linear Compensation
- Non-linear Compensation
- Calculator
- Counting Direction Setting
- ABS/INC Coordinates

Special Functions:
- REF
- Centering
- PLD Function
- PCD Function
- Simple R Function
- Smooth R Function
- Radius/Diameter switching
- Axis summing
- Digital Filtering Function
- Taper Measuring Function
- RS232 Interface
- EDM Function

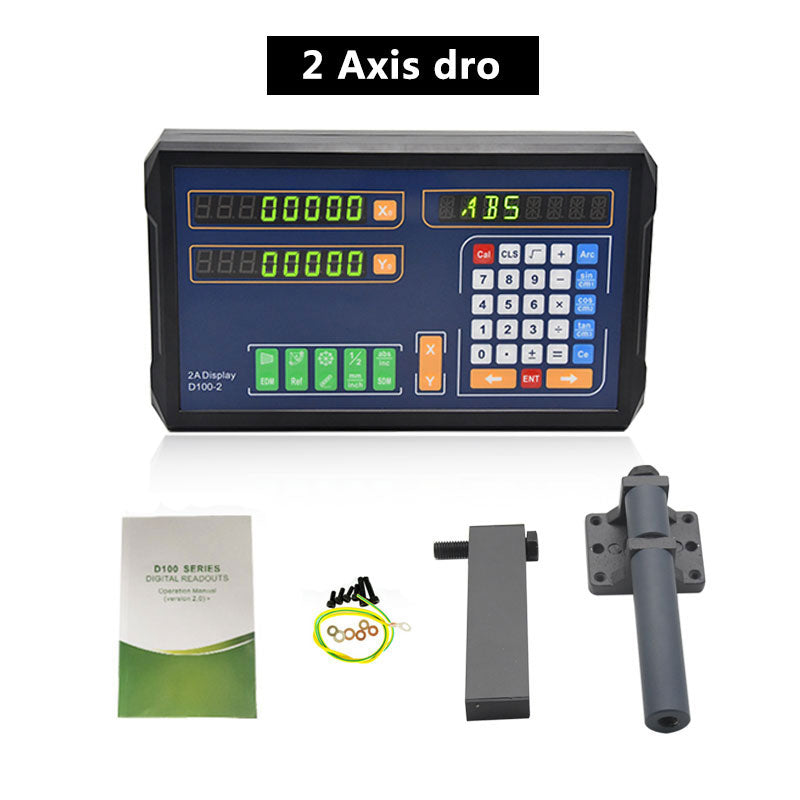

Package Included:
- 1 x Set of Digital Readout
