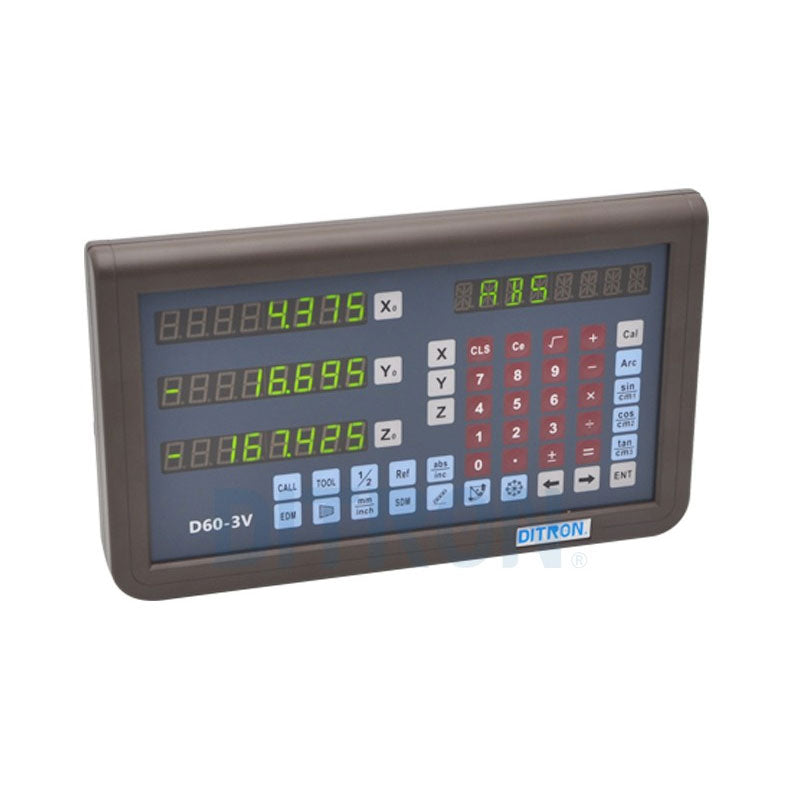

Ditron D60-3V Industrial 15W 3-Axis Digital Readout 5V TTL/RS422 Support PLD/PCD Functions for Linear Scales

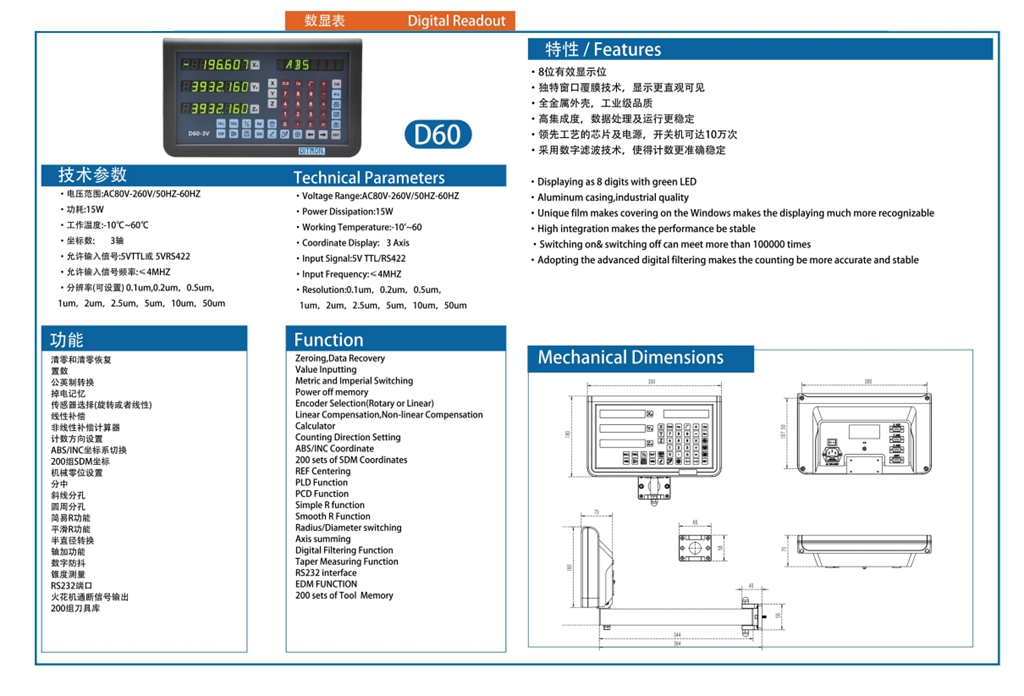

Technical Parameter:
- Voltage range: AC80V-260V/50Hz-60Hz
- Power dissipation: 15W
- Working temperature: -10℃ to 60℃
- Coordinate display: 3-Axis
- Input signal: 5VTTL/RS422
- Input frequency: ≤4MHz
- Resolution: 0.1um, 0.2um, 1um, 2um, 2.5um, 5um, 10um

Features:
- Display as 8 digits with green LED.
- Aluminum casing, industrial quality.
- Unique film makes covering on the Windows makes the displaying much more recognizable.
- High integration makes the performance be stable.
- Switching on &switching off can meet more than 100000 times.
- Adopting the advanced digital filtering makes the counting be more accurate and stable.

Basic Functions:
- Zeroing, Data Recovery
- Value Inputting
- Metric and Imperial Switching
- Power off Memory
- Encoder Selection (Rotary or Linear)
- Linear Compensation
- Non-linear Compensation
- Calculator
- Counting Direction Setting
- ABS/INC Coordinate
- 200 sets of SDM Coordinates
- REF Centering

Special Functions:
- PLD Function
- PCD Function
- Simple R Function
- Smooth R Function
- Radius/Diameter Switching
- Axis Summing
- Digital Filtering Function
- Taper Measuring Function
- RS232 Interface
- EDM Function
- 200 sets of Tool Memory

Package Included:
- 1 x Digital Readout
