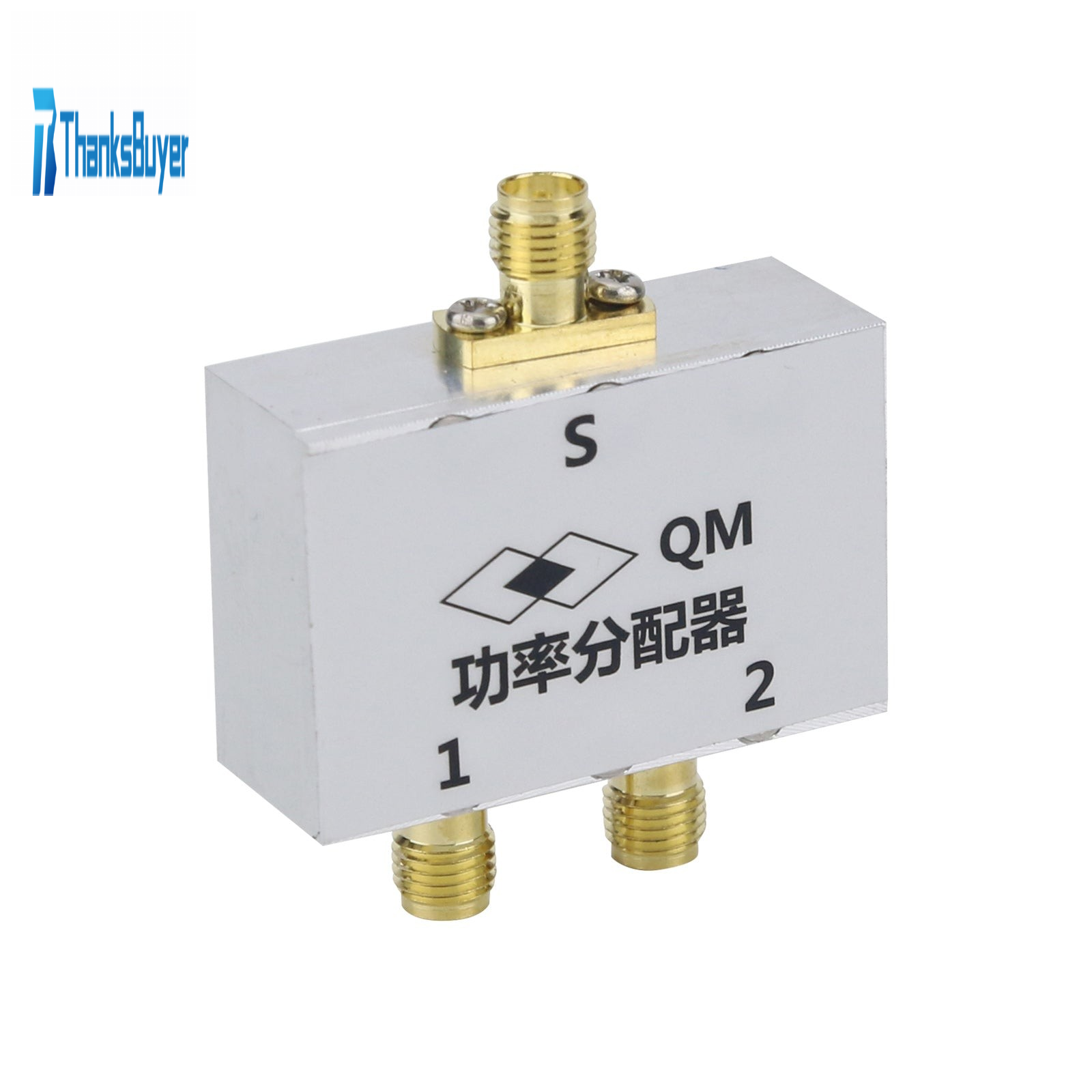

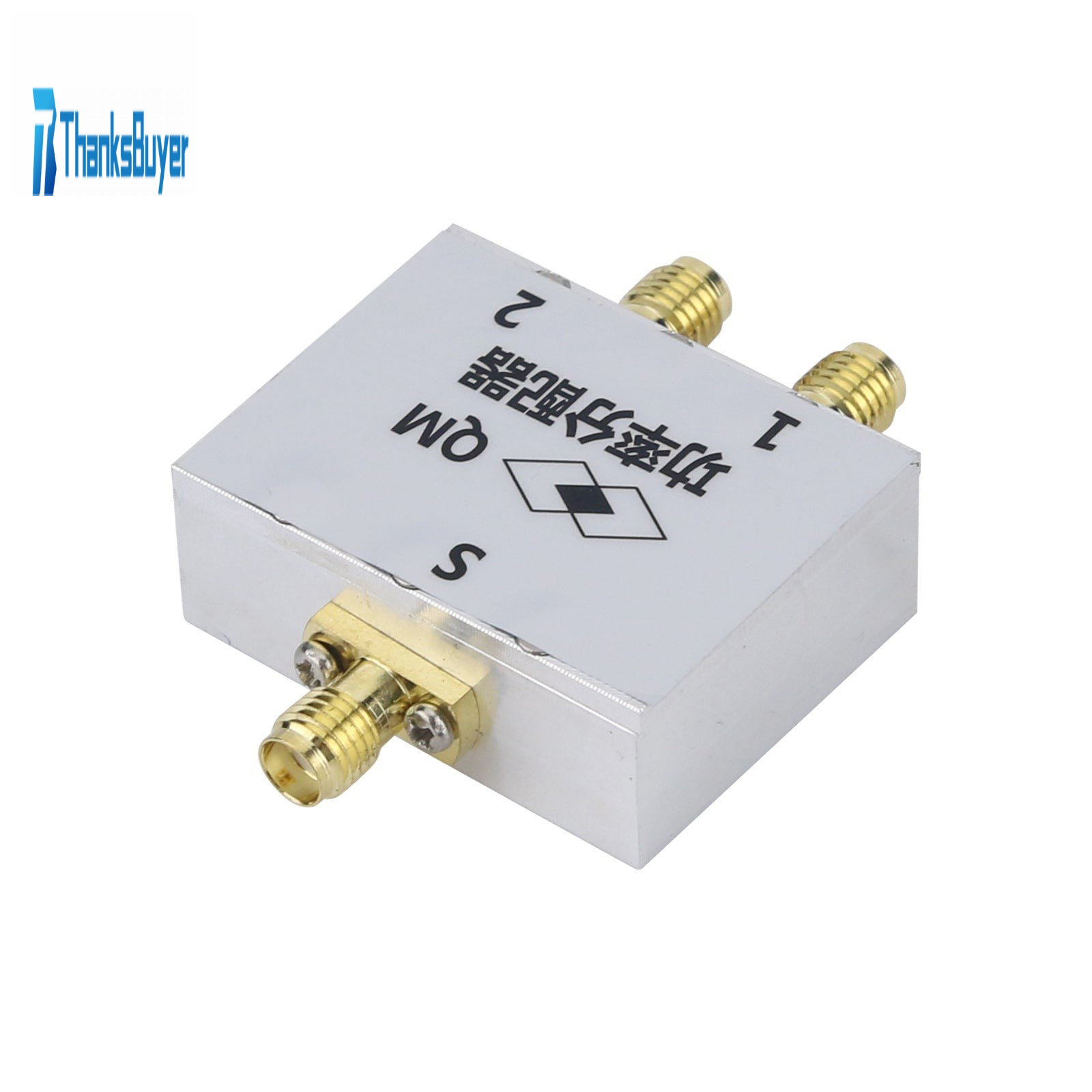

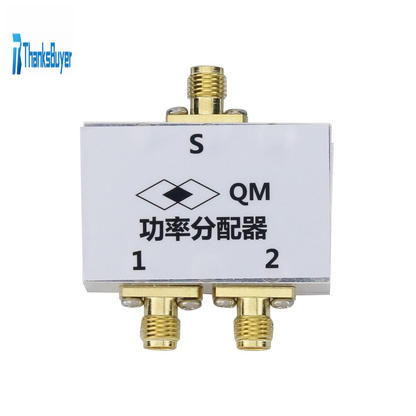

DC-500MHz 2-Way RF Power Divider RF Power Combiner 433M VHF UHF RF Power Splitter w/ High Isolation

DC-500MHz 2-Way RF Power Divider RF Power Combiner 433M VHF UHF RF Power Splitter w/ High Isolation

Description:
Power divider is a device that divides the energy of an input signal into two or more equal or unequal outputs. Conversely, it can also combine multiple signal energies into one output. Thus, it can also be called power combiner.

Technical Parameters:
- Performance: 2-way power splitter
- Operating frequency: DC-500MHz
- Typical insertion loss: 0.3dB
- Typical isolation of branch ports: >30 dB
- Input and output impedance: 50Ω
- Interface: SMA

Package Included:
- 1 x Power Divider

Packaging Details:
- G.W.: 0.15kg

Insertion Loss Test:


Branch Port Isolation Test:

At about 20M, the isolation degree has reached more than 50dB. Within the 100M bandwidth, the isolation is kept above 35dB. At 433M, its isolation remains at 30dB.
