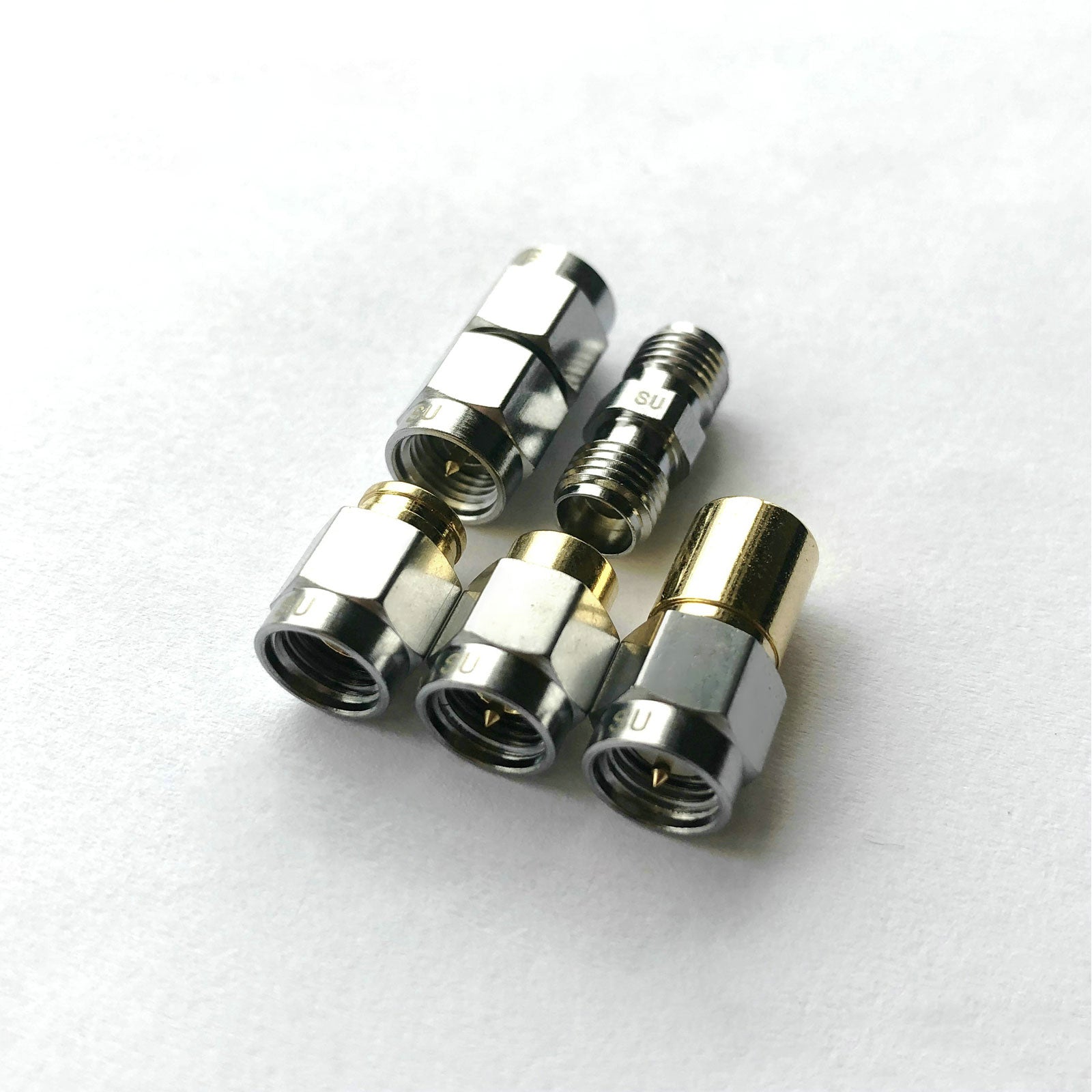

DC-6GHz 5PCS SMA Calibration Kit OPEN + SHORT + LOAD +THRU with SMA Male Connector for RF Circuit Impedance Compensation
Specification:
- OPEN phase error: 6GHz ≤ 1.5°
- SHORT phase error: 6GHz ≤ 1.5°
- LOAD return loss: ≥31dB, VSWR < 1.06
Package Included:
- 5 x SMA Calibration Units
OPEN Testing Diagram (smith):
SHORT Testing Diagram (smith):
THRU Testing Diagram:
LOAD Testing Diagram:
