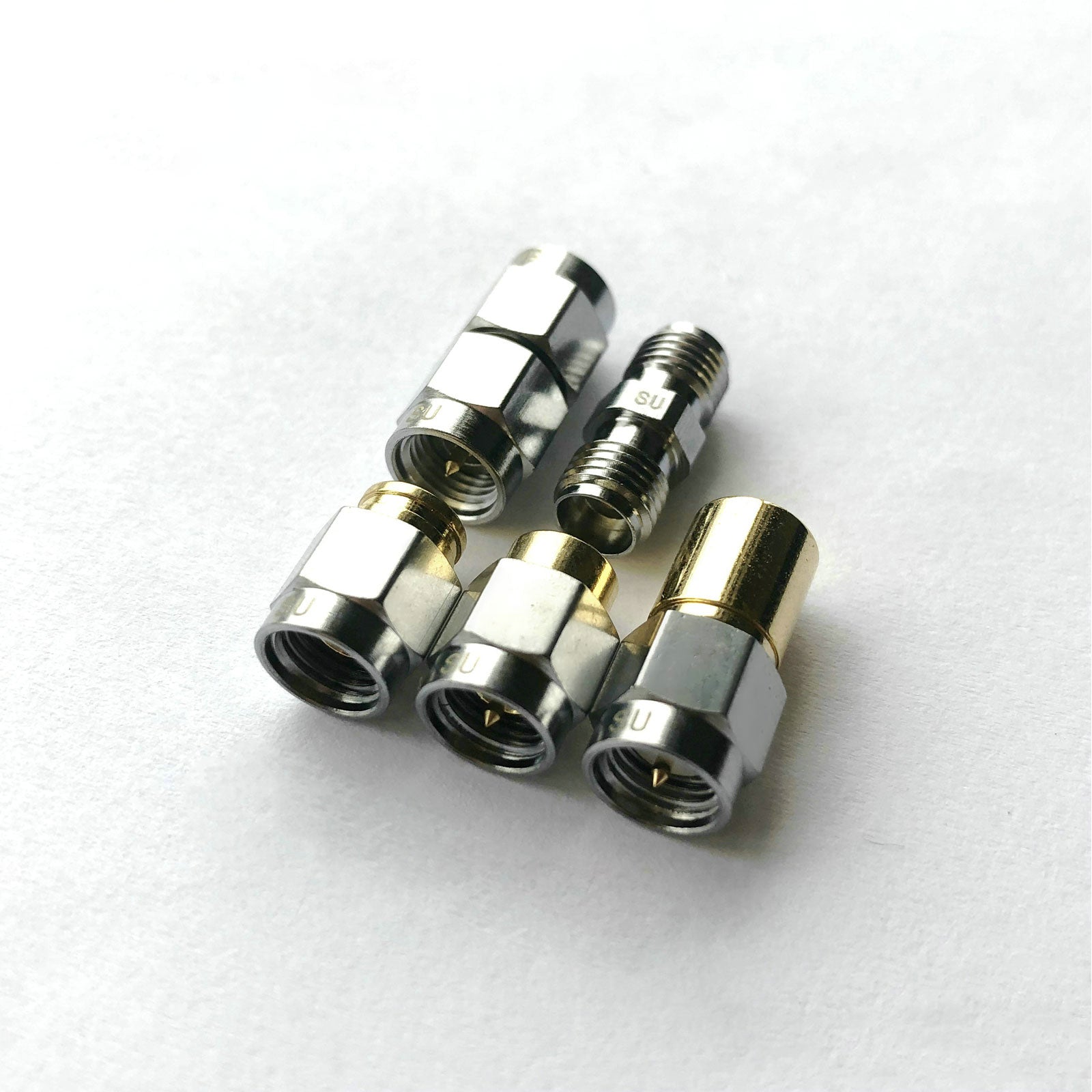

DC-8.5GHz 5PCS SMA Calibration Kit OPEN + SHORT + LOAD + THRU with SMA Male Connector for RF Circuit Impedance Compensation
Regular price
$35.11
Regular price
Sale price
$35.11
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Regular price
$35.11
Regular price
Sale price
$35.11
DC-8.5GHz 5PCS SMA Calibration Kit OPEN + SHORT + LOAD + THRU with SMA Male Connector for RF Circuit Impedance Compensation
Specification:
- OPEN phase error: 8.5GHz ≤ 3.0°
- SHORT phase error: 8.5GHz ≤ 3.0°
- LOAD return loss: ≥31dB, VSWR < 1.06
Package Included:
- 5 x SMA Calibration Units
OPEN Testing Diagram (smith):
SHORT Testing Diagram (smith):
THRU Testing Diagram:
LOAD Testing Diagram:
