DC-8.5GHz 8PCS SMA Calibration Kit with 4PCS N to SMA Adapters for RF Circuit Impedance Compensation
Specification:
- OPEN phase error: 8.5GHz ≤ 3.0°
- SHORT phase error: 8.5GHz ≤ 3.0°
- LOAD return loss: ≥31dB, VSWR < 1.06 for male connector; ≥28dB, VSWR < 1.07 for female connector

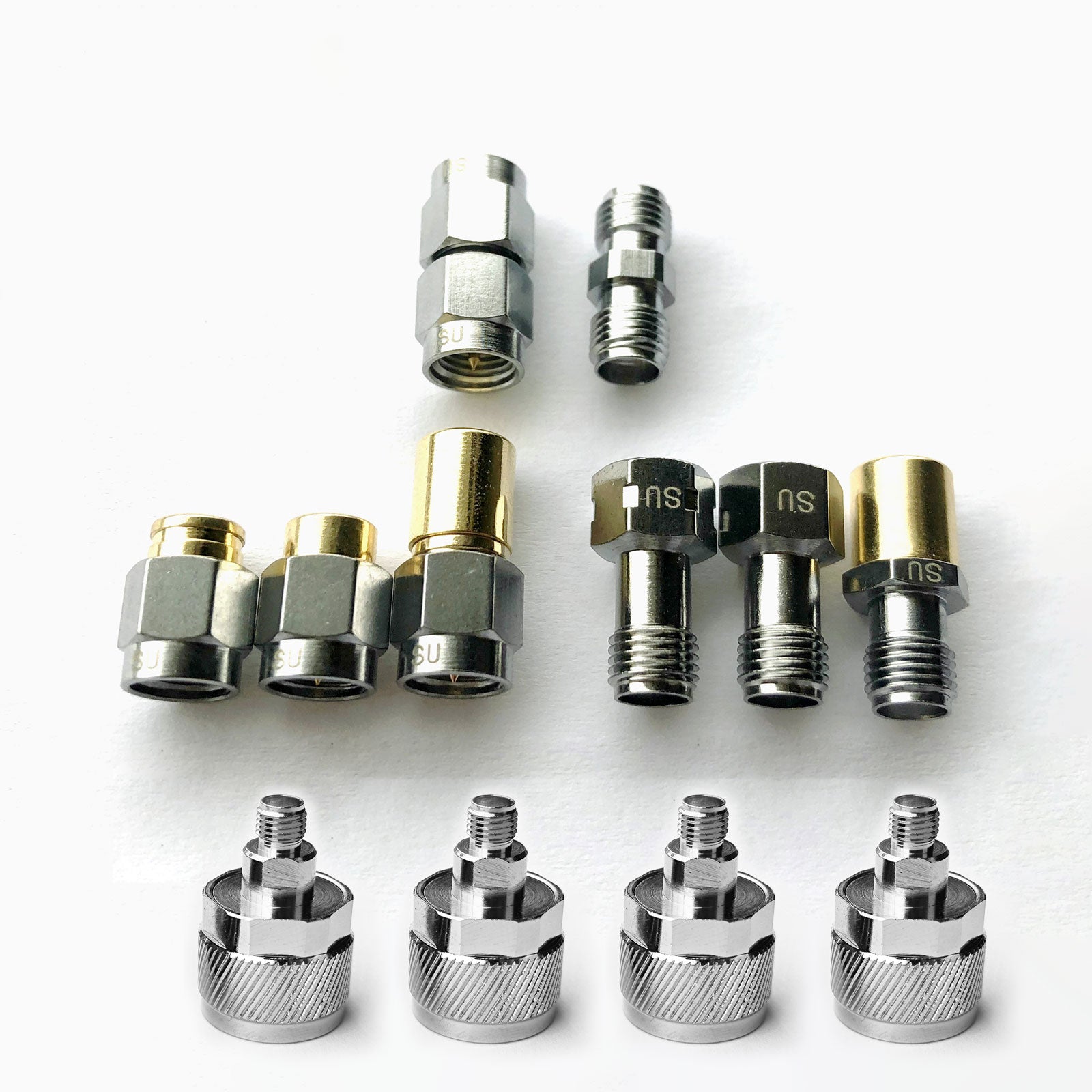

Package Included:
- 8 x SMA Calibration Units
- 4 x N to SMA Adapters
OPEN Testing Diagram (smith):
SHORT Testing Diagram (smith):
THRU Testing Diagram:
LOAD Testing Diagram:
