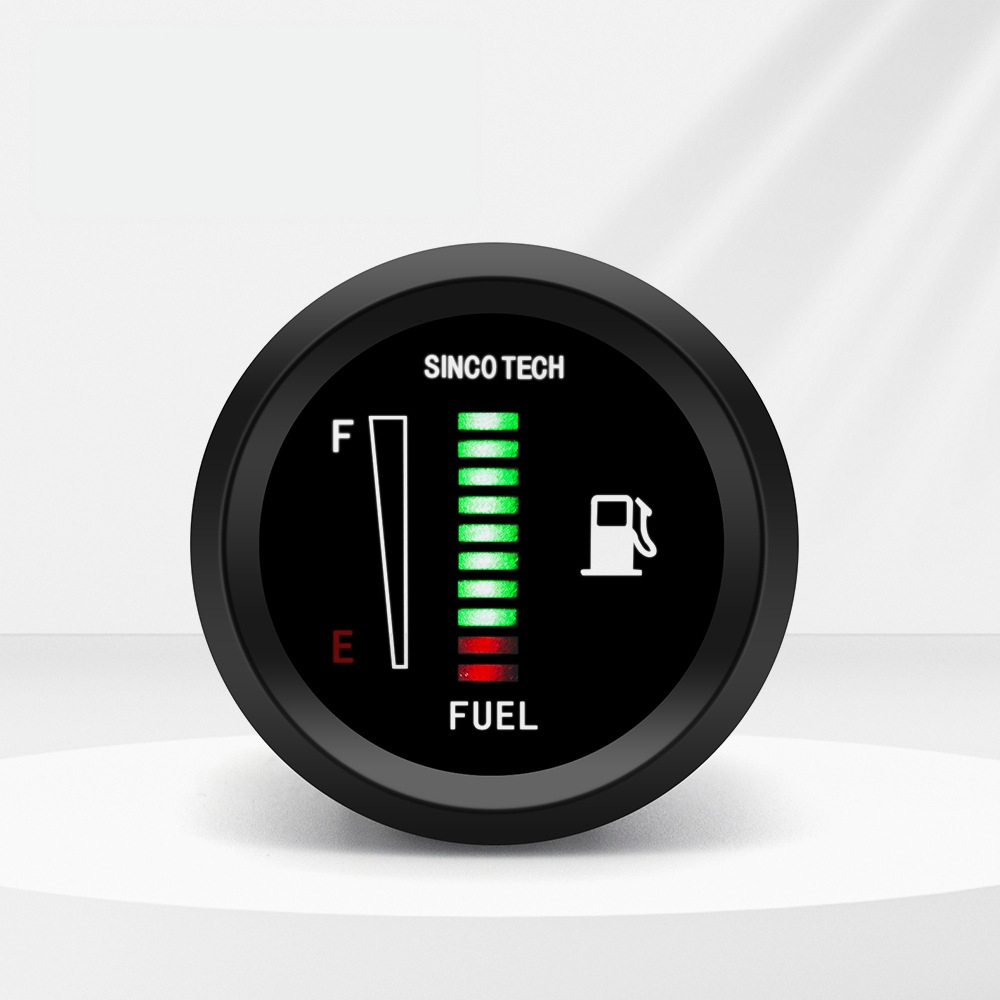

DO611F Fuel Level Gauge 52MM 8-18V Resistance Type Fuel Level Sensor for SINCO TECH

DO611F Fuel Level Gauge 52MM 8-18V Resistance Type Fuel Level Sensor for SINCO TECH

Description:
- The instrument is fit to a resistance type fuel level sensor, and the measuring range of the sensor is ≤2KΩ

Parameter:
- Voltage: 8-18V
- Size: 52mm

Setting description:
- Press and hold the key for 3 seconds to enter the low oil level setting: the lowest LED flashes. At this time, push the oil sensor to the lowest position and press the key once (set the lowest oil level value).
- The instrument enters the high oil level setting: the highest LED flashes. At this time, push the oil sensor to the highest position and press the key once (set the highest oil level value).
- The instrument enters the normal working mode after completing the setting: the LED scans from the lowest position to the highest position once and then enters the normal working mode to display the current fuel level.

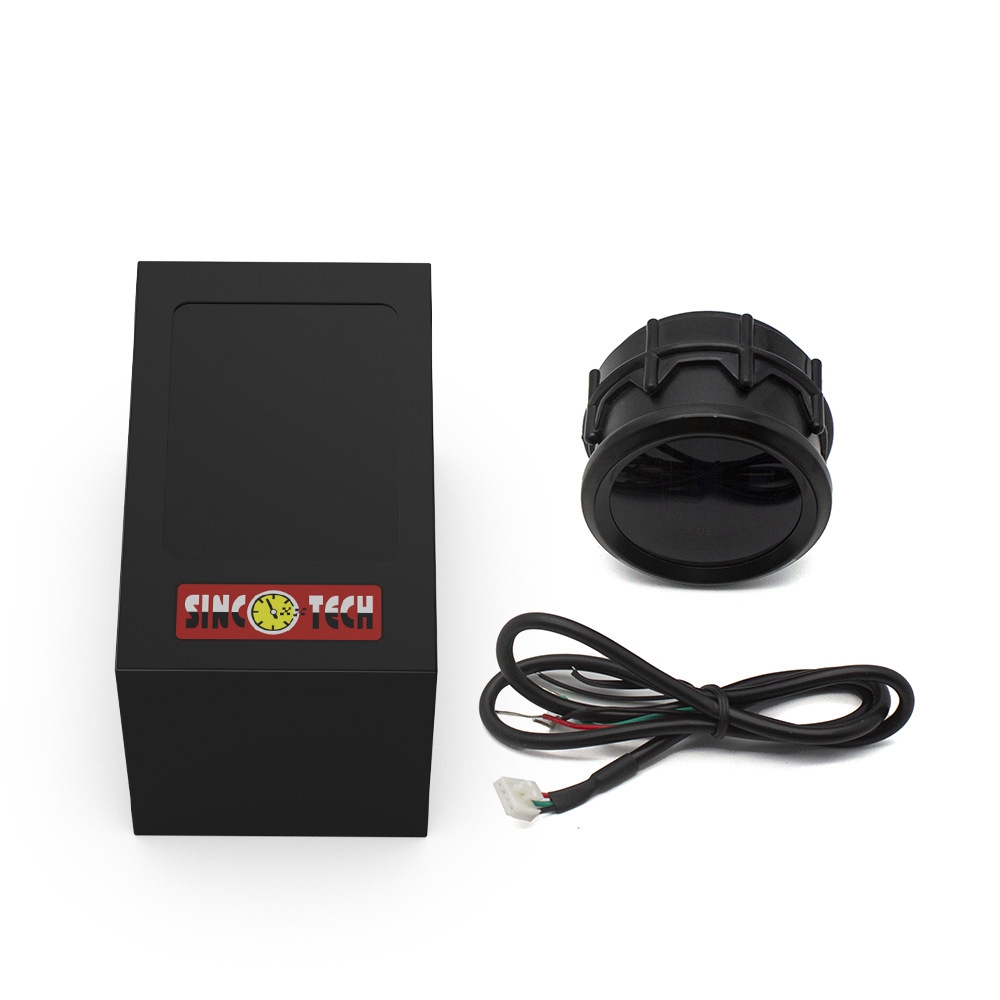

Package Included:
- 1 x DO611F Fuel Level Gauge
- 1 x Cable
